Chuancheng Plastic Cutter Replacement Tool User Manual

1. Introduction

This manual provides essential instructions for the safe and effective use of Chuancheng plastic cutter replacement tools. These cutters are designed for specific Florabest LIDL garden lawn mowers and trimmers, including models Frta 20 A1, Fat 18 A, and Fat 18 B. Please read this manual thoroughly before installation and operation to ensure proper fit and function.

2. Safety Information

Always prioritize safety when working with power tools and replacement parts. Failure to follow safety guidelines can result in injury or damage to equipment.

• Read the Trimmer Manual: Before installing these replacement cutters, consult the original instruction manual for your Florabest LIDL trimmer for specific safety warnings and procedures.
• Disconnect Power: Always ensure the trimmer is turned off and disconnected from its power source (battery removed or unplugged) before performing any maintenance or part replacement.
• Wear Protective Gear: Use appropriate personal protective equipment (PPE), including safety glasses, gloves, and sturdy footwear, when handling and replacing trimmer parts.
• Inspect Parts: Before installation, inspect each plastic cutter for any manufacturing defects or damage. Do not use damaged cutters.
• Use Correct Parts: Only use replacement parts specifically designed for your trimmer model. Using incorrect parts can lead to poor performance or damage.
• Keep Children Away: Ensure children and bystanders are kept at a safe distance during installation and operation.

3. Installation Instructions

These plastic cutters are designed for direct replacement on compatible Florabest LIDL trimmers. Follow these steps for proper installation:

1. Prepare the Trimmer:
   • Ensure the trimmer is switched off and disconnected from its power source (battery removed or unplugged).
   • Place the trimmer on a stable, flat surface.
2. Remove Old Cutters:
   • Locate the existing plastic cutters on the trimmer head.
   • Depending on your trimmer model, you may need to press a release button or gently pull the old cutter from its slot. Refer to your trimmer's manual for specific removal instructions.
   • Discard worn or broken cutters responsibly.
3. Install New Cutters:
   • Take a new Chuancheng plastic cutter.
   • Align the large hole (10mm) of the cutter with the corresponding pin or slot on the trimmer head.
   • Push the cutter firmly into place until it clicks or is securely seated. Ensure the small hole (5mm) is also correctly aligned if applicable to your trimmer's design.
   • Verify that the cutter is securely attached and cannot be easily dislodged.
4. Repeat for All Cutters: Install all necessary replacement cutters following the same procedure.
5. Final Check: Before reconnecting power, manually rotate the trimmer head (if possible) to ensure all new cutters are properly installed and move freely without obstruction.

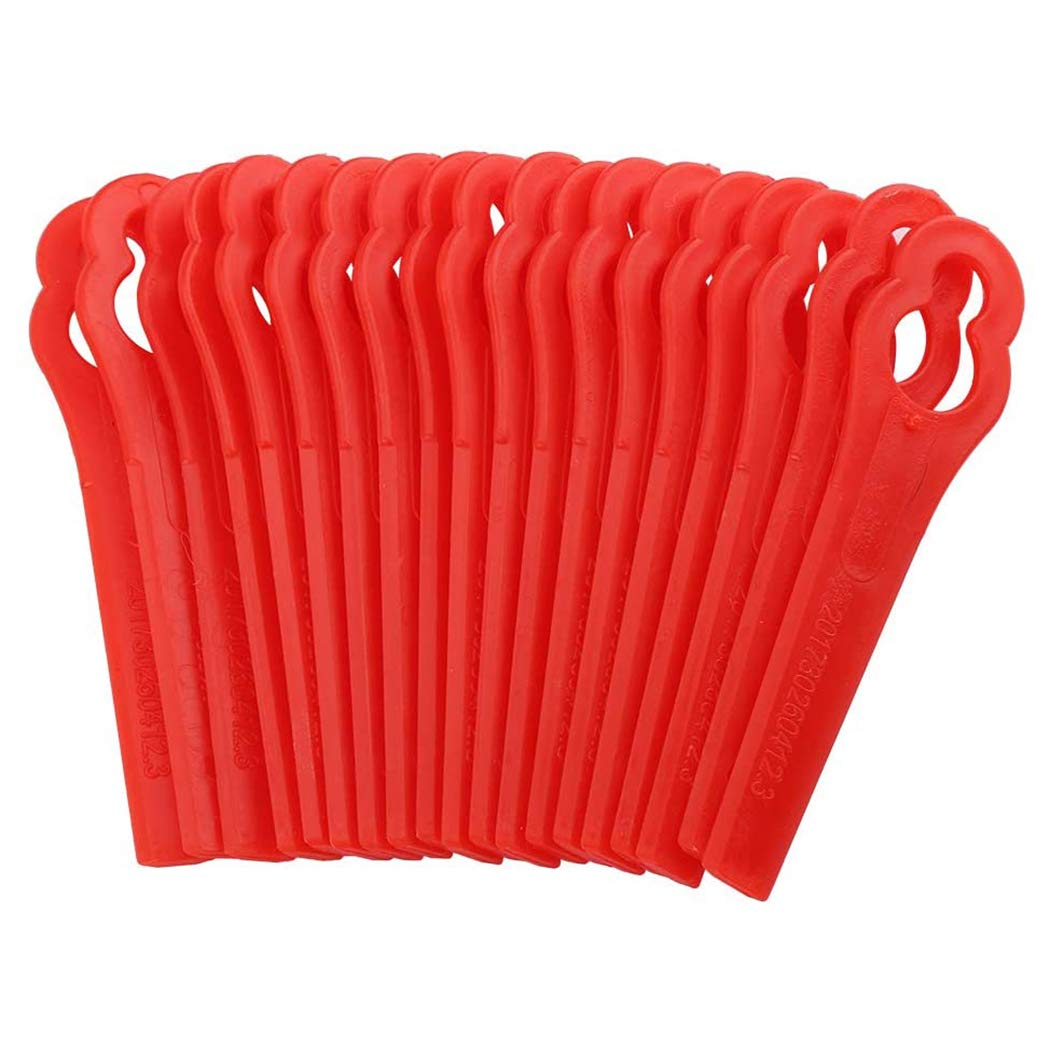

Figure 3.1: Chuancheng Plastic Cutter Replacement Tools. These cutters feature a total size of approximately 76mm, with a large hole size of approximately 10mm and a small hole size of approximately 5mm, designed for compatibility with Florabest LIDL Frta 20 A1, Fat 18 A, and Fat 18 B trimmers.

4. Operation with New Cutters

Once the new plastic cutters are installed, you can resume normal operation of your Florabest LIDL trimmer. Always adhere to the operating instructions and safety guidelines provided in your trimmer's original manual.

• Pre-Operation Check: Before each use, visually inspect the installed cutters to ensure they are still securely attached and free from damage.
• Proper Trimming Technique: Operate the trimmer as recommended by its manufacturer. Avoid striking hard objects, as this can damage the plastic cutters and potentially the trimmer itself.
• Listen for Changes: Pay attention to any unusual noises or vibrations during operation, which could indicate a damaged or improperly installed cutter.

5. Maintenance

Regular inspection and timely replacement of plastic cutters are crucial for maintaining optimal trimming performance and safety.

• Inspect Regularly: After each use, or before the next use, inspect the plastic cutters for signs of wear, cracks, chips, or breakage.
• Replace Worn Cutters: Plastic cutters are consumable items and will wear down with use. Replace them as soon as they show significant wear or damage to maintain cutting efficiency and prevent potential imbalance in the trimmer head.
• Storage: Store unused replacement cutters in a cool, dry place, away from direct sunlight and extreme temperatures, to preserve their material integrity.

6. Troubleshooting

This section addresses common issues related to the plastic cutter replacement tools.

7. Specifications

• Product Type: Plastic Cutter Replacement Tool
• Material: Plastic
• Color: Red
• Total Size: Approximately 76mm
• Large Hole Size: Approximately 10mm
• Small Hole Size: Approximately 5mm
• Compatibility: Florabest LIDL Frta 20 A1, Lidl Ian 282232, Fat 18 A, Fat 18 B Garden Lawn Mowers and Trimmers
• Quantity: 80 pieces per package

8. Warranty and Support

For specific warranty information or further technical assistance regarding your Chuancheng plastic cutter replacement tools, please contact the manufacturer directly. Information regarding a specific warranty period for this product was not provided in the product details.

Manufacturer: Chuancheng

Please refer to your purchase documentation or the retailer's website for contact details or return policies.
