Aqua Select Above Ground Swimming Pool Resin Safety Pool Fence Base Instruction Manual

1. Product Overview

The Aqua Select Above Ground Swimming Pool Resin Safety Pool Fence Base is designed to enhance the safety of your above-ground pool. This 24-inch tall fence acts as a barrier to help prevent accidental drownings and keeps unwanted intruders out of the pool area. It also serves to keep pool toys contained within the pool. Constructed from strong, UV-protected vinyl, this fence is built for durability and easy integration with most above-ground pools.

Key Features:

• Provides an essential safety barrier for above-ground swimming pools.
• Constructed from durable, UV-protected vinyl material.

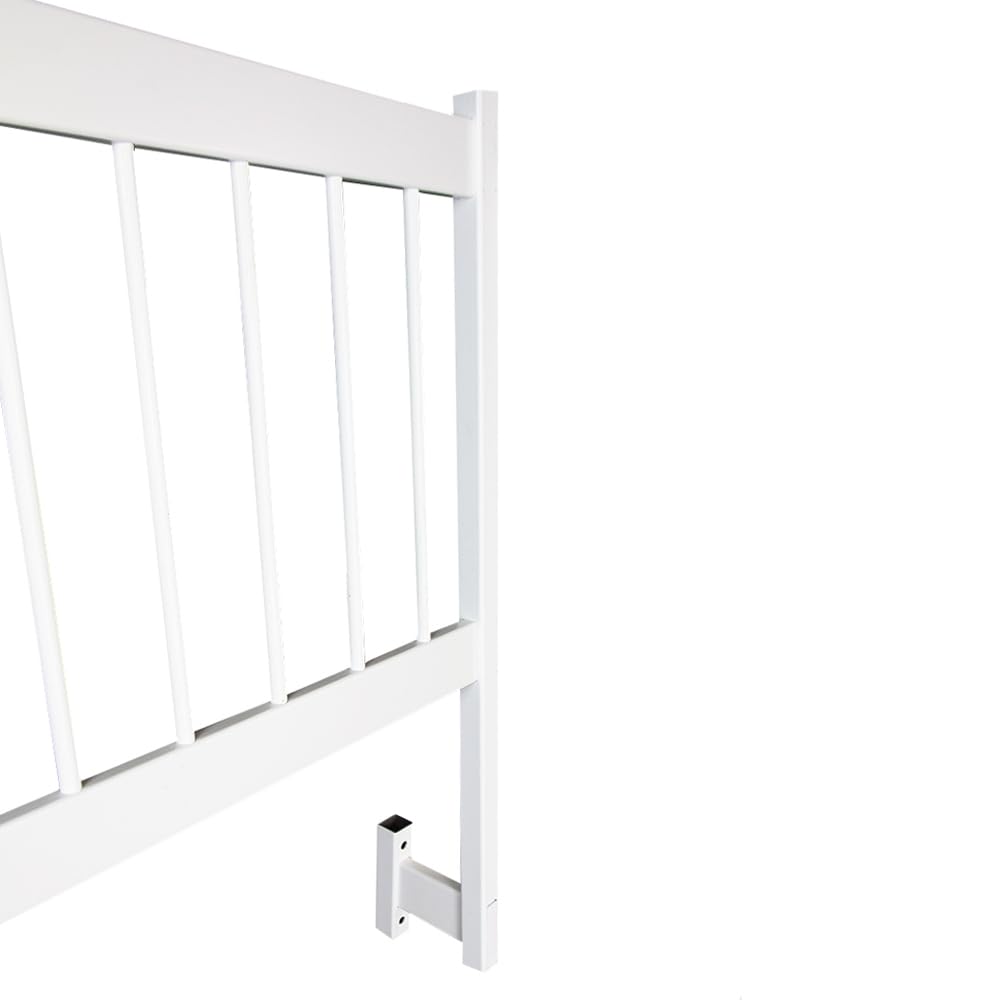

• Features extra strong mounting brackets for secure attachment to pool uprights.
• Helps to keep unwanted access out and pool toys within the pool area.
• Includes all necessary fencing, posts, hardware, and instructions for installation.

2. Installation Guide

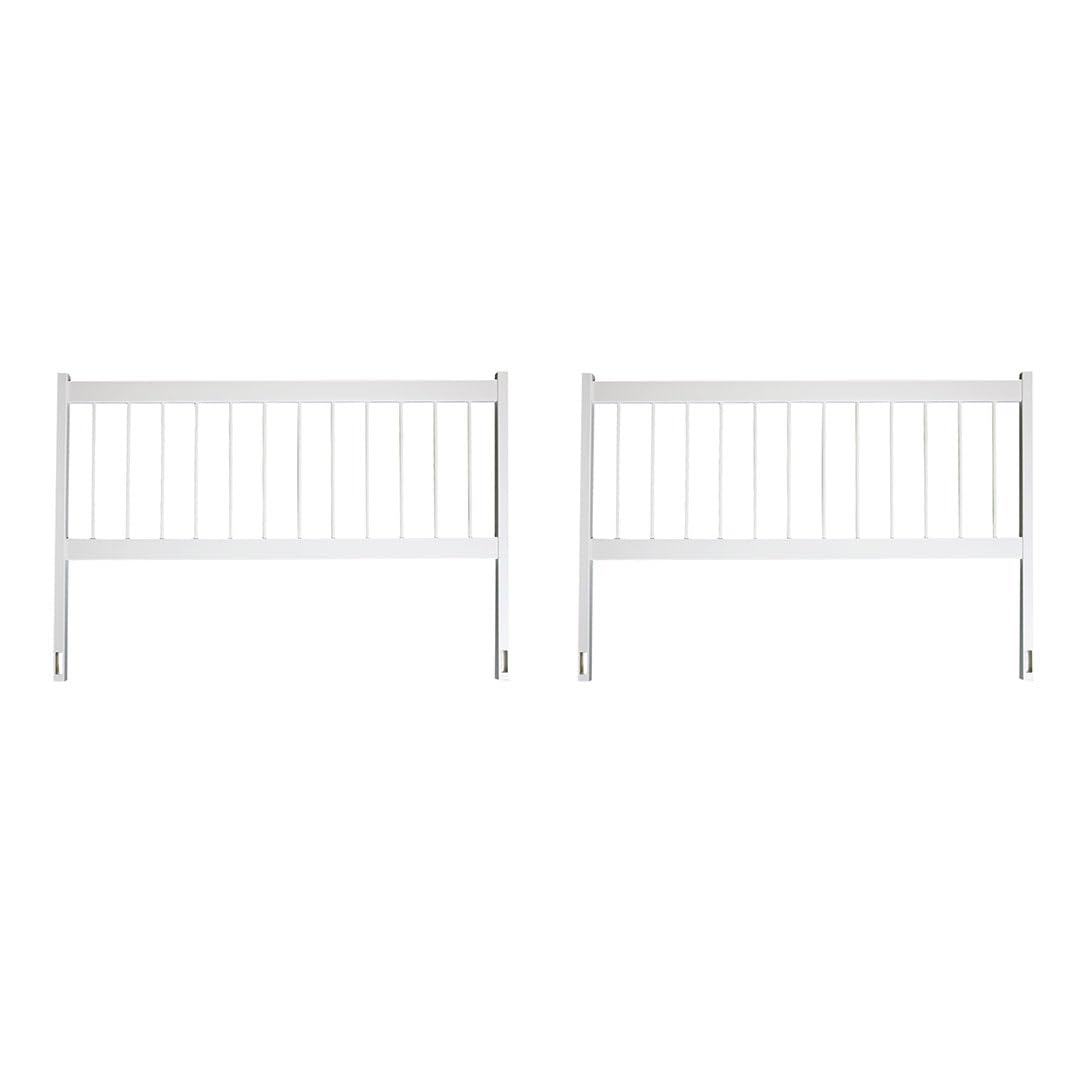

This Kit C includes 2 fence sections and all required hardware for installation. The rounded mounting brackets are designed for easy attachment to your pool's uprights. For optimal safety and stability, ensure all components are securely fastened.

2.1 Determining Fence Size and Kit Requirements

Fence size is determined by the number of "fence sections," which corresponds to the number of spaces your pool has between uprights. One fence section equals one space between two uprights. All pool fence installations require Base Kit A. Larger fences utilize Kits B and C to extend the coverage.

Count the number of fence sections your pool has and refer to the following guide to determine the kits needed:

• 8 Fence Sections: Kit A x1
• 10 Fence Sections: Kit A x1, Kit C x1
• 11 Fence Sections: Kit A x1, Kit B x1
• 12 Fence Sections: Kit A x1, Kit C x2
• 13 Fence Sections: Kit A x1, Kit B x1, Kit C x1
• 14 Fence Sections: Kit A x1, Kit B x2
• 15 Fence Sections: Kit A x1, Kit B x1, Kit C x2
• 16 Fence Sections: Kit A x1, Kit B x2, Kit C x1
• 17 Fence Sections: Kit A x1, Kit B x3
• 18 Fence Sections: Kit A x1, Kit B x2, Kit C x2
• 19 Fence Sections: Kit A x1, Kit B x3, Kit C x1
• 20 Fence Sections: Kit A x1, Kit B x4
• 21 Fence Sections: Kit A x1, Kit B x3, Kit C x2
• 22 Fence Sections: Kit A x1, Kit B x4, Kit C x1

Note: The Gate must be purchased separately.

2.2 Assembly Steps

1. Unpack all components and verify that all fencing, posts, and hardware are present.
2. Identify the uprights of your above-ground pool where the fence sections will be mounted.
3. Attach the mounting brackets to the pool's uprights using the provided hardware. Ensure they are level and securely fastened.
4. Slide the fence posts into the mounted brackets.
5. Connect the fence sections to the posts, ensuring a snug and secure fit.
6. Repeat the process for all sections, working around the perimeter of your pool.
7. Once all sections are in place, double-check all connections and hardware for tightness and stability.

3. Usage and Safety

The Aqua Select Pool Safety Fence is designed to provide an added layer of security around your above-ground pool. While installed, it helps deter unauthorized access and keeps children and pets away from the water when not supervised. Always ensure the fence is properly installed and maintained for maximum effectiveness.

Important Safety Considerations:

• This fence is a deterrent and not a substitute for adult supervision. Always supervise children and pets around the pool area.
• Regularly inspect the fence for any signs of damage or loose connections.
• Ensure any gates (purchased separately) are always closed and latched when the pool is not in use.

4. Care and Maintenance

To ensure the longevity and effectiveness of your Aqua Select Pool Safety Fence, follow these simple care and maintenance guidelines:

• Cleaning: Clean the vinyl fence sections periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the UV-protected surface. Rinse thoroughly with clean water.
• Inspection: Regularly inspect all fence sections, posts, and mounting hardware for any signs of wear, damage, or loosening. Check for cracks in the vinyl or corrosion on metal components.
• Tightening: Re-tighten any loose screws or connections on the mounting brackets as needed to maintain stability.
• Storage: If you plan to remove the fence for off-season storage, clean all components thoroughly and store them in a dry, protected area away from direct sunlight and extreme temperatures.

5. Troubleshooting

This section addresses common issues you might encounter with your pool safety fence.

5.1 Fence Sections Appear Loose

If fence sections feel wobbly or loose after installation:

• Check Mounting Brackets: Ensure that the screws attaching the mounting brackets to the pool uprights are fully tightened.
• Verify Post Connection: Confirm that the fence posts are fully seated and secured within the mounting brackets.
• Inspect Section Connections: Make sure the fence sections are properly connected to the posts and that all connecting hardware is secure.

5.2 Vinyl Material Damage

If you notice cracks, breaks, or significant discoloration in the vinyl material:

• Assess Severity: Small cosmetic issues may not affect safety, but significant damage compromising the fence's integrity requires attention.
• Contact Support: For replacement parts or advice on repairing damaged sections, contact Aqua Select customer support. Do not attempt to use a compromised fence as a safety barrier.

6. Product Specifications

7. Important Information

Kayak® and Kayak Pools® are trademarks of Kayak Pool Corporation. Save More on Pool Supplies is not affiliated with Kayak Pool Corporation or Kayak Pools®. All parts manufactured for, or purchased from, Save More on Pool Supplies are warranted by Save More on Pool Supplies.

8. Customer Support

For further assistance, technical support, or inquiries regarding replacement parts, please contact Aqua Select customer service. Refer to your product packaging or the Aqua Select official website for the most current contact information.

You may also find additional information and resources on the official Aqua Select brand store: Aqua Select Store.
