AMI PARTS W10613606 Refrigerator Compressor Start Relay and Capacitor Instruction Manual

Product Overview

This AMI PARTS W10613606 Refrigerator Compressor Start Relay and Capacitor is a replacement part designed to restore proper function to your refrigerator's compressor. It helps the compressor start and stop efficiently, maintaining consistent temperatures within the appliance.

Image: The AMI PARTS W10613606 Refrigerator Compressor Start Relay and Capacitor.

Specifications

Compatibility

This W10613606 relay and capacitor is compatible with various refrigerator models from top brands, including:

• Whirlpool (e.g., GX5FHDXTB01, GX5FHDXTB11, GX5FHDXTL01, GX5FHDXTL11, GX5FHDXTQ00, GX5FHDXTQ01)
• Maytag (e.g., MZD2665HEB, MZD2665HEW, MZD2663KEB, MZD2663KEQ, MZD2663KES, MZD2667HEQ, MZD2667HES)
• Kenmore, Amana, Crosley, Admiral, and others.

If you are unsure about compatibility, please consult your appliance's manual or contact the manufacturer.

Installation Instructions

Warning: Danger of electric shock. To prevent serious personal injury, ensure that the power supply to the appliance is switched off before attempting any installation or repair.

This replacement part is designed for easy installation. Follow these general steps:

1. Disconnect the refrigerator from its power source.
2. Locate the existing compressor start relay and capacitor, typically found near the compressor at the back of the refrigerator.
3. Carefully disconnect the wiring from the old relay and capacitor. Note the position of each wire for correct reinstallation.
4. Remove the old relay and capacitor.
5. Connect the new AMI PARTS W10613606 relay and capacitor, ensuring all connections are secure and match the original configuration.
6. Reinstall any covers or panels that were removed.
7. Restore power to the refrigerator.

Image: A sequence of images demonstrating the installation process of the compressor start relay and capacitor.

For a visual guide, refer to the installation video below:

Operating Instructions

The W10613606 Refrigerator Compressor Start Relay and Capacitor operates automatically to manage the compressor's function. Once correctly installed, it ensures the compressor starts and stops as needed to maintain the desired temperature within your refrigerator and freezer compartments. No manual operation is required for this component.

Maintenance

This component is designed for durability and does not require routine maintenance. Regular cleaning of the refrigerator's condenser coils can help ensure the compressor and its associated parts operate efficiently.

Troubleshooting

If your refrigerator exhibits any of the following symptoms, a faulty start relay and capacitor might be the cause:

• The refrigerator does not start.
• The refrigerator compartment is too warm.
• The freezer compartment is too warm.
• Both the refrigerator and freezer compartments are too warm.

If these issues persist after replacing the part, further diagnosis by a qualified technician may be necessary.

Warranty and Support

AMI PARTS stands behind the quality of the W10613606 Refrigerator Compressor Start Relay. If you encounter any issues or have questions, please contact our professional feedback team. We aim to provide a satisfactory solution within 12 hours.

Product Details

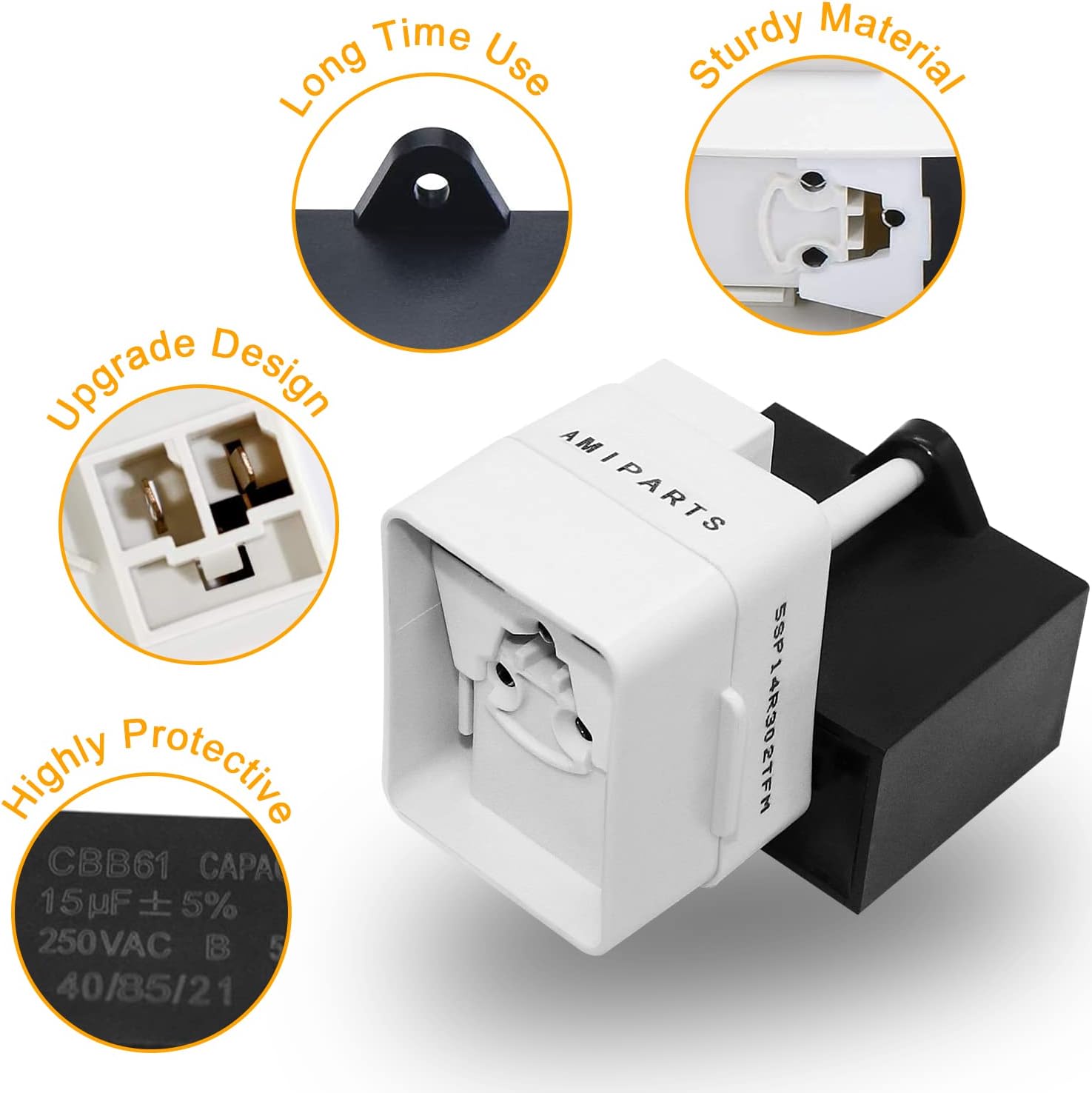

Image: Detailed view of the W10613606 Refrigerator Compressor Start Relay and Capacitor, highlighting its design and protective features.

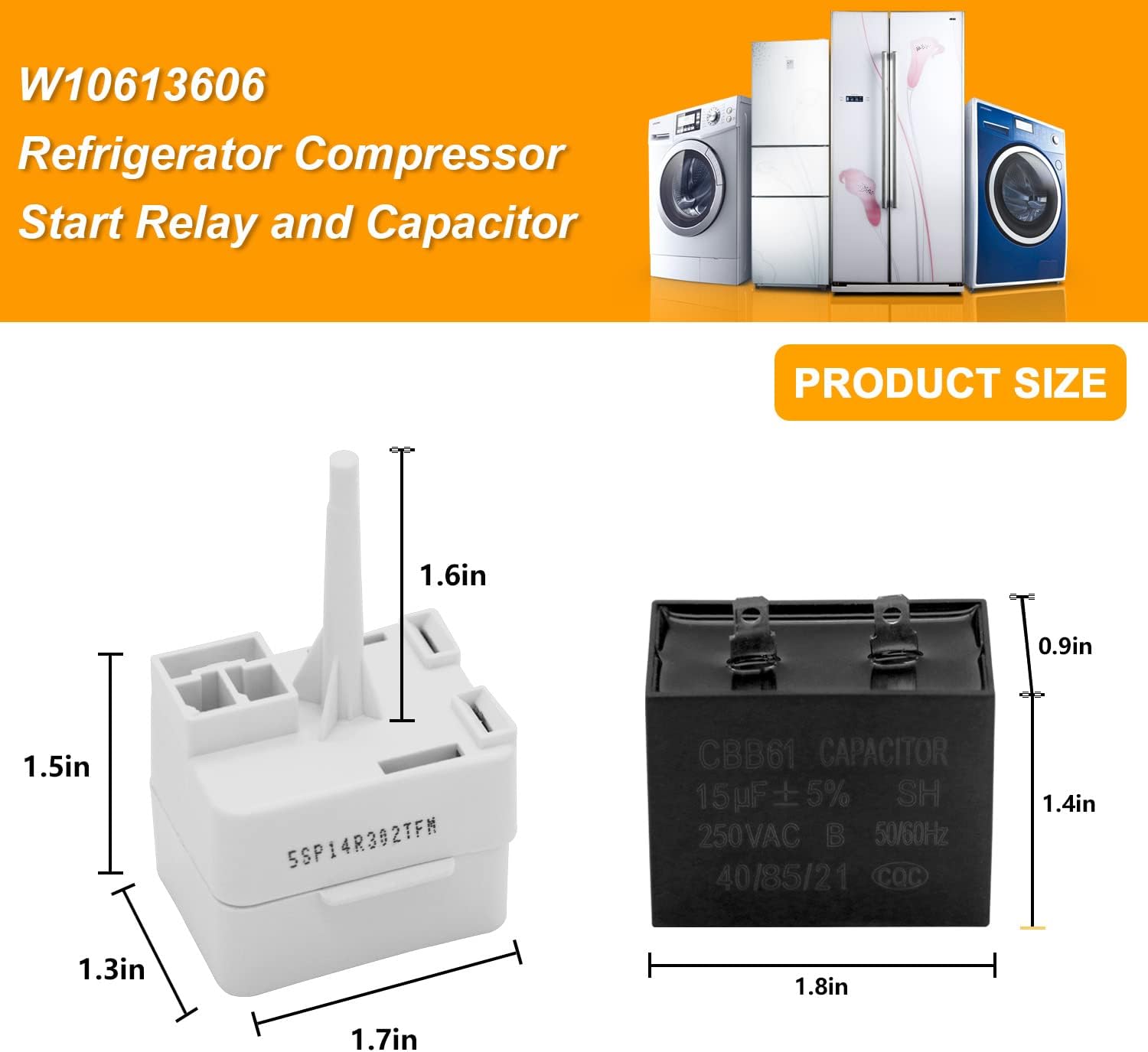

Image: Dimensions of the W10613606 Refrigerator Compressor Start Relay and Capacitor.

Image: A comparison highlighting the quality, fit, and endurance of the AMI PARTS W10613606 part versus other alternatives.

Image: The W10613606 Refrigerator Compressor Start Relay and Capacitor installed in a refrigerator.
