LEONLITE LED Emergency Lighting Instruction Manual

1. Product Overview

The LEONLITE LED Emergency Light is designed for safety and reliability in various environments. This unit features two adjustable heads, a long-lasting battery backup for power outages, and is rated for wet locations, making it suitable for both indoor and outdoor installations. It complies with United States fire inspection and International Fire Code, holding UL and FCC certifications. The light operates on universal 120V/277V voltage.

Each emergency light is equipped with a 3.6V 2000mAh rechargeable battery, providing over 90 minutes of continuous illumination during a power failure. The robust design includes a removable protective shield and an IP65 waterproof rating, ensuring resistance against dust, snow, water, and other environmental factors. An EVA foam layer on the back prevents water leakage and short circuits, while also insulating against heat, making it ideal for temperatures between 32℉-104℉.

The light heads offer a wide 120° beam angle and a high 400lm output, extending the lighting range from 20-70ft. Each head can be adjusted 300° to direct light precisely where needed.

2. Setup and Installation

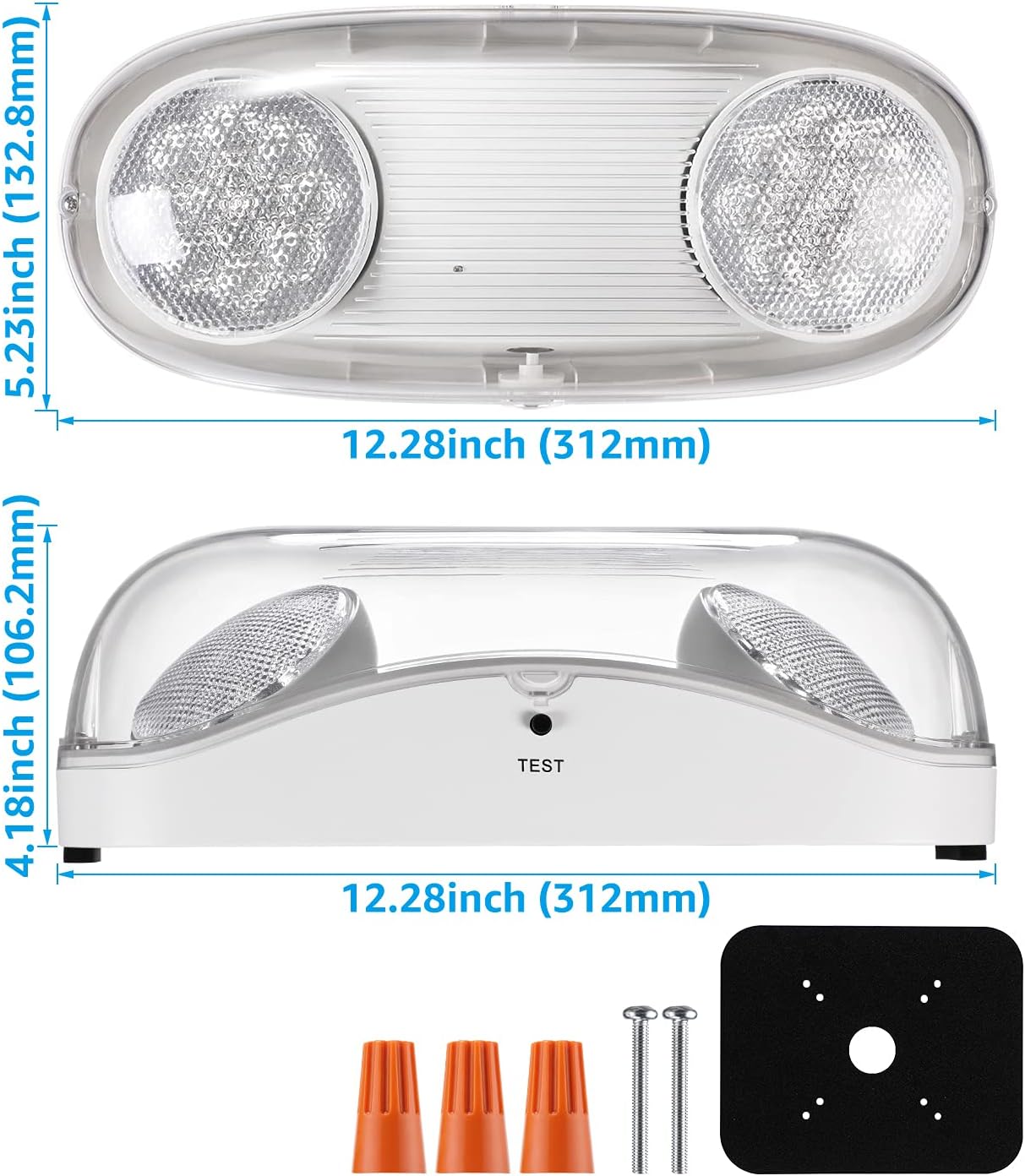

Installation of the LEONLITE LED Emergency Light is designed to be straightforward. All necessary hardware, including screws and wire nuts, is included. An EVA foam gasket is provided for mounting on a J-box to ensure a secure and insulated fit.

Installation Steps:

1. Loosen the screws on the housing: Use a screwdriver to carefully loosen the screws securing the clear protective cover to the main body.
2. Press against lamp's buckle and remove housing from light base: Gently press the buckles holding the internal light assembly and separate it from the base.
3. Connect wires with external power supply & connect battery terminal: Connect the appropriate wires (black, white, green) from the emergency light to your building's 120V or 277V AC power supply using the provided wire nuts. Ensure the internal battery terminal is securely connected.
4. Place the unit into the housing: Carefully reassemble the internal light unit into the base and secure the protective cover by tightening the screws.

For a visual guide on installation and features, please refer to the official product video below:

3. Operating Instructions

Once installed and connected to a power source, the emergency light will automatically charge its internal battery. In the event of a power outage, the light will activate automatically, providing illumination for a minimum of 90 minutes.

Test Button:

A waterproof test button is located on the unit (refer to Figure 4). Pressing this button simulates a power outage, allowing you to verify that the battery backup and LED lights are functioning correctly. Release the button to return to normal operation.

Adjusting Light Heads:

The two LED light heads can be manually adjusted up to 300° horizontally and 120° vertically to direct the light output as needed for optimal coverage (refer to Figure 5).

4. Maintenance

Regular maintenance ensures the longevity and optimal performance of your emergency light.

• Regular Testing: Periodically press the test button to ensure the battery backup system is operational. It is recommended to perform a full discharge test every 3 months to maintain battery health.
• Cleaning: The clear protective cover can be removed for cleaning. Use a soft, damp cloth to wipe down the exterior and internal components if necessary. Ensure the unit is disconnected from power before cleaning.
• Inspection: Annually inspect the unit for any signs of damage, corrosion, or loose connections. Ensure the EVA foam gasket remains intact to maintain its waterproof rating.

5. Troubleshooting

If your LEONLITE LED Emergency Light is not functioning as expected, consider the following:

• Light does not turn on during power outage:
  • Ensure the unit is properly connected to the AC power supply.
  • Verify the internal battery terminal is securely connected.
  • Press the test button to confirm battery functionality. If it still doesn't light up, the battery may need replacement or further inspection.
• Light does not charge:
  • Check the AC power supply for continuity.
  • Ensure all wire connections are secure.
• Reduced illumination time:
  • The battery may be nearing the end of its lifespan and require replacement.
  • Ensure regular full discharge tests are performed to maintain battery capacity.

For persistent issues, please contact customer support.

6. Specifications

7. Warranty and Support

This LEONLITE LED Emergency Light comes with a 2-year warranty, providing additional protection for your purchase.

For technical assistance, warranty claims, or any other inquiries, please contact LEONLITE customer support through their official channels or the retailer where the product was purchased.
