1. Product Overview
The HITRENDS S06 Fast Charge 3.0 USB Wall Charger is designed to provide efficient and rapid charging for a variety of mobile devices. It features one Quick Charge 3.0 port and two standard 5V/2.4A USB ports, allowing for simultaneous charging of up to three devices. Its compact design with a foldable plug makes it suitable for both home and travel use.
Image 1.1: Front view of the HITRENDS S06 USB Wall Charger, highlighting its three USB ports and Quick Charge 3.0 branding.
2. Safety Instructions
- Do not expose the charger to liquids, moisture, or extreme temperatures.
- Avoid dropping or subjecting the charger to strong impacts.
- Do not disassemble or attempt to repair the charger. Contact qualified service personnel if maintenance is required.
- Ensure the wall outlet voltage is compatible with the charger's input specifications (100-240V AC).
- Unplug the charger from the wall outlet when not in use or during electrical storms.
- Keep out of reach of children.
3. Package Contents
Verify that all items are present in the package:
- 1 x HITRENDS Fast Charge 3.0 USB Wall Charger (Model S06)
- 2 x USB cables
4. Setup
- Unfold the Plug: Gently pull out the foldable prongs from the charger body until they lock into place.
- Connect to Power: Insert the charger's prongs into a standard AC wall outlet (100-240V).
- Connect Devices: Use appropriate USB cables to connect your devices to the charger's USB ports.
Image 4.1: The HITRENDS S06 charger with its 90-degree foldable plug extended for use.
5. Operating Instructions
The HITRENDS S06 charger features three USB ports for charging multiple devices simultaneously:
- Quick Charge 3.0 Port (Green): This port supports Qualcomm Quick Charge 3.0 technology, providing faster charging for compatible devices. It can deliver 5V/3A, 9V/2A, or 12V/1.5A depending on the connected device's requirements.
- Standard USB Ports (Blue, 2x): These two ports provide a stable output of 5V/2.4A each, suitable for charging most smartphones, tablets, and other USB-powered devices that do not support Quick Charge.
Image 5.1: Close-up view of the charger's ports, indicating the Quick Charge 3.0 port and the two 5V/2.4A ports, along with maximum output details.
To achieve optimal charging speeds, ensure your device and USB cable are compatible with the Quick Charge 3.0 standard when using the green port. For other devices, the 5V/2.4A ports will provide efficient charging.

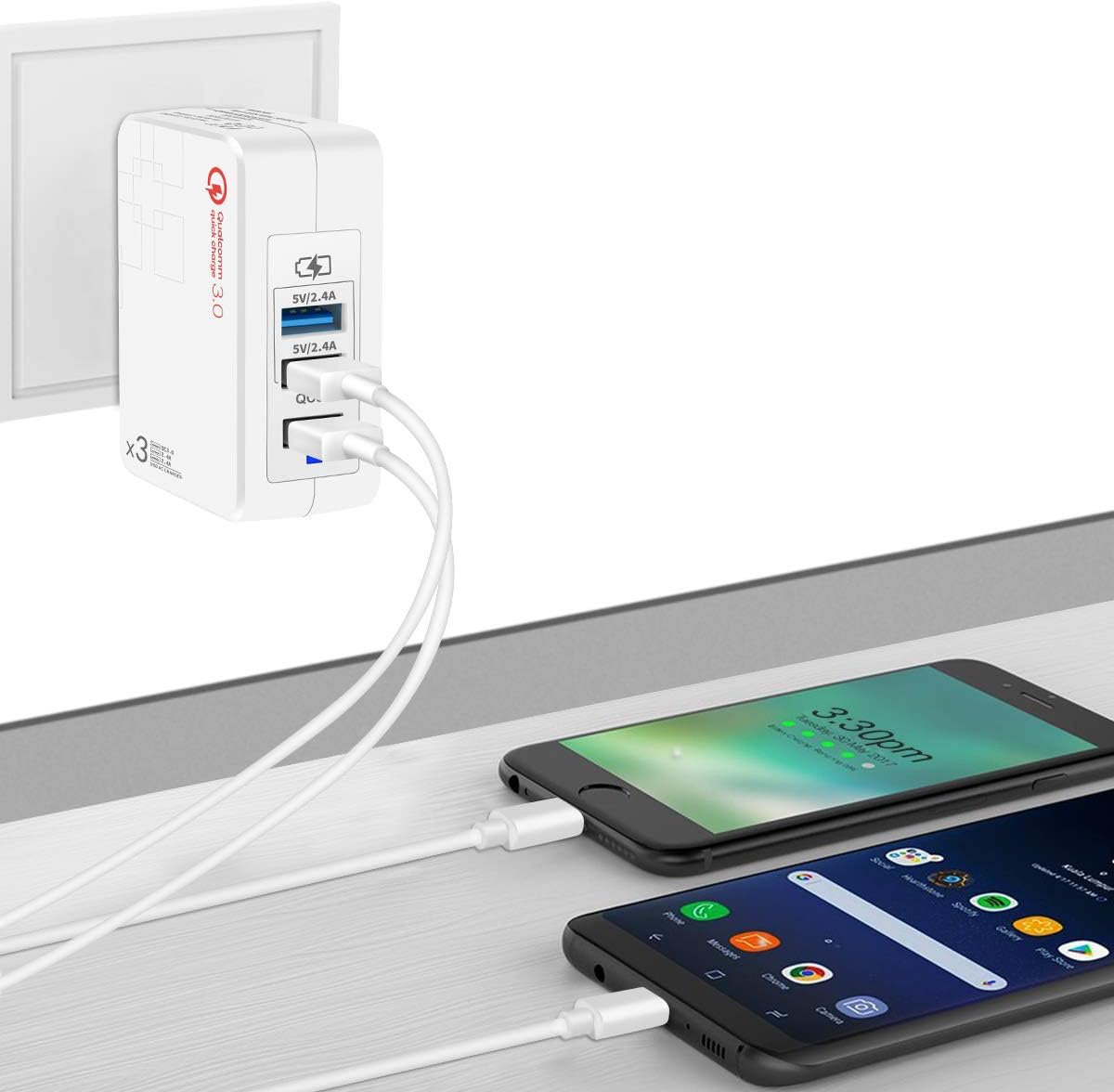

Image 5.2: The HITRENDS S06 charger connected to a wall outlet, simultaneously charging two mobile phones.
6. Maintenance
- Cleaning: Disconnect the charger from the power outlet before cleaning. Use a soft, dry cloth to wipe the surface. Do not use liquid cleaners or aerosols.
- Storage: When not in use, fold the prongs back into the charger body for compact storage. Store in a cool, dry place away from direct sunlight.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device not charging. |
|
|
| Slow charging speed. |
|
|
| Charger feels warm. | Normal operation under load. | This is normal during charging. If it becomes excessively hot or emits smoke/odor, unplug immediately and discontinue use. |
8. Specifications
- Model: S06
- Input: 100-240V AC, 50/60Hz, 0.5A Max
- QC3.0 Output: 3.6V-6.5V/3A, 6.5V-9V/2A, 9V-12V/1.5A (18W Max)
- Standard USB Output (x2): 5V/2.4A (each port, 12W Max each)
- Total Output: 38W Max
- Product Dimensions: 2.68 x 2.01 x 1.1 inches
- Item Weight: 2.39 ounces
- Special Features: Lightweight Design, Short Circuit Protection, Foldable Plug
- Compatible Devices: Smartphones, Tablets
9. Warranty and Support
For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official HITRENDS website. Keep your proof of purchase for warranty claims.
