Mayer MMAF68 Analog Air Fryer User Manual

1. Introduction

Thank you for purchasing the Mayer MMAF68 Analog Air Fryer. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your appliance. Please read it thoroughly before first use and keep it for future reference.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons.

• Read all instructions before operating the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting the appliance.
• Do not block any ventilation openings.
• Never add oil to the frying basket.

3. Product Overview

The Mayer MMAF68 Air Fryer utilizes rapid air circulation technology to cook food with minimal oil, offering a healthier alternative to traditional deep frying.

Components:

• Main Unit: Houses the heating element and fan.
• Frying Basket: Non-detachable basket for holding food.
• Temperature Control Knob: Adjusts cooking temperature up to 200°C.
• Timer Knob: Sets cooking time up to 30 minutes.
• Handle: For safely pulling out the frying basket.
• Air Outlet Vent: Located at the rear of the appliance.

Figure 1: Front view of the Mayer MMAF68 Analog Air Fryer, showing the temperature and timer control knobs, and the basket handle.

Figure 2: The Mayer MMAF68 Air Fryer with its frying basket partially pulled out, illustrating the non-detachable basket design.

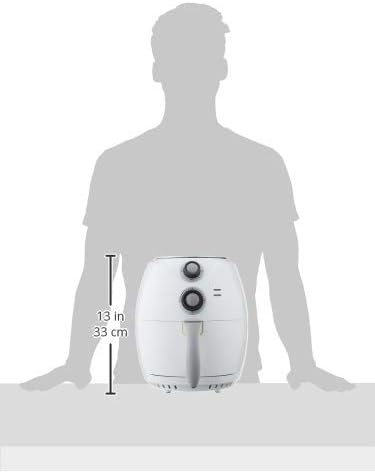

Figure 3: Diagram showing the approximate dimensions of the Mayer MMAF68 Air Fryer, indicating a height of 13 inches (33 cm).

4. Setup and First Use

1. Unpacking: Carefully remove the air fryer and all packaging materials.
2. Cleaning: Wipe the exterior of the appliance with a damp cloth. Clean the frying basket with hot water, dish soap, and a non-abrasive sponge. Rinse thoroughly and dry.
3. Placement: Place the air fryer on a stable, heat-resistant surface, ensuring adequate ventilation around the appliance (at least 10 cm clearance on all sides).
4. Initial Run (Burn-in):
   • Plug the power cord into a grounded wall outlet.
   • Pull out the frying basket.
   • Set the temperature knob to 200°C and the timer knob to 10 minutes.
   • The appliance will start heating. A slight odor or smoke may be present during the first use; this is normal and will dissipate.
   • After 10 minutes, the timer will ring, and the appliance will turn off. Allow it to cool completely before proceeding.

5. Operating Instructions

Follow these steps for cooking with your Mayer MMAF68 Air Fryer:

1. Preparation: Place the air fryer on a stable, level, heat-resistant surface.
2. Preheating (Optional): For best results, preheat the air fryer for 3-5 minutes at the desired cooking temperature. Turn the temperature knob to the desired setting and the timer knob to 3-5 minutes.
3. Load Food: Carefully pull out the frying basket using the handle. Place your ingredients into the basket. Do not overfill the basket to ensure even cooking.
4. Insert Basket: Slide the frying basket back into the air fryer until it clicks securely into place.
5. Set Temperature: Turn the temperature control knob to the required temperature (up to 200°C).
6. Set Timer: Turn the timer knob to the desired cooking time (up to 30 minutes). The air fryer will start operating.
7. Shaking/Tossing (Mid-Cycle): For some foods, especially smaller items like fries, it is recommended to shake or toss the ingredients halfway through the cooking time. To do this, carefully pull out the basket, shake it, and then slide it back in. The air fryer will resume cooking.
8. Completion: When the set cooking time has elapsed, the timer will ring, and the air fryer will automatically turn off.
9. Remove Food: Carefully pull out the frying basket. Use heat-resistant tongs to remove the cooked food from the basket.
10. Cool Down: Allow the appliance to cool down completely before cleaning or storing.

Note: The air fryer features a 30-minute timer and 200-degree Temperature Control. The appliance operates at 1400 watts.

6. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the lifespan of your air fryer.

1. Unplug and Cool: Always unplug the air fryer from the power outlet and allow it to cool down completely before cleaning.
2. Clean Frying Basket:
   • The frying basket should be cleaned after every use.
   • Wash the basket with hot water, dish soap, and a non-abrasive sponge.
   • For stubborn food residues, soak the basket in hot water with dish soap for about 10 minutes before cleaning.
   • Do not use metal utensils or abrasive cleaning materials, as these can damage the non-stick coating.
3. Clean Interior: Wipe the interior of the appliance with a damp cloth. If necessary, use a mild detergent.
4. Clean Exterior: Wipe the exterior of the air fryer with a damp cloth. Do not use harsh or abrasive cleaners.
5. Heating Element: Clean the heating element with a cleaning brush to remove any food residues.
6. Storage: Ensure all parts are clean and dry before storing the air fryer in a cool, dry place.

7. Troubleshooting

Refer to the table below for common issues and their solutions.

8. Specifications

9. Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your product or contact Mayer customer service directly. Keep your proof of purchase for any warranty claims.
