1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Waterstone PLP Pulldown Faucet. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.
Product Overview
The Waterstone PLP Pulldown Faucet (Model 5810-3-DAP) is a high-quality kitchen fixture designed for durability and functionality. It features a unique Positive Lock Pulldown design, ensuring the sprayer remains securely in place when not in use. The faucet is constructed from solid brass or 316 stainless steel, depending on the finish, and includes reinforced braided connection hoses for reliable performance.
Key features include:
- Positive Lock Pulldown design for secure sprayer docking.
- 70-degree angled spout for optimal water flow into the sink.
- Spout with 9-1/8 inch reach and 360-degree swivel capability.
- Pull-out spray head with 18-inch extension.
- Instant diversion from aerated stream to wide spray.
- 1.75 gpm maximum flow rate with aerated tip.
- Adjustable handle tension ring.
- Single handle with flexible mounting positions (front, right, left).
- Hot/cold ceramic disk valve cartridge.
- Compatibility with reverse osmosis filtration systems.
- Made in the USA.
Image 1: The Waterstone PLP Pulldown Faucet in Distressed Antique Pewter, showcasing its main components including the high-arc spout, pull-down sprayer, and single handle.
2. Setup and Installation
Before You Begin
- Ensure all necessary parts are present and undamaged. Refer to the packing list.
- Turn off the main water supply to the installation area.
- Clear the workspace under the sink.
- Required tools (not included): Adjustable wrench, Phillips screwdriver, plumber's putty or silicone sealant, safety glasses.
Installation Steps
- Prepare the Mounting Surface: Clean the faucet hole on the sink or countertop. Apply a thin bead of plumber's putty or silicone sealant around the base of the faucet body.
- Mount the Faucet: Insert the faucet body through the hole from above the sink. From below, secure the faucet using the provided mounting hardware (washer and mounting nut). Tighten firmly but do not overtighten.
- Connect Water Supply Lines: Attach the hot and cold water supply lines (reinforced braided connection hoses) to the corresponding inlets on the faucet body. Connect the other ends to your hot and cold water supply valves. Ensure connections are hand-tight, then use an adjustable wrench for a final quarter-turn.
- Install the Sprayer Hose and Weight: Feed the pull-down sprayer hose through the faucet spout. Attach the counterbalanced weight to the sprayer hose at the indicated position (typically 6-8 inches from the bottom of the loop) to ensure smooth pull-out and retraction.
- Connect the Sprayer Hose to the Faucet: Connect the end of the sprayer hose to the quick-connect fitting or threaded connection on the faucet's main body under the sink. Ensure a secure, leak-free connection.
- Test for Leaks: Slowly turn on the main water supply. Check all connections for leaks. If leaks are present, tighten connections as needed.
- Flush the System: With the faucet handle in the mixed position, allow water to run for a few minutes to flush out any debris from the lines.
3. Operating Instructions
Water Flow and Temperature Control
The Waterstone PLP Pulldown Faucet features a single lever handle for controlling both water flow and temperature. The handle can be mounted in front, right, or left hand positions. When mounted on the side, the handle can adjust 22.5 degrees for backsplash clearance.
- To Turn On/Off: Lift the handle upwards to turn on the water. Push the handle downwards to turn off the water.
- To Adjust Flow: The further the handle is lifted, the greater the water flow.
- To Adjust Temperature: Move the handle to the left for hot water and to the right for cold water. The hot/cold indicator ring can be reversed or removed based on your preference.
Using the Pulldown Sprayer
The faucet is equipped with a convenient pulldown sprayer that locks securely in place when not in use due to its Positive Lock Pulldown design.
- To Extend the Sprayer: Gently pull the spray head downwards from the spout. The hose extends up to 18 inches.
- To Change Spray Pattern: The sprayer instantly diverts water from an aerated stream to a wide spray by pressing the button or toggle on the spray head.
- To Retract the Sprayer: Guide the spray head back into the spout. The counterbalanced weight on the spray hose ensures smooth retraction and prevents snap back, locking it securely into position.

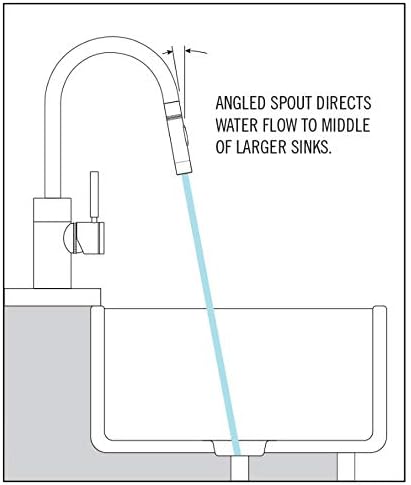

Image 2: A diagram illustrating the 70-degree angled spout, which directs water flow towards the middle of larger sinks for optimal coverage and reduced splashing.
4. Maintenance
Cleaning Your Faucet
To maintain the finish and performance of your Waterstone faucet, follow these cleaning guidelines:
- Use only a soft, damp cloth and mild soap to clean the faucet surface.
- Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Wipe the faucet dry after each use to prevent water spots and mineral buildup.
Aerator Maintenance
Over time, mineral deposits can accumulate in the aerator, affecting water flow. To clean the aerator:
- Unscrew the aerator from the tip of the spout.
- Rinse the aerator under running water to remove loose debris.
- For stubborn mineral deposits, soak the aerator in a solution of equal parts white vinegar and water for several hours.
- Brush away any remaining deposits with a soft brush.
- Rinse thoroughly and reattach the aerator to the spout.
Handle Tension Adjustment
The faucet features an adjustable handle tension ring to customize the feel of the handle and prevent sag. If the handle feels too loose or too stiff, consult a qualified plumber or Waterstone customer support for guidance on adjustment.
5. Troubleshooting
This section addresses common issues you might encounter with your faucet. For problems not listed here, or if solutions do not resolve the issue, please contact Waterstone customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow |
|
|
| Leaking from Faucet Base |
|
|
| Leaking from Handle |
|
|
| Sprayer Does Not Retract Fully |
|
|
6. Specifications
| Feature | Detail |
|---|---|
| Model Number | 5810-3-DAP |
| Brand | Waterstone |
| Color/Finish | Distressed Antique Pewter |
| Material | Solid Brass or 316 Stainless Steel |
| Installation Type | Mini-spread |
| Spout Reach | 9-1/8 inches |
| Spout Swivel | 360 degrees |
| Sprayer Hose Extension | 18 inches |
| Maximum Flow Rate | 1.75 gallons per minute (gpm) |
| Valve Type | Hot/cold ceramic disk valve cartridge |
| Compatibility | Reverse osmosis filtration systems |
| Item Weight | 16 pounds |
| Country of Origin | USA |
7. Warranty and Support
Warranty Information
Waterstone offers a Lifetime Functional Warranty on this product, ensuring its functional integrity for the lifetime of the original purchaser. This warranty covers defects in material and workmanship under normal use and service.
For specific details regarding warranty coverage, limitations, and claims procedures, please refer to the official Waterstone warranty documentation or visit their official website.
Customer Support
Should you require assistance with installation, operation, maintenance, or warranty claims, please contact Waterstone customer support. Have your model number (5810-3-DAP) and purchase information ready when contacting support.
For the most current contact information, please visit the official Waterstone website or refer to the product packaging.
