Product Overview
The GDSTIME 120mm Computer Fan with AC Plug is designed to provide efficient cooling for a wide range of electronic devices and enclosures. Featuring an AC-powered variable speed controller, this fan allows users to adjust airflow and noise levels to suit specific needs, from quiet operation for sensitive environments to maximum cooling for demanding applications. It is an ideal solution for maintaining optimal temperatures in home theater receivers, amplifiers, DVRs, gaming consoles (Playstation, Xbox), PC components, biltong boxes, grow tents, reptile cages, routers, terrariums, and electronic cabinets.
Image: GDSTIME 120mm Computer Fan with AC Plug, variable speed controller, metal grilles, screws, and rubber feet.
What's in the Box
Your GDSTIME 120mm Computer Fan package includes all necessary components for immediate setup and operation:
- 1x 120mm DC Fan (Model: 1225)
- 1x Variable Speed Controller (AC/DC adapter)
- 2x Metal Grilles (12cm) for finger protection
- 4x Screws and Nuts for mounting
- 4x Rubber Feet and Sponge Mats for vibration minimization
Image: All components included in the package: 120mm fan, speed controller, metal grilles, screws, and rubber feet.
Key Features
- Versatile Cooling Solution: Suitable for a wide range of applications including home theater receivers, biltong boxes, grow tents, reptile cages, routers, terrariums, electronic cabinets, and PC cooling.
- Stepless Speed Control: The included power adapter features a fine-tuning knob, allowing for continuous adjustment of fan speed to achieve the desired balance between airflow and noise levels.
- AC-Powered Simplicity: Plugs directly into standard AC outlets (100-240V global voltage) with a 1.5m adapter, offering easy power access.
- Optimized Noise and Airflow: Lower voltage settings (4V-12V) reduce noise, making it suitable for quiet environments like bedrooms or offices, while higher settings provide maximum airflow for heavy cooling tasks.
- Durable Dual Ball Bearings: Equipped with premium dual-ball bearings and a brushless motor, ensuring a long lifespan of up to 50,000 hours and allowing for both horizontal and vertical mounting.

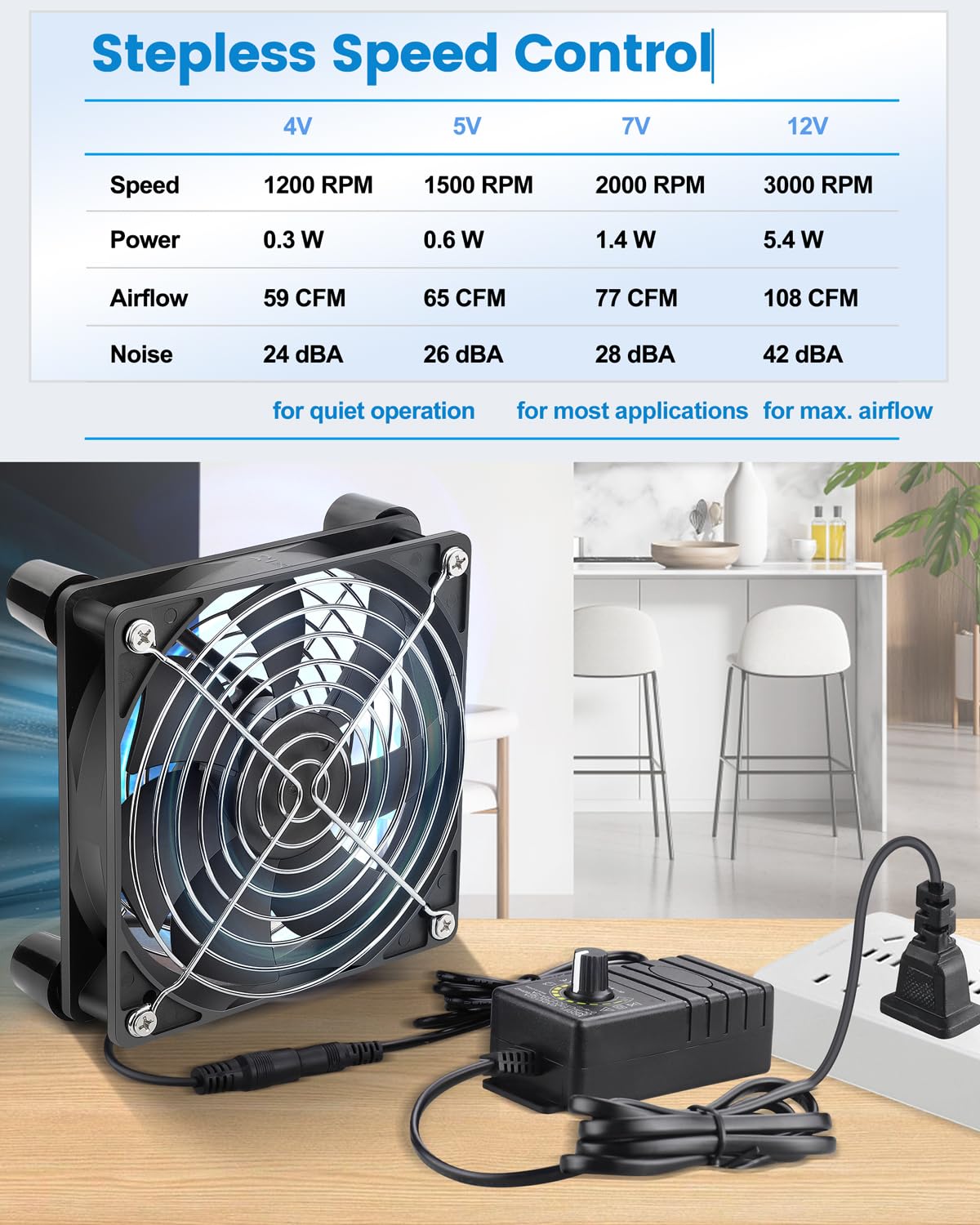

Image: Table detailing fan speed, power, airflow, and noise levels at different voltage settings (4V, 5V, 7V, 12V).

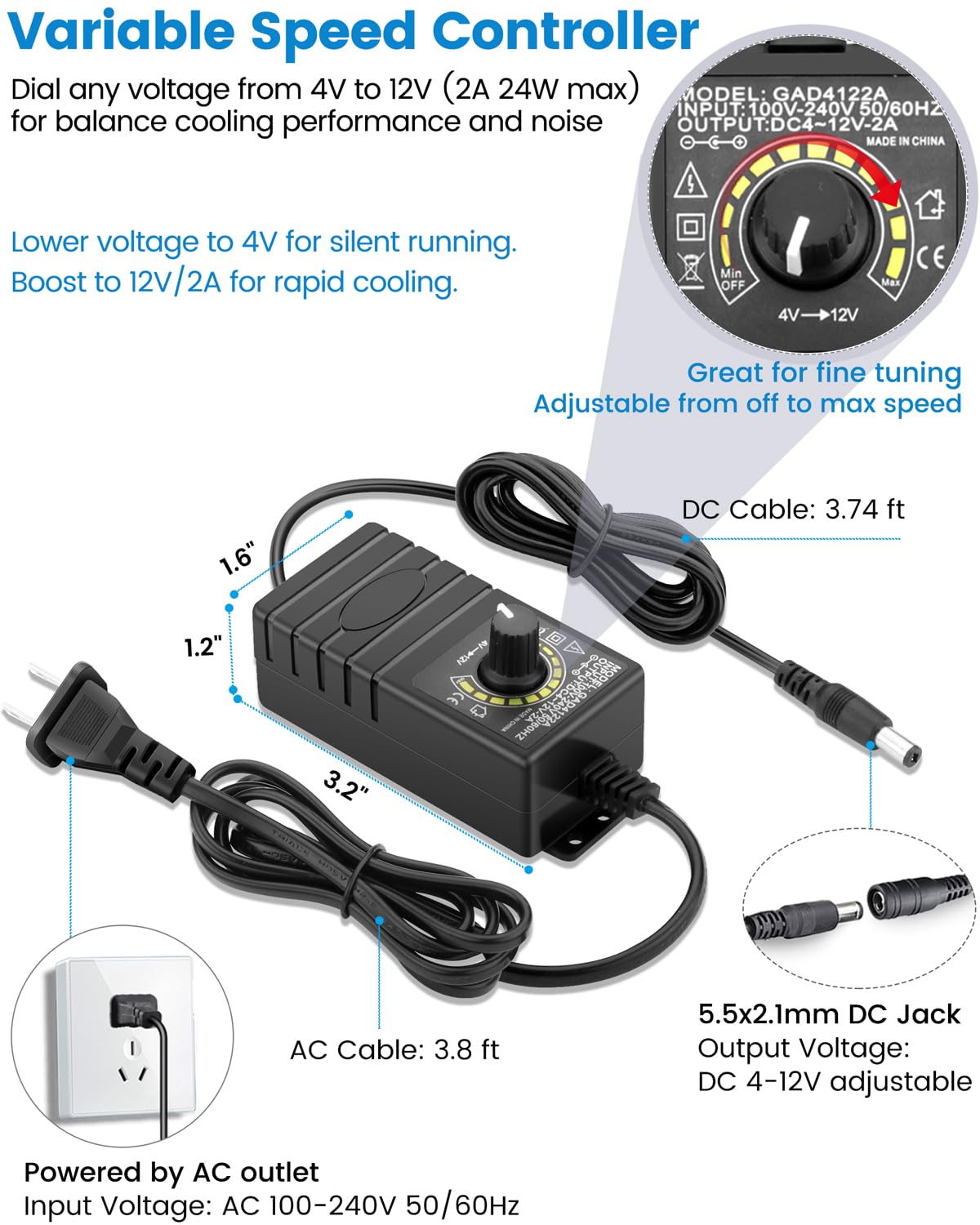

Image: Diagram showing the variable speed controller, its dimensions, input/output voltage, and AC plug connection.
Image: Illustration highlighting the dual ball bearings and brushless motor, emphasizing the 50,000-hour lifespan.
Image: Various application scenarios including cooling receivers, routers, small grow tents, reptile cages, biltong drying boxes, large cigar humidors, and RV refrigerators.
Setup and Installation
The GDSTIME 120mm fan is designed for easy installation. Follow these steps to set up your fan:
- Unpack Components: Carefully remove all items from the packaging and verify that all parts listed in the "What's in the Box" section are present.
- Attach Metal Grilles: For safety and protection, attach the two metal grilles to both sides of the fan using the provided screws and nuts. This prevents accidental contact with the fan blades.
- Mounting (Optional):
- If mounting the fan, use the provided screws and rubber feet. The rubber feet help minimize vibration and noise.
- The fan can be mounted horizontally or vertically depending on your application. Ensure proper airflow direction for optimal cooling.
- Connect Speed Controller: Plug the fan's DC connector into the output jack of the variable speed controller.
- Connect to Power: Plug the AC adapter of the speed controller into a standard AC outlet (100-240V).
- Positioning: Place the fan in a location where it can effectively draw hot air away from or blow cool air towards the components requiring cooling. Consider the natural flow of heat (hot air rises) when positioning.
Operating Instructions
The GDSTIME 120mm fan features a simple variable speed control for customized operation:
- Power On: Once connected to an AC outlet, the fan will power on.
- Adjust Speed: Use the knob on the variable speed controller to adjust the fan's rotational speed.
- Turn the knob towards the "Min" setting for lower fan speed, resulting in quieter operation and reduced airflow. This is ideal for situations where minimal noise is desired, such as during nighttime or in quiet office environments.
- Turn the knob towards the "Max" setting for higher fan speed, providing maximum airflow for more intensive cooling requirements. This setting will generate more noise but offers superior heat dissipation.
- Balance Airflow and Noise: Experiment with different speed settings to find the optimal balance between cooling performance and noise level for your specific application.
Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your GDSTIME fan:
- Cleaning: Periodically clean the fan blades and grilles to prevent dust buildup, which can impede airflow and reduce efficiency. Use a soft brush or compressed air. Ensure the fan is unplugged before cleaning.
- Inspect Cables: Check the power cable and fan connection regularly for any signs of wear, damage, or loose connections.
- Operating Environment: Ensure the fan is operated in a dry environment, away from excessive moisture or extreme temperatures, to prevent damage to electronic components.
Troubleshooting
If you encounter issues with your GDSTIME fan, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan not spinning | No power; Loose connection; Speed controller set to minimum. |
|
| Fan is too noisy | Fan speed too high; Obstruction; Vibration. |
|
| Insufficient airflow | Fan speed too low; Dust buildup; Incorrect positioning. |
|
Specifications
| Attribute | Detail |
|---|---|
| Product Dimensions | 4.72"L x 4.72"W x 0.98"H (120 x 120 x 25 mm) |
| Item Model Number | GDT12025B12V0.45A+3-12VT |
| Brand | GDSTIME |
| Power Connector Type | 2-Pin |
| Voltage | 12 Volts DC (Adjustable 4V-12V via controller) |
| Wattage | 5.4 watts (Max) |
| Cooling Method | Air |
| Compatible Devices | Desktop, Switch, Router, Refrigerator, Amplifier, DVR, Playstation, Xbox, Biltong Box, Grow Tent, Reptile Cage, Terrarium, Electronic Cabinet |
| Noise Level | Up to 42 dB (Adjustable) |
| Material | Plastic |
| Maximum Rotational Speed | 3000 RPM |
| Bearings | Dual Ball |
| Life Expectancy | 50,000 Hours |
Image: Technical diagram showing fan dimensions, rotation direction, connector type, and key performance metrics.
Warranty and Support
GDSTIME products are manufactured with quality and reliability in mind. For specific warranty details and customer support, please refer to the documentation included with your purchase or visit the official GDSTIME store on Amazon:
For technical assistance or inquiries, please contact GDSTIME customer service through the Amazon platform or their official website.
