ORSKEY Dash Cam S680 User Manual

Introduction

Thank you for choosing the ORSKEY Dash Cam S680. This manual provides detailed instructions for the installation, operation, and maintenance of your dash camera. Please read this manual thoroughly before use to ensure proper functionality and to maximize your experience with the product.

Package Contents

Please check the package for the following items:

• ORSKEY Dash Cam S680 Unit
• Car Charger
• Suction Mount
• User Manual (this document)

The package contents of the ORSKEY Dash Cam S680, including the main camera unit, a suction cup mount for windshield attachment, and a car charger for power.

Product Overview

The ORSKEY Dash Cam S680 features a 3.0-inch LCD display, a 170-degree wide-angle lens, and records in 1080P Full HD. It is equipped with a Sony Exmor IMX 323 sensor and 6 glass lens elements for superior image quality, especially in low-light conditions with its WDR technology.

This image shows the advanced lens system of the ORSKEY Dash Cam, featuring a Sony Exmor IMX 323 sensor and 6 glass elements for clear 1080P video capture.

Setup

1. Inserting the Micro SD Card

Before using the dash cam, a Micro SD card (Class 10 or higher, up to 32GB) must be inserted. The Micro SD card is not included in the package.

1. Ensure the dash cam is powered off.
2. Locate the Micro SD card slot on the side of the dash cam.
3. Insert the Micro SD card with the gold contacts facing the back of the camera until it clicks into place.
4. To remove, gently push the card in until it clicks, then release, and it will spring out.

Note: It is recommended to format the Micro SD card within the dash cam settings before first use and periodically thereafter to ensure optimal performance.

2. Mounting the Dash Cam

1. Clean the area on your windshield where you intend to mount the dash cam.
2. Attach the suction mount to the dash cam.
3. Press the suction cup firmly against the windshield and flip the lever to secure it. Position the camera to ensure a clear view of the road without obstructing your driving visibility.

A visual guide demonstrating how to properly install the dash cam onto your car's windshield using the suction mount and connect the power cable.

3. Connecting Power

1. Connect the car charger to the dash cam's power input port.
2. Plug the other end of the car charger into your vehicle's cigarette lighter socket.
3. Route the power cable neatly along the edge of the windshield and dashboard to avoid obstructing your view or interfering with driving controls.

Operating Instructions

1. Power On/Off

• The dash cam will automatically power on and begin recording when your vehicle's engine starts (and the cigarette lighter provides power).
• It will automatically power off when the engine is turned off.
• To manually power on/off, press and hold the Power button.

2. Recording Modes

The dash cam offers several recording features to ensure comprehensive coverage:

• Loop Recording: This feature allows continuous recording. When the Micro SD card reaches its storage limit, the camera automatically overwrites the oldest unlocked footage with new recordings. This ensures that recording never stops due to a full card.

An illustration detailing the loop recording feature, where the camera continuously records and overwrites the oldest footage when the memory card is full, ensuring uninterrupted recording.

• G-Sensor (Emergency Recording): The built-in G-sensor detects sudden impacts or collisions. When triggered, it automatically locks the current video segment, preventing it from being overwritten by loop recording. This footage is saved in a separate folder to protect critical evidence.
• Motion Detection: When enabled, the dash cam will automatically start recording if it detects movement in front of the vehicle while parked. This feature requires continuous power supply (e.g., hardwiring kit, not included) to function when the car is off.
• Parking Monitoring: Similar to motion detection, this mode activates recording if an impact is detected while the vehicle is parked and the engine is off.

This image highlights the 24-hour monitoring capabilities, including motion detection and parking monitoring, which activate the camera when movement or impact is detected while parked.

3. Wide Dynamic Range (WDR) and Night Vision

The dash cam incorporates WDR technology and 6 unique infrared LED fill lights to enhance video quality in various lighting conditions, providing clear recordings both day and night.

A side-by-side comparison demonstrating the dash cam's clear video quality during the day and its enhanced night vision performance in low-light conditions.

4. Menu Navigation and Settings

Use the buttons on the side of the dash cam to navigate through the menu options displayed on the 3-inch LCD screen. Common settings include video resolution, loop recording duration, G-sensor sensitivity, motion detection on/off, date/time stamp, and Micro SD card formatting.

A detailed view of the dash cam's 3-inch LCD screen displaying the menu options for configuration and settings.

5. Playback

To review recorded footage:

• Stop recording by pressing the OK button (if currently recording).
• Enter playback mode via the menu.
• Browse through video files using the navigation buttons.
• Select a file and press OK to play.
• Alternatively, remove the Micro SD card and view footage on a computer using a card reader.

Maintenance

1. Micro SD Card Management

• Regularly format your Micro SD card (at least once a month) to prevent data corruption and ensure smooth operation.
• Use a high-quality Class 10 or higher Micro SD card from a reputable brand.
• Replace the Micro SD card if you experience frequent errors or recording issues.

2. Cleaning the Dash Cam

• Use a soft, dry cloth to clean the camera lens and screen. Avoid abrasive materials or chemical cleaners.
• Ensure the suction cup is clean for optimal adhesion to the windshield.

Troubleshooting

• Camera does not power on: Check if the car charger is properly connected to both the dash cam and the vehicle's cigarette lighter. Ensure the vehicle's ignition is on.
• Camera stops recording or does not record:
  • Ensure a Micro SD card is inserted and properly formatted.
  • The Micro SD card may be full; enable loop recording or format the card.
  • The Micro SD card may be faulty or not Class 10 or higher. Try a different card.
  • Check power connection; intermittent power can cause recording interruptions.
• Poor video quality:
  • Clean the camera lens and your car's windshield.
  • Ensure the protective film has been removed from the lens.
  • Check video resolution settings in the menu.
• Motion Detection/Parking Monitoring not working effectively:
  • These features require continuous power when the vehicle is off, typically via a hardwiring kit (not included).
  • The 32GB Micro SD card capacity may limit the duration of parking mode recordings.
  • Adjust sensitivity settings in the menu.
• Menu navigation is confusing: Refer to the detailed instructions in the 'Operating Instructions' section for specific button functions and menu layouts.

Specifications

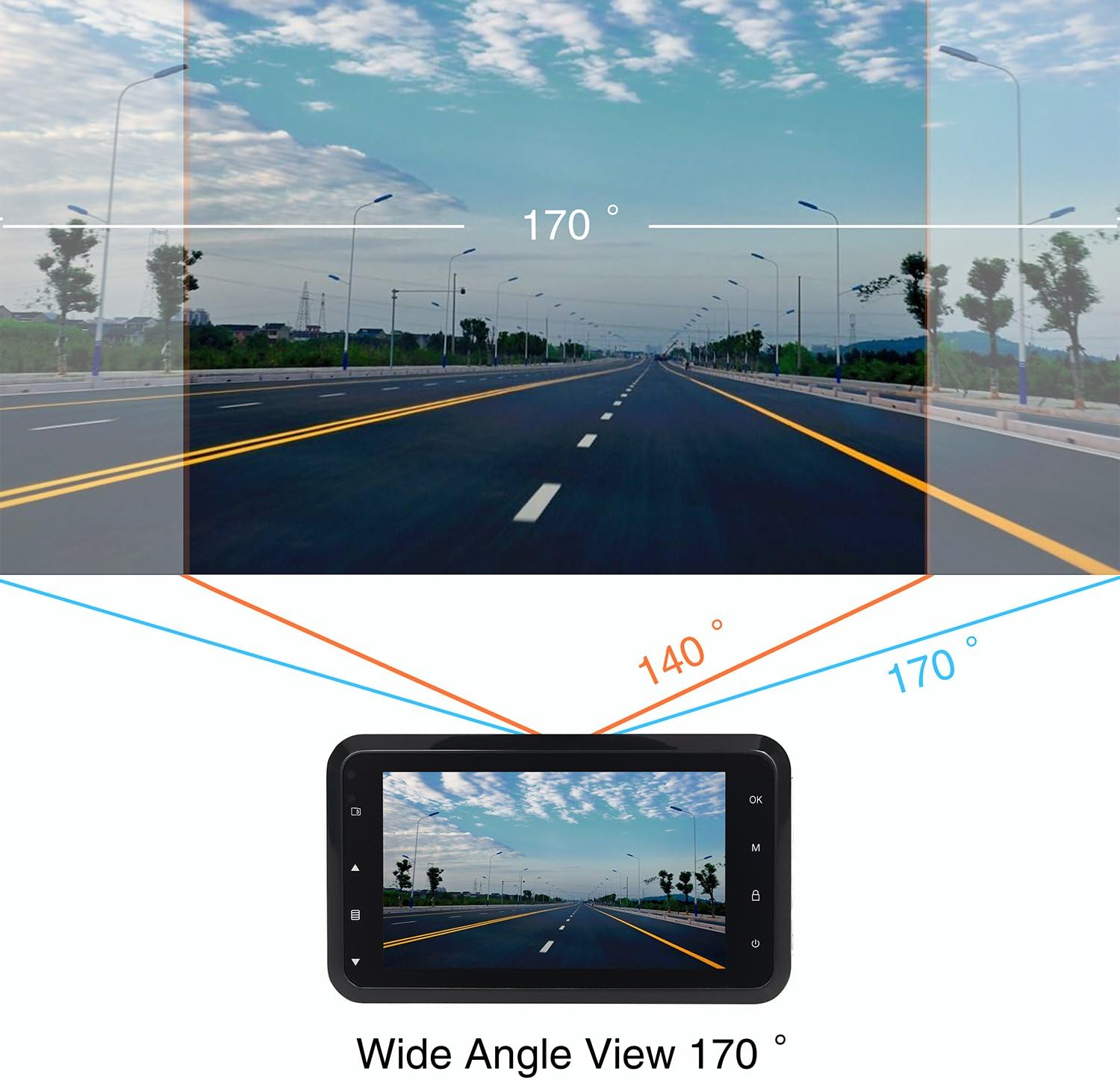

This diagram shows the expansive 170-degree wide-angle field of view captured by the dash cam, providing comprehensive road coverage.

Warranty and Support

The ORSKEY Dash Cam S680 comes with a 12-month guarantee from the date of purchase. This warranty covers manufacturing defects and ensures the product functions as intended under normal use.

For technical support, warranty claims, or any questions regarding your dash cam, please contact ORSKEY customer service. Details for contacting support are typically found on the product packaging or the official ORSKEY website.

ORSKEY provides a qualified after-sale service team, available 7 days a week, 24 hours a day, to assist you.
