1. Product Overview

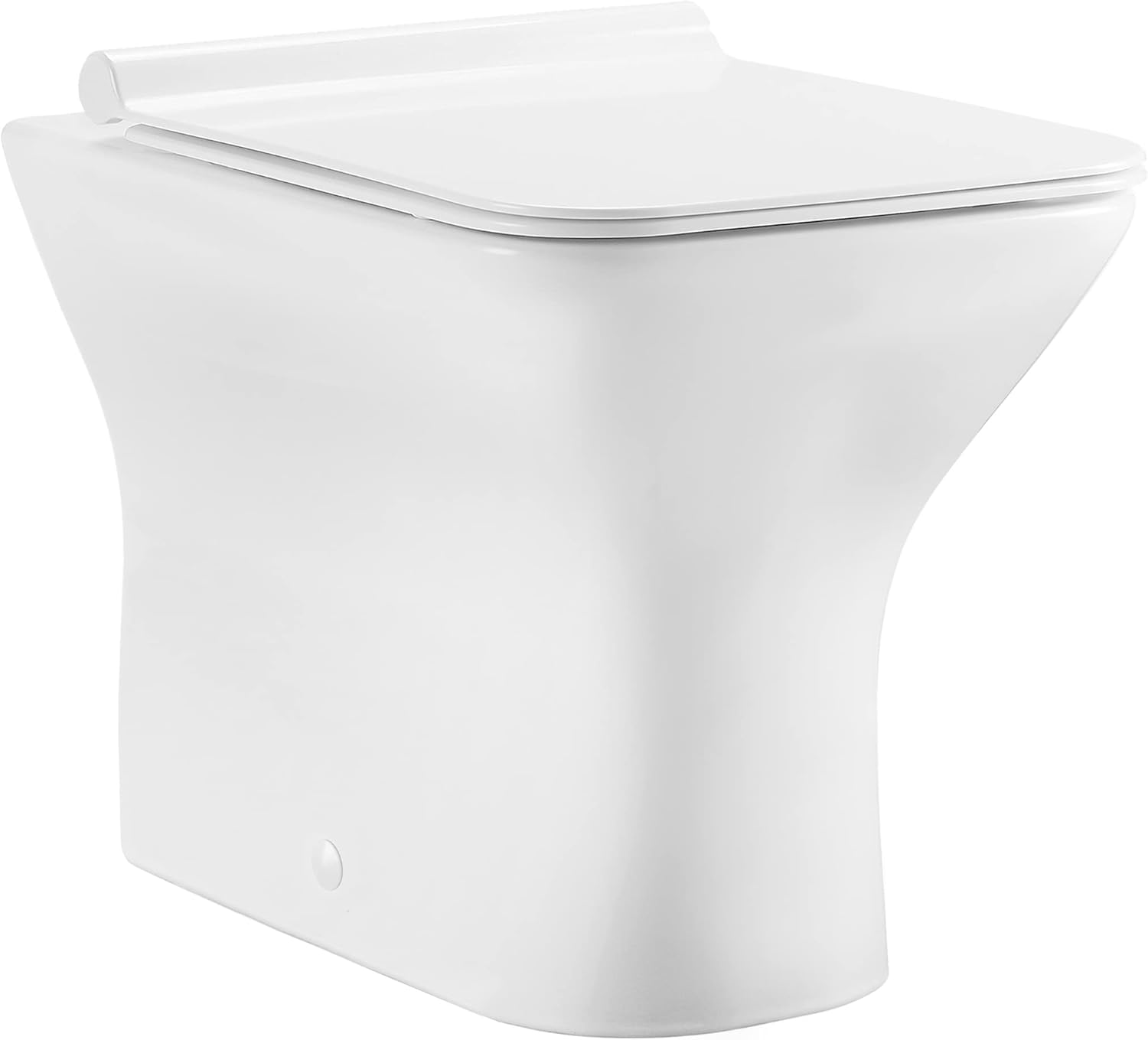

The Swiss Madison Carré Back to Wall Toilet Bowl (Model SM-WT530) features a contemporary design with clean lines and fluid curves, enhancing any bathroom aesthetic. Its elongated bowl is designed for improved user comfort. This toilet is intended for use with a concealed tank carrier, which helps optimize bathroom space and provides convenient access to the plumbing system. The dual-flush mechanism contributes to water conservation.
Key Features:
- Elongated toilet bowl for enhanced comfort.
- Skirted trapway for simplified cleaning.
- Slim, soft-close, quick-release seat for quiet operation and easy removal.
- Designed to pair with Swiss Madison concealed tank carriers (SM-WC324 or SM-WC326).
- Compatible with the Swiss Madison SM-BD228 Bidet.
2. Setup and Installation
This section provides essential information for the proper installation of your Swiss Madison Carré Back to Wall Toilet. Professional installation is recommended.
2.1 Components Included:
2.2 Pre-Installation Considerations:
- The SM-WT530 is a wall-mounted toilet bowl designed to be paired with a concealed tank carrier. Ensure you have a compatible Swiss Madison concealed tank carrier (SM-WC324 for residential 4" studs or SM-WC326 for commercial 6" studs) installed according to its specific instructions.
- Verify that all necessary plumbing connections are in place and meet local building codes.
- Inspect all components for damage prior to installation. Do not proceed with installation if any parts are damaged or missing.
2.3 Dimensions and Space Saving:
The back-to-wall design of the Carré toilet is engineered to save space in your bathroom compared to standard toilets.
2.4 Installation Steps:
- Ensure the concealed tank carrier is securely installed and all water supply lines are connected and tested for leaks.
- Connect the outlet pipe (SM-CPT42) from the toilet bowl to the waste outlet of the concealed tank.
- Position the toilet bowl against the wall, aligning it with the mounting bolts from the tank carrier.
- Secure the toilet bowl to the mounting bolts using the provided plastic anchor kit (SM-TPT29) and tighten carefully to prevent overtightening and damage to the ceramic.
- Install the soft-close, quick-release seat (SM-QRS42) onto the toilet bowl according to its specific instructions.
- Perform a test flush to check for proper function and any leaks.
3. Operating Instructions
3.1 Dual Flush System:
The Carré toilet features a dual-flush system, allowing you to choose between a partial flush for liquid waste and a full flush for solid waste, conserving water with each use. The flush buttons are typically located on the wall plate above the toilet, connected to the concealed tank carrier.
3.2 Soft-Close Seat:
The toilet seat is equipped with a soft-close mechanism to prevent slamming and reduce noise. Simply push the seat down gently, and it will close slowly and quietly on its own.
4. Maintenance
Regular cleaning and maintenance will ensure the longevity and optimal performance of your toilet.
4.1 Cleaning the Toilet Bowl:
- Use a mild, non-abrasive cleaner and a soft brush or cloth to clean the ceramic surfaces.
- The skirted trapway design simplifies cleaning the exterior of the bowl, as it conceals the plumbing.
- Avoid harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the finish.
4.2 Cleaning the Seat:
The quick-release feature of the seat allows for thorough cleaning of both the seat and the toilet bowl rim.
- To remove the seat, locate the quick-release buttons or tabs near the hinges and press them to detach the seat.
- Clean the seat and hinges with a mild soap and water solution.
- Clean the toilet bowl rim thoroughly.
- Reattach the seat by aligning the hinges with the posts and pressing down until they click into place.
5. Troubleshooting
This section addresses common issues you might encounter. For complex problems, consult a qualified plumber.
| Problem | Possible Cause | Solution |
|---|---|---|
| Water spills during flush | Improper water level in tank, clogged drain, or incorrect installation of the bowl/trapway. | Check water level settings in the concealed tank. Ensure the trapway is clear of obstructions. Verify proper sealing and connection of the toilet bowl to the waste line. If issues persist, contact a plumber. |
| Toilet does not flush effectively | Low water pressure, partial clog, or issue with the concealed tank's flush mechanism. | Ensure water supply valve is fully open. Attempt to clear any visible clogs. Consult the manual for your specific concealed tank carrier for troubleshooting its flush mechanism. |
| Loose toilet bowl | Mounting bolts are not sufficiently tightened. | Carefully tighten the mounting bolts. Avoid overtightening, which can crack the ceramic. |
| Seat does not soft-close | Hinge mechanism obstruction or damage. | Inspect hinges for debris. If damaged, contact customer support for replacement parts. |
6. Product Specifications
| Feature | Detail |
|---|---|
| Model Number | SM-WT530 |
| Brand | Swiss Madison |
| Color | Glossy White |
| Material | Ceramic |
| Item Weight | 65 Pounds |
| Product Dimensions | 21 x 14.37 x 16.14 inches |
| Installation Type | Wall Mounted |
| Shape | Oval |
| Seat Material Type | Plastic |
| Style | Modern |
| Included Components | Toilet Bowl, Soft-Close Seat, Outlet Pipe, Plastic Anchor Kit |
| Batteries Required? | No |
| UPC | 810015320471 |
| Date First Available | April 24, 2019 |
7. Warranty Information
The Swiss Madison SM-WT530 Carré Back to Wall Toilet comes with a 1 Year Limited Warranty. This warranty covers defects in materials and workmanship under normal use and service. For specific terms, conditions, and to make a warranty claim, please refer to the official Swiss Madison warranty documentation or contact their customer support.
8. Customer Support
For further assistance, technical support, or inquiries regarding replacement parts, please contact Swiss Madison customer service. Contact information can typically be found on the manufacturer's official website or on the product packaging.
Online Resources: You may find additional support and product information by visiting the Swiss Madison Store on Amazon.
