Inalsa Magic Pro 800W Food Processor User Manual

Introduction

Thank you for purchasing the Inalsa Magic Pro 800W Food Processor. This manual provides important information for the safe and efficient operation of your appliance. Please read it thoroughly before first use and keep it for future reference.

Image: Inalsa Magic Pro 800W Food Processor with its various attachments.

Important Safety Instructions

To ensure safe operation and prevent damage, please adhere to the following instructions:

Do's

Image: A list of important 'Do's' for safe operation.

1. Before connecting the appliance, check that the mains voltage complies with the voltage specified (240V, AC).
2. Place your food processor at a convenient height for easy operation and to observe attachments.
3. Clear space around the machine and keep it away from direct heat and sunlight.
4. Exercise caution with cutting edges of blade cutters as they are very sharp.
5. Ensure the bowl assembly is perfectly locked with the basic unit.
6. Always use a spatula during food processing.
7. Keep the food processor away from children.

Don'ts

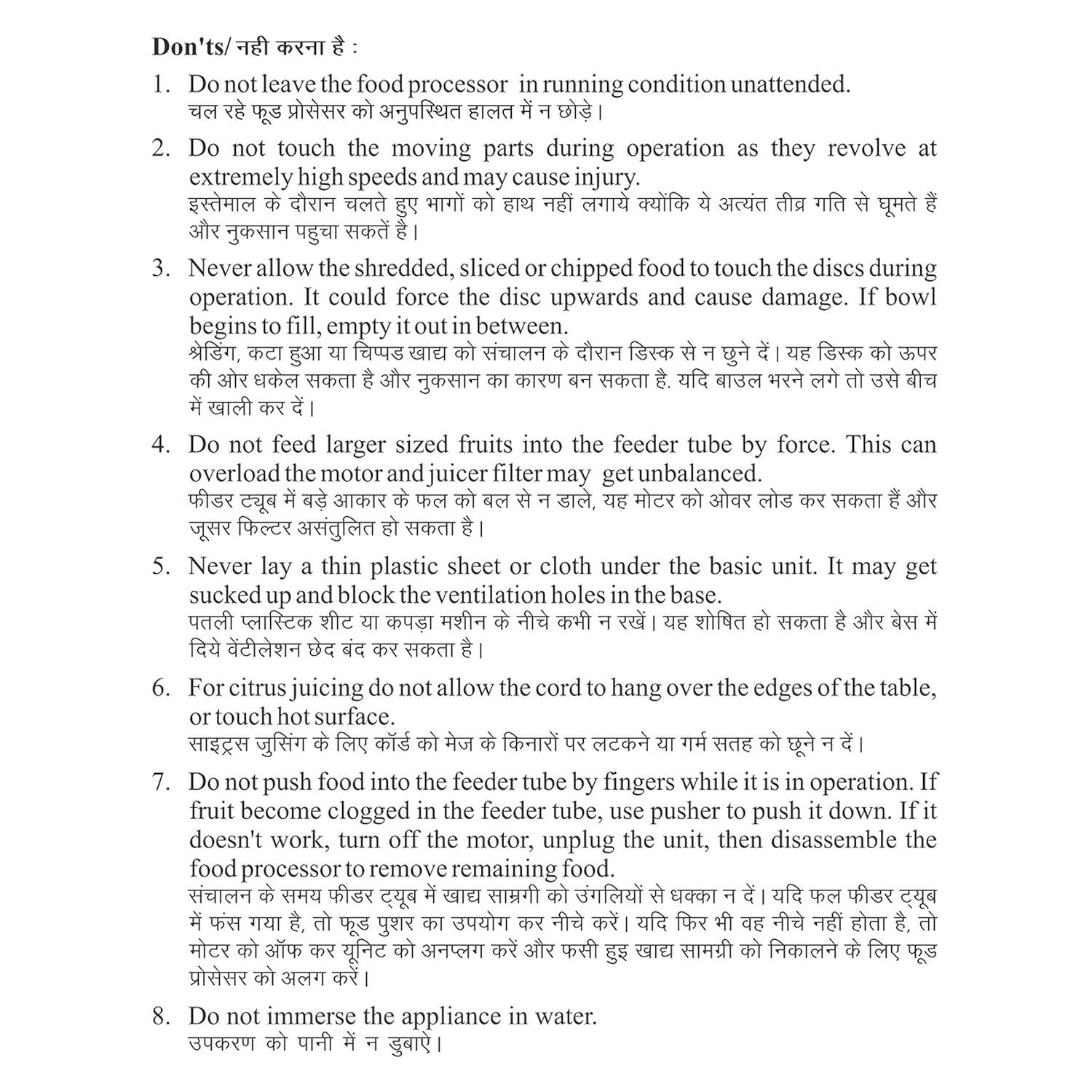

Image: A list of important 'Don'ts' for safe operation.

• Do not leave the food processor running unattended.
• Do not touch moving parts during operation as they revolve at extremely high speeds and can cause injury.
• Never allow shredded, sliced, or chipped food to touch the discs during operation. This can force the disc upwards and cause damage. Empty the bowl frequently.
• Do not feed oversized fruits into the feeder tube by force. This can overload the motor and unbalance the juicer filter.
• Never lay a thin plastic sheet or cloth under the basic unit. It may get sucked up and block the ventilation holes.
• For citrus juicing, do not allow the cord to hang over the table edge or touch hot surfaces.
• Do not push food into the feeder tube with fingers while it is in operation. If food becomes clogged, use the food pusher. If it doesn't work, turn off the unit, unplug it, then disassemble to remove food.
• Do not immerse the appliance in water.

Product Overview and Components

The Inalsa Magic Pro Food Processor is designed for versatile kitchen tasks. It features an 800-Watt motor and comes with multiple attachments for various functions.

Key Features

• Powerful 800-Watt Motor: Ensures efficient and fast processing.
• 2 Speed Settings with Pulse Function: Provides control for different processing needs.
• Anti-Skid Feet: For superior stability during operation.
• Family Size Capacity: 1.4 L processing bowl ideal for large meals.
• High-Quality Jars and Stainless Steel Blades: Durable and efficient for various tasks.

Image: Visual representation of key features: 800 Watts, 2 Jars, Chopper, Atta Kneader, Egg Whisker, Citrus Juicer, Stainless Steel Grinding Jar, Anti-Skid Feet.

Image: The food processor highlighting its anti-skid base and control dial.

Included Components

• Main Unit (Motor Base)
• 1.4 L Processing Bowl with Easy Grip
• Bowl Cover
• Food Pusher
• 1.8 L Transparent Blender Jar
• 400 ml Stainless Steel Multipurpose Jar
• Chopping Blade
• Kneader Blade
• Egg Whisker
• Citrus Juicer
• Coarse Shredder Cutter
• Fine Slicer
• French Fry Cutter
• Processor Spindle
• Blade and Cutter Holder
• Spatula

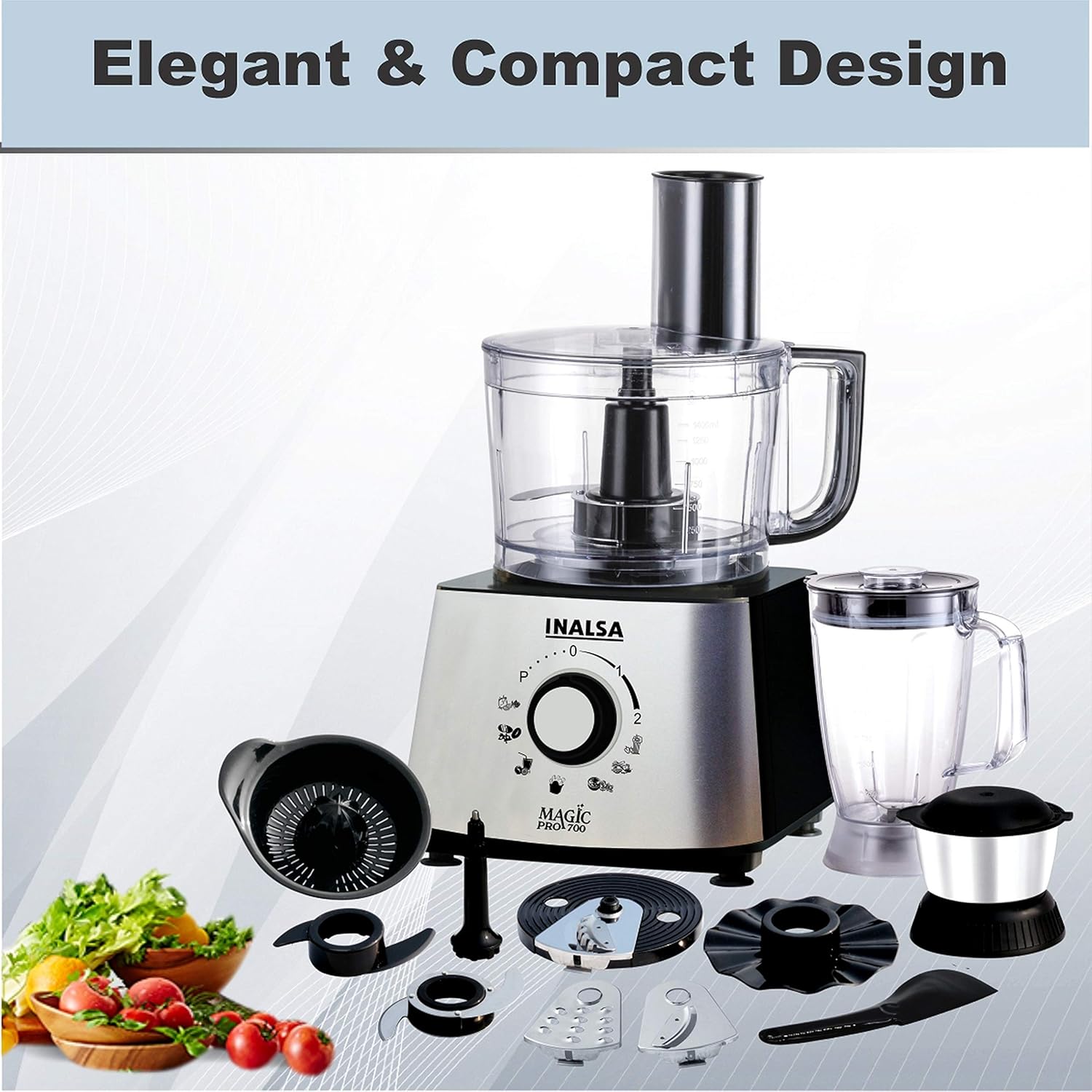

Image: All components and accessories of the Inalsa Magic Pro Food Processor.

Image: The 1.8 L transparent blender jar and the 400 ml stainless steel multipurpose jar.

Image: The 1.4 L processing bowl with an easy-grip handle.

Image: Three stainless steel segmented cutters for French fries, slicing, and shredding.

Setup and Assembly

Before first use, ensure all packaging materials are removed and components are clean. Assemble the food processor according to the task you wish to perform.

1. Motor Base Placement: Place the motor base on a stable, flat, and dry surface. Ensure there is enough space around the unit for ventilation.
2. Attaching the Processing Bowl:
   • Place the processing bowl onto the motor base, aligning the bowl's handle with the safety lock mechanism on the base.
   • Rotate the bowl clockwise until it locks securely into place. You should hear a click.
   • Insert the desired blade (chopping, kneading) or spindle for cutters into the center shaft of the bowl.
   • Place the bowl cover onto the processing bowl, aligning the feed chute with the handle. Rotate the cover clockwise until it locks.
   • Insert the food pusher into the feed chute.
3. Attaching Jars (Blender/Multipurpose):
   • For the blender jar or multipurpose jar, ensure the blade assembly is securely fitted at the bottom of the jar.
   • Place the jar onto the motor base, aligning the tabs on the jar with the slots on the base.
   • Rotate the jar clockwise until it locks securely.
   • Place the lid onto the jar and ensure it is properly sealed.
4. Power Connection: Plug the power cord into a 240V AC power outlet.

Operation

The Inalsa Magic Pro offers two speed settings and a pulse function for precise control over your food preparation.

Using the Control Dial

• "0" (Off): The appliance is off. Always ensure the dial is in this position before plugging in or unplugging the unit, or assembling/disassembling parts.
• "1" (Low Speed): Suitable for lighter tasks such as mixing, blending soft ingredients, or light chopping.
• "2" (High Speed): Ideal for heavier tasks like grinding, pureeing, or kneading dough.
• "P" (Pulse): Provides short bursts of maximum power. Hold the dial in the "P" position for intermittent operation. Release to stop. This is useful for coarse chopping, controlling texture, or dislodging food.

General Operating Guidelines

1. Ensure the appliance is correctly assembled and locked before operation.
2. Add ingredients to the processing bowl or jar. Do not overfill beyond the maximum fill line indicated.
3. Select the desired speed setting (1 or 2) or use the pulse function (P).
4. For continuous operation, turn the dial to '1' or '2'. For intermittent processing, use 'P'.
5. Always use the food pusher to guide ingredients through the feed chute; never use your fingers.
6. After use, turn the dial to '0' and unplug the appliance from the power outlet.
7. Wait for all moving parts to stop completely before disassembling.

Specific Functions

• Chopping: Use the chopping blade in the processing bowl. For best results, process ingredients in small batches. Use the pulse function for coarse chopping.
• Kneading Dough: Attach the kneading blade to the processing bowl. Add flour and water according to your recipe. Use speed '2' or the pulse function until dough forms.
• Slicing/Shredding/French Fries: Insert the appropriate cutter disc onto the spindle in the processing bowl. Place the bowl cover and use the food pusher to feed ingredients through the chute.
• Blending: Use the 1.8 L blender jar for liquids, smoothies, and purees. Ensure the lid is secure.
• Grinding: Use the 400 ml stainless steel multipurpose jar for dry grinding spices or wet grinding pastes.
• Citrus Juicing: Attach the citrus juicer component to the processing bowl. Press halved citrus fruits onto the reamer while the motor is running.
• Egg Whisker: Use the egg whisker attachment in the processing bowl for whipping eggs or cream.

Care and Maintenance

Proper cleaning and maintenance will extend the life of your Inalsa Magic Pro Food Processor.

1. Before Cleaning: Always switch off the appliance, unplug it from the power outlet, and wait for all moving parts to stop.
2. Motor Base: Wipe the motor base with a damp cloth. Never immerse the motor base in water or any other liquid.
3. Jars, Bowls, and Lids: Wash all removable parts (jars, bowls, lids, food pusher) in warm, soapy water. Rinse thoroughly and dry immediately.
4. Blades and Cutters: Handle blades and cutter discs with extreme care as they are very sharp. Clean them using a brush if necessary, and dry thoroughly.
5. Dishwasher Safety: The appliance is NOT dishwasher safe. Hand wash all components.
6. Storage: Store the assembled unit and all accessories in a clean, dry place, out of reach of children.

Troubleshooting

Refer to the table below for common issues and their solutions. If the problem persists, contact customer service.

Specifications

Warranty and Customer Support

Your Inalsa Magic Pro Food Processor comes with a 2-year hassle-free warranty from the date of purchase.

For any service, support, or warranty claims, please contact Inalsa customer service:

• Contact Numbers: 9773982065, 9773982066, 9773982067, 9773982068, 9773982069

Please have your purchase details and model number ready when contacting support.
