American Bass XD-1244 12-inch Car Audio Subwoofer Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your American Bass XD-1244 12-inch car audio subwoofers. Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of your product.

Image 1.1: Two American Bass XD-1244 12-inch subwoofers.

2. Setup and Installation

Proper installation is crucial for the performance and safety of your subwoofers. It is recommended that installation be performed by a qualified professional.

2.1 Unpacking

Carefully remove the subwoofers from their packaging. Inspect for any signs of damage during transit. The package should contain two (2) American Bass XD-1244 12-inch subwoofers.

2.2 Enclosure Requirements

The performance of your subwoofer is highly dependent on the enclosure. Consider the following specifications:

• Ported Enclosure: 2.0 Cubic feet per subwoofer
• Sealed Enclosure: 1.5 Cubic feet per subwoofer

2.3 Mounting

The subwoofers are designed for car mount applications. Ensure the mounting surface is secure and can support the weight of the subwoofer. The mounting depth required is 6.46 inches (165 mm).

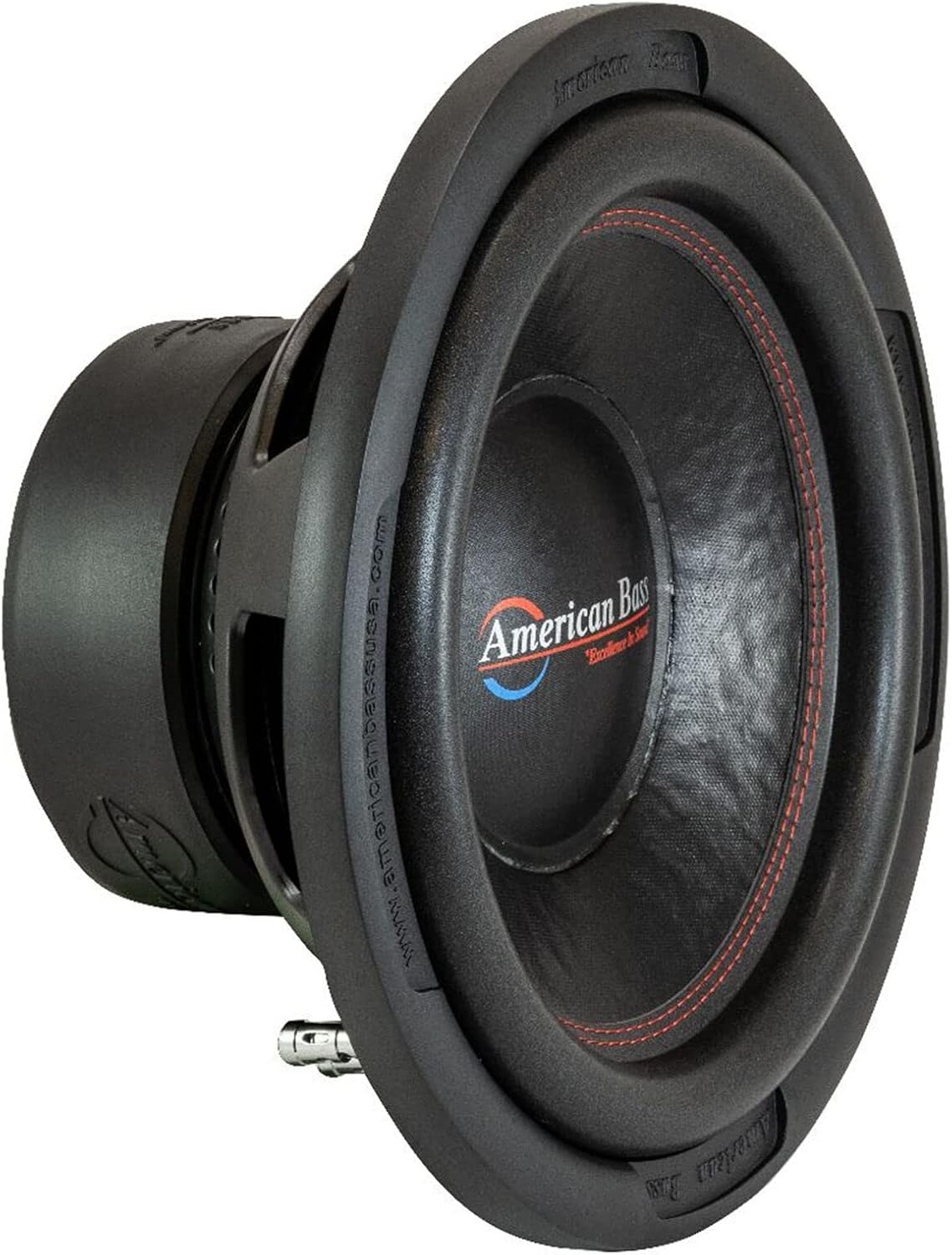

Image 2.1: Angled view of a single XD-1244 subwoofer.

2.4 Wiring and Connectivity

These subwoofers feature a dual 4-ohm impedance. Proper wiring to your amplifier is essential to match the amplifier's impedance requirements and prevent damage. Consult your amplifier's manual for wiring diagrams for dual 4-ohm subwoofers.

• Impedance: Dual 4-ohm
• Connectivity: Wired (RCA connections are typically used for signal input to the amplifier, not directly to the subwoofer terminals.)

Image 2.2: Rear view of the XD-1244 subwoofer, highlighting the speaker terminals.

Ensure all connections are secure and free from shorts. Use appropriate gauge wiring for power, ground, and speaker connections.

3. Operating Instructions

Once installed, follow these guidelines for optimal operation of your subwoofers.

3.1 Power Handling

The American Bass XD-1244 subwoofers are rated for:

• RMS Power: 500 Watts per subwoofer
• MAX Power: 1000 Watts per subwoofer

Avoid exceeding the maximum power rating to prevent damage to the voice coil and other components. Ensure your amplifier's output matches the subwoofer's power handling capabilities.

3.2 Audio Settings

Adjust your amplifier and head unit settings to achieve the desired sound. Pay attention to:

• Gain Control: Set the gain correctly to prevent distortion.
• Low-Pass Filter (LPF): Typically set between 80Hz and 120Hz to ensure the subwoofer only reproduces low frequencies. The subwoofer's effective frequency range is below 500 Hz.
• Subsonic Filter: If available, set this to protect the subwoofer from playing frequencies below its resonant frequency (Fo: 35 Hz).

4. Maintenance

To ensure the longevity and performance of your subwoofers, follow these simple maintenance tips:

• Cleaning: Use a soft, dry cloth to wipe down the subwoofer cone and surround. Avoid using harsh chemicals or excessive moisture.
• Environmental Conditions: These subwoofers are NOT waterproof. Protect them from direct exposure to water, extreme temperatures, and direct sunlight.
• Inspection: Periodically check speaker terminals and wiring for corrosion or loose connections.

5. Troubleshooting

If you experience issues with your subwoofers, refer to the following common problems and solutions:

5.1 No Sound Output

• Check Power: Ensure the amplifier is receiving power and is turned on.
• Check Connections: Verify all speaker wires are securely connected to both the subwoofer and the amplifier. Check for any frayed wires or shorts.
• Amplifier Settings: Confirm amplifier gain, LPF, and other settings are correctly configured.
• Source Unit: Ensure the head unit or audio source is sending a signal to the amplifier.

5.2 Distorted Sound

• Gain Setting: Reduce the amplifier's gain setting. Overdriving the amplifier can cause distortion.
• Clipping: Check for amplifier clipping (often indicated by a light on the amplifier).
• Enclosure Issues: Ensure the enclosure is sealed properly (if applicable) and free from air leaks.
• Power Supply: Verify the amplifier is receiving adequate power. Low voltage can cause distortion.

5.3 Weak Bass Output

• Phase: Check the phase setting on your amplifier or head unit. Incorrect phase can cancel out bass frequencies.
• LPF Setting: Ensure the low-pass filter is not set too low, cutting off desired bass frequencies.
• Enclosure Volume: Verify the enclosure volume matches the recommended specifications.

6. Specifications

Detailed technical specifications for the American Bass XD-1244 12-inch subwoofer:

Image 6.1: Top view of the XD-1244 subwoofer cone and surround.

Image 6.2: Angled rear view of the XD-1244 subwoofer with model details.

7. Warranty Information

The American Bass XD-1244 subwoofers come with a limited warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the official American Bass website or contact their customer support directly. Keep your proof of purchase for warranty claims.

8. Support

For further assistance, technical support, or inquiries not covered in this manual, please contact American Bass customer service through their official channels. You can typically find contact information on the manufacturer's website.
