Festnight Wall Mounted Parasol Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your Festnight Wall Mounted Parasol. Designed for outdoor use, this parasol offers effective shade and protection from harmful UV rays. Please read this manual thoroughly before installation and use to ensure safe and correct operation.

Image 1.1: The Festnight Wall Mounted Parasol in its open position, showcasing its design and wall-mounted structure.

2. Safety Information

To prevent injury or damage, always adhere to the following safety guidelines:

• Read all instructions carefully before assembly and first use.
• Ensure the parasol is securely mounted to a stable and structurally sound wall surface. Consult a professional if unsure about wall suitability.
• Do not use the parasol in strong winds, heavy rain, or other severe weather conditions. Close and secure the parasol to prevent damage or injury.
• Keep children and pets away from the assembly area to avoid accidents.
• Regularly inspect all components for wear, damage, or loose fasteners. Replace damaged parts immediately.
• Do not hang objects from the parasol frame or ribs.

3. Package Contents

Verify that all components are present before beginning assembly:

• Parasol Canopy (Taupe, 100% Polyester)
• Metal Pole/Frame Assembly
• Crank Mechanism
• 8 Ribs (integrated into canopy)
• Wall Mounting Accessories (screws, anchors, brackets)

4. Setup and Assembly

The Festnight Wall Mounted Parasol is designed for straightforward assembly. Follow these steps for secure installation:

1. Choose Location: Select a suitable wall location that can support the weight of the parasol and provides the desired shade. Ensure there are no hidden electrical wires or plumbing in the wall.
2. Mark Drilling Points: Using the wall mounting bracket as a template, mark the drilling points on the wall.
3. Drill Holes: Drill holes of the appropriate size for the wall anchors.
4. Install Wall Bracket: Insert the wall anchors and securely fasten the wall mounting bracket to the wall using the provided screws.
5. Attach Parasol Frame: Mount the parasol's main pole assembly onto the installed wall bracket. Ensure it is firmly seated and secured according to the specific instructions provided with the mounting hardware.
6. Final Check: Verify that all connections are tight and the parasol frame is stable before proceeding to operation.

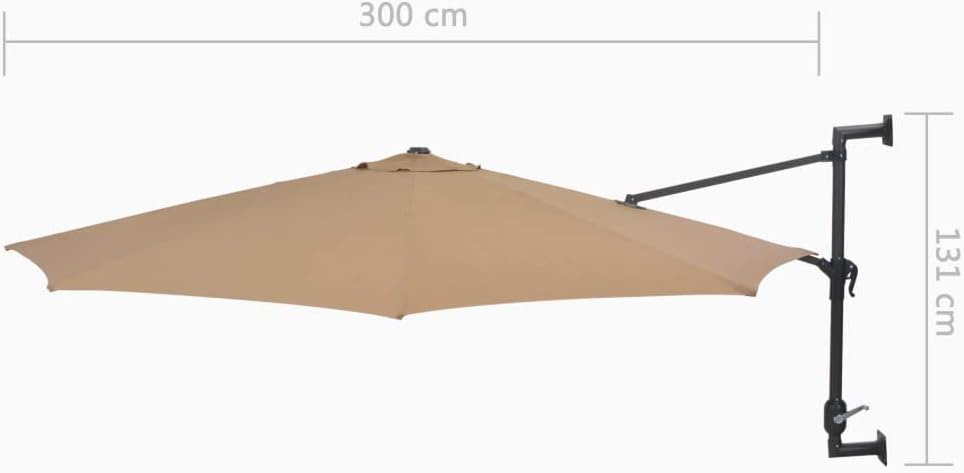

Image 4.1: Overall dimensions of the parasol, useful for planning installation space.

5. Operating Instructions

Your Festnight Wall Mounted Parasol features a convenient crank system for opening and closing, and an inclination mechanism for adjusting the canopy angle.

5.1. Opening the Parasol

1. Locate the crank handle on the parasol pole.
2. Turn the crank handle clockwise to extend the canopy. Continue turning until the canopy is fully open and taut.

Image 5.1: The crank mechanism used for opening and closing the parasol canopy.

5.2. Closing the Parasol

1. Turn the crank handle counter-clockwise to retract the canopy.
2. Continue turning until the canopy is fully closed and secured. It is recommended to use the integrated strap to keep the closed canopy compact.

Image 5.2: The parasol in its closed state, ready for storage or protection from weather.

5.3. Adjusting Canopy Tilt

The parasol features an inclination mechanism to adjust the angle of the canopy, allowing you to block direct sunlight as the sun moves.

1. Locate the tilt lever or mechanism on the parasol pole.
2. Engage the lever to release the tilt lock.
3. Adjust the canopy to the desired angle.
4. Release the lever to lock the canopy in position.

Image 5.3: Detail of the lever used to adjust the parasol's tilt angle.

6. Maintenance

Proper maintenance will extend the life and appearance of your parasol.

• Cleaning: Clean the parasol canopy regularly with a mild soap solution and lukewarm water. Use a soft brush or cloth. Rinse thoroughly with clean water and allow to air dry completely before closing or storing.
• Waterproofing: For enhanced water resistance, especially in areas with heavy rainfall, it is highly recommended to treat the canopy fabric with a suitable waterproofing spray periodically.
• Storage: When not in use for extended periods or during adverse weather, close the parasol and secure it with the integrated strap. For winter storage, consider removing the canopy and storing it indoors in a dry, protected area.
• Frame Inspection: Periodically check the metal frame, ribs, and mounting hardware for any signs of rust, corrosion, or loose connections. Tighten any loose screws and address rust spots with appropriate metal treatment.

7. Troubleshooting

Refer to this section for common issues and their solutions.

• Parasol not opening/closing smoothly: Check for any obstructions in the crank mechanism or canopy ribs. Ensure the mechanism is clean and free of debris. A small amount of silicone lubricant can be applied to moving parts if necessary.
• Parasol feels unstable after mounting: Re-check all wall mounting fasteners to ensure they are securely tightened. Verify that the wall surface is suitable and that the anchors are properly installed.
• Canopy fabric appears faded: Exposure to direct sunlight over time can cause some fading. Regular cleaning and the application of a UV-protective fabric spray can help mitigate this.
• Water pooling on canopy: Ensure the canopy is fully extended and taut when open. Apply a waterproofing spray as recommended in the maintenance section.

8. Specifications

9. Warranty and Support

For specific warranty details, return policies, or technical assistance, please refer to the documentation provided at the time of purchase or contact your retailer directly. Keep your proof of purchase for any warranty claims.
