1. Product Overview
This manual provides essential information for the safe and efficient operation of your MarsRock G300M 300W Permanent Magnet Generator AC Alternator. This generator is designed for use with vertical wind turbine systems, providing a stable and efficient power output.
Key features include:
- Equipped with high-grade NdFeB Permanent Magnets and pure copper winding for stable and efficient power generation.
- Features a specially designed rotor and rotator for low resistance during start-up and effective cooling.
- Gearless, direct-drive design with low revolutions per minute (RPM) for ease of operation and maintenance.
- Constructed with a die-cast aluminum alloy case, offering resistance against corrosion, acid, alkali, and salt.
Figure 1: MarsRock G300M 300W Permanent Magnet Generator AC Alternator. This image shows the exterior of the generator unit with its ribbed casing and electrical output wires.
2. Safety Information
Read all safety instructions before installation and operation. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Electrical Hazard: Always disconnect power before working on the generator or connected systems. Only qualified personnel should perform electrical connections.
- Rotating Parts: Keep hands, hair, and loose clothing away from rotating parts during operation.
- Weight: The generator has a net weight of 4kg (8.8 lbs). Use proper lifting techniques and assistance when handling to prevent injury.
- Environmental Conditions: Ensure the generator is installed in an environment suitable for its operating temperature range (-40℃ to 80℃).
- Proper Grounding: Ensure the generator and associated electrical systems are properly grounded according to local electrical codes.
3. Product Components
The MarsRock G300M generator consists of several key internal and external components designed for optimal performance.
Figure 2: Internal Components. This image displays various internal parts of the generator, including the rotor with magnets, copper windings, and the stator assembly, highlighting the precision engineering.
The generator features a robust aluminum alloy casing, a three-phase permanent magnet AC alternator, and high-quality copper windings for efficient energy conversion.
4. Setup and Installation
Proper installation is crucial for the performance and longevity of the generator. It is recommended that installation be performed by a qualified technician.
- Mounting: Securely mount the generator to the vertical wind turbine shaft. Ensure all mounting bolts are tightened to the manufacturer's specifications.
- Electrical Connections: Connect the three-phase AC output wires from the generator to the appropriate charge controller or inverter system. Ensure correct polarity and secure connections.
- Grounding: Connect the generator's grounding terminal to a reliable earth ground.
- System Integration: Integrate the generator with your existing wind power system, ensuring compatibility with the 24V rated voltage.
Figure 3: Typical Application. This diagram illustrates how the generator integrates into various vertical and horizontal axis wind turbine setups, showing its versatility.
5. Operating Instructions
Once installed, the generator operates automatically in conjunction with the wind turbine. No manual intervention is typically required for power generation.
- Initial Start-up: After installation, ensure all connections are secure and the wind turbine is free to rotate. The generator will begin producing power once sufficient wind speed is achieved.
- Monitoring: Monitor the output voltage and current through your charge controller or inverter system to ensure proper operation.
- Rated Speed: The generator is designed for a rated rotation speed of 600 revolutions per minute (r/m) to achieve its rated power output.
6. Maintenance
Regular maintenance helps ensure the long-term reliability and performance of your generator.
- Visual Inspection: Periodically inspect the generator for any signs of physical damage, loose connections, or corrosion.
- Cleaning: Keep the exterior of the generator clean and free from dust, dirt, and debris. Do not use harsh chemicals.
- Bearing Check: Listen for any unusual noises from the bearings. While designed for low maintenance, extreme conditions may require professional inspection.
- Connection Check: Annually check all electrical connections for tightness and integrity.
7. Troubleshooting
If you encounter issues with your generator, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No power output | Insufficient wind speed; Loose electrical connections; Faulty charge controller/inverter | Verify wind speed; Check all wiring; Test charge controller/inverter |
| Low power output | Low wind speed; Obstruction to wind turbine; Partial short circuit | Ensure clear wind path; Inspect for damage; Consult a technician |
| Unusual noise/vibration | Loose mounting; Bearing wear; Imbalance in wind turbine blades | Check mounting bolts; Contact support for bearing inspection; Inspect turbine blades |
For issues not listed here, please contact customer support.
8. Specifications
Detailed technical specifications for the MarsRock G300M Permanent Magnet Generator.

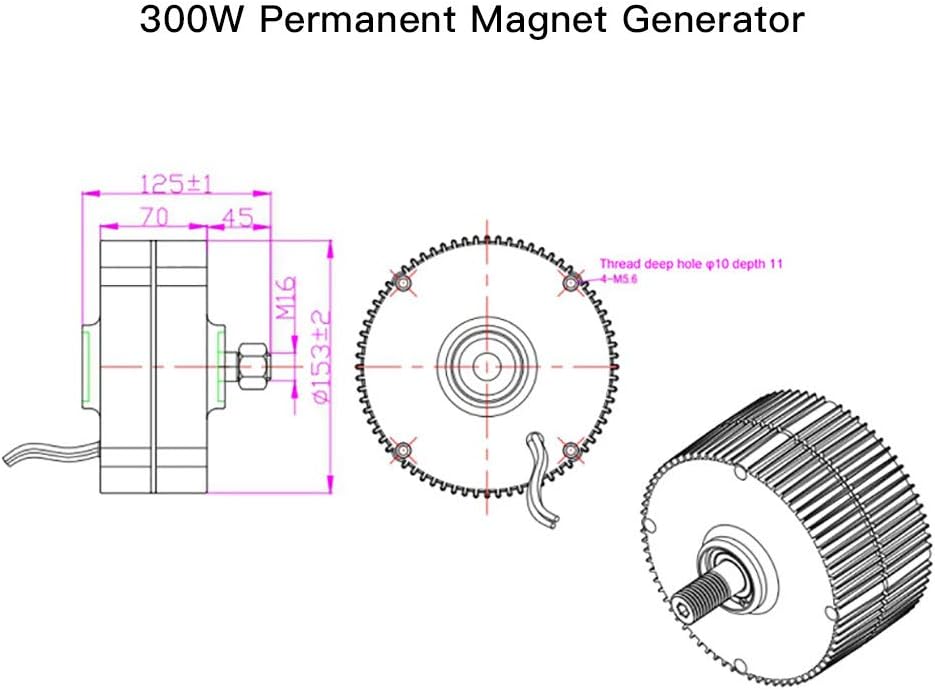

Figure 4: Technical Dimensions. This drawing provides precise measurements and thread specifications for the 300W Permanent Magnet Generator, essential for installation planning.
| Specification | Value |
|---|---|
| Brand | Marsrock |
| Model Number | G300M |
| Type | 3-Phase Permanent Magnet Generator AC Alternator |
| Rated Power | 300W |
| Max Power | 350W |
| Rated Voltage | 24V |
| Rated Rotate Speed | 600 r/m |
| Net Weight | 4 kg (8.8 lbs) |
| Gross Weight | 5 kg (11 lbs) |
| Packing Size | 230 x 230 x 200 mm |
| Working Temperature | -40℃ to 80℃ |
| Material | Aluminum alloy |
| UPC | 823544881368 |
9. Warranty Information
MarsRock products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact MarsRock customer support. Typically, warranties cover defects in materials and workmanship under normal use.
10. Support and Contact
For technical assistance, troubleshooting, or inquiries regarding your MarsRock G300M generator, please contact MarsRock customer support through their official website or the retailer from whom the product was purchased.
You can visit the Marsrock Store for more information: Marsrock Official Store
