Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your KOTARBAU Door Handle. Please read these instructions carefully before beginning installation to ensure proper function and longevity of the product.
The KOTARBAU door handle is designed for reliability and durability, made from high-quality aluminum. It is a universal design, suitable for both left and right-hand opening room doors.
Product Components
Before installation, ensure all components are present. The KOTARBAU Door Handle set typically includes the following:
- Door handle plates (2 pieces)
- Door handle levers (2 pieces)
- Square spindle (1 piece)
- Mounting screws (2 pieces)
- Sleeve nuts (2 pieces)
Image: Overview of the KOTARBAU Door Handle components, showing the two handle plates, the levers, the square spindle, and the necessary mounting screws and sleeve nuts.
Image: Technical drawing illustrating the precise dimensions of the KOTARBAU Door Handle, including plate length, handle projection, and screw hole spacing (72mm center-to-center for the lock and spindle).
Setup and Installation
Follow these steps for a successful installation:
- Preparation: Ensure your door is prepared with the correct boreholes for the spindle and mounting screws. The distance between the center of the spindle hole and the center of the keyhole should be 72mm.
- Insert Spindle: Insert the square spindle through the latch mechanism in the door.
- Position Handles: Place one handle plate on each side of the door, aligning the spindle with the handle's receiver and the screw holes with the pre-drilled holes in the door.
- Secure with Screws: Insert the mounting screws through the holes on one side of the handle plate and thread them into the sleeve nuts on the other side. Tighten securely but do not overtighten.
- Test Operation: After installation, test the door handle by pressing the lever down to ensure the latch retracts smoothly and returns to its original position when released.

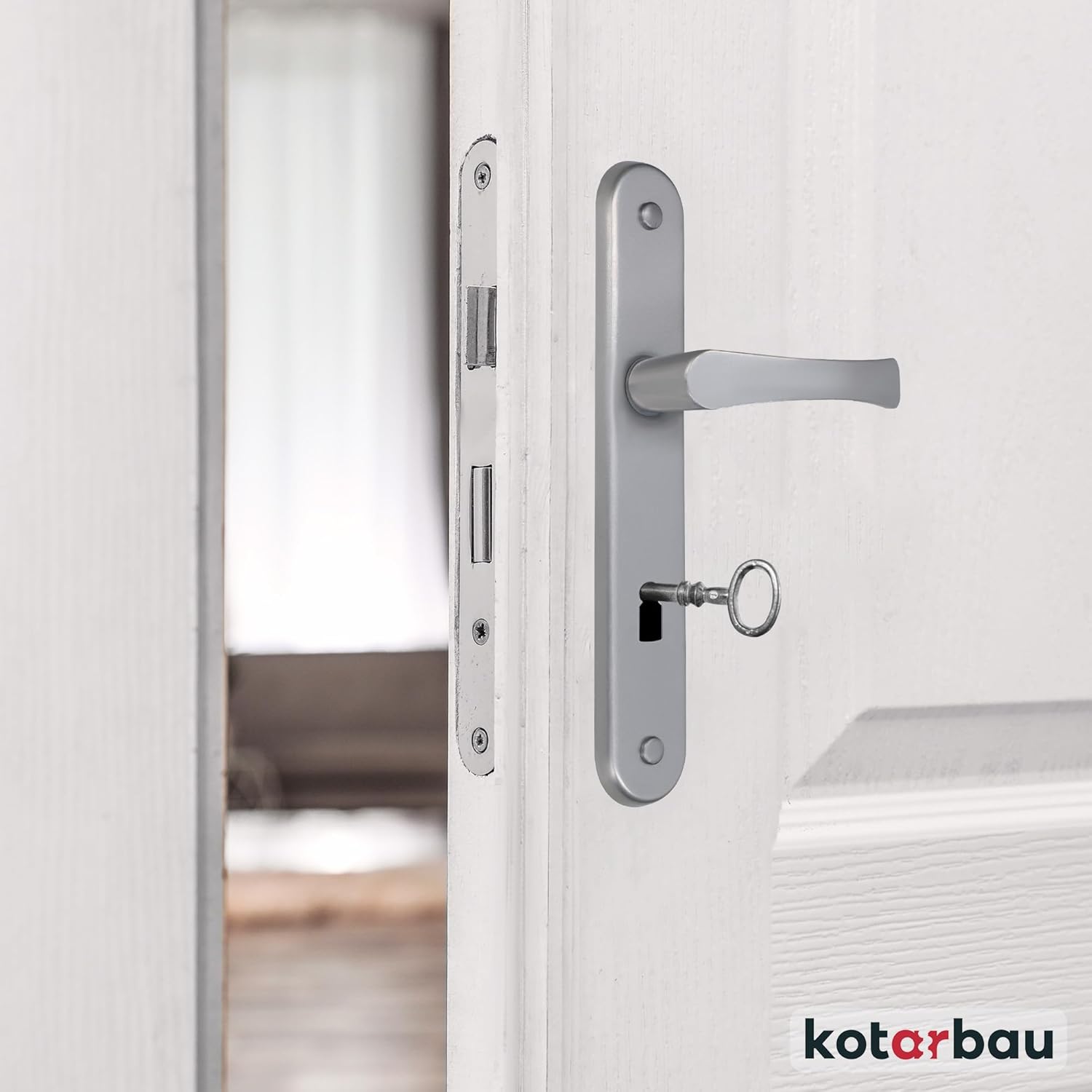

Image: The KOTARBAU Door Handle shown installed on a white door, demonstrating its appearance and how a key would be used with the integrated lock mechanism.
Operating Instructions
The KOTARBAU Door Handle is designed for simple and intuitive operation:
- To open the door, simply press the handle lever downwards. This will retract the latch, allowing the door to open.
- Release the handle lever to allow the latch to extend back into the strike plate, securing the door when closed.
- For models with a keyhole (BB - for the lock), insert the appropriate key and turn to engage or disengage the lock mechanism.
Image: A hand demonstrating the operation of the KOTARBAU Door Handle, showing the natural grip and downward movement required to open the door.
Maintenance
To ensure the longevity and smooth operation of your KOTARBAU Door Handle, follow these maintenance tips:
- Cleaning: Wipe the handle regularly with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals, as these can damage the aluminum finish.
- Lubrication: Periodically apply a small amount of silicone-based lubricant to the moving parts of the latch mechanism (not the handle itself) to ensure smooth operation.
- Tightening: Check the mounting screws periodically and tighten them if they have become loose. Do not overtighten.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Handle is loose or wobbly. | Mounting screws are loose. | Tighten the mounting screws. |
| Latch does not retract smoothly. | Lack of lubrication or debris in the latch mechanism. | Clean and lubricate the latch mechanism. |
| Handle does not return to horizontal position. | Spring mechanism issue or spindle misalignment. | Check spindle alignment. If issue persists, contact KOTARBAU support. |
Specifications
| Brand | KOTARBAU |
| Model Number | 05907465904148 |
| Material | Aluminum |
| Color | Silver |
| Dimensions (L x W x H) | 22.5 x 4 x 1 cm (approx. 8.86 x 1.57 x 0.39 inches) |
| Weight | 285 Grams (approx. 0.63 lbs) |
| Spindle-to-Keyhole Distance | 72 mm |
| Installation Method | Screw-in (Verschrauben) |
| Special Features | Keyless (for handle operation), suitable for left/right adjustable doors |
Warranty and Support
KOTARBAU is a brand recognized for its commitment to quality, safety, and precision. All KOTARBAU products undergo multiple quality checks to ensure they meet high standards for both industrial and private use.
While specific warranty periods are not detailed in this manual, KOTARBAU stands by the reliability and durability of its products. For any questions, concerns, or support needs regarding your door handle, please refer to the retailer where the product was purchased or visit the official KOTARBAU website for contact information.
