1. Important Safety Information
Please read these instructions carefully before installing and using the appliance. Keep this user manual for future reference. Failure to follow these instructions may result in electric shock, fire, or injury.
- Electrical Safety: Ensure the power supply matches the voltage specified on the rating plate. Do not use extension cords or multiple adapters.
- Installation: Installation must be carried out by a qualified person in accordance with local regulations. Ensure adequate ventilation in the room.
- Cleaning: Always disconnect the appliance from the power supply before cleaning or maintenance.
- Children and Vulnerable Persons: This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Fire Hazard: Do not flambé under the range hood. Do not leave frying pans unattended during operation as overheated oil can ignite.
2. Product Overview
The Balay 3BC997GX is a high-performance wall-mounted extractor hood designed to efficiently remove smoke, steam, and odors from your kitchen. Its sleek stainless steel design complements modern kitchen aesthetics.
Figure 2.1: Front view of the Balay 3BC997GX extractor hood.
Key Features:
- High-Efficiency Motor: Ensures powerful extraction with reduced energy consumption.
- Touch Control Panel: Intuitive controls for easy adjustment of extraction speeds and lighting.
- LED Illumination: Provides bright and energy-efficient lighting for your cooking area.
- Shielded Interior: Designed for easy and safe cleaning.
- Dishwasher-Safe Aluminum Filters: 9-layer aluminum filters effectively capture grease and are easy to clean.
- Easy Installation System: Simplifies the mounting process.
- Anti-Return Valve: Prevents odors and fumes from re-entering the kitchen.
3. Setup and Installation
Proper installation is crucial for the optimal performance and safety of your extractor hood. Refer to the diagrams below for precise measurements and mounting points.
3.1. Mounting Requirements
Ensure the wall is strong enough to support the weight of the hood. The minimum distance between the cooking surface and the lower part of the hood must be observed.
Figure 3.1: Overall dimensions and ducting options (A: External air outlet, B: Air recirculation, C: Air outlet with slots facing down).
Figure 3.2: Detailed dimensions for hood placement and ducting connection.
3.2. Electrical Connection
The appliance requires a 220V, 60Hz power supply. Ensure the electrical outlet is easily accessible after installation.
Figure 3.3: Electrical connection points and minimum distances from cooking surfaces (C: Electric, D: Gas, E: Australia/New Zealand Electric).
3.3. Wall Mounting
Use the provided screws and wall plugs. Mark the drilling points accurately using the template or measurements from the manual.
Figure 3.4: Detailed diagram for drilling mounting holes (A: Electric, B: Gas, C: Australia/New Zealand Electric).
Note: The screws for anchoring the hood to the wall are TORX type. Ensure you have the correct screwdriver bit to avoid damaging the screw heads.
4. Operating Instructions
The Balay 3BC997GX features an intuitive touch control panel for easy operation.
Figure 4.1: Close-up of the touch control panel.
4.1. Control Panel Functions:
- Power On/Off (⏱): Press to turn the hood on or off.
- Speed 1, 2, 3: Select the desired extraction speed for normal cooking.
- Intensive Speed (P): Activates the maximum extraction power for a short period, ideal for intense cooking fumes. The hood will automatically revert to a lower speed after a set time.
- Light (💡): Press to turn the LED lights on or off.
For best results, it is recommended to turn on the hood a few minutes before you start cooking and leave it on for a few minutes after you finish to ensure all odors and steam are cleared.
5. Maintenance and Cleaning
Regular maintenance ensures the longevity and efficiency of your extractor hood.
5.1. Cleaning the Grease Filters
The aluminum grease filters should be cleaned regularly, depending on usage, to prevent grease buildup and maintain extraction efficiency. The filters are dishwasher-safe.

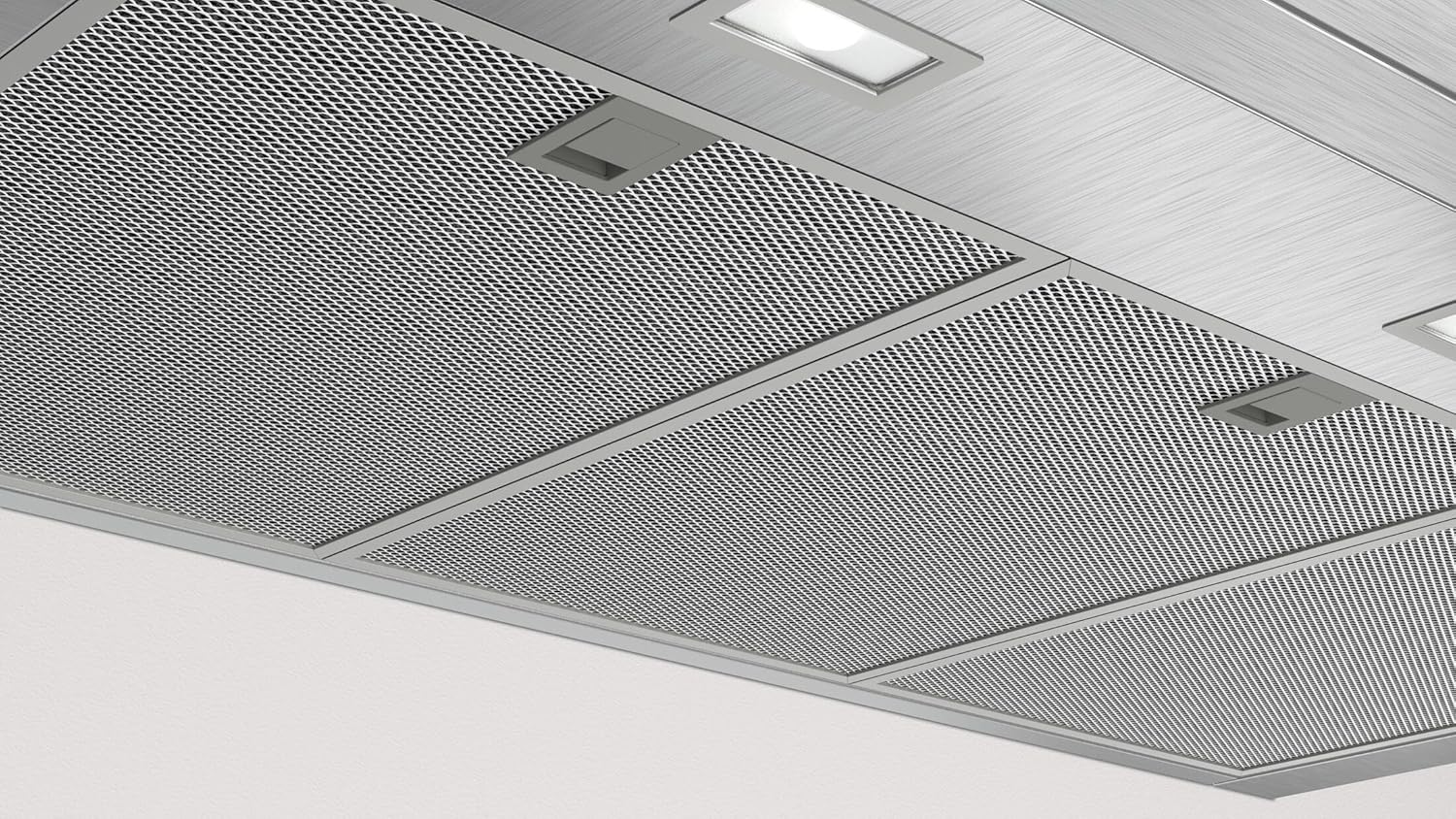

Figure 5.1: View of the installed grease filters on the underside of the hood.
Figure 5.2: A single grease filter removed from the hood.
- To remove the filters, push the latch on each filter and pull downwards.
- Wash the filters in a dishwasher or by hand using hot water and a mild detergent.
- Ensure filters are completely dry before re-installing.
- To re-install, align the filter with the slots and push upwards until the latch clicks into place.
5.2. Cleaning the Exterior
Clean the exterior of the hood with a soft cloth and a non-abrasive cleaner suitable for stainless steel. Avoid using harsh chemicals or abrasive pads that could scratch the surface.
5.3. Light Bulb Replacement
The hood uses LED lighting. If replacement is necessary, contact qualified service personnel. Refer to the important information section regarding recycling and cleaning of broken bulbs.
6. Troubleshooting
If you encounter issues with your Balay extractor hood, refer to the following common problems and solutions before contacting service.
| Problem | Possible Cause | Solution |
|---|---|---|
| Hood does not turn on. | No power supply. | Check if the power cord is properly plugged in and the circuit breaker has not tripped. |
| Low extraction power. | Grease filters are clogged. | Clean the grease filters as described in Section 5.1. |
| Excessive noise. | Improper installation or loose components. | Ensure the hood is securely mounted and all ducting connections are tight. Check for any foreign objects in the fan. |
| Lights not working. | LED module failure. | Contact qualified service personnel for replacement. |
| Odors persist after extraction. | Insufficient operating time or recirculation filter saturation. | Operate the hood longer. If using recirculation mode, replace the activated carbon filter (not included, sold separately) if applicable. |
7. Specifications
Detailed technical specifications for the Balay 3BC997GX extractor hood:
| Specification | Value |
|---|---|
| Brand | Balay |
| Model Number | 3BC997GX (4242006282974) |
| Dimensions (D x W x H) | 50f. x 89.8an. x 106.4al. cm (approx. 20 x 20 x 20 cm; 24.12 kg packaged) |
| Material | Stainless Steel |
| Color | Stainless Steel |
| Airflow Capacity | 721 m³/hour |
| Noise Level | 55 dB |
| Control Method | Touch Control |
| Lighting Type | LED |
| Wattage | 145 watts |
| Voltage | 220V |
| Frequency | 60 Hz |
| Filter Type | Grease Filter (Aluminum) |
| Mounting Type | Wall Mount |
| Ventilation Type | Recirculation (can be adapted for external extraction) |
| Energy Efficiency Class | A+ (based on energy label) |
Figure 7.1: Energy label indicating efficiency and consumption.
8. Warranty and Support
Balay products are manufactured to high quality standards. For warranty information, please refer to the warranty card included with your product or visit the official Balay website.
8.1. Customer Support
If you require technical assistance, spare parts, or have any questions not covered in this manual, please contact Balay customer service. Have your product model number (3BC997GX) and serial number ready when contacting support.
