Introduction
The Novellini Easy 2 Thermostatic Shower Column is a multifunctional shower system designed for wall installation. It features a thermostatic mixer, a hand shower with a flexible hose, and a rain shower head. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your shower column.
Key Features:
- Thermostatic mixer for precise temperature control.
- Integrated hand shower with flexible hose.
- Overhead rain shower (20x20 cm).
- Durable brass construction with a black finish.
- Designed for wall mounting.

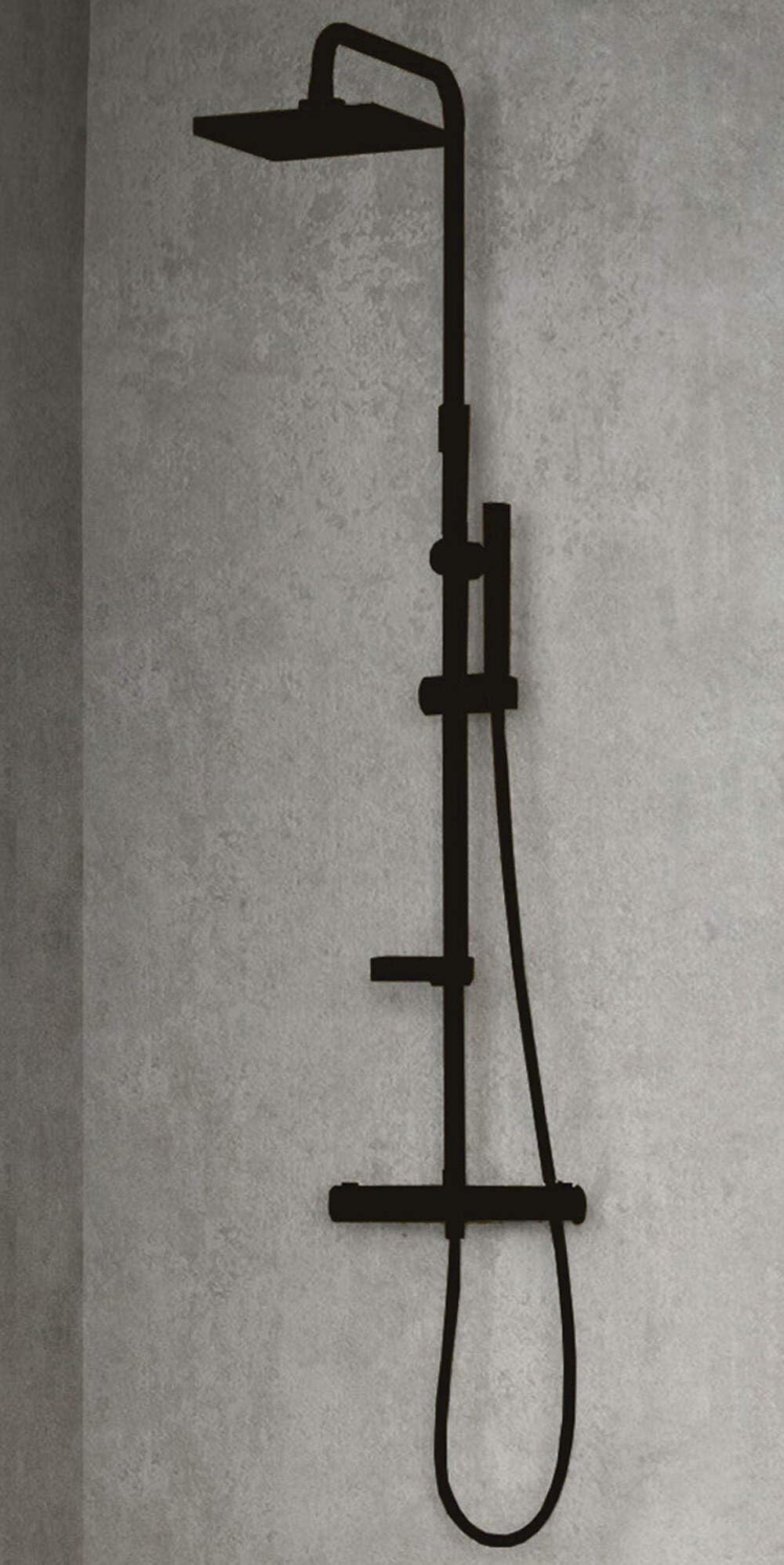

Figure 1: Front view of the Novellini Easy 2 Thermostatic Shower Column. This image displays the overall design, including the main column, thermostatic mixer, and the overhead rain shower.
Setup and Installation
Proper installation is crucial for the optimal performance and longevity of your Novellini Easy 2 shower column. It must be installed by a qualified professional in accordance with local plumbing codes.
Pre-Installation Checks:
- Ensure all components are present and undamaged.
- Verify water supply lines (hot and cold) are accessible and correctly positioned.
- Confirm water pressure meets the specified requirements (optimal dynamic pressure 2-5 bar).
- The hot water inlet is typically on the left (marked '1' in diagrams), and the cold water inlet on the right (marked '2'). Both require 1/2" connections.
Installation Steps:
- Prepare the Wall: Mark the drilling points for the wall brackets based on the column's dimensions and desired height. Ensure the surface is clean and level.
- Mount Brackets: Drill holes and securely fasten the wall mounting brackets using appropriate hardware for your wall type.
- Connect Water Supply: Connect the hot and cold water lines to the thermostatic mixer. Ensure a watertight seal using appropriate plumbing tape or sealant. The connections are labeled '1' for hot water and '2' for cold water.
- Mount the Column: Carefully attach the shower column to the installed wall brackets.
- Install Hand Shower and Hose: Connect the flexible hose to the hand shower and the designated outlet on the column.
- Test for Leaks: Turn on the water supply and thoroughly check all connections for leaks.
- Calibrate Thermostatic Mixer: Follow the thermostatic mixer's specific instructions for initial calibration to ensure accurate temperature control.

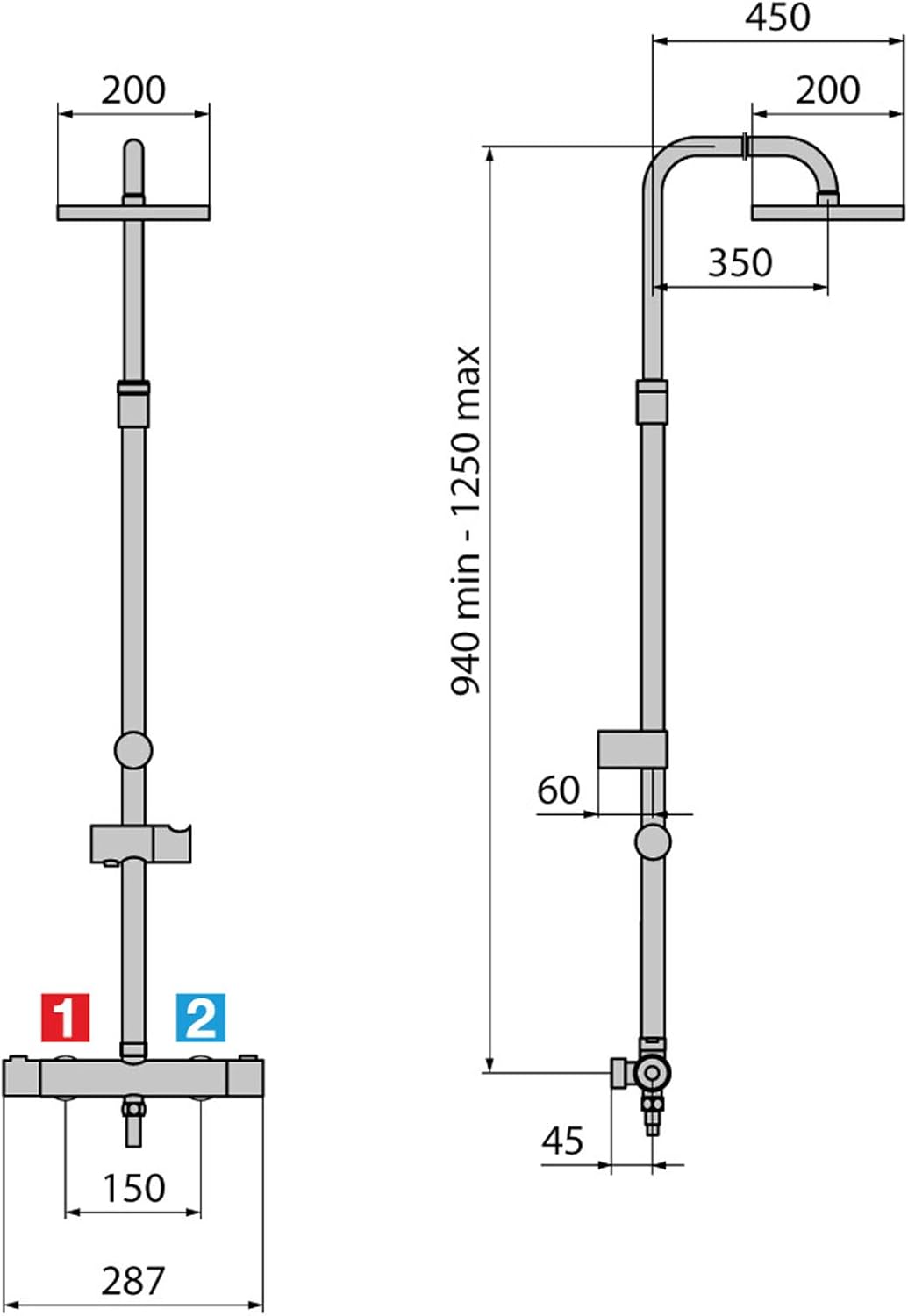

Figure 2: Technical drawing illustrating the dimensions and water connection points (1 for hot, 2 for cold) for the Novellini Easy 2 Shower Column. This diagram is essential for accurate installation planning.
Operating Instructions
The Novellini Easy 2 shower column is designed for ease of use, providing a comfortable and consistent showering experience.
Thermostatic Mixer:
- Temperature Control: Use the temperature control knob (typically on one side of the mixer) to set your desired water temperature. The thermostatic valve will automatically mix hot and cold water to maintain this temperature, even if water pressure fluctuates.
- Safety Stop: Most thermostatic mixers include a safety stop button, usually at 38°C (100°F), to prevent accidental scalding. Press this button to override and select higher temperatures.
Flow Diverter:
- Selecting Outlet: Use the flow diverter knob (typically on the other side or front of the mixer) to switch between the overhead rain shower and the hand shower.
- Adjusting Flow: This knob may also control the water flow rate.
Hand Shower:
- The hand shower provides flexibility for targeted rinsing and cleaning. It can be adjusted in height on the column.
Rain Shower:
- The 20x20 cm overhead rain shower delivers a broad, gentle spray for a luxurious showering experience.
Maintenance
Regular cleaning and maintenance will help preserve the appearance and functionality of your Novellini Easy 2 shower column.
Cleaning:
- Use only mild soap and water with a soft cloth to clean the surfaces.
- Avoid abrasive cleaners, scouring pads, or chemical solvents, as these can damage the black finish and brass components.
- For limescale deposits on the shower heads, gently rub the silicone nozzles to dislodge them. For stubborn deposits, use a diluted solution of white vinegar, but rinse thoroughly immediately after.
- Dry all surfaces with a soft cloth after cleaning to prevent water spots.
Thermostatic Cartridge:
- If the water temperature becomes inconsistent or difficult to adjust, the thermostatic cartridge may require cleaning or replacement. This should be performed by a qualified plumber.
Troubleshooting
This section addresses common issues you might encounter with your shower column. For complex problems, contact a qualified plumber.
| Problem | Possible Cause | Solution |
|---|---|---|
| No water flow or low pressure |
|
|
| Inconsistent water temperature |
|
|
| Leaks from connections |
|
|
Specifications
| Feature | Detail |
|---|---|
| Brand | Novellini |
| Model | EASY2T-H (Easy 2) |
| Material | Brass |
| Color | Black |
| Installation Type | Wall-mounted |
| Dimensions (Column) | Width: 29 cm, Depth: 45 cm, Height: 94 cm (min) - 125 cm (max) |
| Rain Shower Head Size | 20 x 20 cm |
| Weight | 50 kg |
| Hydraulic Characteristics (Optimal Dynamic Pressure) | 2 - 5 bar |
| Water Connections | Hot Water: 1/2", Cold Water: 1/2" |
| Number of Handles | 3 (for temperature, flow, and diverter) |
Figure 3: Detailed view of the Novellini Easy 2 Shower Column, highlighting the thermostatic mixer and hand shower attachment point.
Warranty and Support
For specific warranty information, please refer to the documentation provided with your purchase or contact Novellini directly. Warranty terms may vary based on region and retailer.
For technical support or spare parts, please contact your retailer or visit the official Novellini website. Ensure you have your model number (EASY2T-H) and proof of purchase available when seeking support.
Novellini Official Website: www.novellini.com
