1. Introduction
This instruction manual provides essential information for the safe and efficient installation, operation, and maintenance of your EMKE Bathroom Radiator. Please read this manual thoroughly before installation and retain it for future reference.
The EMKE Bathroom Radiator is designed to provide efficient heating for your bathroom space while also serving as a convenient towel warmer and dryer. Constructed from high-quality steel and featuring an environmentally friendly coating, it is built for durability and optimal performance in humid environments.
2. Safety Information
- Ensure the radiator is installed by a qualified professional in accordance with local building and plumbing regulations.
- Do not cover the radiator with flammable materials.
- Keep children and pets away from the hot surface of the radiator during operation.
- Before any maintenance or cleaning, ensure the heating system is turned off and the radiator has cooled down.
- This product is designed for hot water central heating systems. Do not attempt to connect it to an electrical supply unless it is specifically designed for electric operation (this model is hot water only).
3. Package Contents
Please verify that all components are present before beginning installation:
- EMKE Bathroom Radiator (1 unit)
- Blind Plugs (4 pieces)
- Long Screws (4 pieces)
- Rubber Rings (2 pieces)
- Small Screws (4 pieces)
- Wall mounting brackets and fixings
Image: Included accessories and packaging layers.
4. Specifications
| Feature | Specification |
|---|---|
| Model Number | TR1640W-NEW |
| Dimensions (Height x Width) | 1600 x 400 mm (160 x 40 cm) |
| Heat Output | 547 W |
| Energy Type | Hot Water Central Heating |
| Recommended Application Area | Up to 5 square meters |
| Connection Thread | G1/2" |
| Connection Size (Center Distance) | 50 mm |
| Adjustable Wall Distance | 90-105 mm |
| Recommended Water Inlet/Outlet Temperature | 75 °C / 55 °C |
| Material | Premium SPCC Steel |
| Standard Compliance | EN442 |
Image: Technical drawing with dimensions (all measurements in mm).
5. Setup and Installation
The EMKE Bathroom Radiator is designed for straightforward installation. However, for safety and optimal performance, professional installation is highly recommended.
5.1. Pre-Installation Checks
- Unpack all components and check against the 'Package Contents' list.
- Inspect the radiator for any visible damage. Do not install if damaged.
- Ensure the wall where the radiator will be mounted is structurally sound and capable of supporting the weight of the radiator when filled with water.
- Confirm that the existing plumbing connections are compatible with the G1/2" thread and 50mm center distance.
5.2. Mounting the Radiator
- Mark the desired position for the radiator on the wall, ensuring it is level and allows for adequate clearance around the unit. Refer to the technical drawing for precise measurements.
- Drill holes for the wall mounting brackets according to the marked positions.
- Insert wall plugs (if necessary) and secure the mounting brackets using the provided long screws.
- Attach the radiator to the secured wall brackets. The wall distance is adjustable between 90-105 mm to accommodate different installation needs.
Image: Adjustable wall distance (90-105 mm).
5.3. Plumbing Connections
This radiator supports both central and side connections for water supply and return. Valves are not included and must be purchased separately.
- Connect the G1/2" inlet and outlet pipes to your central heating system. Ensure all connections are sealed properly to prevent leaks.
- The central connection point has a 50mm distance between the inlet and outlet.
- After connecting, slowly fill the system with water and check for any leaks. Bleed the radiator to remove any trapped air.
Image: Connection options (Side and Central) and valve specifications.
6. Operating Instructions
Once installed and connected to your central heating system, the EMKE Bathroom Radiator operates in conjunction with your home's heating controls.
- Heating Function: The radiator will heat up when your central heating system is active. It provides even and efficient heat distribution throughout the room.
- Towel Warming/Drying: Hang towels on the horizontal bars to warm them or assist in drying. The high thermal conductivity of the steel ensures quick and efficient results.
- Optimal Performance: For best results, ensure the recommended water inlet/outlet temperatures (75 °C / 55 °C) are maintained by your heating system.
Image: Overlapping technology for high heat dissipation, showing a towel on the heated bars.
Image: Versatile use in bathroom, living room, and bedroom.
7. Maintenance
Regular maintenance ensures the longevity and efficiency of your EMKE Bathroom Radiator.
- Cleaning: Wipe the radiator regularly with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals, as these can damage the environmentally friendly coating.
- Bleeding: Periodically bleed the radiator to release any trapped air. Trapped air can reduce heating efficiency. Use a radiator key for the bleed valve, typically located at the top of the radiator.
- Inspection: Annually inspect all connections for any signs of leaks or corrosion. Address any issues promptly.
- Coating: The environmentally friendly coating is designed to prevent rust and water leakage, making it suitable for humid environments.

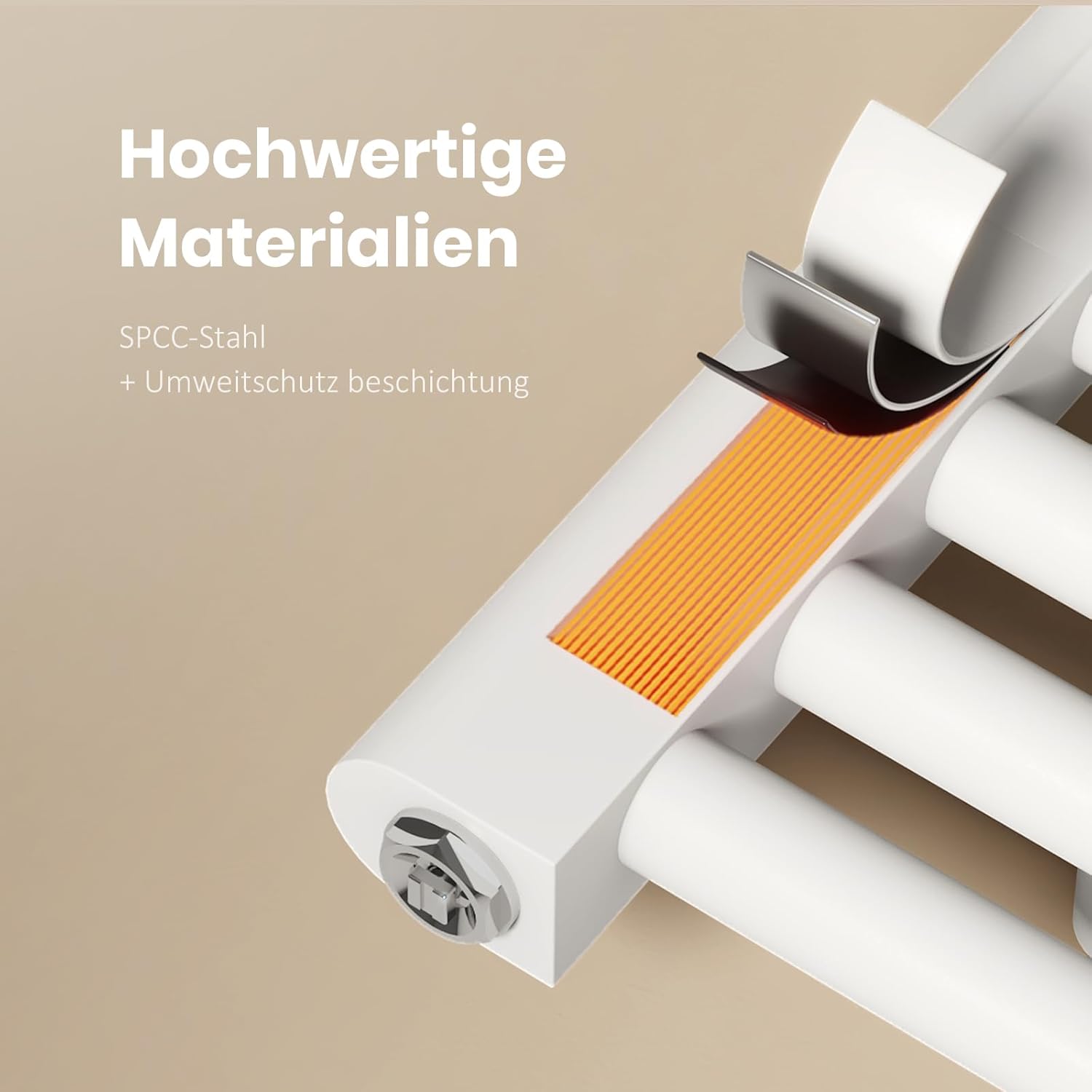

Image: High-quality SPCC steel and environmental protection coating.
8. Troubleshooting
If you encounter any issues with your EMKE Bathroom Radiator, please refer to the following common troubleshooting steps:
- Radiator not heating up:
- Check if your central heating system is turned on and functioning correctly.
- Bleed the radiator to remove any trapped air.
- Ensure the valves are fully open.
- Uneven heating:
- Bleed the radiator to ensure all air is removed.
- Check the balance of your central heating system; you may need to adjust other radiators.
- Leaks:
- Immediately turn off the central heating system.
- Tighten any loose connections. If the leak persists, contact a qualified plumber.
If these steps do not resolve the issue, please contact EMKE customer support for further assistance.
9. Warranty and Support
EMKE is committed to providing high-quality products and excellent customer service.
- Warranty: Your EMKE Bathroom Radiator comes with a 2-year warranty from the date of purchase, covering manufacturing defects.
- Return Policy: We offer a 14-day return policy for your peace of mind.
- Customer Support: For any questions, technical assistance, or warranty claims, please contact EMKE customer support through the retailer where you purchased the product or visit the official EMKE website. Please have your model number (TR1640W-NEW) and proof of purchase ready.
