1. Introduction and Safety Information
Thank you for choosing the SEVERIN MW 7754 Microwave Oven. This appliance combines microwave, grill, and convection functions to offer versatile cooking options. To ensure safe and efficient operation, please read this instruction manual thoroughly before use and retain it for future reference.
Important Safety Instructions:
- Always place the appliance on a stable, level, heat-resistant surface.
- Ensure adequate ventilation around the microwave. Do not block air vents.
- Do not operate the microwave if the door is damaged, or if the seals are worn.
- Never heat sealed containers, baby bottles with narrow necks, or whole eggs in the microwave, as they may explode.
- Use only microwave-safe cookware. Metal containers are not suitable for microwave mode.
- Supervise children when the appliance is in use.
- Do not attempt to service or repair the appliance yourself. Contact qualified service personnel.
2. Product Overview and Components
The SEVERIN MW 7754 is a 25-liter microwave oven with integrated grill and convection functions, featuring a stainless steel design and an intuitive control panel.
Main Components:
- Microwave Unit (Stainless Steel Housing)
- Control Panel with LED Display and EasySelect Rotary Knob
- Door with Mirror Effect
- High-Quality Stainless Steel Cavity
- Removable Turntable (Ø 27cm)
- Pizza Plate
- Grill Rack
Control Panel Features:
- EasySelect Concept: 360° rotary knob with LED lighting for easy selection.
- 4 Selection Buttons: Microwave, Grill, Traditional Heat (Convection), Pause/Stop.
- Touch Screen: For quick selection and settings.

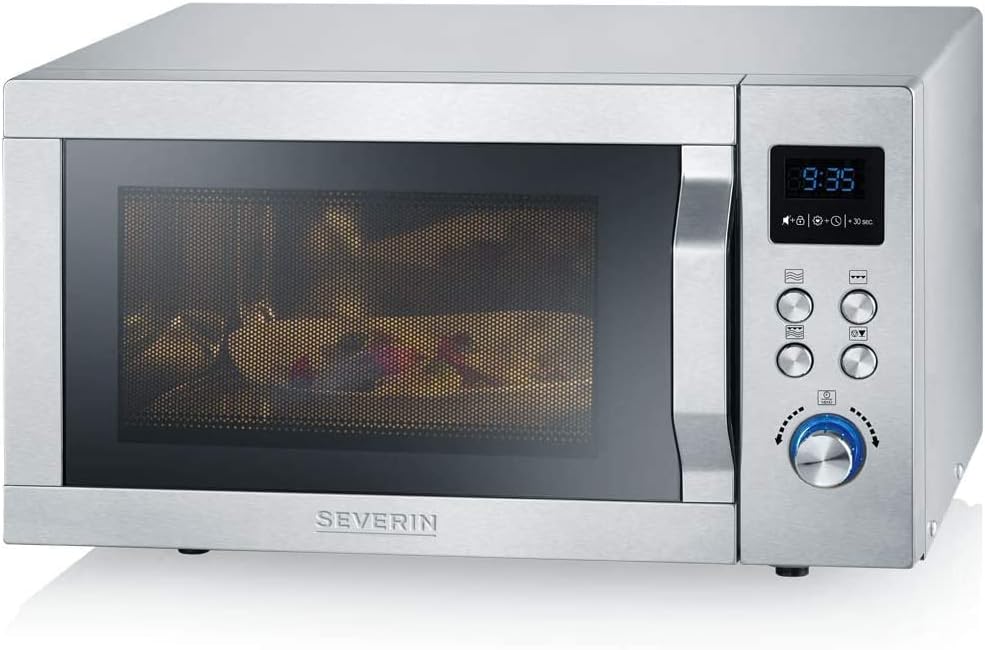

Figure 1: Front view of the SEVERIN MW 7754 microwave oven, showing the stainless steel finish and control panel.
Figure 2: Interior view of the microwave oven, highlighting the removable turntable and included pizza plate.
3. Setup and Initial Use
Unpacking and Placement:
- Remove all packaging materials and accessories. Inspect the microwave for any damage.
- Place the microwave on a flat, stable, heat-resistant surface, ensuring at least 10 cm of free space on the sides and back, and 30 cm above for proper ventilation.
- Do not place the microwave near heat sources or in areas with high humidity.
Power Connection:
Plug the power cord into a grounded electrical outlet. Ensure the voltage matches the appliance's requirements (230V).
Figure 3: Rear view of the microwave oven, illustrating the power cord connection and ventilation openings that must not be obstructed.
Setting the Clock:
Upon first connection or after a power outage, the display will show '0:00'. Follow the instructions in the full manual to set the current time using the rotary knob and time setting button.
4. Operating Instructions
The SEVERIN MW 7754 offers multiple cooking modes to suit various culinary needs.
Basic Microwave Function:
- Place food in a microwave-safe container on the turntable.
- Select the microwave function using the dedicated button.
- Adjust the power level (10 available levels) and cooking time using the rotary knob.
- Press the Start button to begin cooking.
Grill Function:
- Use the grill rack for optimal grilling results.
- Select the grill function. The grill power is 1150W.
- Set the desired grilling time.
- Press Start.
Convection Function (Traditional Heat):
- Select the convection function.
- Set the desired temperature (up to 230°C). The oven will preheat automatically.
- Once preheated, place your food inside and set the cooking time.
- Press Start.
Combined Modes:
The appliance allows combining microwave with grill or convection for faster and more even cooking. Refer to the full manual for specific combination settings and recommended uses.
Automatic Programs:
The microwave features 8 pre-set automatic cooking programs for various food types. Select the desired program and input the food weight or quantity, and the oven will automatically set the optimal cooking time and power.
Defrost Function:
Defrost food by either setting the defrost time or inputting the food's weight. The microwave will calculate the appropriate defrosting duration.
Special Features:
- Favourite-Dish Function: Memorize power and cooking duration for up to 3 frequently prepared dishes for quick access.
- Be-Silent Function: Deactivate the audible signal for silent operation.
Product Videos:
Video 1: A close-up view of the SEVERIN MW 7754 microwave oven, demonstrating its features and controls. This video provides a detailed look at the design and user interface.
Video 2: A summary video showcasing the main functionalities and benefits of the SEVERIN MW 7754 microwave oven, including its various cooking modes.
5. Maintenance and Cleaning
Regular cleaning ensures optimal performance and extends the lifespan of your microwave oven.
Cleaning the Interior:
- Always unplug the appliance before cleaning.
- Wipe the stainless steel cavity with a damp cloth and mild detergent after each use.
- Remove food spills immediately to prevent stubborn stains.
- The turntable and pizza plate can be washed with warm soapy water or in a dishwasher.
Cleaning the Exterior:
- Clean the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or harsh chemicals.
- Wipe the door and control panel carefully to avoid scratching.
6. Troubleshooting
If you encounter issues with your microwave, consult the following common problems and solutions before contacting customer service.
| Problem | Possible Cause | Solution |
|---|---|---|
| Microwave does not start | Power cord unplugged, door not closed properly, fuse blown. | Check power connection, ensure door is securely closed, check household fuse. |
| Food not heating evenly | Incorrect power level/time, food not stirred/rotated, unsuitable cookware. | Adjust settings, stir/rotate food, use microwave-safe and appropriate cookware. |
| Turntable not rotating | Turntable not correctly placed, obstruction. | Ensure turntable is correctly seated on its support, remove any obstructions. |
| Unusual noise during operation | Loose components, food touching cavity walls. | Check for loose parts, ensure food is centered and not touching walls. |
For more complex issues or if the problem persists, please refer to the detailed troubleshooting section in the complete user manual or contact customer support.
7. Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Severin |
| Model Number | MW 7754 |
| Capacity | 25 Liters |
| Microwave Power | 900 Watts |
| Grill Power | 1150 Watts |
| Convection Power | 2150 Watts |
| Power Levels (Microwave) | 10 |
| Dimensions (L x W x H) | 50.1 x 48.3 x 28.2 cm |
| Weight | 16.75 Kilograms |
| Material | Stainless Steel |
| Interior Material | Stainless Steel |
| Turntable Size | Ø 27 cm |
| Special Features | Interior light, Timer, EasySelect rotary knob, Favourite-Dish function, Be-Silent function |
8. Warranty and Support
The SEVERIN MW 7754 Microwave Oven comes with a 2-year manufacturer's warranty, covering defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
For technical assistance, spare parts, or warranty service, please contact SEVERIN customer support. Contact details can typically be found on the official SEVERIN website or in the full product documentation included with your appliance.
