1. Introduction
This manual provides essential information for the assembly, operation, and maintenance of your Goplus Outdoor Storage Cabinet. Please read these instructions thoroughly before beginning assembly or use to ensure safe and proper functionality of the product.
Figure 1: Goplus Outdoor Storage Cabinet (Model GO-GT3746NA-SU)
The Goplus Outdoor Storage Cabinet is designed to provide a practical storage solution for your outdoor space. It features a durable fir wood construction, a weather-resistant pitch roof, and adjustable internal shelving to accommodate various items.
2. Safety Information
WARNING: Failure to follow these safety guidelines may result in injury or damage to the product.
- Exercise caution during assembly.
- Ensure proper installation to prevent tipping.
- Do not exceed weight limits for shelves. Each shelf supports up to 44 lbs (20 kg), and the bottom compartment supports up to 88 lbs (40 kg).
- Keep children supervised around the cabinet.
- Place the cabinet on a stable, level surface. Use adjustable feet to compensate for minor unevenness.
3. Package Contents
Verify that all components and hardware are present before beginning assembly. Refer to the included parts list in your packaging for detailed identification. Contact customer support if any parts are missing or damaged.
4. Assembly Instructions
Assembly typically requires two adults. Follow the step-by-step instructions provided in the separate assembly guide included with your product. Ensure all screws are tightened securely, but do not overtighten to avoid damaging the wood.
Figure 2: Example of cabinet usage and storage capacity.
Key assembly considerations:
- Identify all panels and hardware before starting.
- Assemble on a soft, clean surface to prevent scratches.
- Ensure the back panel is correctly oriented for proper roof pitch.
- Attach the adjustable feet last, and level the cabinet on its intended surface.
5. Operating Instructions
Your Goplus Outdoor Storage Cabinet is designed for ease of use and secure storage.
5.1 Opening and Closing the Doors
The cabinet features two louvered doors with a wooden latch mechanism. To open, slide the latch to the side and pull the doors open. To close, push the doors firmly together and engage the latch. Strong magnetic catches assist in keeping the doors closed when not latched.
Figure 3: Door latch and adjustable feet details.
5.2 Adjusting Shelves
The cabinet includes three-tier storage shelves. The lower shelf is detachable, allowing you to customize the internal space. To remove or reposition the lower shelf, carefully lift it from its supports. This creates a larger compartment suitable for taller items like mowers or ladders.
Figure 4: Interior view showing shelves.
5.3 Ventilation
The louvered design of the doors promotes air circulation, helping to keep stored items dry and ventilated.
6. Maintenance
Regular maintenance will extend the life and appearance of your storage cabinet.
6.1 Cleaning
Clean the cabinet periodically with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the wood finish. For stubborn dirt, a mild soap solution can be used, followed by rinsing with clean water and thorough drying.
6.2 Weather Protection
The cabinet is constructed from fir wood with a painted surface and a waterproof sloping pitch roof designed to resist weather. While it offers good weather resistance, prolonged exposure to extreme weather conditions (e.g., heavy rain, direct sunlight, snow) may affect its longevity. Consider applying a wood sealant annually to further protect the wood and maintain its appearance.
Figure 5: Construction materials and weather-resistant features.

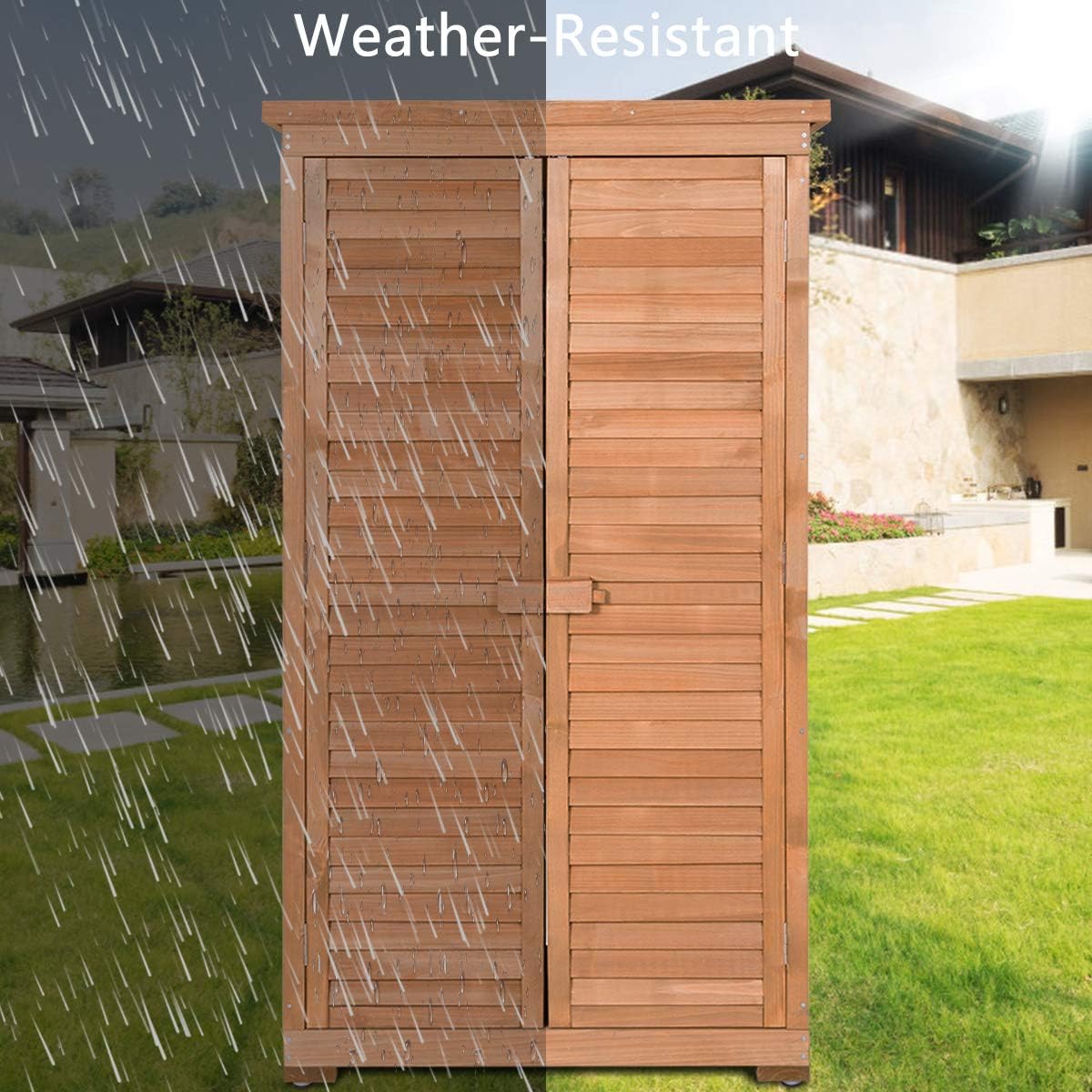

Figure 6: Cabinet demonstrating weather resistance.
6.3 Inspection
Periodically inspect all hardware and connections to ensure they remain tight. Tighten any loose screws as needed.
7. Troubleshooting
If you encounter issues with your cabinet, consider the following:
- Doors not closing properly: Check for obstructions. Ensure the cabinet is level using the adjustable feet. Verify that hinges are securely fastened.
- Cabinet wobbles: Adjust the foot pads on the bottom of the cabinet to stabilize it on uneven ground.
- Water inside: Confirm the doors are fully closed and latched. Inspect the roof for any damage or gaps. Ensure the cabinet is not placed in an area prone to standing water.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Goplus |
| Model Number | GO-GT3746NA-SU |
| Color | Natural |
| Material | Fir Wood |
| Product Dimensions (D x W x H) | 17"D x 33"W x 63"H (43.2 cm D x 83.8 cm W x 160 cm H) |
| Item Weight | 55 lbs (24.9 kg) |
| Door Width | 33 Inches (83.8 cm) |
| Door Height | 63 Inches (160 cm) |
| Chamber Height | 53.5 Inches (135.9 cm) |
| Chamber Depth | 17 Inches (43.2 cm) |
| Water Resistance Level | Waterproof |
| Required Assembly | Yes |
| Shelf Weight Capacity (each) | 44 lbs (20 kg) |
| Bottom Compartment Weight Capacity | 88 lbs (40 kg) |
Figure 7: Product dimensions and internal capacities.
9. Warranty and Support
For warranty information or customer support, please refer to the documentation included with your purchase or contact Goplus customer service directly. Keep your purchase receipt for warranty claims.
