Nikon D7500 Dual Zoom Lens Kit Instruction Manual

Introduction

The Nikon D7500 is a high-performance DSLR camera designed for enthusiasts, offering advanced features in a compact and robust body. This kit includes the D7500 camera body, an AF-P DX NIKKOR 18-55mm f/3.5-5.6G VR Lens, and an AF-P DX NIKKOR 70-300mm f/4.5-6.3G ED VR Lens, providing versatility for various photographic needs. This manual provides essential information for setting up, operating, and maintaining your camera and lenses.

Figure 1: Nikon D7500 Dual Zoom Lens Kit components.

Key Features

• Class-leading image quality, ISO range, image processing, and metering equivalent to the D500.
• Large 3.2-inch, 922K dot, tilting LCD screen with touch functionality.
• 4K Ultra HD and 1080P Full HD video recording with stereo sound, power aperture control, auto ISO, and 4K UHD time-lapse.
• Built-in Wi-Fi and Bluetooth for easy connectivity via the Nikon SnapBridge app.
• Includes the compact AF-P DX NIKKOR 18-55mm f/3.5-5.6G VR Lens and the far-reaching AF-P DX NIKKOR 70-300mm f/4.5-6.3G ED VR Lens, both featuring Nikon’s Vibration Reduction (VR) image stabilization.
• Creative features built-in, including time-lapse, multiple exposure, creative picture controls, and focus shift photography.

Setup

1. Attaching Lenses

To attach a lens, align the white mounting mark on the lens barrel with the white mounting mark on the camera body. Rotate the lens counter-clockwise until it clicks into place. To remove, press the lens release button on the camera body and rotate the lens clockwise.

2. Battery Installation

Open the battery chamber cover on the bottom of the camera. Insert the EN-EL15a rechargeable lithium-ion battery with the arrow pointing towards the camera's front, ensuring the battery is correctly oriented. Close the cover securely.

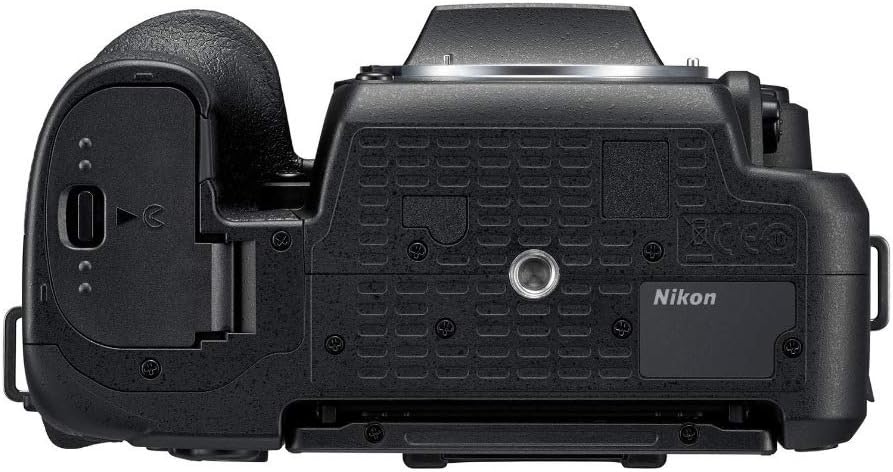

Figure 2: Battery and memory card compartment on the camera bottom.

3. Memory Card Installation

The D7500 uses SD memory cards. Open the memory card slot cover (located next to the battery compartment). Insert the SD card with the label facing the back of the camera until it clicks into place. Close the cover.

4. Initial Setup (Date/Time)

Upon first power-on, the camera will prompt you to set the date, time, and time zone. Use the multi-selector and OK button to navigate and confirm your selections.

Operating the Camera

1. Basic Shooting Modes

The mode dial on the top of the camera allows selection of various shooting modes:

• AUTO: Fully automatic mode for point-and-shoot simplicity.
• P (Programmed Auto): Camera sets shutter speed and aperture for optimal exposure.
• S (Shutter-Priority Auto): User sets shutter speed, camera sets aperture.
• A (Aperture-Priority Auto): User sets aperture, camera sets shutter speed.
• M (Manual): User sets both shutter speed and aperture.
• SCENE: Select from various scene modes (e.g., Portrait, Landscape) for optimized settings.
• EFFECTS: Apply special effects to photos.

Figure 3: Top controls including the mode dial.

2. Video Recording

The D7500 supports 4K Ultra HD (2160p) and 1080p Full HD video recording. To start recording, rotate the live view selector to the movie icon and press the movie-record button. The camera offers power aperture control and auto ISO during video capture.

3. Autofocus System

The camera features a 51-point autofocus system with various focus modes including Single-Servo AF (S), Continuous-Servo AF (C), and Manual Focus (M). Auto Focus Technology is Contrast Detection.

4. Connectivity (Wi-Fi & Bluetooth)

Utilize the built-in Wi-Fi and Bluetooth to connect your D7500 to smart devices via the Nikon SnapBridge app. This allows for easy image transfer and remote camera control.

Figure 4: Side ports for connectivity and external accessories.

Lenses Included

1. AF-P DX NIKKOR 18-55mm f/3.5-5.6G VR Lens

This compact and versatile standard zoom lens is ideal for everyday shooting, from wide-angle landscapes to portraits. It features Vibration Reduction (VR) for sharper images in low light or when shooting handheld.

Figure 5: AF-P DX NIKKOR 18-55mm f/3.5-5.6G VR Lens.

2. AF-P DX NIKKOR 70-300mm f/4.5-6.3G ED VR Lens

This telephoto zoom lens extends your reach, perfect for capturing distant subjects, sports, and wildlife. Its Vibration Reduction (VR) technology helps minimize camera shake for clear, steady shots.

Figure 6: AF-P DX NIKKOR 70-300mm f/4.5-6.3G ED VR Lens.

Maintenance

1. Cleaning

• Lenses: Use a lens blower to remove dust, then a soft lens brush. For smudges, use a lens cleaning solution and a microfiber cloth.
• Sensor: For stubborn dust, use a sensor cleaning kit or consult a professional. Avoid touching the sensor directly.
• Camera Body: Wipe with a soft, dry cloth. For stubborn dirt, use a slightly damp cloth and then dry thoroughly.

2. Battery Care

Charge the battery fully before use. Store batteries in a cool, dry place. Avoid extreme temperatures. If not using the camera for an extended period, remove the battery.

3. Storage

Store the camera and lenses in a dry, dust-free environment, ideally in a camera bag or cabinet with desiccant to prevent mold and mildew.

Troubleshooting

If you encounter issues with your Nikon D7500, consider the following general troubleshooting steps:

• Camera not turning on: Check if the battery is charged and correctly inserted.
• Images are blurry: Ensure the lens is properly attached, autofocus is engaged, and shutter speed is appropriate for the lighting conditions. Check for lens or sensor smudges.
• Memory card error: Ensure the memory card is correctly inserted and not full. Try formatting the card (this will erase all data).
• Connectivity issues: Ensure Wi-Fi/Bluetooth is enabled on both the camera and your smart device. Restart both devices and try reconnecting.

For more detailed troubleshooting, refer to the comprehensive user manual provided with your camera or visit the Nikon support website.

Specifications

Warranty and Support

The Nikon D7500 Dual Zoom Lens Kit comes with a 1-year manufacturer's warranty.
