1. Introduction
This instruction manual provides essential information for the safe and effective installation, operation, and maintenance of your Fromann Deltadrive Motor Actuator Replacement Kit. This kit is designed for electric recliners and lift chairs. Please read this manual thoroughly before attempting any installation or operation to ensure proper function and safety.
Image 1.1: Overview of the Fromann Deltadrive Motor Actuator Replacement Kit, including the motor, power supply, and hand control.
2. Product Components
The Fromann Deltadrive Motor Actuator Replacement Kit typically includes the following items:
- 1x Fromann DeltaDrive Linear Actuator Motor (Model 1.28.000.131.30)
- 1x Power Recliner or Lift Chair Power Supply Replacement Transformer Kit (Batteries not included)
- 1x AC Power Cord (13.1ft)
- 1x Motor Cable (11.5ft)
- 1x Fromann Lift Chair Power Recliner Hand Control with 2 Button 5 pin Connection
Image 2.1: The power supply unit and associated cables for the Fromann Deltadrive motor.

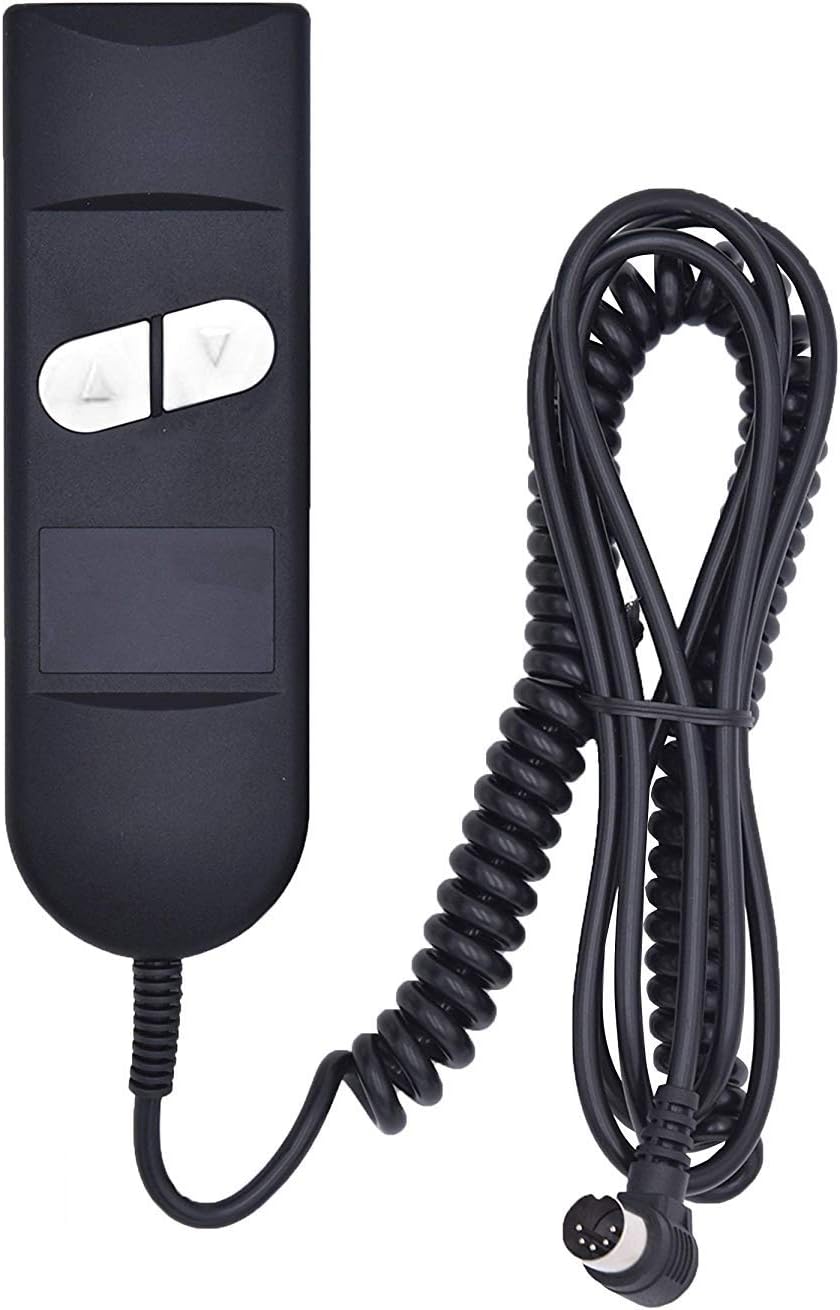

Image 2.2: The 2-button, 5-pin hand control for operating the recliner or lift chair.
3. Technical Specifications
| Feature | Specification |
|---|---|
| Appearance | Black (PA), Silver White (Aluminum) |
| Motor Type | Low-voltage DC motor (24V) |
| Operation Frequency | On 1 min / Off 8 min |
| Stroke Length | 8.27 inches / 210 mm |
| Minimum Dimensions (Install Size) | 15.31 inches / 389 mm |
| Load Capacity | 4000N max |
| Speed | 42 mm/sec max |
| Stroke Control | Controlled by limit switch, tolerance ± 2mm |
| Item Weight | 7.76 pounds |
| Item Model Number | 1.28.000.131.30 |
The motor operates quietly and safely using a low 24-volt, 2.2A power input.
Image 3.1: Illustration of the motor actuator's minimum installation size (15.31 inches) and stroke length (8.27 inches).
Image 3.2: Detailed view of the Deltadrive motor label, confirming model number 1.28.000.131.30 and other technical data.
4. Safety Information
- Always disconnect power to the chair before attempting any installation, maintenance, or repair.
- Ensure all connections are secure and correctly oriented to prevent electrical hazards.
- Keep hands, feet, and loose clothing clear of moving parts during operation.
- Do not allow children or pets to play near or operate the recliner/lift chair unsupervised.
- If you are unsure about any step, consult a qualified technician.
- This product is designed for indoor use only.
5. Installation Guide
5.1. Pre-Installation Check
Before replacing your motor, it is recommended to verify that the motor is indeed the faulty component. If possible, test the chair with a known working hand control or power supply from another functional recliner to rule out issues with those components.
Image 5.1: A diagram illustrating how to troubleshoot your recliner's switch to confirm if the motor requires replacement.
5.2. Step-by-Step Installation
- Disconnect Power: Unplug the recliner or lift chair from the wall outlet.
- Position the Chair: Carefully tip the chair onto its side or back to access the motor and frame.
- Identify Connections: Locate the existing motor, power supply connection, and hand control connection. Note how they are routed.
- Remove Old Motor:
- Disconnect the motor cable from the power supply.
- Remove any retaining pins or bolts securing the motor actuator to the chair frame at both ends. Keep these for reuse if compatible, or use new hardware provided.
- Carefully remove the old motor from the chair frame.
- Install New Motor:
- Position the new Fromann Deltadrive motor actuator in the same location as the old one.
- Secure the motor to the chair frame using the retaining pins or bolts. Ensure both ends are firmly attached.
Image 5.2: Detail of the motor actuator's end, showing the connection point and retaining pin for secure attachment to the chair frame.
- Connect Wiring:
- Connect the new motor cable to the power supply unit.
- Connect the new hand control to the appropriate port on the power supply or motor. The hand control features a 5-pin connection.
- Ensure all cables are routed safely and are not pinched or in the way of moving parts.
Image 5.3: Illustration of how to connect the power supply and remote control to the motor system.
- Test Operation:
- Plug the chair back into the wall outlet.
- Carefully test the chair's movement using the hand control. Observe the motor and chair mechanism to ensure smooth operation and no obstructions.
- Verify that the chair moves to its full extended and retracted positions without issues.
- Final Positioning: Return the chair to its upright position.
6. Operation
The Fromann Deltadrive Motor Actuator is operated via the included 2-button, 5-pin hand control. The buttons typically feature up and down arrows to control the chair's movement.
- Press and hold the "Up" button to extend the footrest and recline the chair, or to lift the chair to a standing position.
- Press and hold the "Down" button to retract the footrest and return the chair to an upright sitting position, or to lower the chair from a standing position.
- Release the button at any point to stop the chair's movement.
The motor is designed for intermittent use. Adhere to the operation frequency of "On 1 min / Off 8 min" to prevent overheating and prolong the motor's lifespan.
7. Maintenance
Regular maintenance helps ensure the longevity and smooth operation of your Fromann Deltadrive motor actuator.
- Cleaning: Keep the motor and surrounding areas free from dust and debris. Use a dry cloth for cleaning. Do not use liquid cleaners directly on electrical components.
- Inspections: Periodically inspect all cables for signs of wear, fraying, or damage. Ensure all connections remain secure.
- Lubrication: The motor actuator is generally maintenance-free regarding lubrication. Do not apply lubricants unless specifically instructed by the manufacturer.
- Environmental Conditions: Ensure the chair is used in a dry, indoor environment. Avoid exposure to moisture or extreme temperatures.
8. Troubleshooting
If your recliner or lift chair is not operating correctly after installing the Fromann Deltadrive motor actuator, consider the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair does not move. | No power, loose connections, faulty hand control. | Check if the power cord is securely plugged into the wall and the power supply. Ensure all cables (motor, hand control) are firmly connected. Test with a known working hand control if available. |
| Motor makes noise but chair does not move. | Mechanical obstruction, motor actuator not properly secured. | Inspect for any objects obstructing the chair's mechanism. Verify that the motor actuator is securely attached at both ends to the chair frame. |
| Chair moves intermittently. | Loose connection, motor overheating. | Check all electrical connections. Allow the motor to cool down if it has been operated continuously for an extended period (adhere to 1 min On / 8 min Off cycle). |
9. Warranty and Support
For information regarding warranty coverage, technical support, or replacement parts, please refer to the contact information provided by Fromann at the time of purchase or visit the official Fromann website. Keep your purchase receipt as proof of purchase.
