JORLAI T316 Record Player Instruction Manual

1. Introduction

Thank you for purchasing the JORLAI T316 Record Player. This portable 3-speed turntable combines vintage aesthetics with modern features, allowing you to enjoy your vinyl collection and stream music wirelessly via Bluetooth. This manual provides essential information for setup, operation, and maintenance to ensure optimal performance and longevity of your device.

2. Safety Instructions

• Read all instructions carefully before use.
• Keep this manual for future reference.
• Do not expose the unit to rain, moisture, or extreme temperatures.
• Avoid placing the unit near heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat.
• Use only attachments/accessories specified by the manufacturer.
• Unplug the unit during lightning storms or when unused for long periods.
• Refer all servicing to qualified service personnel.

3. Package Contents

Please ensure all items are present upon unpacking:

• JORLAI T316 Record Player
• Power Adapter (DC 5V)
• Bluetooth receiver (built-in)
• Built-in speakers
• Warranty card
• USB Cable for PC Recording
• Software CD (for PC recording, if applicable)

4. Product Overview

Familiarize yourself with the components and controls of your JORLAI T316 Record Player.

Image: The JORLAI T316 Record Player in white, open with a pink vinyl record on the platter, showcasing its portable suitcase design.

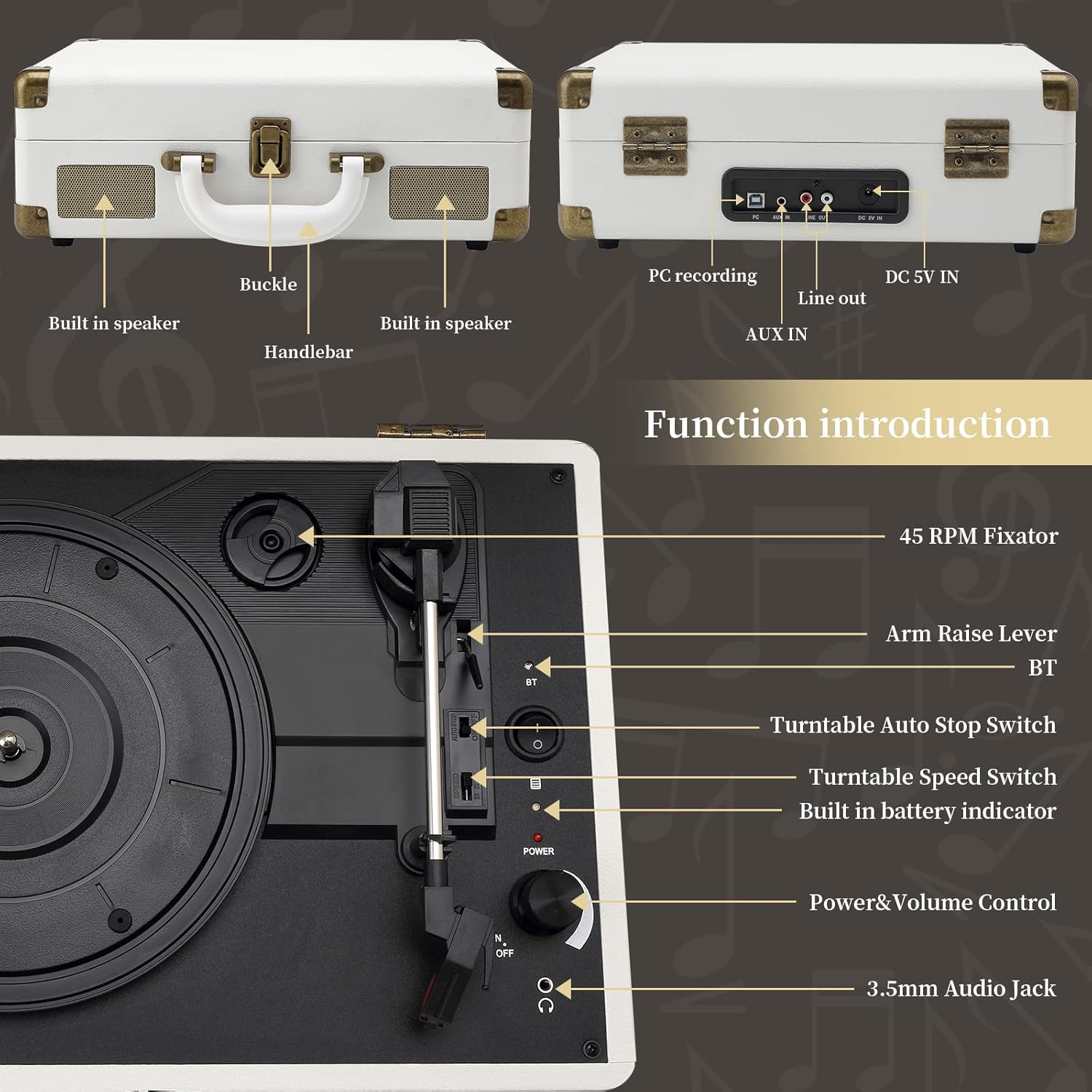

Image: A detailed diagram highlighting the various controls and ports on the JORLAI T316 Record Player, including the 45 RPM fixator, arm raise lever, Bluetooth switch, auto stop switch, speed switch, battery indicator, power/volume control, and 3.5mm audio jack.

Front/Top Panel Controls:

• Turntable Platter: Where the vinyl record rests.
• Tone Arm: Holds the stylus (needle) for playing records.
• Stylus: The needle that reads the grooves of the record.
• Arm Raise Lever: Lifts and lowers the tone arm.
• 45 RPM Fixator: Adapter for 45 RPM records with large center holes.
• Turntable Speed Switch: Selects playback speed (33, 45, 78 RPM).
• Turntable Auto Stop Switch: Enables/disables automatic stopping of the platter at the end of a record.
• Power & Volume Control: Turns the unit on/off and adjusts speaker volume.
• Bluetooth (BT) Switch: Activates Bluetooth pairing mode.
• Built-in Battery Indicator: Shows charging status (Red for charging, Green for fully charged).
• 3.5mm Audio Jack: For connecting headphones.

Rear Panel Ports:

Image: A close-up view of the rear panel of the JORLAI T316 Record Player, showing the AUX IN, LINE OUT (RCA), and DC 5V IN ports.

• PC Recording Port: USB port for connecting to a computer for recording.
• AUX IN: 3.5mm input for connecting external audio devices (e.g., MP3 player, smartphone).
• LINE OUT (RCA): RCA output jacks for connecting to external speakers or an amplifier.
• DC 5V IN: Power input for the included adapter.

5. Setup

5.1 Initial Charging

The JORLAI T316 features a built-in rechargeable lithium battery (2100 mAh) providing up to 5 hours of playback. Before first use, fully charge the unit.

1. Connect the power adapter to the DC 5V IN port on the rear of the unit.
2. Plug the adapter into a wall outlet.
3. The battery indicator will show red while charging and turn green when fully charged.

Image: A close-up of the record player's side, illustrating the battery indicator light (red for charging, green for fully charged) and indicating a built-in 1800mAh battery with up to 3+ hours of play.

5.2 Placement

Place the record player on a stable, level surface away from direct sunlight, heat sources, and excessive dust or vibration.

6. Operating Instructions

6.1 Playing Vinyl Records

1. Open the lid of the record player.
2. Place a vinyl record on the turntable platter. If playing a 45 RPM record with a large center hole, place the 45 RPM fixator on the spindle first.
3. Select the appropriate speed (33, 45, or 78 RPM) using the Turntable Speed Switch.
4. Set the Turntable Auto Stop Switch to ON if you want the platter to stop automatically at the end of the record, or OFF for continuous play.
5. Gently push the Arm Raise Lever backward to lift the tone arm.
6. Manually move the tone arm over the desired starting groove of the record.
7. Gently push the Arm Raise Lever forward to lower the tone arm onto the record. Playback will begin.
8. Adjust the volume using the Power & Volume Control knob.
9. To stop playback, lift the tone arm using the Arm Raise Lever and return it to its rest.

Image: A visual representation of the three selectable speeds (33, 45, 78 RPM) for 7-inch, 10-inch, and 12-inch vinyl records.

6.2 Bluetooth Playback

The JORLAI T316 can receive audio wirelessly from your Bluetooth-enabled devices.

1. Turn on the record player using the Power & Volume Control knob.
2. Slide the Bluetooth (BT) Switch to the 'BT' position. The unit will enter pairing mode, indicated by a flashing light (if applicable, refer to specific model indicator).
3. On your external device (smartphone, tablet, etc.), enable Bluetooth and search for available devices.
4. Select 'JORLAI T316' (or similar name) from the list to pair.
5. Once paired, you can play music from your device through the record player's speakers.
6. Adjust volume using both your external device and the record player's Power & Volume Control.

Image: A person's hand holding a smartphone displaying a music app, with a Bluetooth connection icon pointing towards the JORLAI T316 Record Player, illustrating wireless music streaming.

6.3 PC Recording (Vinyl-to-MP3)

You can convert your vinyl records into digital audio files (WAV/MP3) using the PC recording function.

1. Install the provided recording software on your computer. If no CD is included, software may be available for download from the JORLAI website.
2. Connect the record player to your computer using the supplied USB cable via the PC Recording Port.
3. Follow the instructions within the recording software to capture audio from your vinyl records.

Image: A diagram illustrating the PC recording process, showing a vinyl record connected via USB to a computer, which then converts the audio into MP3/WAV format files.

6.4 AUX IN Connection

Connect external audio sources to play through the record player's speakers.

1. Connect a 3.5mm audio cable from your external device's headphone or line-out jack to the AUX IN port on the rear of the record player.
2. Turn on the record player and your external device.
3. Select the AUX input mode on the record player (if applicable, otherwise it may automatically detect).
4. Play audio from your external device.
5. Adjust volume using both your external device and the record player's Power & Volume Control.

6.5 LINE OUT Connection

Connect the record player to external speakers or an amplifier for enhanced sound.

1. Connect RCA cables (red and white) from the LINE OUT ports on the rear of the record player to the corresponding audio input jacks on your external amplifier or powered speakers.
2. Ensure the record player and external audio system are powered on.
3. Select the appropriate input on your external audio system.
4. Play a record or stream via Bluetooth. Audio will be routed through your external system.

7. Maintenance

7.1 Cleaning the Unit

• Wipe the exterior of the unit with a soft, dry cloth.
• Do not use abrasive cleaners, waxes, or solvents.

7.2 Stylus Care

• The stylus is delicate. Handle it with care.
• Clean the stylus periodically with a soft brush, brushing from back to front.
• Replace the stylus when you notice a degradation in sound quality or visible wear.

Image: A close-up view of the ruby stylus making contact with the grooves of a vinyl record, emphasizing its role in sound quality and record protection.

7.3 Record Care

• Keep records clean and free of dust. Use a record brush before each play.
• Store records vertically in their sleeves to prevent warping.

8. Troubleshooting

9. Specifications

• Model: T316
• Brand: JORLAI
• Product Dimensions: 13.9 x 11.2 x 5 inches
• Item Weight: 6.53 pounds (2.97 Kilograms)
• Material: Wood
• Color: White
• Playback Speeds: 33 1/3, 45, 78 RPM
• Record Sizes: 7, 10, 12 inches
• Special Features: Built-In Bluetooth Receiver, Built-in Stereo Speakers, PC Recording, AUX In, Line Out, Headphone Jack, Built-in Rechargeable Battery (2100 mAh)
• Power Input: DC 5V

10. Warranty and Support

The JORLAI T316 Record Player comes with a warranty as detailed on the included warranty card. Please refer to the warranty card for specific terms and conditions.

For technical support, troubleshooting assistance, or warranty claims, please contact JORLAI customer service. Contact information can typically be found on the warranty card or the official JORLAI website.

Manufacturer: JORLAI

Date First Available: May 10, 2019
