1. Introduction
This manual provides essential information for the safe and efficient operation of your CAT CT2205 Tactical Rechargeable LED Flashlight. Please read these instructions carefully before use and retain them for future reference.
The CAT CT2205 is a durable, water-resistant flashlight designed for various applications, featuring a dimmable 200-lumen LED output and a long-lasting rechargeable battery.
2. Safety Information
- Do not look directly into the LED light. The intense light can cause temporary vision impairment or eye damage.
- Keep out of reach of children.
- Do not attempt to disassemble or modify the flashlight. This may void the warranty and pose a safety risk.
- Use only the provided charging cord or a compatible charger. Incorrect charging can damage the battery or flashlight.
- Avoid exposing the flashlight to extreme temperatures or direct sunlight for prolonged periods.
- Dispose of the battery according to local regulations. Do not incinerate.
3. Package Contents
Verify that all items are present in your package:

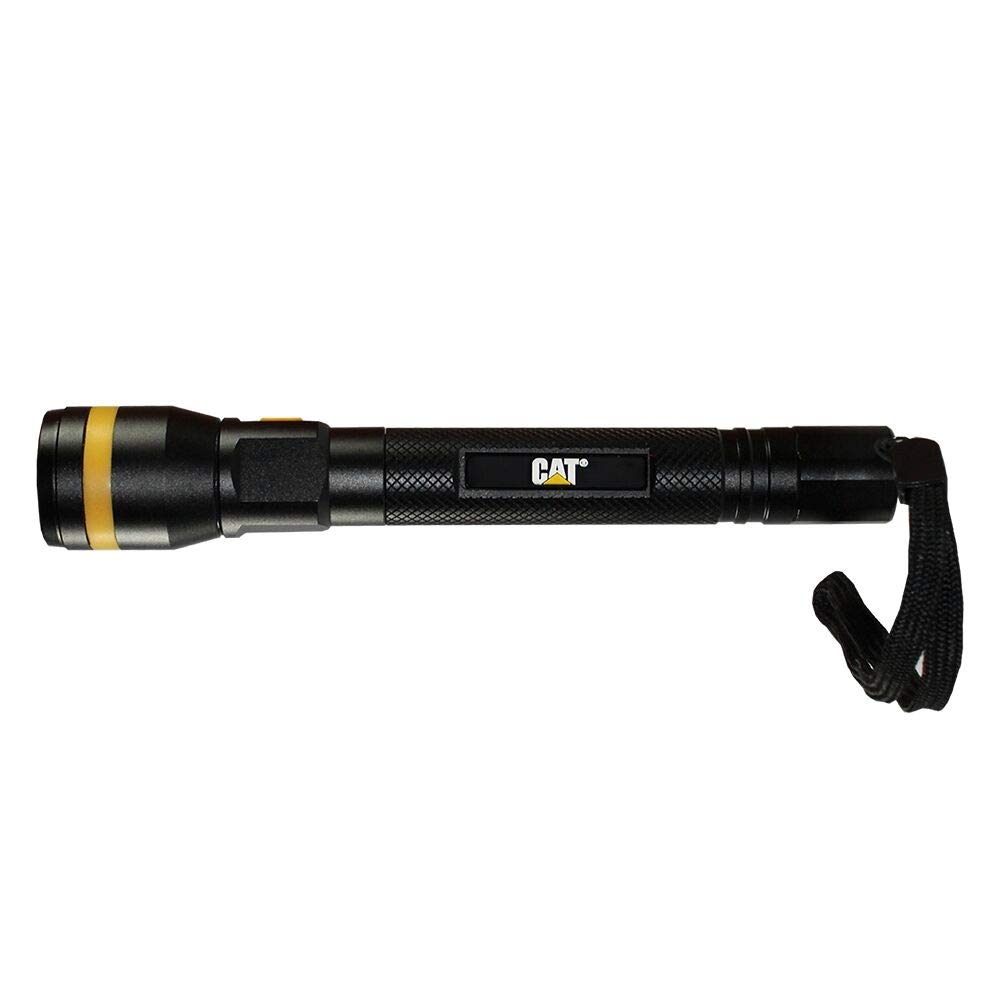

- CAT CT2205 Tactical Rechargeable LED Flashlight
- Charging Cord
- Nylon Cord (Lanyard)
4. Setup
4.1 Initial Charging
Before first use, fully charge the flashlight's internal Lithium-Ion battery.
- Locate the charging port on the flashlight.
- Connect the provided charging cord to the flashlight and to a suitable USB power source (e.g., computer USB port, USB wall adapter).
- The charging indicator light will illuminate (color may vary) to show charging is in progress.
- Once fully charged, the indicator light will change or turn off. Disconnect the charging cord.
Note: A full charge typically takes several hours. Do not overcharge the battery.
4.2 Attaching the Nylon Cord
The included nylon cord can be attached to the flashlight's tail cap for secure carrying or to prevent accidental drops.
Image: The CAT CT2205 flashlight, black with a yellow band, resting on a wet rock. Its beam illuminates the foreground. A heavy construction vehicle is visible in the blurred background, suggesting rugged use environments.
5. Operating Instructions
5.1 Power On/Off
- To turn the flashlight ON, press the power button located on the body of the flashlight.
- To turn the flashlight OFF, press the power button again.
5.2 Dimmable Output
The CT2205 features a dimmable LED output, allowing you to adjust the brightness to your needs.
- While the flashlight is ON, press and hold the power button.
- The light output will gradually dim or brighten. Release the button when the desired brightness level is reached.
6. Maintenance
- Cleaning: Wipe the flashlight with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Storage: Store the flashlight in a cool, dry place when not in use. For long-term storage, ensure the battery is partially charged (around 50%) and recharge it every 3-6 months to maintain battery health.
- Battery Care: The integrated Lithium-Ion battery does not require replacement. If the flashlight's performance significantly degrades, it may indicate the end of the battery's lifespan.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Flashlight does not turn on. | Battery is depleted. | Charge the flashlight fully. |
| Flashlight does not charge. | Charging cable or power source issue. | Ensure the charging cable is securely connected. Try a different USB power source or cable. |
| Light output is dim or flickers. | Low battery or internal issue. | Recharge the battery. If the problem persists after charging, contact customer support. |
8. Specifications
| Model Number | CT2205 |
| Light Source Type | LED |
| Luminous Flux | 200 Lumen |
| Power Source | Battery Powered (Lithium-Ion) |
| Voltage | 3 Volts (DC) |
| Material | Aluminium |
| Special Features | Impact Resistant, Rechargeable, Dimmable, Water Resistant |
| Included Components | Charging Cord, Flashlight, Nylon Cord |
| Item Weight | 168 g |
| Dimensions (Package) | 25.1 x 14.2 x 3.1 cm |
9. Warranty Information
CAT Work Lights products are designed for durability and performance. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official CAT Work Lights website. Keep your proof of purchase for warranty claims.
10. Customer Support
If you encounter any issues or have questions regarding your CAT CT2205 flashlight that are not addressed in this manual, please contact CAT Work Lights customer support. Contact details can typically be found on the product packaging or the official brand website.
When contacting support, please have your product model number (CT2205) and purchase information ready.
