Totem Maker Kit Mechanical Construction Set User Manual

1. Introduction and Overview

The Totem Maker Kit is a versatile mechanical construction set designed for enthusiasts interested in robotics, electronics, and general mechanics. This kit provides a comprehensive system of cuttable parts, enabling users to build a wide array of DIY projects, prototypes, and custom structures according to their imagination.

With over 970 construction pieces, including beams, boards, brackets, bolts, nuts, and stand-offs, the Totem Maker Kit offers extensive flexibility. The kit also includes specialized tools for cutting beams and boards to desired lengths and shapes, maximizing the potential of the Totem system. All components are designed for easy assembly, disassembly, and reuse across multiple projects, fostering creative exploration without fear of permanent mistakes.

Image 1.1: Overview of the Totem Maker Kit, showing the brand logo and various components.

2. Package Contents

The Totem Maker Kit includes the following components:

• Beams: L400 × H10 × L10 mm - 20 pieces
• Boards: 10x10 cm - 6 pieces
• Brackets: 18 types, 345 pieces total
• Bolts and Nuts: 544 pieces
• Stand-offs and Hole Plugs: For finishing corners, 60 pieces total
• Cutting Tools: For beams and boards
• Magnetic Screwdriver: For handling small metal parts

Image 2.1: A detailed layout of all parts and tools included in the Totem Maker Kit.

Image 2.2: Close-up of the specialized beam and board cutter tool.

3. Setup and Assembly

The Totem Maker Kit is designed for intuitive assembly. Follow these general guidelines for setting up your projects:

1. Plan Your Design: Before cutting or assembling, visualize your project. The modular nature of Totem parts allows for flexible design.
2. Prepare Components: Use the provided cutting tools to adjust the length of beams and the size of boards as needed for your specific design. Ensure cuts are clean and precise for optimal fit.
3. Connect Parts: Utilize the various brackets, bolts, and nuts to connect beams and boards. The magnetic screwdriver is useful for handling small metal fasteners.
4. Secure Connections: Ensure all bolts and nuts are tightened securely to create a stable structure.
5. Finishing: Use stand-offs and hole plugs to give your project a neat and finished appearance, especially at corners and exposed ends.

Image 3.1: Hands demonstrating the assembly process of a structure using the kit's components and tools.

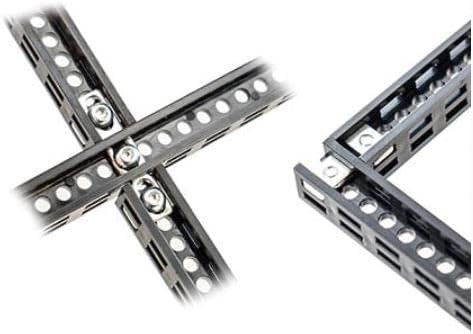

Image 3.2: A close-up view illustrating how two Totem beams are connected using bolts and nuts.

4. Operating Instructions

The Totem Maker Kit is a foundation for creative projects. Its "operation" involves the process of design, construction, and integration:

• Mechanical Construction: Build robust mechanical frames and structures for various applications, from simple models to complex robotic chassis.
• Electronic Integration: The Totem system is designed to seamlessly integrate with electronics. Mount motors, sensors, Arduino, Raspberry Pi, and other components directly onto your Totem structures.
• Prototyping: Use the kit to quickly prototype ideas and test mechanical concepts. The ease of modification makes it ideal for iterative design.
• Customization: Combine Totem mechanics with 3D-printed parts or other custom components to enhance functionality and aesthetics.

Image 4.1: An example of a sophisticated structure, possibly a robot, built using the Totem Maker Kit, demonstrating its potential for complex projects.

Image 4.2: A view of a partially assembled mechanical system, showcasing the integration of gears and electronic wiring within the Totem framework.

Image 4.3: A large-scale construction demonstrating the versatility and structural integrity achievable with Totem beams and connectors.

Image 4.4: Detailed view of different types of hinges, connections, and beams, highlighting the modular design.

5. Maintenance

The Totem Maker Kit is designed for durability and reusability. Minimal maintenance is required:

• Cleaning: Keep components clean and free from dust or debris. A soft, dry cloth is usually sufficient. Avoid harsh chemicals.
• Storage: Store all parts in the provided compartment box or similar organized storage to prevent loss and damage.
• Disassembly and Reuse: All parts can be easily disassembled and reused for new projects. This flexibility is a core feature of the Totem system. Ensure bolts and nuts are not over-tightened to facilitate future disassembly.
• Tool Care: Keep cutting tools sharp and clean. Store the magnetic screwdriver safely.

6. Troubleshooting

Most issues encountered with the Totem Maker Kit relate to assembly. Consider the following if you encounter difficulties:

• Loose Connections: If a structure feels unstable, check all bolted connections. Ensure nuts are securely fastened.
• Misaligned Parts: If parts do not fit together smoothly, verify that they are correctly oriented and that no debris is obstructing the connection points.
• Difficulty Cutting: Ensure the cutting tools are used correctly and are sharp enough. Apply steady pressure.
• Missing Parts: Carefully check the compartment box and packaging. If parts are genuinely missing, refer to the support section.
• Project Instability: Review your design for structural integrity. Add more support beams or brackets if necessary to distribute weight and stress.

7. Specifications

8. Warranty Information

Specific warranty details for the Totem Maker Kit are not provided in the product information. Please refer to the retailer's return policy or contact the manufacturer directly for warranty inquiries.

• Retailer Return Policy: Typically 30 days for refund/replacement.

9. Support

For further assistance, technical support, or inquiries regarding your Totem Maker Kit, please contact the manufacturer or the seller:

• Manufacturer: Totem
• Seller: LEMONA Electronics (via Amazon.fr)
• Online Resources: Visit the official Totem Maker website for additional guides, project ideas, and community forums.
