Puig 9595H Retro Style Semi-Fairing Instruction Manual

Product Overview

The Puig 9595H Retro Style Semi-Fairing is designed to enhance the aesthetic and aerodynamic performance of your motorcycle. This accessory provides wind protection and contributes to a classic retro look.

• Universal replacement brackets are specifically designed for mounting or replacing the Puig retro semi-fairing with a diameter of 180 mm.
• Constructed from resistant materials to ensure a secure and stable attachment to the motorcycle, even under demanding riding conditions.
• Allows for the replacement of only damaged or worn parts of the mounting system, eliminating the need to replace the entire accessory.
• Offers a practical and economical solution to maintain the semi-fairing in perfect condition and ensure a correct and durable installation.

Compatibility:

• KAWASAKI Z900RS SE (2022, 2023, 2024, 2025, 2026)
• KAWASAKI Z900RS (2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026)
• KAWASAKI ZEPHYR 750 (1996, 1997, 1998, 1999)

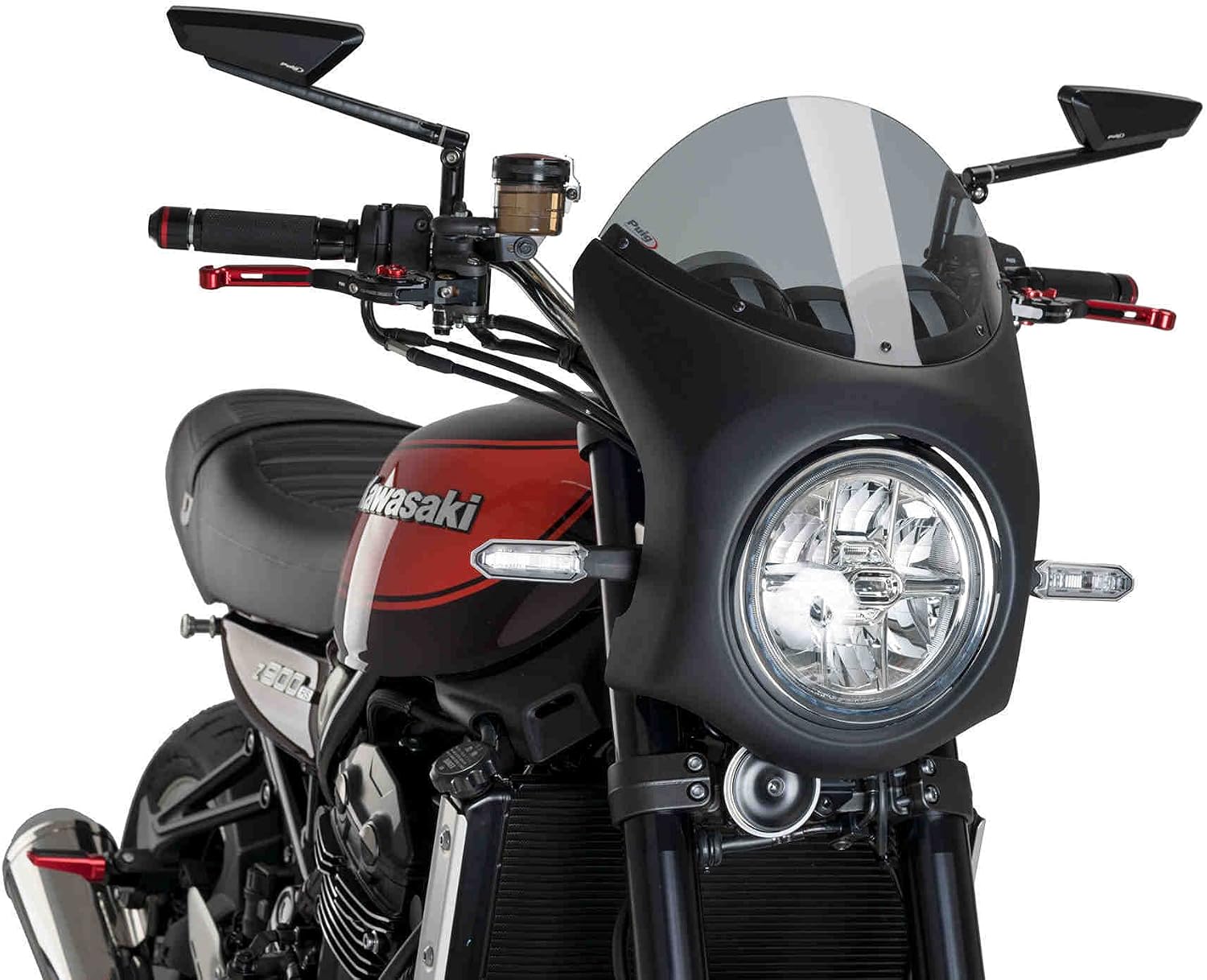

The Puig 9595H Retro Style Semi-Fairing mounted on the front of a Kawasaki Z900RS motorcycle. The semi-fairing features a light smoke windshield and a matte black body, designed to integrate with the motorcycle's classic aesthetic while providing wind protection.

Setup and Installation

This section provides general guidelines for the installation of your Puig 9595H Retro Style Semi-Fairing. For detailed, vehicle-specific instructions, please refer to the documentation provided with your motorcycle or consult a professional mechanic.

1. Preparation: Ensure your motorcycle is stable on a stand. Gather all necessary tools, which typically include wrenches, Allen keys, and a torque wrench.
2. Remove Existing Components: Carefully remove any existing fairing, windshield, or headlight brackets that will be replaced by the new semi-fairing. Store removed parts safely.
3. Mount Brackets: Attach the universal replacement brackets to your motorcycle's frame or headlight assembly as per the specific mounting points. Ensure all bolts are finger-tight initially.
4. Position Semi-Fairing: Carefully align the Puig semi-fairing with the mounted brackets. Secure the semi-fairing to the brackets using the provided hardware.
5. Adjust and Tighten: Adjust the position of the semi-fairing for optimal alignment and clearance. Once satisfied with the positioning, progressively tighten all bolts to the manufacturer's recommended torque specifications. Do not overtighten.
6. Final Check: Verify that the semi-fairing is securely mounted and does not interfere with steering, controls, or any other motorcycle components. Test for stability before riding.

This image shows a motorcycle with the Puig Retro Style Semi-Fairing installed, highlighting its design and how it complements the vehicle's appearance.

Operating Considerations

The Puig 9595H Retro Style Semi-Fairing is designed to provide improved aerodynamics and wind protection during motorcycle operation. While installed, observe the following:

• Wind Protection: The semi-fairing will deflect airflow, reducing wind pressure on the rider's chest and head, especially at higher speeds.
• Visibility: Ensure the light smoke windshield does not impair your visibility under various lighting conditions. Always maintain clear vision.
• Handling: While designed to be aerodynamic, any addition to a motorcycle can subtly alter its handling characteristics. Familiarize yourself with the motorcycle's feel after installation.

Maintenance

Proper maintenance will ensure the longevity and appearance of your Puig semi-fairing.

• Cleaning: Clean the semi-fairing regularly with mild soap and water. Use a soft cloth to avoid scratching the surface. Avoid abrasive cleaners or solvents, which can damage the plastic.
• Inspection: Periodically check all mounting bolts and hardware for tightness. Vibrations from riding can cause fasteners to loosen over time.
• Damage: In case of minor scratches on the windshield, specialized plastic polish may be used. For significant damage or cracks, consider replacing the affected component to maintain structural integrity and safety.

Troubleshooting

If you encounter issues with your Puig 9595H Retro Style Semi-Fairing, consider the following:

• Vibration or Looseness: If the semi-fairing vibrates excessively or feels loose, re-check all mounting bolts. Ensure they are tightened to the correct torque specifications.
• Poor Fit: If the semi-fairing does not fit correctly, double-check that it is compatible with your specific motorcycle model and year. Ensure all components are installed in the correct orientation.
• Wind Noise/Buffeting: Minor adjustments to the fairing's angle (if possible with your mounting system) or rider position can sometimes reduce wind noise or buffeting.
• Damaged Components: If any part of the semi-fairing or its mounting hardware is damaged, replace it immediately. Do not attempt to ride with compromised components.

If problems persist, contact Puig customer support or a qualified motorcycle mechanic.

Specifications

This graphic highlights key features of Puig products, including OEM compatibility, product testing, and 60 years of experience, emphasizing quality and reliability.

Warranty Information

The Puig 9595H Retro Style Semi-Fairing comes with a 2-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for any warranty claims.

For specific terms and conditions of the warranty, please refer to the official Puig website or contact their customer service.

Customer Support

For further assistance, technical support, or inquiries regarding your Puig 9595H Retro Style Semi-Fairing, please contact Puig directly.

• Visit the official Puig website for product information and support resources.
• You can also explore the Puig Brand Store on Amazon for additional products and information.

This graphic states that Puig products are designed in Barcelona, reflecting the brand's origin and design philosophy.
