1. Introduction
Thank you for choosing the Schellenberg 50642 Magnetic Fly Screen Curtain. This product is designed to provide effective insect protection for your doors while allowing fresh air circulation. Its flexible fixing and magnetic closure ensure ease of use and a seamless barrier against unwanted pests. This manual provides detailed instructions for installation, operation, and maintenance to ensure optimal performance and longevity of your fly screen.
2. Safety Instructions
- Read all instructions carefully before installation and use.
- Keep all components, especially small parts, out of reach of children and pets.
- Ensure the installation surface is clean, dry, and stable before applying adhesive.
- Use caution when handling cutting tools if trimming the screen is necessary.
- Do not hang or put excessive weight on the fly screen, as this may damage the product or cause it to detach.
- This product is intended for domestic use as an insect screen. Do not use it for purposes other than its intended use.
3. Package Contents
Verify that all components are present in your package:
- 2 Polyester sheets (45 x 210 cm each) with integrated magnetic strip
- 1 Velcro and spongy tape roll
- 1 Microplastic tape roll
- 1 Cutting knife
- 2 Magnetic blocks
Image: Illustration of the components included in the Schellenberg Magnetic Fly Screen Curtain package, showing the mesh panels, adhesive tapes, and magnetic blocks for assembly.
4. Setup and Installation
The Schellenberg 50642 fly screen features a simple adhesive fixing method, requiring no drilling. Follow these steps for installation:
- Measure Your Door Frame: Ensure the dimensions of your door frame are suitable for the 90 x 210 cm screen. The screen can be trimmed if necessary using the provided cutting knife.
- Clean the Surface: Thoroughly clean the door frame where the screen will be installed. The surface must be free of dust, grease, and moisture to ensure proper adhesion of the tape.
- Apply Adhesive Tape: Attach the Velcro and spongy tape to the top and sides of your door frame. Press firmly along the entire length to ensure a strong bond.
- Attach the Fly Screen Panels: Carefully align the two polyester screen panels with the adhesive tape on the door frame. Start from the top center and work your way down the sides. Ensure the magnetic strips in the center of the panels meet perfectly.
- Secure Magnetic Blocks: Position the two magnetic blocks at the bottom center of the screen, ensuring they align with the magnetic strips for a secure closure.
- Test Closure: Walk through the screen to ensure the magnetic strips close seamlessly and automatically behind you. Adjust the positioning if necessary.
Image: A woman demonstrating the ease of walking through the installed Schellenberg Magnetic Fly Screen Curtain, which automatically closes behind her.

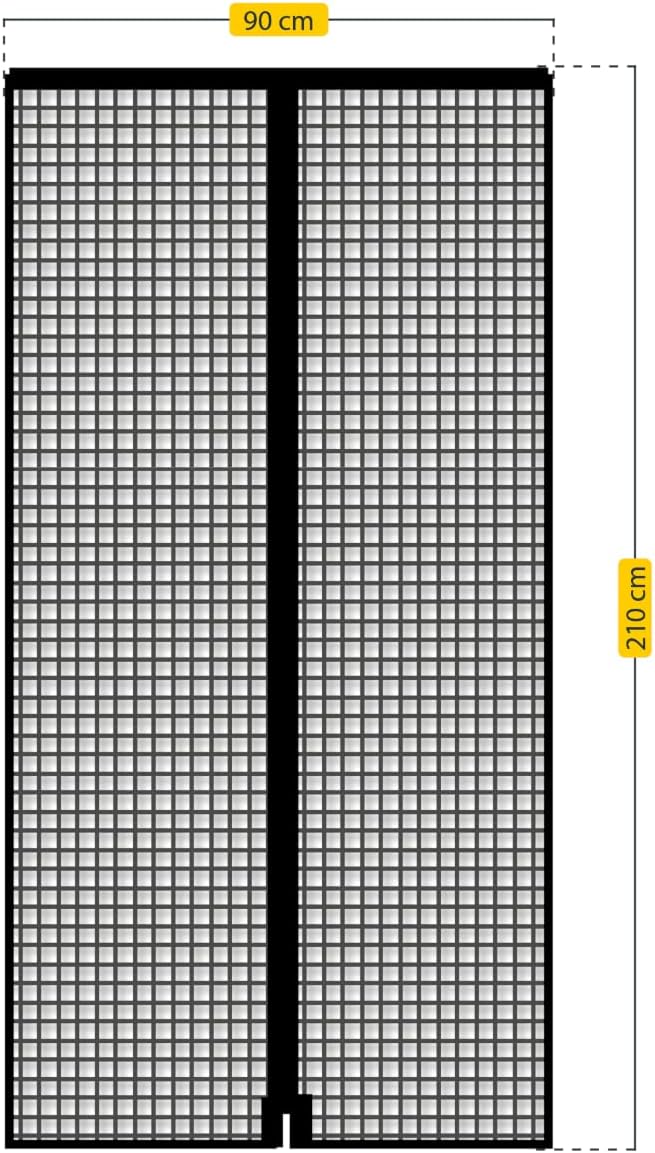

Image: A diagram illustrating the overall dimensions of the fly screen curtain, indicating a width of 90 cm and a height of 210 cm.
5. Operating Instructions
The Schellenberg Magnetic Fly Screen Curtain is designed for effortless passage and automatic closure.
- Passage: Simply walk through the center of the screen. The magnetic strips will separate to allow passage.
- Automatic Closure: After passing through, the integrated magnetic strips along the center seam will automatically snap back together, ensuring a continuous, seamless barrier against insects. The additional magnetic blocks at the bottom enhance closure.
Image: A detailed diagram illustrating how the magnetic strips along the center of the fly screen curtain automatically connect to seal the opening.
Image: A close-up photograph highlighting the continuous magnetic strip embedded within the fly screen fabric, responsible for the automatic closure.
6. Maintenance
Proper maintenance will extend the life and effectiveness of your fly screen.
- Cleaning: The polyester fabric is UV-resistant and washable up to 30 °C. For light cleaning, gently wipe the screen with a damp cloth. For deeper cleaning, detach the screen from the frame and hand wash or machine wash on a delicate cycle at a maximum of 30 °C. Do not bleach or tumble dry.
- Adhesive Longevity: Periodically check the adhesive tape for signs of wear or reduced stickiness. If necessary, replace the tape to ensure the screen remains securely attached.
- Storage: During off-season or when not in use for extended periods, detach the screen, clean it, and store it in a dry, cool place away from direct sunlight to prevent material degradation.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Screen does not close completely or leaves gaps. | Misalignment of magnetic strips; weak magnetic attraction; screen stretched or improperly installed. | Re-align the screen panels to ensure the magnetic strips meet precisely. Check if the magnetic blocks are correctly positioned at the bottom. Ensure the screen is not stretched too tightly during installation. |
| Screen detaches from the door frame. | Adhesive tape losing stickiness; improper surface preparation; excessive force on the screen. | Ensure the door frame surface is clean and dry before applying tape. Replace the adhesive tape if it has lost its stickiness. Avoid pulling or pushing the screen excessively. |
| Insects are still entering. | Gaps in installation; damaged mesh; screen not fully closed. | Inspect the entire perimeter of the screen for any gaps between the screen and the door frame. Check the mesh for tears or holes and repair if possible. Ensure the magnetic closure is fully engaged after passage. |
8. Specifications
- Brand: Schellenberg
- Model Number: 50642
- Material: Polyester
- Color: Anthracite
- Dimensions (L x W): 90 cm x 210 cm (assembled)
- Installation Depth: 11 mm (low profile, fits behind roller shutters)
- Closure Type: Continuous magnetic strip and magnetic blocks
- Washability: Up to 30 °C
- Country of Origin: China
Image: A close-up view of the fine, anthracite-colored polyester mesh fabric, highlighting its transparency and weave.
Image: This image demonstrates the optimal transparency of the fly screen mesh, allowing clear visibility while providing insect protection.
9. Warranty and Support
For information regarding warranty terms and conditions, please refer to the documentation provided with your purchase or contact Schellenberg customer support directly. If you encounter any issues or have questions about your product, please reach out to the manufacturer for assistance.
