TONE 3/8" Drive Screwdriver Bit (BIT3-P3) Instruction Manual

Product Overview

The TONE BIT3-P3 is a durable 3/8" drive screwdriver bit designed for use with compatible square drive tools. This bit features a (+) No.3 tip, suitable for driving screws with a corresponding Phillips head. Constructed from structural steel, it offers reliability and longevity for various fastening applications.

Figure 1: Overview of the TONE BIT3-P3 screwdriver bit, showing its robust construction and clear model markings.

Setup and Installation

This screwdriver bit is designed for quick and secure installation into any compatible 3/8" square drive tool, such as a ratchet, torque wrench, or power drill adapter. Ensure the drive tool is clean and free of debris before insertion.

1. Select Compatible Tool: Choose a 3/8" square drive tool that matches the bit's drive system.
2. Insert Bit: Align the square drive end of the BIT3-P3 with the drive receptacle of your tool. Push firmly until the bit is fully seated and secured. Some tools may have a detent ball or pin that clicks into place.
3. Verify Connection: Gently pull on the bit to ensure it is securely attached and will not dislodge during use.

Figure 2: Close-up view of the 3/8" square drive end of the BIT3-P3, designed for secure fitment into compatible tools.

Operating Instructions

The TONE BIT3-P3 is intended for driving or removing Phillips head screws. Always ensure the screw head matches the (+) No.3 tip size to prevent damage to the screw or the bit.

• Tip Selection: Use this bit only for Phillips head screws that require a No.3 tip. Using an incorrect size can lead to cam-out and damage.
• Application: Place the tip of the bit firmly into the screw head. Apply consistent downward pressure while rotating the drive tool to engage the screw.
• Direction: Rotate clockwise to tighten screws and counter-clockwise to loosen them.
• Safety: Always wear appropriate personal protective equipment, such as safety glasses, when using hand or power tools.

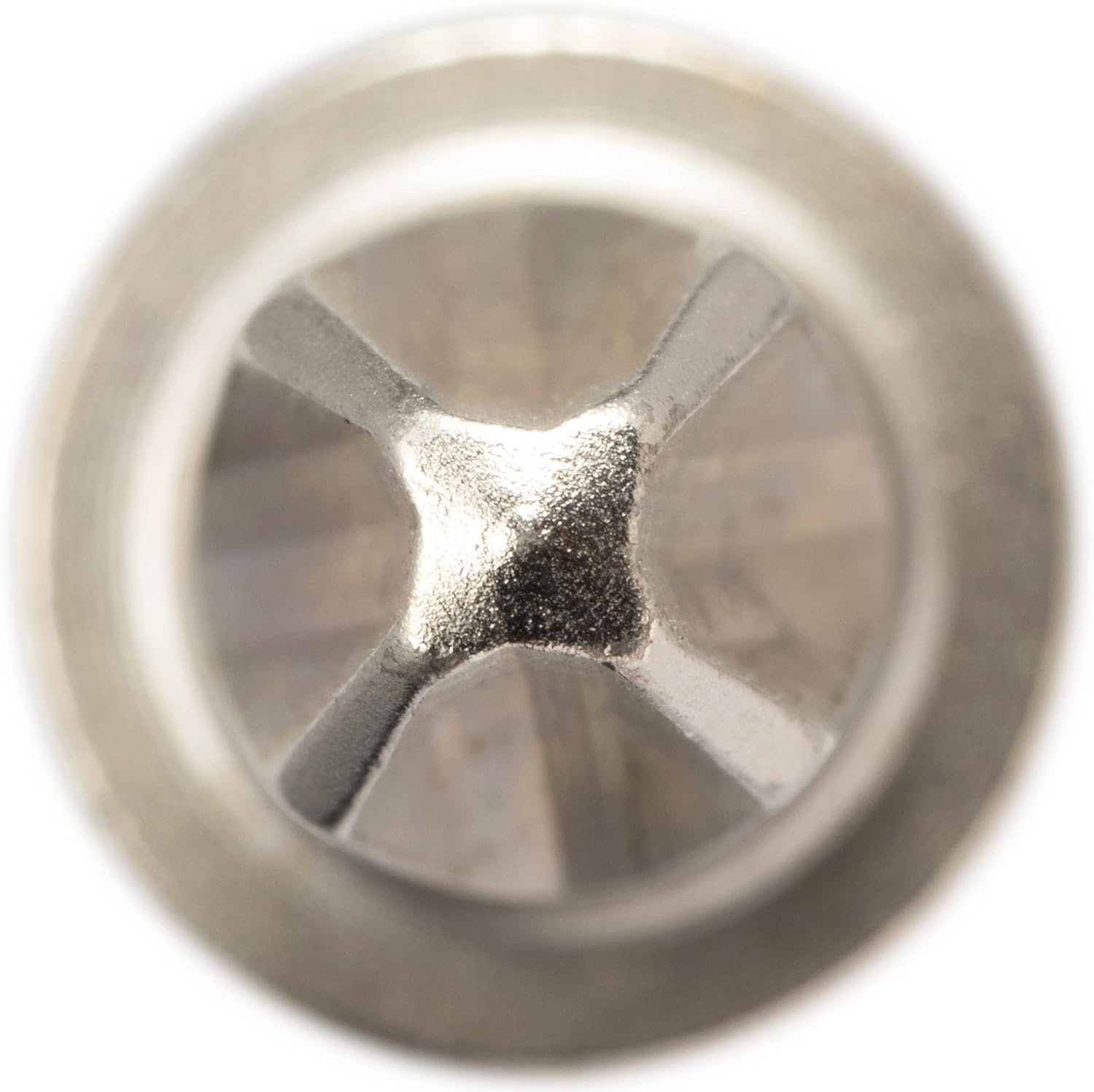

Figure 3: Detailed view of the (+) No.3 Phillips tip, highlighting its precision design for optimal screw engagement.

Maintenance

Proper maintenance extends the life of your TONE BIT3-P3 screwdriver bit.

• Cleaning: After each use, wipe the bit clean with a dry cloth to remove any dirt, grease, or metal shavings.
• Inspection: Regularly inspect the tip for signs of wear, rounding, or chipping. Inspect the drive end for any deformation. A worn bit can damage screw heads.
• Storage: Store the bit in a dry environment to prevent rust. Keep it in a tool box or bit holder to protect the tip from impact damage.
• Lubrication: No lubrication is required for this bit.

Troubleshooting

If you encounter issues while using your TONE BIT3-P3, consider the following:

• Bit Slipping/Cam-out:
  • Ensure the bit tip is fully seated in the screw head.
  • Apply sufficient downward pressure to prevent the bit from lifting out of the screw head.
  • Verify the screw head is a Phillips No.3. An incorrect size will cause slippage.
  • Inspect the bit tip for wear. A worn tip will not grip effectively.
• Difficulty Inserting into Tool:
  • Check if the drive tool is a 3/8" square drive.
  • Ensure the drive end of the bit and the tool's receptacle are clean and free of obstructions.
• Screw Head Damage:
  • Confirm the bit size matches the screw head (Phillips No.3).
  • Ensure adequate downward pressure is applied to prevent cam-out.
  • Avoid excessive torque, especially with smaller or softer screws.

Specifications

Key specifications for the TONE BIT3-P3 screwdriver bit:

Figure 4: Dimensions of the TONE BIT3-P3 screwdriver bit, showing approximate length of 3.8cm and width of 1.2cm.

Warranty Information

Specific warranty details for the TONE BIT3-P3 screwdriver bit are not provided in this manual. For information regarding product warranty, including terms, conditions, and claim procedures, please refer to the official TONE website or contact the authorized seller from whom the product was purchased. Retain your proof of purchase for any warranty claims.

Customer Support

For further assistance, technical inquiries, or support related to your TONE BIT3-P3 screwdriver bit, please contact TONE customer service or visit their official website. Contact information can typically be found on the product packaging or the manufacturer's official online presence.

Note: This manual provides general instructions. Always follow specific safety guidelines and best practices for tool usage.
