WOLTU LS003gr Rocking Chaise Lounge Instruction Manual

1. Introduction

Thank you for choosing the WOLTU LS003gr Rocking Chaise Lounge. This manual provides essential information for the safe assembly, operation, and maintenance of your new chaise lounge. Please read these instructions carefully before use and retain them for future reference.

The WOLTU LS003gr is designed for relaxation, featuring an ergonomic curvature to support your lumbar spine and a breathable textilene fabric. Its robust metal frame ensures durability and stability, making it suitable for various outdoor and indoor settings.

Image 1.1: WOLTU LS003gr Rocking Chaise Lounge in an outdoor setting.

2. Safety Instructions

• Ensure all components are securely fastened before use. Regularly check for loose screws or parts.
• Do not exceed the maximum load capacity of 160 kg (352 lbs).
• Use on a flat, stable surface to prevent tipping.
• Keep hands and fingers clear of moving parts during rocking.
• This product is designed for adult use. Supervise children when near the chaise lounge.
• Avoid prolonged exposure to extreme weather conditions to extend product lifespan.

3. Package Contents

Please verify that all parts are present before beginning assembly. If any parts are missing or damaged, please contact customer support.

• Chaise Lounge Frame (Metal components)
• Textilene Fabric Seat and Backrest
• Detachable Headrest
• Assembly Hardware (Screws, nuts, washers, Allen key)
• Plastic Protective Sleeves for Rocking Base

4. Setup and Assembly

Assembly is required for this product. It is recommended that two people assemble the chaise lounge for ease and safety. Do not fully tighten screws until all components are loosely assembled.

1. Unpack all components and lay them out on a clean, soft surface to prevent scratches.
2. Attach the main frame sections together using the provided hardware. Ensure the curved rocking bases are correctly oriented.
3. Secure the textilene fabric seat and backrest to the frame. Make sure the fabric is taut and evenly distributed.
4. Install the plastic protective sleeves onto the rocking base. These prevent slipping and protect your floor surfaces.
5. Attach the detachable headrest to the top of the backrest.
6. Once all parts are in place, gradually tighten all screws and bolts. Do not overtighten.
7. Verify the stability of the chaise lounge before first use.

Image 4.1: Product dimensions for assembly reference.

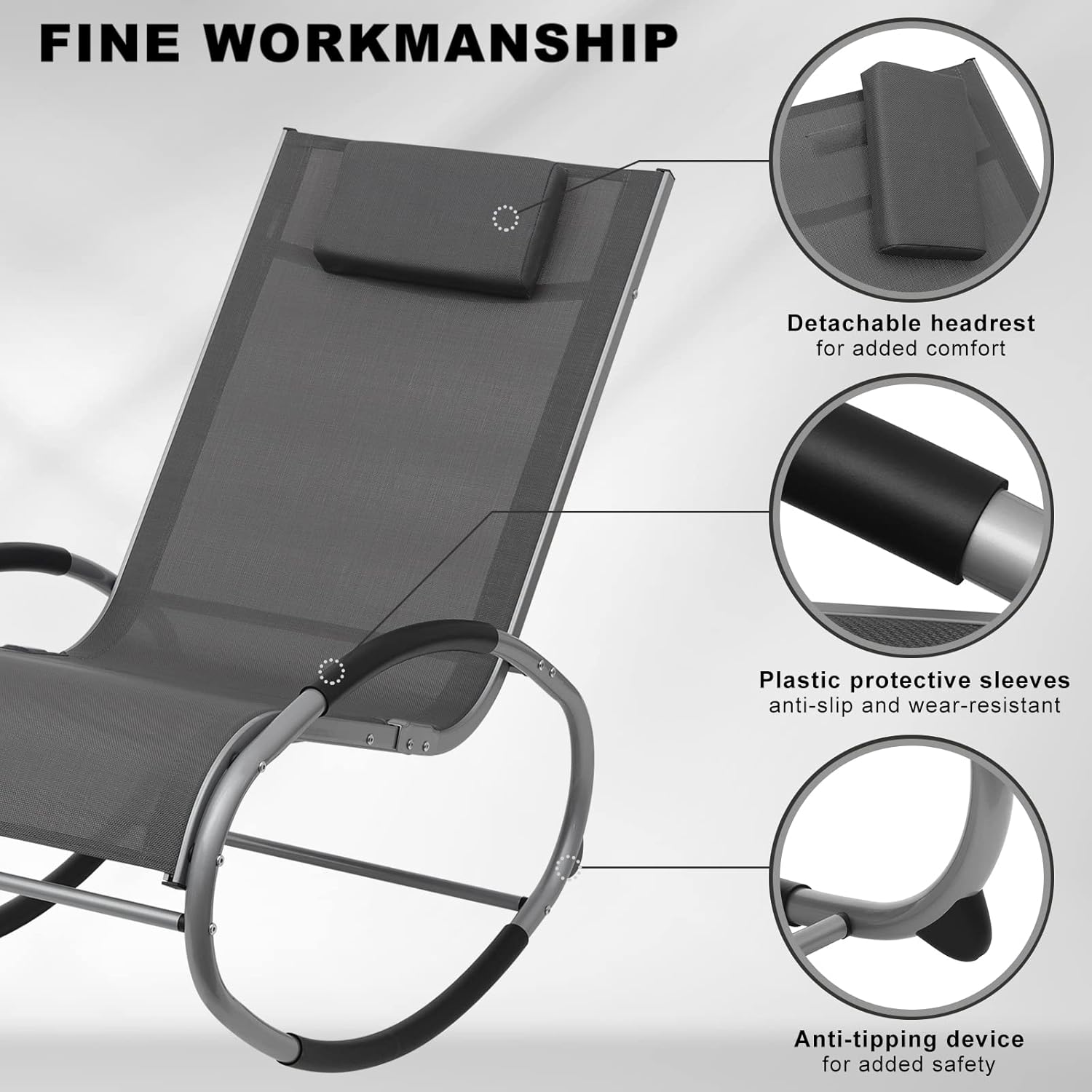

Image 4.2: Key features for assembly and safety.

5. Operating Instructions

The WOLTU LS003gr Rocking Chaise Lounge is designed for comfortable relaxation. Simply sit back and enjoy the gentle rocking motion. The ergonomic design supports your body for extended comfort.

• Rocking Motion: Gently push off with your feet to initiate the rocking motion. The anti-tipping device ensures safety during use.
• Headrest Adjustment: The headrest is detachable and can be adjusted for optimal neck and head support.
• Armrests: The curved armrests provide comfortable support for your arms.

Image 5.1: Ergonomic design and rocking function.

6. Maintenance

To ensure the longevity and appearance of your WOLTU LS003gr Rocking Chaise Lounge, follow these maintenance guidelines:

• Cleaning: Wipe the metal frame with a damp cloth and mild detergent. The textilene fabric can be cleaned with a soft brush and soapy water. Rinse thoroughly and allow to air dry.
• Storage: While the textilene fabric is UV-resistant and water-repellent, storing the chaise lounge indoors or under cover during harsh weather conditions (heavy rain, snow, strong sun) will prolong its life.
• Inspection: Periodically check all bolts and screws to ensure they are tight. Retighten if necessary. Inspect the fabric for any signs of wear or damage.

Image 6.1: Detail of durable textilene fabric and metal frame.

7. Troubleshooting

• Difficulty during assembly: Ensure you are following the steps in the correct order. Do not fully tighten screws until all parts are loosely connected. If parts do not align, try rotating them or re-checking the orientation.
• Chaise lounge feels unstable: Double-check that all screws and bolts are securely tightened. Ensure the chaise lounge is placed on a flat, even surface.
• Squeaking noise during rocking: Apply a small amount of silicone-based lubricant to the joints of the rocking mechanism.

8. Specifications

9. Warranty and Support

WOLTU products are manufactured with quality and care. For any questions, concerns, or warranty claims, please contact WOLTU customer service through your purchase platform or the official WOLTU website. Please have your model number (LS003gr) and purchase date available when contacting support.
