John Deere OEM Maintenance Kit (Part Number 1002032) and Standard Blades for Model 190C

1. Introduction

This instruction manual provides essential information for the proper installation and maintenance of the John Deere OEM Maintenance Kit (Part Number 1002032) and Standard Blades. This kit is specifically designed for use with John Deere Model 190C lawn tractors. Adhering to these instructions will help ensure the safe and efficient operation of your equipment and extend its service life.

Important: Always refer to your original John Deere Model 190C equipment owner's manual for specific safety precautions, detailed procedures, and compatibility verification before performing any maintenance or part replacement.

2. Product Overview

The John Deere OEM Maintenance Kit (Part Number 1002032) and Standard Blades includes the following components:

2.1 Maintenance Kit Components

• Engine Oil (SAE 10W-30 Turf-Gard)
• Air Filter
• Fuel Filter
• Spark Plugs (2)

Image 2.1: Contents of the John Deere OEM Home Maintenance Kit, showing bottles of engine oil, an air filter, a fuel filter, and two spark plugs.

2.2 Standard Blade Set Components

• Standard Mower Blades (3)
• Blade Mounting Nuts (3)

Image 2.2: Three standard mower blades and their corresponding mounting nuts.

3. Safety Information

WARNING: Always exercise extreme caution when working with lawn care equipment. Failure to follow safety instructions can result in serious injury or death.

• Read and understand all instructions in this manual and your equipment's owner's manual before beginning any work.
• Wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and sturdy footwear.
• Ensure the engine is turned off, the ignition key is removed, and the spark plug wire is disconnected to prevent accidental starting before performing any maintenance.
• Engage the parking brake and block the wheels if necessary to prevent movement.
• Allow the engine and exhaust system to cool down before handling to avoid burns.
• Blades are sharp. Handle with extreme care to prevent cuts.
• Dispose of used oil, filters, and other materials according to local environmental regulations.

4. Blade Installation (Setup)

This section outlines the procedure for replacing the mower blades on your John Deere Model 190C lawn tractor.

4.1 Preparation

1. Park the lawn tractor on a flat, level surface.
2. Turn off the engine, remove the ignition key, and engage the parking brake.
3. Disconnect the spark plug wire(s) to prevent accidental engine starting.
4. Allow the engine and cutting deck to cool completely.
5. Raise the cutting deck to its highest position or use a jack to safely lift the front of the tractor, ensuring stable support.

4.2 Removing Old Blades

1. Carefully reach under the deck. Use a block of wood or a specialized blade removal tool to hold the blade steady.
2. Using a wrench, loosen and remove the blade mounting nut (typically counter-clockwise).
3. Remove the old blade. Note its orientation for correct installation of the new blade.
4. Repeat for all blades.

4.3 Installing New Blades

1. Ensure the new blade is oriented correctly. The cutting edge should face outwards and the curved part (wing) should point upwards towards the deck.

Image 4.1: Proper orientation of a mower blade, with the wing pointing upwards.

2. Align the star-shaped hole in the blade with the star-shaped spindle on the deck.
3. Place a new blade mounting nut onto the spindle.

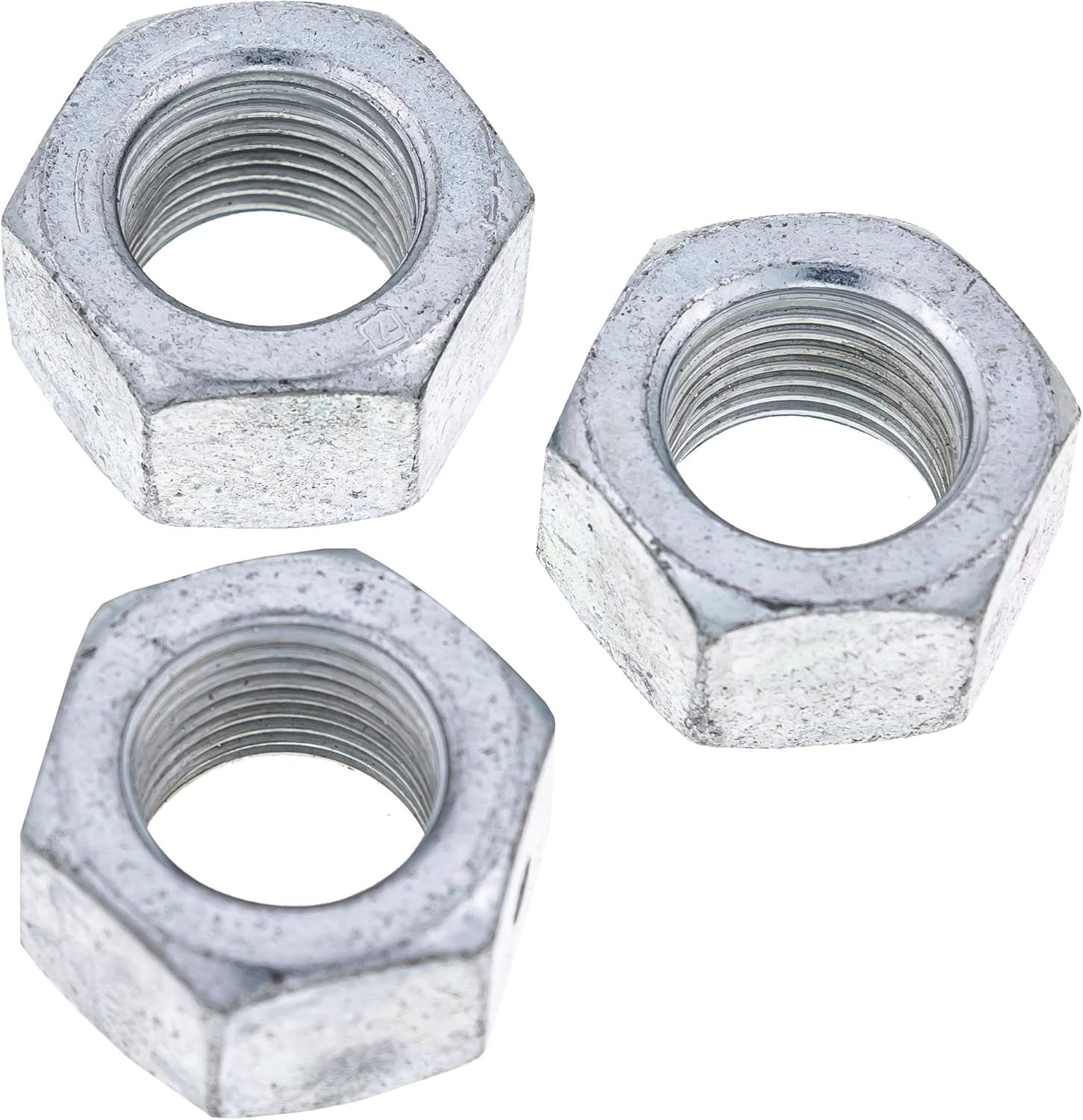

Image 4.2: New blade mounting nuts.

4. Hand-tighten the nut, then use a torque wrench to tighten it to the specification found in your John Deere Model 190C owner's manual. Typically, this is between 70-90 ft-lbs (95-122 Nm).
5. Repeat for all new blades.
6. Lower the cutting deck or tractor.
7. Reconnect the spark plug wire(s).

5. Maintenance Kit Component Replacement

Regular maintenance using the components in this kit is crucial for the longevity and performance of your John Deere Model 190C.

5.1 Engine Oil Change

Changing the engine oil regularly ensures proper lubrication and prevents engine wear.

1. Ensure the engine is warm but not hot.
2. Place a suitable drain pan under the oil drain plug.
3. Remove the oil drain plug and allow all old oil to drain completely.
4. Replace the drain plug and tighten it securely.
5. Remove the oil fill cap/dipstick.
6. Pour the new John Deere SAE 10W-30 Turf-Gard engine oil into the engine, referring to your owner's manual for the correct capacity.
7. Check the oil level with the dipstick, ensuring it is within the recommended range.
8. Replace the oil fill cap/dipstick.

5.2 Air Filter Replacement

A clean air filter protects the engine from dust and debris, ensuring optimal performance.

1. Locate the air filter housing, typically on the side of the engine.
2. Open the housing by releasing clips or screws.
3. Carefully remove the old air filter. Note its orientation.
4. Clean any debris from inside the air filter housing.
5. Install the new air filter, ensuring it fits snugly.
6. Close and secure the air filter housing.

5.3 Fuel Filter Replacement

A clean fuel filter prevents contaminants from reaching the carburetor or fuel injectors.

1. Locate the inline fuel filter, usually between the fuel tank and the engine.
2. Use clamps to pinch the fuel lines on both sides of the filter to prevent fuel leakage.
3. Remove the hose clamps securing the old filter and disconnect the fuel lines.
4. Install the new fuel filter, ensuring the arrow on the filter points in the direction of fuel flow (towards the engine).
5. Secure the fuel lines with the hose clamps.
6. Remove the pinch clamps from the fuel lines.

5.4 Spark Plug Replacement

New spark plugs ensure efficient ignition and engine performance.

1. Disconnect the spark plug wire(s) from the old spark plug(s).
2. Use a spark plug wrench to remove the old spark plug(s).
3. Inspect the new spark plug(s) and ensure the gap is set correctly according to your owner's manual.
4. Thread the new spark plug(s) into the engine by hand to prevent cross-threading.
5. Tighten with a spark plug wrench, but do not overtighten.
6. Reconnect the spark plug wire(s).

6. Troubleshooting

If you encounter issues after performing maintenance, consider the following common troubleshooting steps:

• Engine not starting: Check if spark plug wires are securely connected. Ensure fuel filter is installed correctly and fuel is flowing. Verify oil level.
• Poor cut quality: Recheck blade installation for correct orientation. Ensure blades are securely tightened.
• Excessive smoke: Verify correct oil level and type.
• Engine running rough: Check spark plug connections and ensure air filter is clean and properly seated.

For persistent issues, consult your John Deere Model 190C owner's manual or contact an authorized John Deere service center.

7. Specifications

8. Warranty and Support

For information regarding the warranty of this John Deere OEM Maintenance Kit and Standard Blades, please refer to the documentation provided with your original John Deere Model 190C lawn tractor or contact an authorized John Deere dealer.

For technical support or assistance with specific issues not covered in this manual, please visit the official John Deere website or contact their customer service department. Always provide your equipment's model and serial number, along with the part number (1002032) of this kit, when seeking support.
