ShineBear XZ5134-001 Presser Foot Instruction Manual

1. Product Overview

The ShineBear XZ5134-001 Presser Foot is a specialized accessory designed for use with Brother household sewing machines. Constructed from durable stainless steel, this presser foot is engineered to facilitate sewing through thick fabrics, ensuring smooth feeding and consistent stitch quality. It is an essential tool for projects requiring robust material handling.

2. Setup and Installation

Before installing the XZ5134-001 presser foot, ensure your sewing machine is turned off and unplugged for safety. This presser foot is compatible with most Brother household sewing machine models that utilize a standard snap-on presser foot system.

1. Raise the Presser Foot Lever: Lift the presser foot lever on your sewing machine to its highest position.
2. Remove Existing Presser Foot: Locate the small lever or button at the back of the presser foot holder. Press it to release the currently attached presser foot.
3. Position the XZ5134-001: Place the XZ5134-001 presser foot directly under the presser foot holder, aligning the crossbar of the foot with the groove on the holder.
4. Lower the Presser Foot Lever: Slowly lower the presser foot lever. The holder should snap securely onto the presser foot. Gently tug on the foot to ensure it is firmly attached.

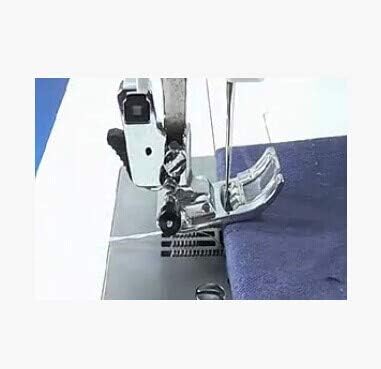

Image 2.1: The XZ5134-001 presser foot correctly installed on a sewing machine, ready for use with fabric.

Once installed, you can plug in and power on your sewing machine.

3. Operating Instructions

The XZ5134-001 presser foot is specifically designed to assist in sewing thick fabrics. Its robust construction and design help to evenly feed multiple layers or dense materials under the needle.

• Fabric Placement: Place your thick fabric layers under the presser foot, ensuring the edges are aligned as desired.
• Needle Selection: For thick fabrics, it is recommended to use a heavier-duty needle (e.g., a denim or leather needle) appropriate for the material thickness to prevent needle breakage and ensure clean stitches.
• Thread Tension: Adjust your machine's upper thread tension as needed. Thicker fabrics often require slightly higher tension to achieve balanced stitches. Test on a scrap piece of your fabric.
• Stitch Length: Consider using a slightly longer stitch length than usual for thick fabrics. This can help prevent skipped stitches and improve the overall appearance of the seam.
• Sewing Speed: Sew at a moderate and consistent speed. Avoid rushing, especially when starting or stopping, to maintain control over the fabric and stitch quality.

The design of this presser foot helps to prevent the fabric from bunching or shifting, providing a smoother sewing experience on challenging materials.

4. Maintenance and Care

Proper care of your ShineBear XZ5134-001 presser foot will ensure its longevity and continued performance.

• Cleaning: After each use, especially when sewing lint-producing fabrics, gently wipe the presser foot with a soft, dry cloth to remove any dust or fabric fibers. For stubborn residue, a slightly damp cloth can be used, followed by immediate drying.
• Storage: Store the presser foot in a dry place, preferably in a dedicated sewing accessory box or compartment, to protect it from dust and potential damage.
• Inspection: Periodically inspect the presser foot for any signs of wear, bending, or damage. While made of durable stainless steel, extreme force or improper handling can cause deformation.

Do not use harsh chemicals or abrasive cleaners, as these can damage the finish of the stainless steel.

5. Troubleshooting

If you encounter issues while using the XZ5134-001 presser foot, consider the following common problems and solutions:

• Fabric Not Feeding Smoothly:
  • Ensure the presser foot is securely attached and lowered.
  • Check that your feed dogs are engaged and not lowered.
  • Verify that the correct needle type and size are being used for the fabric thickness.
  • Adjust stitch length; a longer stitch can sometimes improve feeding on thick materials.
• Skipped Stitches:
  • Confirm the needle is inserted correctly and is not bent or dull.
  • Re-thread the machine completely, both upper thread and bobbin.
  • Adjust thread tension.
• Uneven Stitches:
  • Check thread tension settings.
  • Ensure consistent fabric feeding without pulling or pushing excessively.

If problems persist, consult your sewing machine's main instruction manual or contact a qualified sewing machine technician.

6. Specifications

7. Warranty and Support

Specific warranty information for the ShineBear XZ5134-001 presser foot may vary depending on the retailer and region of purchase. Please refer to your purchase documentation or contact the seller directly for details regarding warranty coverage and terms.

For product support or inquiries, please reach out to the retailer from whom you purchased this item. They can provide assistance with product-specific questions or direct you to the appropriate manufacturer support channels if necessary.
