1. Introduction
This instruction manual provides essential information for the proper installation, use, and maintenance of your Filter Everything Replacement Carbon Pre/Post Filters. These filters are designed to enhance air quality by capturing odors and larger particles, ensuring optimal performance of your compatible Holmes Air Purifier.
2. Product Overview
The Filter Everything Carbon Pre/Post Filters are designed as direct replacements for Holmes Air Purifier Part AOR31 Filter I. This 6-pack provides multiple replacements to maintain consistent air purification.
Key Features:
- Activated Carbon Layer: Effectively captures odors, smoke, and harmful volatile organic compounds (VOCs).
- High Filtration Efficiency: Blocks dust, pollen, and fine particles, contributing to cleaner air.
- Universal Fit: Compatible with a wide range of specified Holmes Air Purifier models.
- Durable & Long-Lasting: Engineered for consistent performance between replacements.

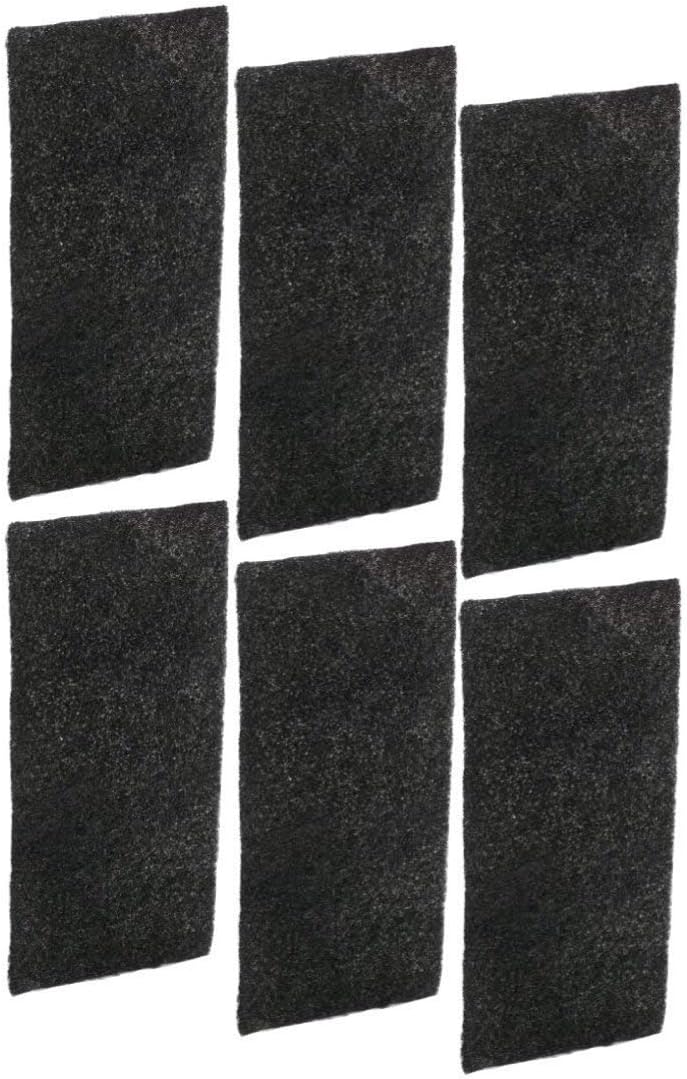

Figure 1: Filter Everything Replacement Carbon Pre/Post Filters (6-Pack).
Figure 2: Illustration of activated carbon filter features, highlighting odor and particle capture.
3. Compatibility
These carbon pre/post filters are compatible with Holmes Air Purifiers that use Part AOR31 Filter I. Specifically, they are designed to fit the following Holmes models:
- HAP2400
- HAP242
- HAP9240
- HAP9242
- HAP412 Series
- HAP9412 Series
- HAP9414 Series
- HAP422 Series
- HAP424 Series
- HAP9424 Series
- HAP9422 Series
Always verify your air purifier's model number and existing filter type to ensure proper fitment.
4. Setup and Installation
Follow these steps to correctly install your new carbon pre/post filters into your Holmes Air Purifier.
- Power Off and Unplug: Before beginning, ensure your air purifier is turned off and unplugged from the power outlet to prevent electrical hazards.
- Locate Filter Compartment: Refer to your air purifier's original manual to locate and open the filter access panel. This is typically on the back or side of the unit.
- Remove Old Filters: Carefully remove the used carbon pre/post filters and any main filters. Dispose of the old carbon filters responsibly.
- Prepare New Carbon Filters: Unpack the new Filter Everything carbon pre/post filters. These are typically thin, black, fibrous sheets.
- Install New Carbon Filters: Place the new carbon pre/post filters into the designated slots or attach them to the main filter (if applicable) as per your air purifier's design. Ensure they lie flat and cover the entire surface area intended for the pre-filter.
Figure 3: Installing a carbon pre-filter into an air purifier.
- Reinstall Main Filter (if applicable): If your air purifier uses a separate main filter (e.g., HEPA filter), reinstall it after the carbon pre-filters are in place.
- Close Compartment: Securely close the filter access panel.
- Restore Power: Plug the air purifier back into the power outlet and turn it on.
Measuring Your Filter:
To ensure you have the correct replacement filter, it is important to accurately measure your existing filter. Pay close attention to length, width, and thickness. The thickness can sometimes be tricky, but generally, 5/16 inch and 3/8 inch filters are interchangeable for many applications.
Video 1: Instructions on how to accurately measure your air filter for replacement.
5. Operating Instructions
Once the new carbon pre/post filters are installed, your air purifier is ready for operation. The filters work passively as air is drawn through the unit. No additional operational steps are required for the filters themselves.
- Enhanced Airflow: These filters are designed to maintain optimal airflow while effectively capturing pollutants.
- Odor Elimination: The activated carbon layer continuously works to absorb and neutralize household odors.
Figure 4: Benefits of advanced filtration technology for cleaner air.
6. Maintenance
Regular replacement of your carbon pre/post filters is crucial for maintaining the efficiency and effectiveness of your air purifier.
- Replacement Frequency: It is recommended to replace the carbon pre/post filters approximately every 3-6 months, depending on usage and air quality in your environment. Heavily polluted areas or continuous use may require more frequent changes.
- Visual Inspection: Periodically check the filters for visible signs of dirt, dust, or discoloration. A heavily soiled filter indicates it's time for replacement.
- Cleaning: These carbon pre/post filters are generally disposable and not designed for cleaning. Attempting to wash them may reduce their effectiveness. The outer grille of your air purifier may be cleaned with a damp cloth.
Figure 5: Proper fitment ensures efficient filtration and ease of maintenance.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Reduced Airflow | Filters are clogged or incorrectly installed. | Check filter installation. Replace filters if heavily soiled. |
| Persistent Odors | Carbon filters are saturated or expired. | Replace carbon pre/post filters. Ensure proper fit. |
| Air Purifier Not Turning On | Unit unplugged or filter compartment not fully closed. | Ensure power cord is securely plugged in. Verify filter access panel is latched correctly. |
8. Specifications
- Brand: Filter Everything
- Model Compatibility: Holmes AOR31 Filter I (and listed compatible models)
- Material: Carbon
- Dimensions: 4-1/4 inches (width) x 9-1/2 inches (length) x 1/4 inch (thickness)
- Quantity: 6-Pack
- Item Weight: Approximately 0.317 ounces per filter
9. Support
For any questions regarding your Filter Everything Replacement Carbon Pre/Post Filters, please contact the manufacturer directly through their official channels. Always refer to your specific Holmes Air Purifier's user manual for detailed instructions on its operation and maintenance.
