1. Introduction
This manual provides essential instructions for the safe and effective use of your HMF 250452 Fireproof Waterproof Document Box. Please read it thoroughly before using the product and retain it for future reference. This document box is designed to protect important documents and non-magnetic digital media from fire and water damage.
Important Safety Information
- Always store the document box flat with the lid facing upwards to ensure optimal fire and water protection.
- The box weighs 12.6 kg. Exercise caution when lifting or transporting. It is primarily intended for stationary storage, not daily transport.
- While the box offers fire and water resistance, it is not designed as an anti-theft safe. The security lock provides basic protection but is not impenetrable.
2. Product Features
The HMF 250452 Document Box incorporates several features for enhanced protection and usability:
- Fire Protection: Provides 30 minutes of fire resistance at temperatures up to 805 °C (UL certified).
- Water Protection: Designed to remain dry internally for up to 24 hours when submerged (SGS certified).
- Capacity: Suitable for DIN A4 documents and other valuables.
- Construction: Made from advanced, specially sealed polymer plastic.
- Sealing Mechanism: Features a sturdy twist lock for an airtight and waterproof seal.
- Security: Equipped with a safety lock for basic anti-theft protection.
- Portability: Includes a sturdy carry handle for occasional transport.
Image: The HMF document box demonstrating its fire and water resistance capabilities.
Image: The HMF document box submerged in water, highlighting its waterproof design.
3. Setup
- Unpacking: Carefully remove the document box from its packaging. Inspect for any signs of damage.
- Placement: Choose a suitable location for the box. It should be stored flat with the lid facing upwards to ensure proper sealing and protection. Avoid placing it in areas with extremely high humidity, such as damp basements, if possible.
- Initial Ventilation: Before storing any items, open the box and allow it to air out for a few hours to dissipate any manufacturing odors.
4. Operating Instructions
Opening the Document Box
- Insert the key into the lock cylinder located on the front of the box.
- Turn the key to unlock the mechanism.
- Rotate the twist lock handles (if present) to release the lid.
- Lift the lid to open the box.
Closing and Sealing the Document Box
- Ensure all items are placed neatly inside and do not obstruct the sealing gasket.
- Lower the lid firmly until it sits flush with the base.
- Rotate the twist lock handles to engage the seal. You may need to apply a slight amount of force to ensure a tight, airtight, and waterproof seal.
- Turn the key to lock the box. Remove the key and store it in a secure location.
Image: The document box open, illustrating its internal capacity for A4 documents and other valuables.
Image: Close-up details of the box's sealing gasket, key lock, and carry handle.
5. Maintenance
- Moisture Management: Due to the airtight seal, moisture can accumulate inside, especially in humid environments. To prevent this, ventilate the box regularly by opening it for a few hours.
- Silica Gel: It is recommended to place silica gel bags inside the box to absorb moisture and prevent odors. Replace these bags regularly as they become saturated.
- Cleaning: Wipe the exterior with a damp cloth. Do not use abrasive cleaners or solvents. Ensure the sealing gasket is clean and free of debris to maintain its effectiveness.
6. Troubleshooting
| Issue | Possible Cause | Solution |
|---|---|---|
| Moisture inside the box | Airtight seal trapping humidity; high ambient humidity. | Regularly ventilate the box. Use and replace silica gel bags. Store in a less humid environment if possible. |
| Lid difficult to close/seal | Items obstructing the seal; debris on the gasket; lid not aligned correctly. | Ensure no items are blocking the seal. Clean the gasket. Align the lid properly before closing and applying firm pressure to engage the twist lock. |
| Lock mechanism feels stiff | Lack of lubrication; minor misalignment. | Apply a small amount of graphite lubricant to the key and lock cylinder. Ensure the key is fully inserted and turned smoothly. |
7. Specifications
| Attribute | Detail |
|---|---|
| Model Number | 250452 |
| Brand | HMF |
| External Dimensions (W x H x D) | 44.5 x 16.5 x 33 cm (excluding handle/feet) |
| External Dimensions (W x H x D, incl. handle/feet) | 44.5 x 16.5 x 37 cm |
| Internal Dimensions (W x H x D, incl. lid) | 35 x 9.5 x 22.5 cm |
| Internal Bottom Height | 7.5 cm |
| Internal Lid Height | 2 cm |
| Volume | 7.48 litres |
| Weight | 12.6 kg |
| Material | Polymer Plastic |
| Fire Resistance | 30 minutes up to 805 °C (UL certified) |
| Water Resistance | Up to 24 hours dry internal (SGS certified) |
| Lock Type | Key Lock |
Image: External dimensions and weight of the HMF document box.

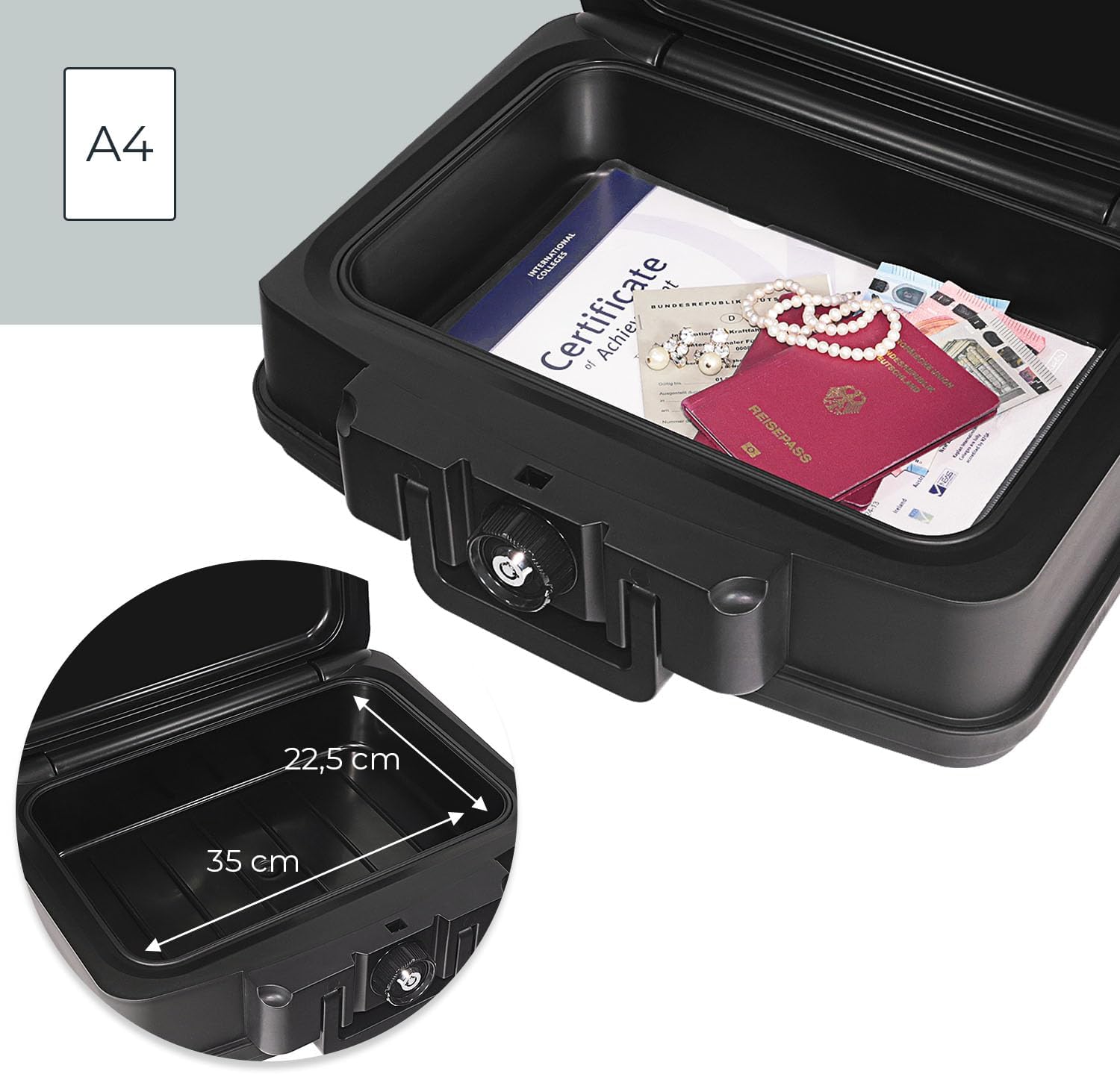

Image: Internal dimensions and A4 document compatibility of the HMF document box.
8. Warranty and Support
For information regarding warranty coverage or technical support, please refer to the documentation provided at the time of purchase or contact HMF customer service directly. Contact details can typically be found on the manufacturer's official website or through your retailer.
