User Manual

1. Introduction

This user manual provides detailed instructions for the installation, operation, and maintenance of your Kuzco Lighting Hartford Pendant LED, Model EP16608-WH. Please read this manual thoroughly before installation and retain it for future reference. This pendant light is designed for outdoor use and features an integrated LED light source, offering efficient and dimmable illumination.

2. Important Safety Information

WARNING: Risk of electric shock. Disconnect power at the fuse box or circuit breaker before installation or servicing.

• All electrical connections must be in accordance with local and National Electrical Code (NEC) standards. If you are unfamiliar with proper electrical wiring connections, consult a qualified electrician.
• This fixture is intended for outdoor use. Ensure all connections are properly sealed to prevent water intrusion.
• Do not install this fixture on surfaces that are not structurally sound.
• Do not attempt to modify the fixture. Any modifications may void the warranty and create a safety hazard.
• Handle the fixture with care. Avoid dropping or subjecting it to strong impacts.
• Wear safety glasses and gloves during installation.

3. Package Contents

Verify that all components are present and undamaged before proceeding with installation.

• Hartford Pendant LED Fixture (Model EP16608-WH)
• Integrated LED Light Source (pre-installed)
• Mounting Hardware Kit
• Instruction Manual

4. Installation Instructions

Before beginning installation, ensure the power is turned off at the circuit breaker. This fixture is designed for suspended, ceiling mount installation.

4.1. Tools Required (Not Included)

• Phillips Head Screwdriver
• Flat Head Screwdriver
• Wire Strippers
• Electrical Tape
• Safety Glasses
• Ladder

4.2. Mounting the Fixture

1. Turn off power: Locate the circuit breaker controlling the light fixture and switch it to the OFF position.
2. Prepare mounting surface: Ensure the junction box is securely mounted to the ceiling structure and can support the weight of the fixture.
3. Attach mounting bracket: Secure the mounting bracket (from the hardware kit) to the junction box using the provided screws.
4. Adjust suspension length: Determine the desired hanging length for the pendant. Adjust the suspension rod accordingly.
5. Make electrical connections:
   • Connect the fixture's black wire to the supply circuit's black (Live) wire.
   • Connect the fixture's white wire to the supply circuit's white (Neutral) wire.
   • Connect the fixture's ground wire (bare copper or green) to the supply circuit's ground wire and to the mounting bracket's ground screw.
   • Secure all connections with wire nuts and wrap with electrical tape for added safety.
6. Secure the fixture: Carefully tuck all wires into the junction box. Align the fixture canopy with the mounting bracket and secure it using the provided screws.
7. Restore power: Once the fixture is securely installed, turn the power back on at the circuit breaker.

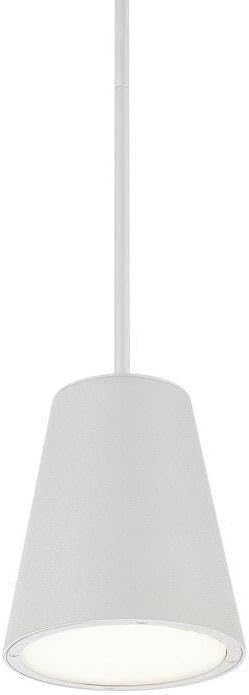

Figure 1: Kuzco Lighting Hartford Pendant LED (Model EP16608-WH). This image illustrates the overall appearance of the pendant light, featuring a white conical shade and a slender suspension rod, suitable for outdoor ceiling mount installations.

5. Operating Instructions

5.1. Turning On/Off

The Hartford Pendant LED is controlled by a standard wall switch connected to the fixture's power supply. Flip the wall switch to the 'ON' position to illuminate the light and to the 'OFF' position to turn it off.

5.2. Dimming Functionality

This fixture is dimmable. To utilize the dimming feature, ensure you have installed a compatible LED dimmer switch (sold separately) in your electrical circuit. Follow the dimmer switch manufacturer's instructions for proper operation.

5.3. App Control

The fixture supports app control. For specific instructions on connecting and controlling your pendant light via a smart device application, please refer to the separate documentation provided with your smart home system or the Kuzco Lighting website for compatible app information and setup guides. This functionality typically requires a compatible smart home hub or gateway.

6. Care and Maintenance

Regular maintenance helps preserve the appearance and functionality of your pendant light.

• Cleaning: Before cleaning, ensure the power to the fixture is turned off. Use a soft, dry or slightly damp cloth to wipe the exterior surfaces. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish.
• LED Light Source: The LED light source in this fixture is integrated and not designed for user replacement. If the LED light source fails, please contact Kuzco Lighting customer support or a qualified electrician for assistance.
• Inspection: Periodically inspect the fixture for any signs of damage, loose connections, or wear. Address any issues promptly to ensure safe operation.

7. Troubleshooting

Refer to the table below for common issues and their potential solutions.

If the problem persists after attempting these solutions, please contact Kuzco Lighting customer support or a qualified electrician.

8. Product Specifications

9. Warranty and Customer Support

9.1. Manufacturer Warranty

This Kuzco Lighting product is covered by a manufacturer's warranty. For specific details regarding the warranty period, coverage, and terms, please refer to the warranty card included with your product or visit the official Kuzco Lighting website. Retain your proof of purchase for warranty claims.

9.2. Customer Support

If you have any questions, require technical assistance, or encounter issues not covered in this manual, please contact Kuzco Lighting customer support. Contact information can typically be found on the product packaging or the official Kuzco Lighting website.

Website: www.kuzcolighting.com
