MENABO Delta Roof Bar Fixing Kit 000097800000 User Manual

Introduction

This manual provides comprehensive instructions for the safe and correct installation, operation, and maintenance of your MENABO Delta Roof Bar Fixing Kit 000097800000. This kit is designed for specific vehicle models: Ford Fiesta V 5-door (2002-2008) and Ford Fusion 5-door (2002-2012) with normal roofs. Please read this manual thoroughly before installation and retain it for future reference.

Safety Information

• Ensure all components are securely fastened before driving. Regularly check tightness during long journeys.
• Do not exceed the maximum load capacity specified for your vehicle's roof or the roof bars. Refer to your vehicle's owner's manual for specific load limits.
• Distribute the load evenly on the roof bars.
• Be aware of increased vehicle height and width when carrying loads, especially when entering garages or low-clearance areas.
• Adjust driving speed according to road conditions and load. Crosswinds can affect vehicle stability.
• If unsure about any part of the installation, consult a qualified professional.

Package Contents

Verify that all components listed below are present and undamaged before beginning installation.

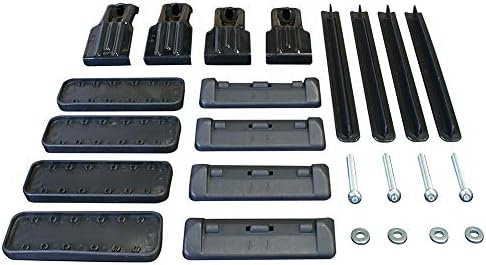

Image: All components of the MENABO Delta Roof Bar Fixing Kit, including four roof bar feet, four rubber pads, four plastic covers, four metal bars, four bolts, and four washers, laid out on a white surface.

• 4 x Roof Bar Feet
• 4 x Rubber Pads
• 4 x Plastic Covers
• 4 x Metal Bars (for securing feet)
• 4 x Bolts
• 4 x Washers
• Instruction Manual (this document)

Setup and Installation

Follow these steps carefully to install the MENABO Delta Roof Bar Fixing Kit on your vehicle.

1. Prepare the Vehicle: Ensure your vehicle's roof is clean and dry where the roof bars will be mounted. Identify the designated mounting points on your vehicle's roof, typically indicated in your vehicle's owner's manual or by small markings.
2. Assemble the Feet: Attach the rubber pads to the base of each roof bar foot. These pads protect your vehicle's paintwork and provide grip.
3. Position the Feet: Place the assembled feet onto the designated mounting points on your vehicle's roof. Ensure they are correctly aligned and spaced according to your vehicle's specifications and the roof bar length (not included in this kit).


   Image: A close-up view of a MENABO roof bar foot, showing its secure attachment to the side of a white car's roof. The foot is black, and the roof bar (white) extends horizontally from it.

4. Secure the Feet: Insert the metal bars into the designated slots on the roof bar feet and secure them using the provided bolts and washers. Tighten the bolts evenly and firmly, but do not overtighten. Refer to the specific torque settings if provided in the full roof bar manual.
5. Install Roof Bars (Sold Separately): Once the fixing kit feet are securely installed, attach your MENABO Delta roof bars (sold separately) to these feet following the instructions provided with the roof bars.
6. Final Check: Before driving, gently push and pull on the installed roof bars to ensure they are firmly attached and do not wobble. Re-check all bolts for tightness.
7. Install Plastic Covers: Once everything is secure, snap the plastic covers over the feet to protect the mechanisms and improve aesthetics.

Operating Instructions

This section outlines general guidelines for using your roof bars once the fixing kit is installed.

• Load Capacity: Always adhere to the maximum load capacity specified by both your vehicle manufacturer and the roof bar manufacturer. Never exceed these limits.
• Load Distribution: Distribute the weight of your cargo as evenly as possible across the roof bars. Place heavier items in the center and secure all items to prevent shifting during transit.
• Securing Cargo: Use appropriate straps, nets, or other securing devices to firmly attach all cargo to the roof bars. Ensure no part of the cargo obstructs your view or interferes with vehicle operation.
• Driving with Load: Drive cautiously, especially when cornering, braking, or in windy conditions. The vehicle's center of gravity will be higher, affecting handling.
• Clearance: Be mindful of increased vehicle height when entering garages, car washes, or areas with low overhead clearance.

Maintenance

• Regular Inspection: Periodically inspect all components of the fixing kit and roof bars for signs of wear, damage, or corrosion. Check the tightness of all bolts and fasteners, especially after the first few uses and before long trips.
• Cleaning: Clean the roof bar feet and bars with mild soap and water. Avoid abrasive cleaners or solvents that could damage the finish or rubber components.
• Storage: If the roof bars are not in use for an extended period, consider removing them to reduce wind noise and improve fuel efficiency. Store them in a dry, protected area.
• Component Replacement: If any part of the fixing kit becomes damaged, replace it immediately with genuine MENABO spare parts. Do not attempt to repair damaged components.

Troubleshooting

Specifications

• Model: MENABO Delta Roof Bar Fixing Kit
• Item Model Number: 000097800000
• Compatibility: Ford Fiesta V 5-door (2002-2008), Ford Fusion 5-door (2002-2012) - for vehicles with normal roofs.
• Components: 4 x Roof Bar Feet, 4 x Rubber Pads, 4 x Plastic Covers, 4 x Metal Bars, 4 x Bolts, 4 x Washers
• Material: Durable plastic and metal components
• Item Weight: Approximately 2.64 pounds (1.2 kg)
• Package Dimensions: Approximately 11.81 x 8.66 x 2.56 inches (30 x 22 x 6.5 cm)

Warranty and Support

For warranty information and customer support, please refer to the official MENABO website or contact your authorized MENABO dealer. Keep your proof of purchase for warranty claims.

Official MENABO Website: www.menabo.it
