Rapid R1800 Hot Air Gun Instruction Manual

1. Introduction

Thank you for choosing the Rapid R1800 Hot Air Gun. This powerful 1800W tool is designed for a variety of tasks requiring concentrated heat, offering two temperature settings (300°C and 550°C) and an airflow range of 250-450 liters per minute. Please read this manual carefully before operating the device to ensure safe and efficient use. Keep this manual for future reference.

2. Safety Instructions

Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury.

• Read all instructions: Familiarize yourself with the controls and proper use of the hot air gun.
• Wear appropriate personal protective equipment (PPE): This includes safety glasses, gloves, and a respirator if working with materials that produce fumes.
• Keep work area clean and well-lit: Cluttered or dark areas invite accidents.
• Do not operate in explosive atmospheres: Do not use the hot air gun in the presence of flammable liquids, gases, or dust.
• Avoid accidental starting: Ensure the switch is in the off-position before plugging in.
• Do not abuse the cord: Never carry the tool by the cord or yank it to disconnect from an outlet.
• Stay alert: Pay attention to what you are doing and use common sense.
• Store idle tools: When not in use, store the hot air gun in a dry, high, or locked-up place out of reach of children.
• Allow tool to cool: The nozzle remains hot for a period after use. Place the tool on a heat-resistant surface and allow it to cool completely before storing.
• Do not block air vents: Ensure proper airflow to prevent overheating.
• Use the correct nozzle for the task: Different nozzles are designed for specific applications.

3. Product Overview

The Rapid R1800 Hot Air Gun is designed for ease of use and durability. Below are the main components of the device.

Package Contents:

The Rapid R1800 Hot Air Gun (5001341) comes with an application guide, 2 paint scrapers, and 4 nozzles.

4. Setup

1. Unpack: Carefully remove the hot air gun and all accessories from the packaging.
2. Inspect: Check the tool for any signs of damage. Do not use if damaged.
3. Select Nozzle: Choose the appropriate nozzle for your specific application. Attach it securely to the tool's outlet.
4. Power Connection: Ensure the power switch is in the 'OFF' position (0) before plugging the tool into a standard 240V AC power outlet.

5. Operating Instructions

The Rapid R1800 Hot Air Gun features two temperature settings and a robust 1800W motor for efficient operation.

Powering On and Temperature Selection:

1. Switch On: Locate the power switch on the handle.
2. Temperature Setting I (300°C): Slide the switch to position 'I' for the lower temperature setting (300°C) and an airflow of 250 l/min. This setting is suitable for delicate tasks.
3. Temperature Setting II (550°C): Slide the switch to position 'II' for the higher temperature setting (550°C) and an airflow of 450 l/min. This setting is ideal for more demanding applications.
4. Power Off: To turn off the tool, slide the switch back to position '0'.

General Operation Tips:

• Maintain a safe distance between the nozzle and the workpiece to prevent scorching or damage.
• Move the hot air gun continuously over the work surface to ensure even heat distribution.
• Utilize the stable base for hands-free operation when required, ensuring the tool is placed on a heat-resistant surface.

6. Applications

The Rapid R1800 Hot Air Gun is a versatile tool suitable for a wide range of applications:

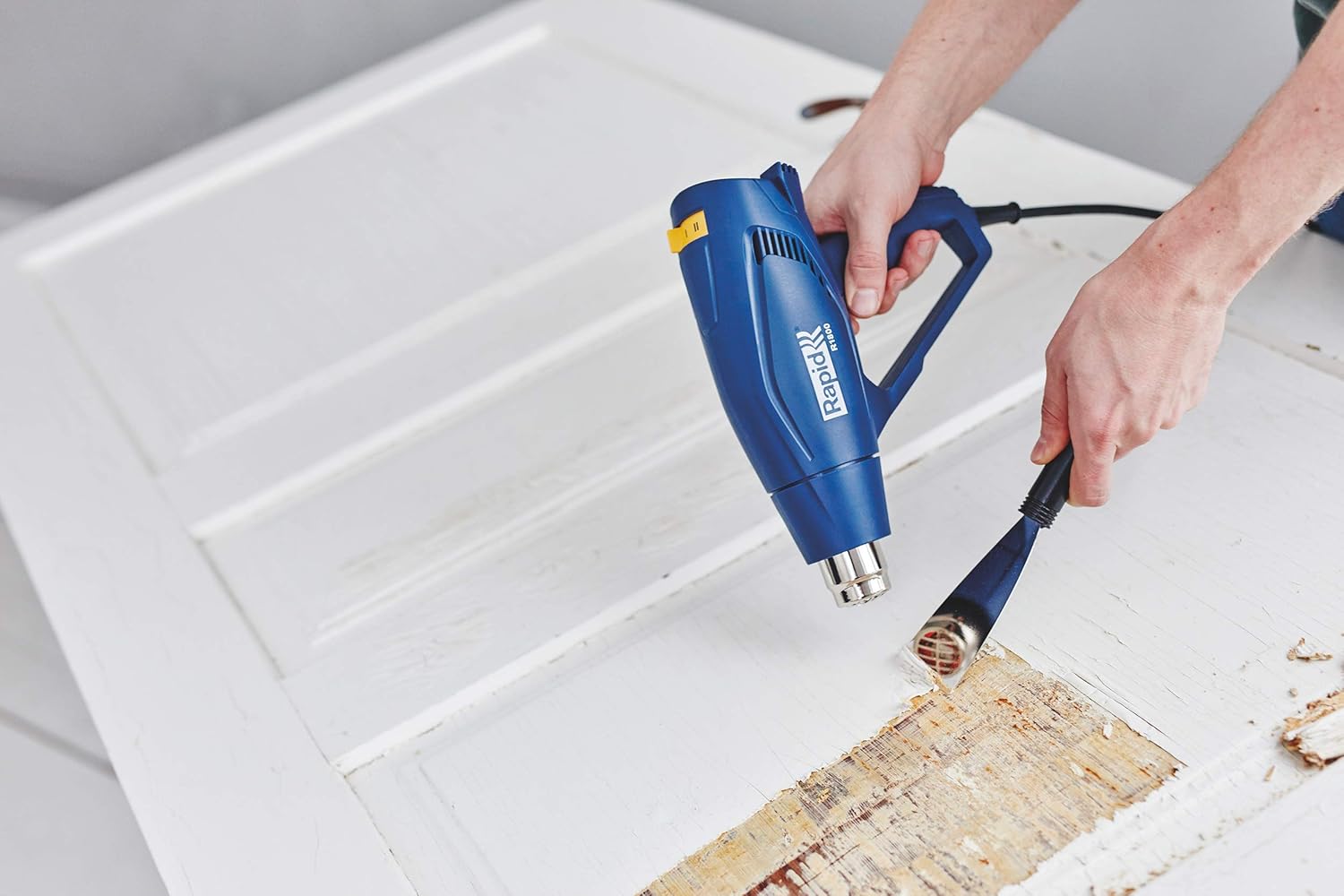

• Paint and Varnish Removal: Soften old paint or varnish for easy scraping.
• Defrosting: Quickly defrost frozen pipes or locks.
• Plastic Shaping and Bending: Heat plastic materials to make them pliable for shaping or bending.
• Heat Shrinking: Apply heat to shrink tubing or film for insulation or sealing.
• Foil Application: Assist in applying and smoothing adhesive foils.
• Weed Burning: Environmentally friendly removal of weeds.
• Wax Heating: Melt wax for various crafts or repairs.
• Decal Removal: Soften adhesive for easier removal of decals and stickers.

7. Maintenance

Regular maintenance ensures the longevity and optimal performance of your Rapid R1800 Hot Air Gun.

• Cleaning: After each use, ensure the tool is unplugged and completely cool. Wipe the exterior with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Clear Air Vents: Periodically check and clear the air intake and exhaust vents of any dust or debris to maintain proper airflow and prevent overheating.
• Cord Inspection: Regularly inspect the power cord for any damage, cuts, or fraying. If damaged, have it repaired by a qualified technician.
• Storage: Store the hot air gun in its original case or a dry, secure location away from moisture and extreme temperatures. Ensure the nozzle is cool before storage.

8. Troubleshooting

If you encounter issues with your Rapid R1800 Hot Air Gun, refer to the following common problems and solutions:

9. Specifications

Technical details for the Rapid R1800 Hot Air Gun:

10. Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the official Rapid website or contact your local Rapid dealer. Keep your purchase receipt as proof of purchase.
