1. Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new Whirlpool 215 L 4 Star Direct Cool Single Door Refrigerator, Model 230 IMFRESH ROY 4S. Please read these instructions thoroughly before using the appliance and retain them for future reference.
2. Safety Information
Electrical Safety: Ensure the refrigerator is connected to a properly grounded electrical outlet. Do not use extension cords or adapters. Disconnect power before cleaning or performing any maintenance.
Ventilation: Maintain adequate space around the refrigerator for proper air circulation. Blocked vents can lead to overheating and reduced efficiency.
Child Safety: Keep children away from the appliance, especially when the door is open. Ensure children do not play with the refrigerator or climb inside.
Flammable Materials: Do not store explosive substances or highly flammable materials inside or near the refrigerator.
Handling: The refrigerator is heavy. Use appropriate lifting techniques and assistance when moving to prevent injury.
3. Setup and Installation
- Unpacking: Carefully remove all packaging materials, including tape and protective films. Check for any damage during transit. The package includes 1 Refrigerator, 1 User Manual, 1 Warranty Card, and a Pair of Front Levelling Legs.
- Placement:
- Place the refrigerator on a firm, level surface away from direct sunlight, heat sources (like stoves or radiators), and moisture.
- Ensure there is sufficient space (at least 10 cm) around the back and sides for proper ventilation.
- Utilize the adjustable front leveling legs to ensure the appliance is stable and slightly tilted backward for the door to close automatically.
- Pedestal with Drawer: This model features a pedestal with a drawer, providing additional storage space for non-refrigerated items such as onions and potatoes. Ensure it is securely attached and stable.
- Initial Power-On: After placement, wait for at least 2-4 hours before plugging in the refrigerator. This allows the refrigerant to settle. Plug the power cord into a dedicated, grounded 230 Volt AC outlet.
Figure 3.1: A front-side view of the refrigerator, highlighting its 'Silver Bliss' color and elegant floral pattern on the door. The door handle and energy rating sticker are also visible.
Figure 3.2: The back of the refrigerator, revealing the compressor unit and the condenser coils, which are essential for the cooling process. Proper ventilation around this area is crucial.
4. Operating Instructions
- Temperature Control: Locate the temperature control dial inside the refrigerator compartment. Adjust it according to your cooling needs. A higher setting typically means colder temperatures.
- Food Storage:
- Vegetable Crisper: The large 'Garden Fresh' vegetable crisper is designed to maintain optimum moisture levels, keeping your vegetables fresh for up to 7 days.
- Magic Chiller: Utilize the 'Magic Chiller' compartment for items requiring slightly less cooling than the main compartment.
- Medicine Zone: A dedicated 'Medicine Zone' is provided in the door for storing small items or medicines that require refrigeration.
- Door Racks: The door features 'Big Bottle Racks' for larger containers and other shelves for organized storage.
- Ice Making: This refrigerator excels in ice-making due to its new laminar air flow and Insulated capillary technology. Fill the ice trays with water and place them in the freezer compartment for rapid ice production.
- Power Cut Preservation: The refrigerator is designed to preserve milk for up to 12 hours during power cuts, helping to prevent spoilage.
Figure 4.1: This image displays the spacious interior of the refrigerator, featuring multiple glass shelves, a dedicated freezer compartment, a 'Medicine Zone' in the door, and a large 'Garden Fresh' vegetable crisper at the bottom.

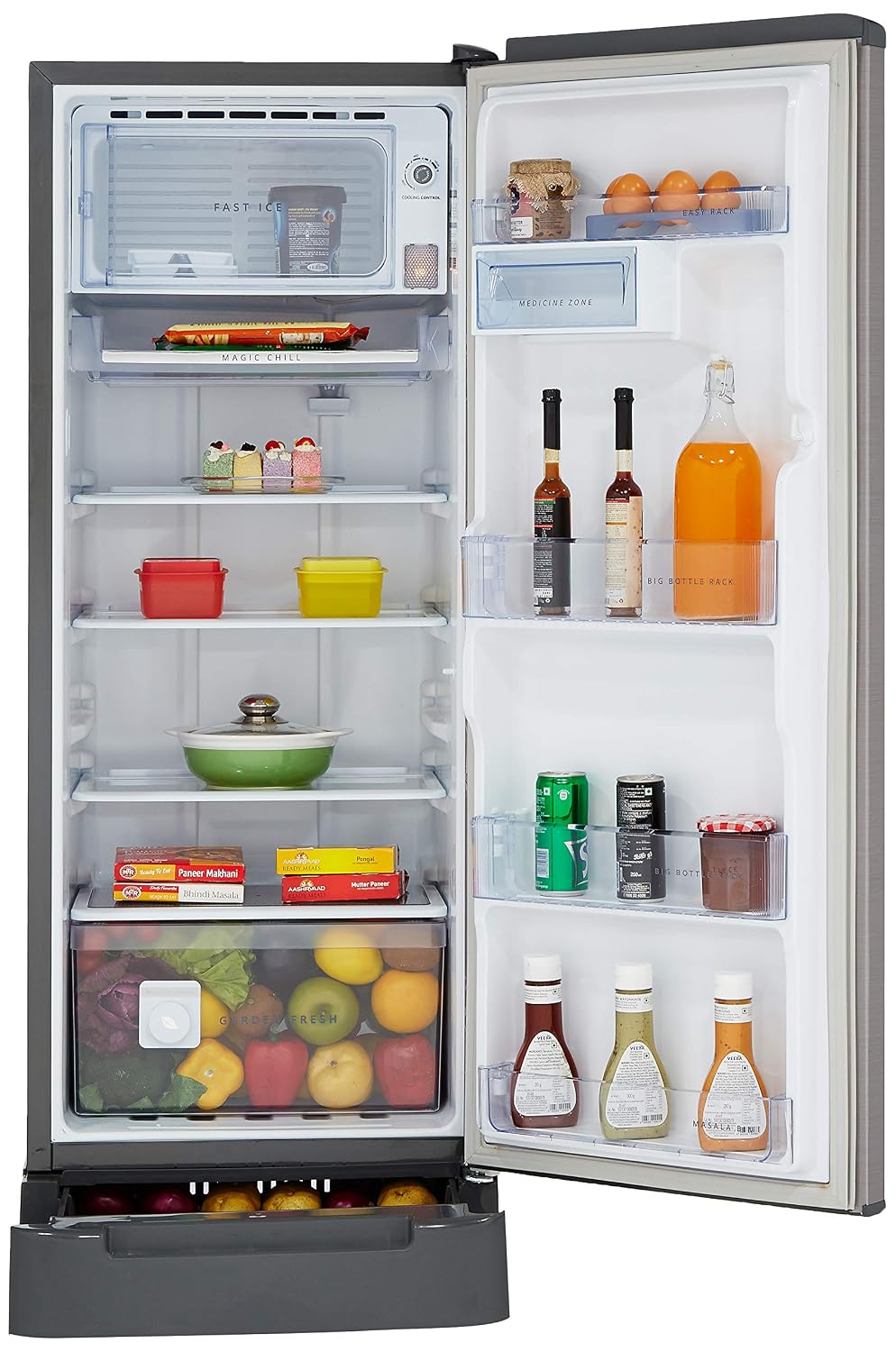

Figure 4.2: This image illustrates the refrigerator's capacity when stocked with various food items, including bottles, containers, and fresh produce in the vegetable crisper, demonstrating practical storage solutions.
5. Maintenance
- Cleaning:
- Always unplug the refrigerator before cleaning.
- Clean the interior and exterior surfaces with a mild detergent and warm water. Avoid abrasive cleaners.
- The removable anti-bacterial gasket can be detached for thorough cleaning to prevent mold and mildew buildup. Ensure it is properly reinstalled after cleaning.
- Wipe down glass shelves and other removable parts regularly.
- Defrosting: As a Direct Cool refrigerator, manual defrosting will be required periodically when ice buildup in the freezer compartment becomes excessive (approximately 0.5 cm thick).
- Turn off and unplug the refrigerator.
- Remove all food items and place them in a cooler.
- Leave the freezer door open to allow ice to melt naturally. Do not use sharp objects or heating devices to speed up defrosting, as this can damage the appliance.
- Once defrosted, clean and dry the interior thoroughly before plugging it back in and returning food.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator does not operate | No power supply; power cord not plugged in; fuse blown or circuit breaker tripped. | Check power connection; ensure outlet is functional; check household fuse/breaker. |
| Refrigerator is not cooling sufficiently | Temperature control set too warm; door opened too frequently; door gasket not sealing; excessive food load; poor ventilation. | Adjust temperature control to a colder setting; minimize door openings; check and clean door gasket; avoid overloading; ensure proper ventilation around the unit. |
| Excessive noise | Refrigerator not level; objects vibrating against the unit; normal compressor operation. | Adjust leveling legs; move objects away from the refrigerator; some operational noise is normal. |
| Water on floor (Direct Cool) | Drain hole blocked; during defrosting. | Clear any blockage in the drain hole; this is normal during manual defrosting. |
If problems persist after attempting these solutions, please contact authorized service personnel.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Whirlpool |
| Model Name | 230 IMFRESH ROY 4S |
| Capacity | 215 litres |
| Fresh Food Capacity | 201 litres |
| Freezer Capacity | 14 litres |
| Energy Rating | 4 Star (BEE) |
| Defrost System Type | Direct Cool |
| Configuration | Freezer-on-Top |
| Number of Doors | 1 |
| Colour | Silver Bliss (Floral Pattern) |
| Shelf Type | Toughened Glass |
| Special Feature | Base stand with drawer |
| Voltage | 230 Volts |
| Refrigerant | R-600A |
| Item Weight | 39600 Grams |
| Installation Type | Freestanding |
Figure 7.1: A close-up of the energy efficiency label, indicating a 4-star BEE rating and an annual electricity consumption of 171 units, signifying energy savings.
8. Product Overview Video
Video 8.1: This video provides a brief overview of the Whirlpool 215 L Direct Cool Single Door Refrigerator, highlighting its key features such as capacity, energy rating, and design.
9. Warranty and Support
Your Whirlpool refrigerator comes with a 1-year warranty on the product and a 10-year warranty on the compressor. Please refer to the included Warranty Card for detailed terms and conditions.
For service, support, or warranty claims, please contact Whirlpool customer service. Contact information can typically be found on the warranty card or the official Whirlpool website.
