vidaXL Galvanized Metal Garden Shed User Manual

1. Important Safety Information

Please read these instructions carefully before beginning assembly. Pay attention to weight limits and potential hazards when handling heavy components.

• Always wear appropriate personal protective equipment (PPE), such as gloves and safety glasses, during assembly.
• Ensure the assembly area is clear of obstructions and well-lit.
• This product requires at least two people for safe assembly due to the size and weight of components.
• Do not attempt to assemble in strong winds or adverse weather conditions.
• Ensure the base for the shed is level and stable before starting construction.
• Keep small parts and packaging materials away from children.

2. Product Overview

The vidaXL Galvanized Metal Garden Shed is designed for outdoor storage of tools, garden furniture, and equipment. Constructed from durable galvanized steel with a powder-coated finish, it offers protection against dirt, dust, wind, and adverse weather conditions. The shed features double sliding doors for easy access and integrated vents for excellent air circulation.

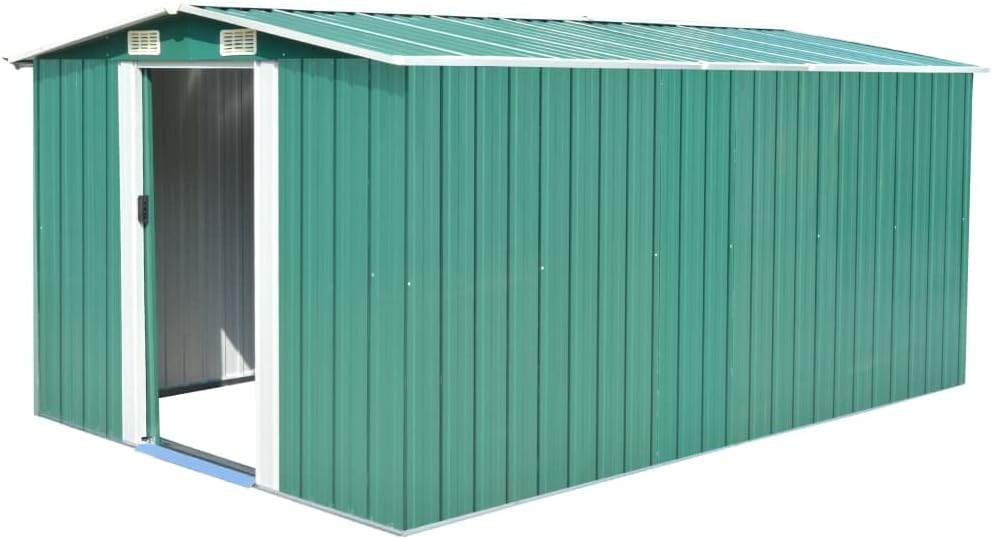

Figure 2.1: Side view of the vidaXL Galvanized Metal Garden Shed with the door open, showcasing its green finish and sturdy construction.

• Material: Galvanized Steel with Powder Coating
• Color: Green
• Dimensions: 257 cm (width) x 392 cm (depth) x 181 cm (height)
• Features: Double sliding doors, front and rear ventilation grilles.

3. Setup and Assembly

Assembly of the vidaXL garden shed requires careful attention to detail and adherence to the instructions. It is highly recommended to have at least two people for the assembly process to ensure stability and safety. Prepare a level and solid foundation before beginning.

3.1. Site Preparation

Choose a flat, level, and well-drained area for your shed. A concrete slab or a treated timber frame foundation is recommended to ensure stability and longevity. Ensure there is enough space around the shed for assembly and future access.

3.2. Unpacking and Part Identification

Carefully unpack all components. Verify that all parts listed in the packing list are present and undamaged. Some panels may have protective film that needs to be removed. Be cautious as edges can be sharp.

3.3. Assembly Steps

1. Base Frame Assembly: Assemble the base frame according to the diagrams. Ensure all corners are square and secure.
2. Wall Panel Installation: Attach the wall panels to the base frame. Start with the corner panels and work your way around. Ensure panels are correctly aligned before tightening fasteners.

Figure 3.1: Front view of the shed with double doors closed, showing the main entry point and ventilation grilles.
3. Door Frame and Door Installation: Install the door frame and then the double sliding doors. Ensure the doors slide smoothly and align correctly.

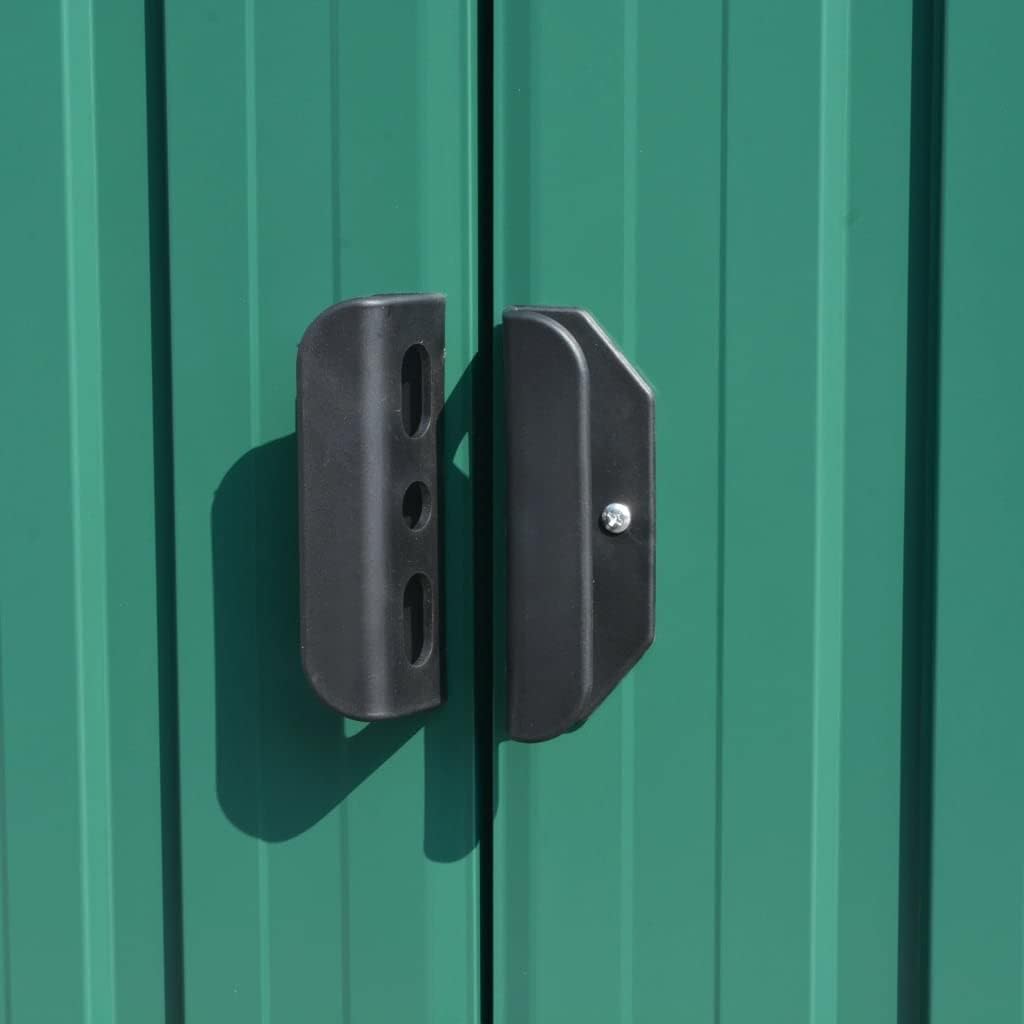

Figure 3.2: Close-up of the shed's black plastic door handles, designed for easy grip and operation of the sliding doors.

4. Roof Assembly: Assemble the roof panels and attach them to the wall structure. This step often requires careful alignment and securing of multiple panels. Pay close attention to the roof ridge and eaves.


Figure 3.3: Interior view showing the galvanized steel roof structure, providing support and stability to the shed's roof panels.

5. Finishing Touches: Install any remaining trim, corner protectors, or ventilation grilles. Ensure all fasteners are tightened securely.

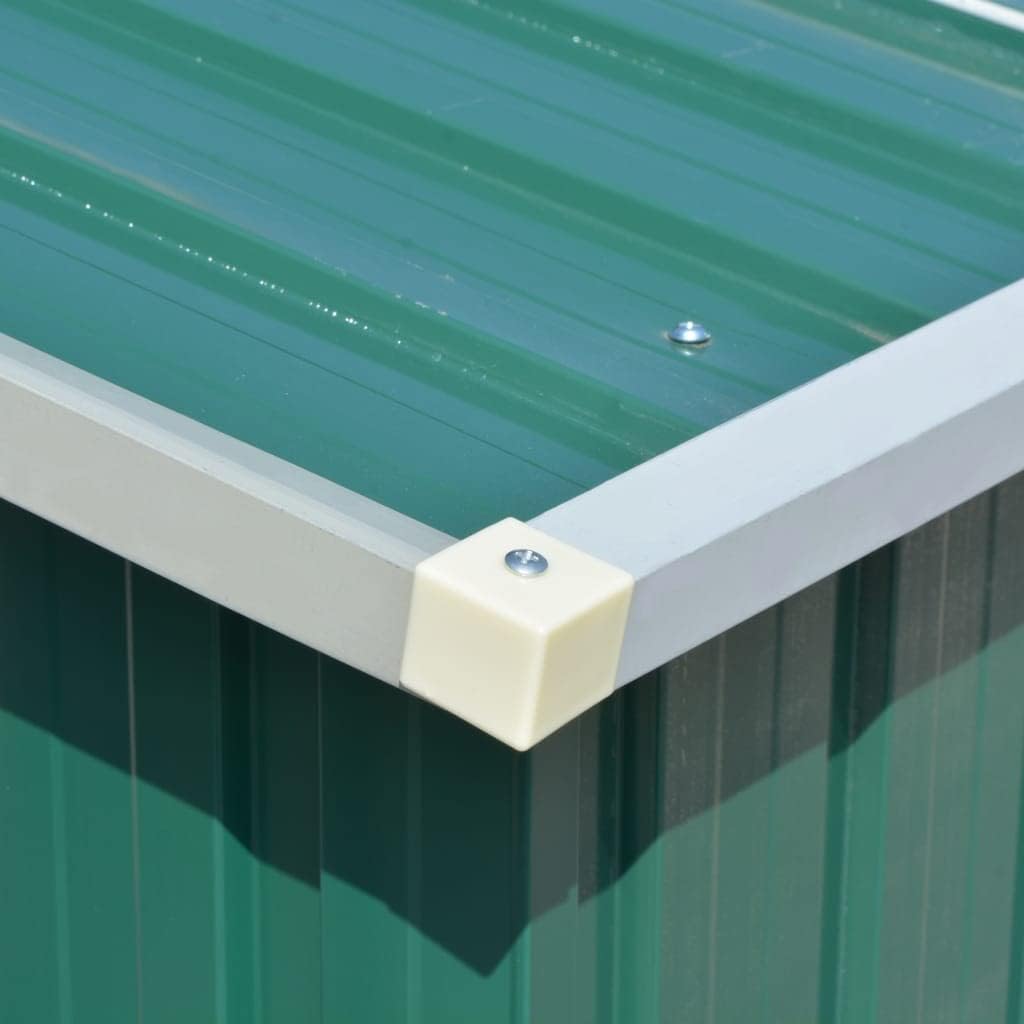

Figure 3.4: Detail of a shed corner, featuring a light-colored protective cap over the metal frame, enhancing safety and finish.

Refer to the dimensional drawing for overall measurements and component placement:

Figure 3.5: Technical drawing illustrating the key dimensions of the shed, including height, width, and depth, as well as door opening size.

4. Operating Instructions

The vidaXL garden shed is designed for straightforward operation.

4.1. Door Operation

The shed features double sliding doors. To open, grasp the handles and slide the doors along their tracks. Ensure the tracks are clear of debris for smooth operation. To close, slide the doors back until they meet. A padlock (not included) can be used for security.

Figure 4.1: Front view of the shed with both double doors fully open, demonstrating the wide access for storing larger items.

4.2. Ventilation

The shed is equipped with ventilation grilles at the front and rear to promote air circulation and reduce condensation. Ensure these grilles remain unobstructed.

5. Maintenance

Regular maintenance will extend the life of your vidaXL garden shed.

• Cleaning: Clean the exterior of the shed periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the powder coating.
• Inspection: Annually inspect all fasteners, bolts, and connections to ensure they are tight. Re-tighten if necessary. Check for any signs of rust, especially at joints or areas where the coating might be scratched.
• Door Tracks: Keep the door tracks clean and free of dirt, leaves, or other debris to ensure smooth operation of the sliding doors. Lubricate tracks with a silicone spray if needed.
• Rust Prevention: Although made of galvanized steel, minor scratches or prolonged exposure to moisture can lead to rust. Touch up any deep scratches with rust-inhibiting paint.
• Snow Load: In areas with heavy snowfall, regularly clear snow from the roof to prevent excessive weight accumulation, which could damage the structure.

6. Troubleshooting

This section addresses common issues that may arise during or after assembly.

7. Specifications

8. Warranty and Support

For warranty information, product support, or to inquire about replacement parts, please contact vidaXL customer service directly. Keep your purchase receipt and model number (143344) handy when contacting support.
