Product Overview
The Pioneer AVH-2550NEX is a 6.8-inch capacitive touchscreen multimedia DVD receiver designed to enhance your in-car audio and entertainment experience. It features wired Apple CarPlay and Android Auto compatibility, Bluetooth for hands-free calling and audio streaming, and support for various media formats including DVD, CD, HD Radio, and SiriusXM. The unit also includes a built-in equalizer for sound customization and is ready for backup camera integration.
Figure 1: Front view of the Pioneer AVH-2550NEX Multimedia DVD Receiver.
What's in the Box
Verify that all components are present before beginning installation.
- DVD receiver 6.8" touchscreen monitor (10A fuse)
- Wiring harness
- Wireless Remote control (CXE5116)
- CR2025 3V lithium battery (installed)
- 58" USB extension cable
- Microphone with visor-bracket
- (12) Installation screws
Setup and Installation
Professional installation is recommended for this product. However, individuals with vehicle expertise and electrical knowledge may perform self-installation. Ensure the vehicle's power is disconnected before starting installation.
Mounting Considerations
Figure 2: Comparison of 1-DIN and 2-DIN receiver sizes. The AVH-2550NEX is a 2-DIN unit, requiring a 4-inch tall opening.
The AVH-2550NEX is a double-DIN unit, meaning it requires a mounting space approximately 4 inches tall and 7 inches wide. Confirm your vehicle's dashboard opening size before installation. Proper mounting ensures secure fit and optimal performance.
Wiring Connections
Figure 3: Rear view of the receiver showing various input and output ports for system flexibility, including USB, RCA, and camera inputs.
Connect the included wiring harness to the vehicle's electrical system according to the vehicle's wiring diagram. Ensure all connections are secure to prevent electrical issues. The unit provides multiple input/output options for system flexibility, including RCA outputs for external amplifiers, a dedicated backup camera input, and a USB port for media and smartphone connectivity.

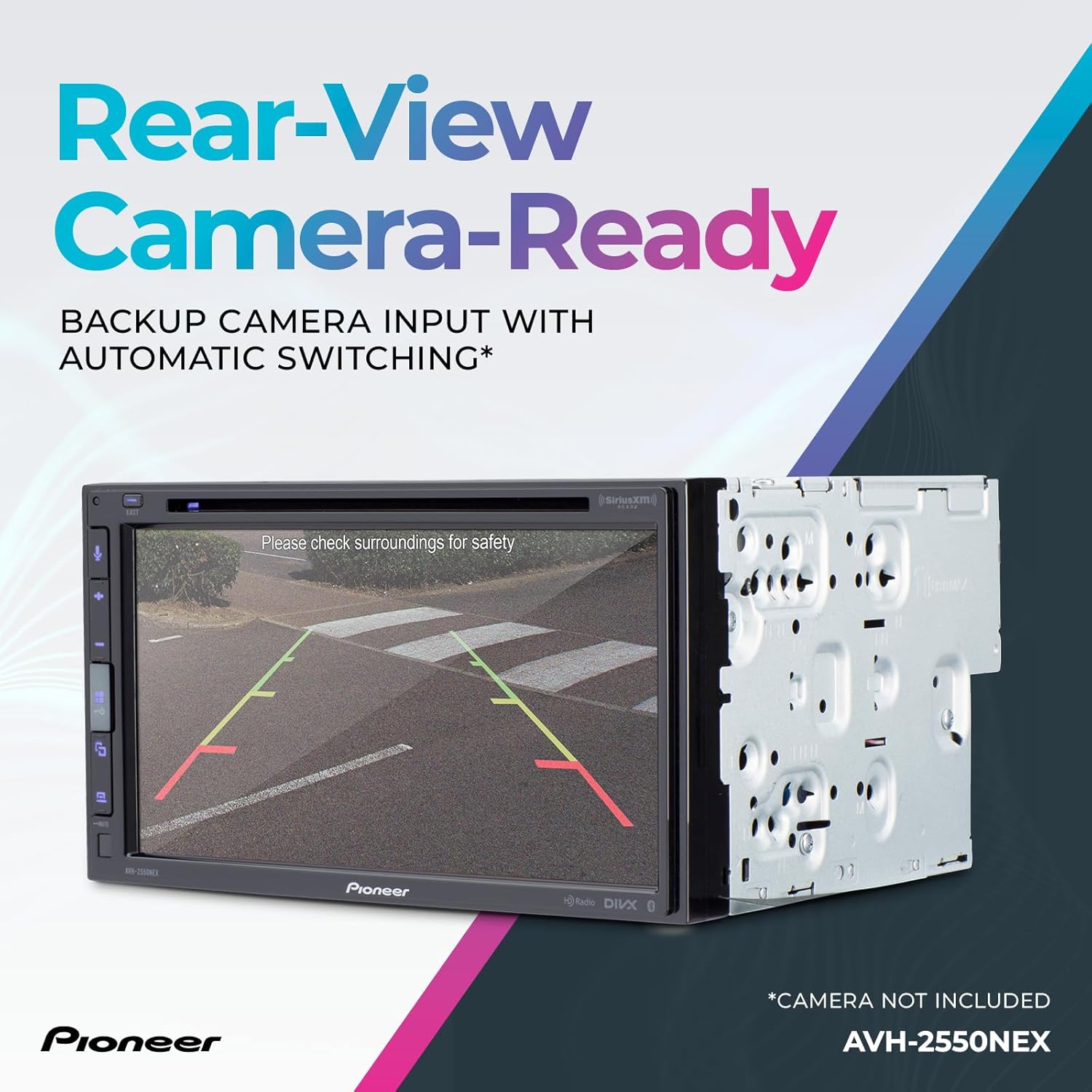

Important: The backup camera input features automatic switching when the vehicle is placed in reverse. Rear visibility systems (backup cameras) are required under federal regulations in certain new vehicles according to a phase-in schedule that began on May 1, 2016. Owners of vehicles equipped with compliant rear visibility systems should not install or use this product in a way that alters or disables that system's compliance with applicable regulations. If you are unsure whether your vehicle has a rear visibility system subject to these regulations, please contact the vehicle manufacturer or dealer.
Operating Instructions
Basic Operation
The AVH-2550NEX features a 6.8-inch WVGA display and intuitive controls. The main interface allows access to various functions such as HD Radio, Bluetooth Audio, Pandora, Spotify, iPod, and AUX inputs.
Video 1: Product Overview of the Pioneer AVH-2550NEX, demonstrating key features and user interface navigation.
Smartphone Integration (Apple CarPlay & Android Auto)
Connect your compatible iOS or Android device via USB to enable Apple CarPlay or Android Auto. This allows seamless access to navigation, music, messages, and other supported applications directly from the receiver's display.
Figure 4: Seamless smartphone integration with Apple CarPlay and Android Auto interfaces displayed on the unit.
Note: Android Auto requires the Android Auto app on Google Play and an Android compatible smartphone running Android 5.0 ("Lollipop") or higher. Standard text messaging rates apply. Apple CarPlay requires iPhone 5 or newer with the latest version of iOS. Either "Made for iPod" or "Made for iPhone" means that an electronic accessory has been designed to connect specifically to iPod or iPhone and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Operations and functions may vary depending on iOS device or receivers.
Bluetooth Connectivity
The built-in Bluetooth functionality enables hands-free calling and wireless audio streaming. Pair your smartphone with the receiver to make and receive calls, and stream music directly to your car's speakers.
Figure 5: Wireless audio and voice control features, including Bluetooth and Amazon Alexa Built-in (when paired with Pioneer Vozsis App).
Bluetooth functionality features may not be supported by all compatible Bluetooth-enabled devices, and/or the functionality of such features may be limited in certain devices or by certain wireless carriers.
Media Playback
Enjoy various media formats including DVD, CD, HD Radio, and streaming services like Pandora and Spotify. The unit supports MPEG-1/2/4, H.264, AVI/DivX, and MP3 formats.
Figure 6: Media playback options including Bluetooth, USB, CD/DVD, and AUX for wired and wireless connectivity.
Pandora internet radio is a music service not affiliated with Pioneer. More information is available at www.pandora.com. SiriusXM Radio is a subscription service not affiliated with Pioneer - service is available only in certain locations within the continental U.S. More information is available at www.siriusxm.com. Spotify is a music service not affiliated with Pioneer. More information is available at www.spotify.com.
Audio Customization
The 13-band graphic equalizer allows for precise audio tuning to match your vehicle's acoustics and personal preferences. Adjust frequency bands to enhance bass, treble, or vocal clarity.

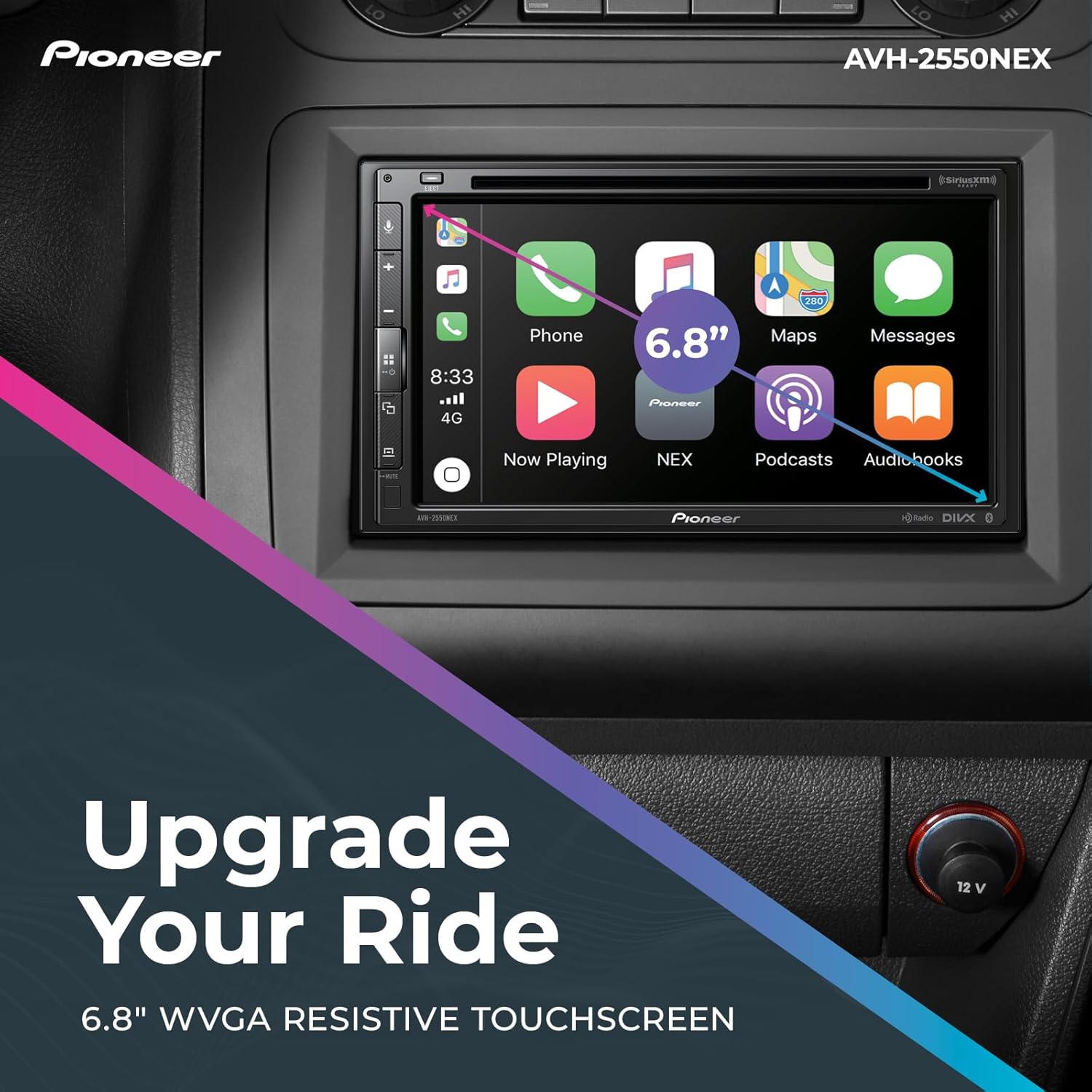

Figure 7: The 6.8-inch WVGA resistive touchscreen display, central to controlling all functions and customizing audio settings.
The unit also features built-in high/low pass crossovers with adjustable points and slopes, providing further control over sound output.
Maintenance
To ensure the longevity and optimal performance of your Pioneer AVH-2550NEX, follow these maintenance guidelines:
- Screen Cleaning: Use a soft, lint-free cloth to gently wipe the touchscreen. For stubborn smudges, slightly dampen the cloth with water or a screen-safe cleaner. Avoid abrasive materials or harsh chemicals.
- Dust Removal: Regularly clean dust from the unit's exterior and ventilation openings using a soft brush or compressed air. Ensure the unit is powered off before cleaning.
- Disc Tray: Keep the disc tray free of debris. Avoid inserting bent, scratched, or irregular-shaped discs.
- Software Updates: Check the Pioneer website periodically for firmware updates. Keeping the software updated can improve performance and add new features.
- Temperature: Avoid exposing the unit to extreme temperatures. Prolonged exposure to direct sunlight or very cold conditions can affect performance and lifespan.
Troubleshooting
This section addresses common issues you might encounter with your AVH-2550NEX. For more detailed troubleshooting, refer to the full owner's manual.
| Problem | Possible Cause | Solution |
|---|---|---|
| No power/Unit does not turn on | Blown fuse; improper wiring; vehicle battery issue. | Check the 10A fuse on the unit; verify wiring connections; check vehicle battery and charging system. |
| No sound | Volume too low; mute activated; speaker wiring issue; incorrect source selected. | Increase volume; check mute setting; verify speaker connections; select correct audio source. |
| Bluetooth connection issues | Device not paired; Bluetooth off on device/unit; interference. | Ensure Bluetooth is enabled on both devices; re-pair the device; move away from sources of interference. |
| Apple CarPlay/Android Auto not working | Incorrect USB cable; phone not compatible; app not installed/updated. | Use a certified USB cable; ensure phone and app meet requirements; restart phone and unit. |
| Touchscreen unresponsive | System freeze; dirt/debris on screen. | Perform a soft reset (refer to owner's manual for specific steps); clean the screen. |
CAUTION: Read the operation manual as well as all instructions and cautions before use. Pay attention to the road, limit glances to the device, and do not use any feature if it cannot be operated both safely and legally in your location and environment. Distracted driving may result in serious injury, including death.
Specifications
| Feature | Detail |
|---|---|
| Product Dimensions | 6.5 x 7 x 3.88 inches |
| Item Weight | 3.1 pounds |
| Model Number | AVH-2550NEX |
| Display Type | 6.8" Capacitive Touchscreen (WVGA) |
| Connectivity Technologies | Bluetooth, USB |
| Smartphone Integration | Wired Apple CarPlay, Android Auto |
| Audio Features | 13-Band Graphic Equalizer, Hi-Volt RCA Preouts, FLAC Playback |
| Radio Features | HD Radio, SiriusXM Ready |
| Video Encoding Support | AVI, DivX, MPEG |
| Special Features | Amazon Alexa Built-in (with Pioneer Vozsis App), Backup Camera Ready, Spotify, Pandora |
Warranty and Support
For warranty information and technical support, please refer to the official Pioneer website or contact Pioneer customer service directly. Keep your proof of purchase for warranty claims.
- Manufacturer: Pioneer
- Date First Available: January 18, 2019
- Online Support: Visit the official Pioneer website for FAQs, downloads, and contact information.
