1. Introduction
This manual provides detailed instructions for the setup, operation, and maintenance of your Zoop Digital Boy's Watch, model NP16008PP05. Please read this guide thoroughly to ensure proper use and longevity of your watch.

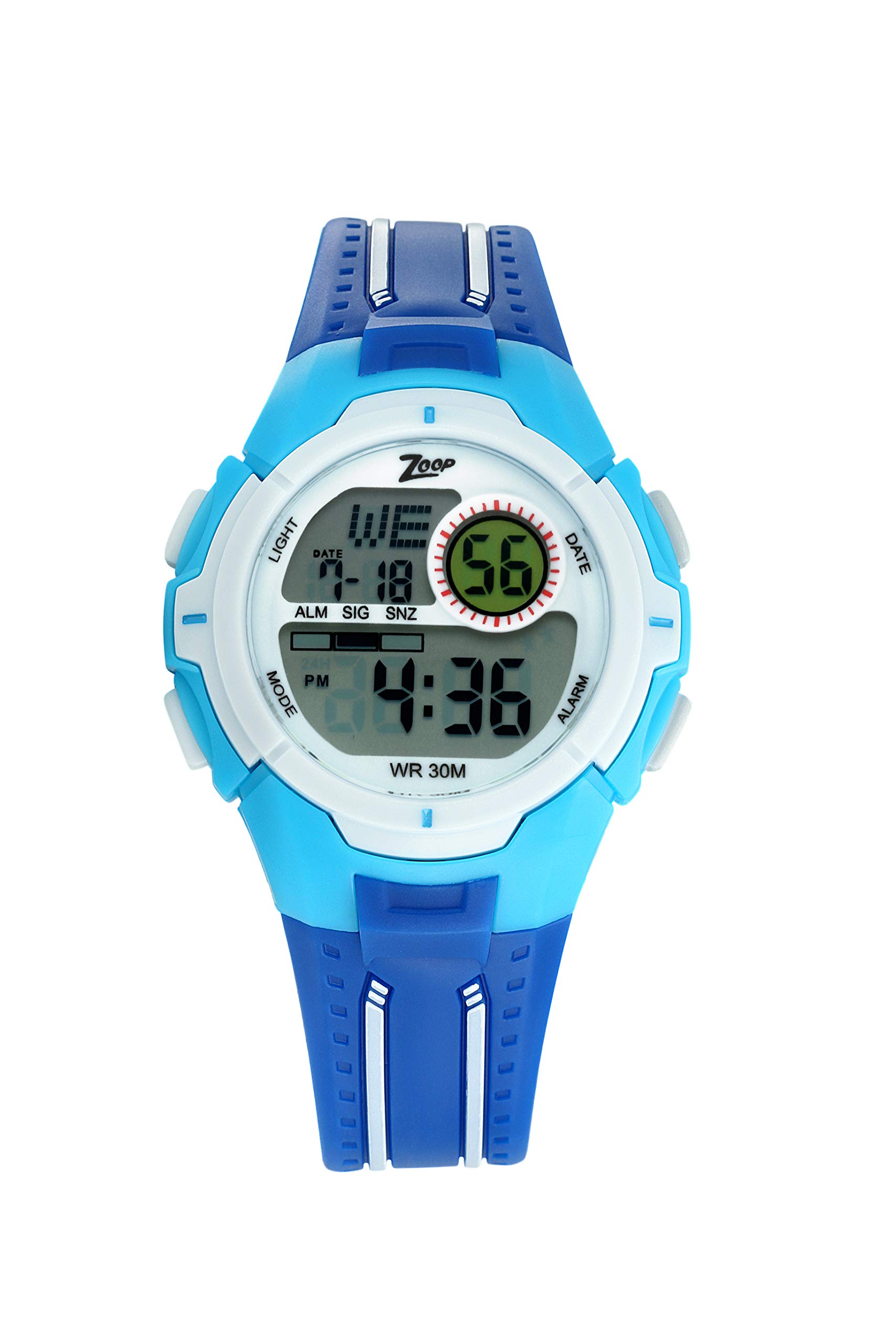

Image 1.1: Front three-quarter view of the Zoop Digital Boy's Watch.
2. Initial Setup
2.1. Button Functions
Your watch features four primary buttons for various functions:
- MODE: Cycles through different display modes (Time, Alarm, Stopwatch).
- LIGHT: Activates the backlight for improved visibility in low light conditions.
- START/STOP: Used to start and stop the stopwatch, and to adjust values during setting.
- RESET: Used to reset the stopwatch, confirm settings, or cycle through options during setting.
Image 2.1: Side view of the watch, illustrating the button layout.
2.2. Setting Time and Date
To set the current time and date:
- From the normal time display, press the MODE button repeatedly until the time setting mode is activated. Typically, the seconds will begin to flash.
- Press the RESET button to cycle through the adjustable fields: seconds, hours, minutes, month, date, day.
- While a field is flashing, use the START/STOP button to increase the value. Hold the button to advance rapidly.
- Once all settings are correct, press the MODE button to exit the setting mode and return to the normal time display.
3. Operating Your Watch
3.1. Time Display
The watch primarily displays the current time, including hours, minutes, and seconds, along with the date and day of the week. The display format is digital.
Image 3.1: Front view of the watch display, showing time and date.
3.2. Using the Backlight
Press the LIGHT button to illuminate the display. The backlight will remain active for a few seconds, making it easier to read the time in dark environments.
3.3. Alarm Function
To set and use the alarm:
- Press the MODE button until the alarm setting mode is displayed (indicated by 'ALM' or a bell icon).
- Use the RESET button to select the hour or minute field.
- Use the START/STOP button to adjust the alarm time.
- Press MODE to exit. To activate/deactivate the alarm, typically press START/STOP while in alarm mode. An alarm icon will appear when active.
3.4. Stopwatch Function
To use the stopwatch:
- Press the MODE button until the stopwatch mode is displayed (indicated by 'STW' or 'CHRONO').
- Press START/STOP to begin timing.
- Press START/STOP again to pause timing.
- Press RESET to clear the stopwatch to zero.
3.5. Water Resistance
This watch is water resistant up to 30 meters (3 ATM). This means it is suitable for everyday use and can withstand splashes or brief immersion in water. It is not recommended for swimming, showering, or diving. Do not operate buttons while the watch is wet or submerged.
4. Care and Maintenance
4.1. Cleaning
To clean your watch, wipe it gently with a soft, dry cloth. For stubborn dirt, a slightly damp cloth can be used, followed by immediate drying. Avoid using chemical cleaners, solvents, or abrasive materials, as these can damage the watch's finish and components.
4.2. Battery Information
The watch is powered by a Lithium Metal battery, which is included. When the display becomes dim or functions become erratic, it may be time for a battery replacement. Battery replacement should ideally be performed by a qualified technician to ensure proper sealing and water resistance.
4.3. Water Resistance Precautions
To maintain the water resistance of your watch:
- Do not operate buttons when the watch is wet or submerged.
- Avoid exposing the watch to extreme temperature changes (e.g., hot showers, saunas), which can compromise seals.
- Have the water resistance seals checked periodically, especially after battery replacement.
5. Troubleshooting Guide
If you encounter issues with your watch, refer to the following table:
| Problem | Possible Cause | Solution |
|---|---|---|
| Display is blank or dim. | Low battery. | Replace the battery. |
| Time is inaccurate. | Time needs to be reset; watch was exposed to strong magnetic fields. | Reset the time and date according to Section 2.2. Keep away from strong magnets. |
| Buttons are unresponsive. | Watch may be in a locked mode; moisture interference. | Try pressing all buttons to see if a mode unlocks. Ensure watch is dry. If issue persists, battery may be very low. |
| Alarm does not sound. | Alarm is not activated. | Ensure the alarm icon is displayed, indicating it is active. Refer to Section 3.3. |
6. Product Specifications
Key technical details for the Zoop Digital Boy's Watch NP16008PP05:
| Feature | Detail |
|---|---|
| Brand | Zoop |
| Model Number | NP16008PP05 |
| Display Type | Digital |
| Movement Type | Quartz |
| Case Diameter | 38 Millimetres |
| Case Thickness | 14 Millimetres |
| Band Material | Plastic |
| Band Colour | Blue |
| Water Resistance Depth | 30 Metres (3 ATM) |
| Battery | 1 Lithium Metal (included) |
| Item Weight | 46 Grams |
| Included Components | Watch, Extra Strap, Warranty Information |
Image 6.1: Back view of the watch, showing case details.
7. Warranty Information
Your Zoop Digital Boy's Watch NP16008PP05 comes with a 1-year manufacturer warranty from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage resulting from misuse, accidents, unauthorized repairs, or normal wear and tear. Please retain your proof of purchase for warranty claims.
8. Customer Support
For further assistance, technical support, or warranty claims, please contact Zoop customer service. Refer to the warranty information card included with your product for specific contact details or visit the official Zoop website.
