MOULINEX Masterchef Gourmet+ Kitchen Machine User Manual

Introduction

The Moulinex Masterchef Gourmet+ Kitchen Machine is a versatile appliance designed to assist with various baking and cooking tasks. Featuring an 1100W motor and a 4.6-liter capacity bowl, it is engineered for efficient mixing, kneading, and whisking. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your kitchen machine.

Important Safety Instructions

Read all instructions before using the appliance.
Do not immerse the motor unit in water or any other liquid.
Keep hands and utensils away from moving parts during operation.
Always unplug the appliance from the power outlet before assembling, disassembling, or cleaning.
Ensure all attachments are securely locked in place before operating.
This appliance is for household use only.
Supervise children closely when the appliance is in use.

Product Overview

The Moulinex Masterchef Gourmet+ Kitchen Machine comes with several components and attachments to facilitate various culinary preparations.

Moulinex Masterchef Gourmet+ Kitchen Machine with stainless steel bowl and beater attachment — Figure 1: Main unit of the Moulinex Masterchef Gourmet+ Kitchen Machine, showing the motor base, mixing arm, and stainless steel bowl with a beater attachment.

Moulinex Masterchef Gourmet+ Kitchen Machine with blender, meat grinder, and beater attachments — Figure 2: The kitchen machine displayed with additional accessories, including a blender jug, a meat grinder attachment, and the beater attachment.

Three main attachments: Flex Whisk, Beater, and Dough Hook — Figure 3: Close-up view of the three primary pastry tools: the Flex Whisk for airy mixtures, the beater for general mixing, and the dough hook for kneading.

Close-up of the control dial with speed settings and pulse function — Figure 4: Detail of the control dial, showing speed settings from 0 to 8 and a pulse function for intermittent operation.

Key Components:

Motor Unit: The main body housing the 1100W motor and control dial.
Mixing Arm: The movable arm to which attachments are connected.
Stainless Steel Bowl: 4.6-liter capacity bowl for ingredients.
Flex Whisk: Designed for whipping egg whites and light mixtures.
Beater: For mixing batters, cakes, and general ingredients.
Dough Hook: For kneading heavy doughs like bread or pizza.
Control Dial: Adjusts speed settings (0-8) and activates pulse function.

Setup

Before first use, ensure all packaging materials are removed and components are clean.

Unpack: Carefully remove the kitchen machine and all accessories from the packaging.
Clean Components: Wash the stainless steel bowl, Flex Whisk, beater, and dough hook in warm soapy water, then rinse and dry thoroughly. The motor unit should only be wiped with a damp cloth.
Position the Machine: Place the motor unit on a stable, flat, and dry surface. Ensure adequate ventilation around the appliance.
Attach the Bowl: Place the stainless steel bowl onto the base of the machine and twist clockwise until it locks securely into position.
Install Attachment:
- Lift the mixing arm by pressing the release button.
- Select the desired attachment (whisk, beater, or dough hook).
- Align the attachment with the shaft and push upwards, then twist to lock it into place.
- Lower the mixing arm until it clicks into its operating position.
Connect to Power: Plug the power cord into a suitable electrical outlet. Ensure the control dial is set to '0' before plugging in.

Moulinex Masterchef Gourmet+ Kitchen Machine with mixing arm raised and whisk attachment — Figure 5: The mixing arm is shown in the raised position, demonstrating how to attach or remove the whisk. This position allows for easy access to the bowl and attachment point.

Operating Instructions

General Operation:

Ensure the machine is properly assembled and the desired attachment is installed.
Add ingredients to the stainless steel bowl.
Turn the control dial clockwise to select a speed setting from 1 to 8. Start with a lower speed and gradually increase as needed.
For short bursts of maximum power, turn the dial to the 'Pulse' setting and hold. Release to stop.
When finished, turn the control dial back to '0' and unplug the appliance.
Lift the mixing arm to remove the bowl and attachment.

Using Attachments:

Flex Whisk: Ideal for whipping egg whites, cream, meringues, and light batters. Use higher speeds (6-8). The unique design ensures airy results even with small quantities.
Beater: Suitable for mixing cake batters, cookie dough, frostings, and mashed potatoes. Use medium speeds (3-5).
Dough Hook: For kneading heavy doughs such as bread, pizza, or pasta dough. Use lower speeds (1-2) to prevent overheating. Do not overload the machine with excessively stiff dough.

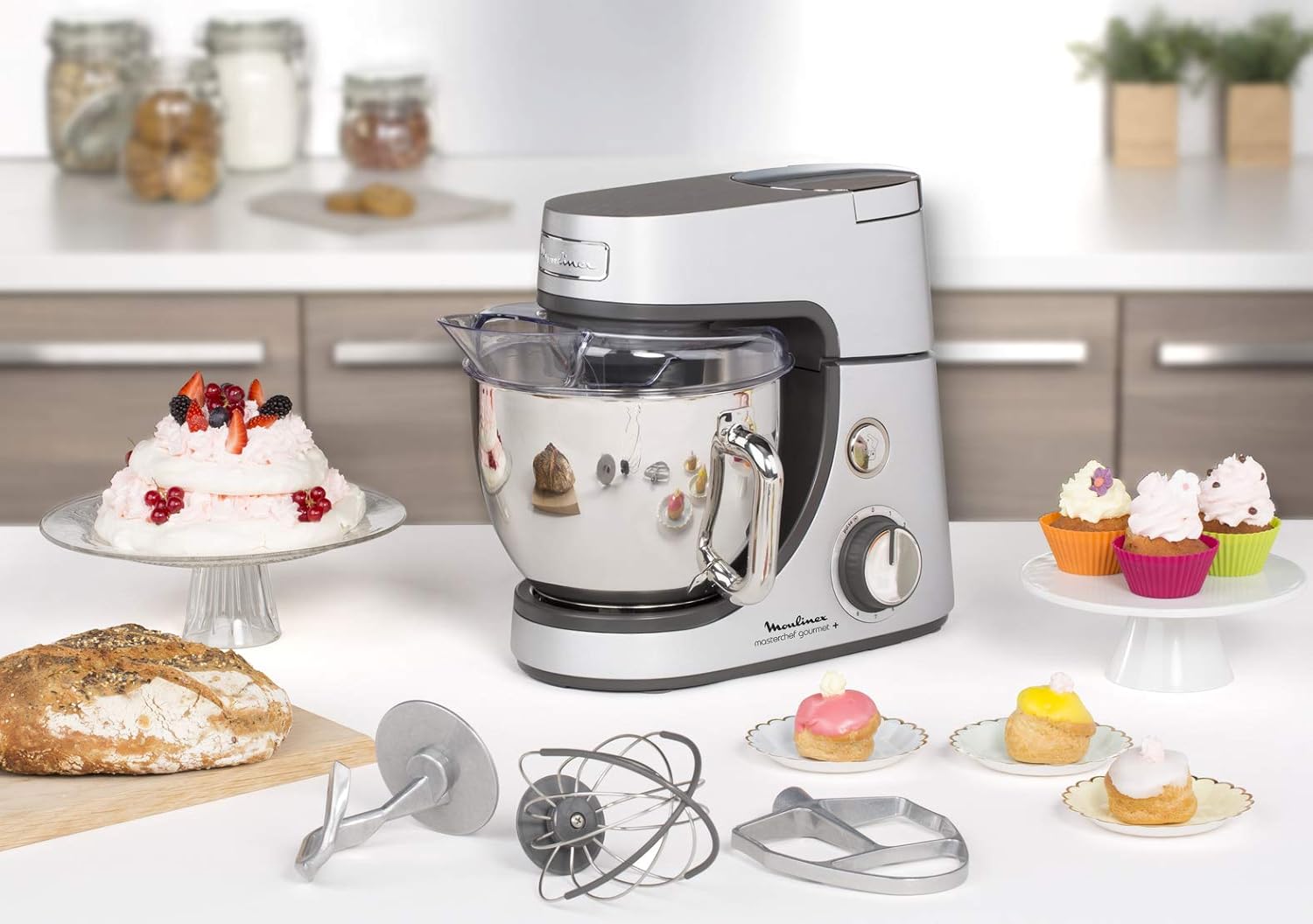

Moulinex Masterchef Gourmet+ Kitchen Machine with various baked goods and attachments — Figure 6: The kitchen machine is shown in a kitchen setting, surrounded by various baked goods like bread, cupcakes, and tarts, along with the different attachments, illustrating its versatility.

Maintenance and Cleaning

Regular cleaning ensures the longevity and optimal performance of your kitchen machine.

Always Unplug: Before cleaning, always ensure the appliance is unplugged from the power outlet and has cooled down.
Motor Unit: Wipe the motor unit with a soft, damp cloth. Do not use abrasive cleaners or immerse it in water.
Stainless Steel Bowl: The bowl can be washed by hand with warm soapy water or placed in a dishwasher.
Attachments (Flex Whisk, Beater, Dough Hook): These attachments are generally dishwasher safe, but hand washing is recommended for prolonged life. Ensure they are thoroughly dried before storage.
Other Accessories (Blender, Meat Grinder, Slicer/Shredder): Refer to the specific instructions for these accessories if applicable, as cleaning methods may vary.
Storage: Store the machine and its attachments in a clean, dry place.

Troubleshooting

If you encounter issues with your Moulinex Masterchef Gourmet+ Kitchen Machine, refer to the following table for common problems and solutions.

Problem	Possible Cause	Solution
Machine does not start.	Not plugged in; speed dial not at '0'; mixing arm not fully lowered.	Ensure power cord is securely plugged in. Turn dial to '0' then select speed. Push mixing arm down until it clicks.
Motor sounds strained or stops.	Overloaded with ingredients; dough too stiff.	Reduce quantity of ingredients. Add more liquid if dough is too stiff. Use appropriate attachment and speed. Allow machine to cool if it stopped due to overheating.
Attachments not mixing properly.	Attachment not correctly installed; wrong attachment for task.	Ensure attachment is securely locked onto the shaft. Use the recommended attachment for the type of mixture.
Excessive vibration or noise.	Machine not on a stable surface; uneven load in bowl.	Place machine on a flat, stable surface. Distribute ingredients evenly in the bowl.

If the problem persists after attempting these solutions, please contact customer support.

Specifications

Feature	Detail
Brand	Moulinex
Model Number	QA611D27 (2724627864057)
Power / Wattage	1100 watts
Capacity	4.6 Liters
Number of Speeds	8 (plus Pulse function)
Material	Stainless Steel (bowl), Brushed Die Cast Finish (housing)
Product Dimensions	38.4 x 56.6 x 38.8 cm
Item Weight	5 Kilograms
Special Features	Safety Lock, Planetary dual mixing movement, Exclusive Flex Whisk technology

Warranty and Support

The Moulinex Masterchef Gourmet+ Kitchen Machine comes with a 2-year warranty. For warranty claims, technical support, or spare parts, please contact Moulinex customer service or visit their official website.

For further assistance, you may refer to the official Moulinex support channels or the retailer from whom the product was purchased.

Moulinex Official Website: www.moulinex.com
Customer Service: Refer to your regional Moulinex contact information provided with the product packaging.

Moulinex QA611D27
