Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Monroe Magnum 65547 Suspension Shock Absorber. Designed for commercial vehicles, this shock absorber delivers consistent performance and durability under demanding conditions. Please read this manual thoroughly before installation and use.
Product Overview

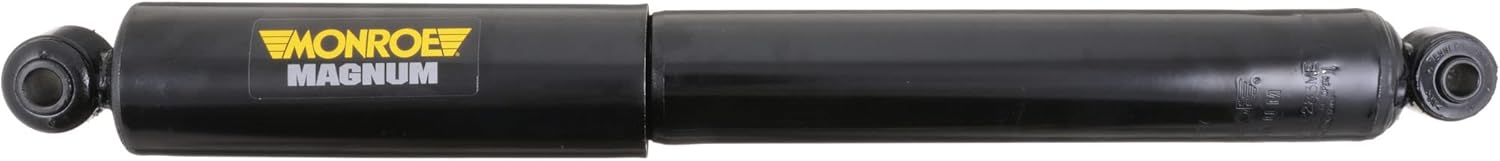

Image: Monroe Magnum 65547 Suspension Shock Absorber. This image displays the full length of the black shock absorber, featuring the yellow "MONROE MAGNUM" logo on one side of the cylindrical body. Both ends are equipped with mounting bushings.
The Monroe Magnum 65547 is a heavy-duty suspension shock absorber engineered for high-mileage and severe-use Class 6-8 trucks and buses. It features advanced valving and robust construction to ensure consistent ride quality and extended service life.
Compatibility
This shock absorber is compatible with the following vehicle models:
- 2011-2011 Ram 4500
- 2012-2018 Ram 4500
- 2011-2011 Ram 5500
- 2012-2018 Ram 5500
Important: Before installation, verify that this part is suitable for your specific vehicle by checking all vehicle information including year, make, model, engine, and trim. Consult your vehicle's service manual or a qualified mechanic for precise compatibility details.
What's in the Box
Upon opening the packaging, you should find the following components:
- Monroe Magnum 65547 Suspension Shock Absorber
- Dust Shield
- Parts Pack(s) (containing necessary hardware for installation)
Setup and Installation
Installation of suspension components requires specialized tools and knowledge. It is highly recommended that installation be performed by a certified automotive technician.
Pre-Installation Checklist:
- Ensure the vehicle is safely supported on a lift or jack stands.
- Confirm the shock absorber's compatibility with your vehicle's make, model, and year.
- Gather all necessary tools and safety equipment.
- Inspect the new shock absorber for any signs of shipping damage.
Installation Steps (General Guidance - Refer to Vehicle Service Manual):
- Remove the old shock absorber according to your vehicle's service manual procedures.
- Install the new Monroe Magnum 65547 shock absorber, ensuring all bushings and mounting hardware are correctly positioned and torqued to manufacturer specifications.
- Attach the dust shield to protect the shock absorber rod from debris.
- Verify all connections are secure before lowering the vehicle.
- Perform a post-installation inspection and test drive to ensure proper function and alignment.
Safety Note: Always wear appropriate personal protective equipment (PPE) during installation. Improper installation can lead to vehicle damage or personal injury.
Operating Characteristics
The Monroe Magnum 65547 shock absorber is engineered to provide superior performance for commercial applications:
- Consistent Ride: Features all-weather fluid with special additives to maintain performance across extreme temperatures and reduce oil breakdown. A larger 2-3/8-inch reserve tube (most applications) holds more fluid for improved performance.
- Exceptional Handling: Utilizes 10-stage valving, specifically tuned for each vehicle, to adapt to varying road conditions. A larger 1-3/4-inch bore (most applications) provides efficient damping control for consistency and a smooth ride.
- Durability: Constructed with shouldered and bonded bushings to prevent walkout, and arc welds up to 360 degrees for enhanced strength.
- Extended Service Life: A robust hydraulic lock-out mechanism prevents over-extension and damage to the seal assembly (most applications). A bearing with PTFE coating reduces friction, and a nitrocarburized piston rod contributes to durability.
- Reduced NVH: Designed to minimize noise, vibration, and harshness, providing a more comfortable driving experience under most conditions.
- Improved Performance: Nitrogen gas-charge helps maintain consistent tire-to-road contact, reducing aeration and shock fade for better ride and handling.
Maintenance
Monroe Magnum shock absorbers are designed for durability and minimal maintenance. However, regular inspection is crucial for optimal performance and safety.
Recommended Maintenance Practices:
- Regular Visual Inspection: Periodically inspect the shock absorbers for signs of fluid leaks, bent rods, damaged bushings, or corrosion.
- Check Mounting Hardware: Ensure all mounting bolts and nuts are tight and free from corrosion.
- Cleanliness: Keep the shock absorber body and rod clean from excessive dirt and debris, especially around the seal area.
- Professional Inspection: Have your vehicle's suspension system, including shock absorbers, inspected by a qualified technician during routine vehicle servicing.
Replace shock absorbers in pairs (e.g., both front or both rear) to maintain balanced vehicle handling and ride characteristics.
Troubleshooting
If you experience issues with your vehicle's suspension, consider the following common problems and potential solutions related to shock absorbers:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Excessive Bouncing/Swaying | Worn or failing shock absorbers. | Inspect shocks for leaks or damage; replace if necessary. |
| Fluid Leaks from Shock Body | Damaged seal or internal component failure. | Replace the shock absorber. |
| Unusual Noises (clunking, rattling) | Loose mounting hardware, worn bushings, or internal damage. | Check mounting points for tightness; inspect bushings for wear; replace shock if internal damage is suspected. |
| Uneven Tire Wear | Worn suspension components, including shocks. | Have a professional inspect the entire suspension system and perform an alignment. |
If troubleshooting steps do not resolve the issue, or if you are unsure about the diagnosis, consult a qualified automotive technician.
Specifications
| Model Number | 65547 |
| Brand | Monroe |
| Manufacturer | Monroe Shocks & Struts |
| Material | Aluminum |
| Auto Part Position | Top |
| Vehicle Service Type | Truck |
| Exterior Finish | Machined |
| Extended Length | 15.65 Inches |
| Item Weight | 8.68 pounds |
| Product Dimensions | 23.4 x 4.1 x 3.1 inches |
| UPC / GTIN | 048598222138 |
| Automotive Fit Type | Vehicle Specific Fit |
Warranty and Support
Monroe stands behind the quality of its products. The Monroe Magnum 65547 Suspension Shock Absorber comes with a Limited Commercial Warranty. Additionally, Monroe offers a 90-day Risk Free Ride Offer.
For detailed information regarding warranty terms, conditions, and to initiate a claim, please refer to the official Monroe website or contact Monroe customer support directly. Keep your purchase receipt as proof of purchase.
For technical assistance, installation questions, or further support, please visit the official Monroe website or contact their customer service department. You can often find contact information and FAQs on the manufacturer's website.
Monroe Official Website: www.monroe.com
