Introduction
This user manual provides comprehensive instructions for the HUAYU RM-L1385 replacement remote control. This remote is designed to function as a direct replacement for your original remote, offering identical functionality without the need for complex setup. It is compatible with various television types, including LCD, LED, and Plasma models.
Please read this manual carefully before using your new remote control to ensure proper operation and to maximize its lifespan.
Setup
1. Battery Installation
The HUAYU RM-L1385 remote control requires two AAA batteries (not included). Follow these steps to install them:
- Locate the battery compartment cover on the back of the remote control.
- Slide the cover downwards or press the latch and lift to open the compartment.
- Insert two AAA batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
- Replace the battery compartment cover by sliding it back into place until it clicks securely.

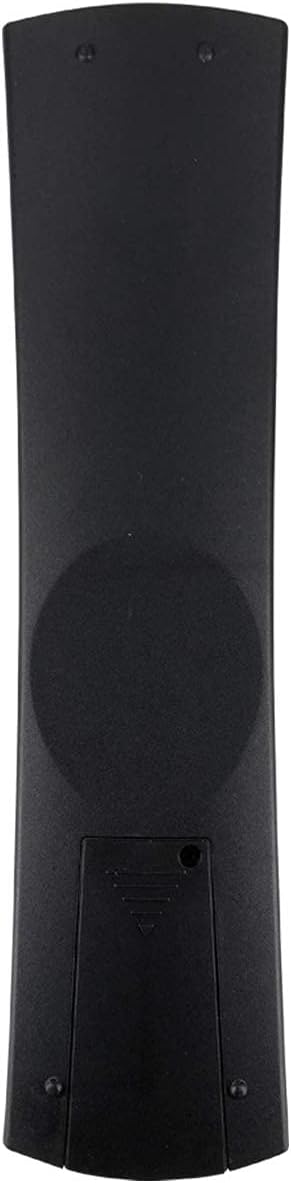

Figure 1: Back view of the remote control with the battery compartment. Ensure correct battery polarity during installation.
2. Initial Use
This replacement remote control is designed for immediate use with compatible VESTEL TVs and other specified models. No programming or complex setup is required. Simply insert the batteries, point the remote at your television, and begin using it.
Operating Instructions
The HUAYU RM-L1385 remote control features a standard layout with buttons for common television functions. Below is a general overview of the main button groups and their functions:
Figure 2: Front view of the HUAYU RM-L1385 remote control, displaying all functional buttons.
- Power Button (●): Located at the top, this button turns your television on or off.
- Number Pad (0-9): Used for direct channel selection.
- Volume Control (V+/V-): Adjusts the television's volume up or down.
- Channel Control (P+/P-): Changes the television channel up or down.
- Mute Button (🔇): Mutes or unmutes the television's audio.
- Navigation Pad (Up, Down, Left, Right, OK): Used to navigate menus and confirm selections.
- Menu Button: Accesses the television's main menu.
- Return/Exit Buttons: Used to go back to the previous screen or exit a menu.
- Color Buttons (Red, Green, Yellow, Blue): These buttons typically correspond to specific functions within interactive menus or teletext, as indicated on your TV screen.
- Media Control Buttons (Play, Pause, Stop, Rewind, Fast Forward): If your TV supports media playback, these buttons control media functions.
- Input/Source Button: Switches between different input sources (e.g., HDMI, AV).
Compatibility
This remote control is compatible with all types of VESTEL televisions, including LCD, LED, and Plasma models. It is also designed to work with other TV brands that utilize the RM-L1385 remote control standard, providing the same functions as the original remote.
Maintenance
Cleaning the Remote Control
To maintain the remote control's appearance and functionality, clean it regularly:
- Use a soft, dry cloth to wipe the surface of the remote.
- For stubborn dirt, slightly dampen the cloth with water or a mild, non-abrasive cleaner. Avoid excessive moisture.
- Do not use harsh chemicals, solvents, or abrasive cleaning pads, as these can damage the remote's finish or internal components.
Battery Replacement
Replace the batteries when the remote control's response becomes sluggish or stops working. Always replace both batteries at the same time with new AAA batteries. Do not mix old and new batteries, or different types of batteries.
Storage
If the remote control will not be used for an extended period, it is recommended to remove the batteries to prevent leakage and potential damage to the device.
Troubleshooting
If you encounter issues with your HUAYU RM-L1385 remote control, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Remote control is not working. | Dead or incorrectly installed batteries. | Replace batteries with new AAA batteries, ensuring correct polarity. |
| Remote control range is poor. | Weak batteries; Obstruction between remote and TV; Infrared sensor on TV is blocked. | Replace batteries. Ensure a clear line of sight to the TV's infrared sensor. Remove any obstructions. |
| Specific buttons are not responding. | Button stuck or dirty; Remote control malfunction. | Clean the remote control, paying attention to the unresponsive buttons. If the problem persists, the remote may be faulty. |
| Remote works for some functions but not others. | TV model incompatibility for certain advanced functions; TV settings. | While this remote is designed for broad compatibility, some highly specific functions might vary by TV model. Check your TV's original manual or settings. |
Specifications
| Feature | Detail |
|---|---|
| Model | RM-L1385 |
| Brand | HUAYU |
| Manufacturer | iHandyTec |
| Connectivity Technology | Infrared |
| Compatible Devices | Television (LCD, LED, Plasma) |
| Controller Type | Button Control |
| Maximum Range | 10 Meters |
| Special Feature | Ergonomic design |
| Power Source | 2 x AAA Batteries (not included) |
| GTIN / UPC | 730964002566 |
| ASIN | B07MT9WX28 |
Warranty and Support
Specific warranty information for this product may vary depending on the retailer and region of purchase. Please refer to your purchase documentation or contact the seller for details regarding warranty coverage.
For technical support or further assistance, please contact the retailer from whom you purchased the remote control. They can provide guidance or direct you to the appropriate support channels.
