1. Introduction
Thank you for purchasing the HiBay Outdoor LED Wall Light with Motion Sensor. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions thoroughly before installation and retain them for future reference.
2. Safety Information
- Electrical Safety: Installation must be performed by a qualified electrician in accordance with all local and national electrical codes. Always disconnect power at the main circuit breaker before installation, maintenance, or bulb replacement.
- IP44 Rating: This fixture is rated IP44, meaning it is protected against solid objects larger than 1mm and against splashing water from any direction. It is suitable for outdoor use in most conditions.
- Environmental Considerations: Do not install this product in areas close to the coast or regions with salty air, as this may accelerate corrosion of the stainless steel.
- Bulb Type: Use only GU10 LED bulbs as specified. Ensure bulbs are securely fitted.
- Operating Voltage: This fixture operates at 230 Volts. Ensure your electrical supply matches this requirement.
3. Package Contents
Please check that all components are present and undamaged before proceeding with installation.
- 1 x HiBay Outdoor LED Wall Light with Motion Sensor
- 2 x GU10 LED Bulbs (5W, 450lm, Warm White)
- Mounting hardware (screws, wall plugs)
- User Manual (this document)
Figure 1: HiBay Outdoor LED Wall Light with Motion Sensor and included GU10 bulbs.
4. Product Overview
The HiBay Outdoor LED Wall Light is designed to provide elegant and functional illumination for your outdoor spaces. Its modern design, constructed from brushed stainless steel, ensures durability and aesthetic appeal.
Key Features:
- Integrated PIR Motion Sensor: Detects movement within a 5-meter range and a 90° detection angle. The light duration is fixed at 60 seconds. Note: Sensor settings are fixed and not adjustable.
- Durable Construction: Made from high-quality brushed stainless steel, offering a modern look and robust housing.
- Weather Resistant: IP44 rated for protection against splashing water, suitable for various outdoor conditions (Waterproof, Snowproof, Windproof, Corrosion-resistant).
- Up/Down Lighting: Provides both upward and downward illumination, creating an attractive lighting effect.
- GU10 LED Bulbs: Includes two energy-efficient 5W GU10 LED bulbs, emitting 450 lumens of warm white light.
- Versatile Application: Ideal for balconies, terraces, hallways, gardens, and other indoor/outdoor areas.
Figure 2: Weather resistance features of the HiBay wall light.
Figure 3: Detailed components of the wall light, including the motion sensor and GU10 socket.
5. Installation Instructions
Important: Ensure power is disconnected at the main circuit breaker before beginning installation. If you are unsure about electrical installations, consult a qualified electrician.
- Prepare the Mounting Location: Choose a suitable wall location for the fixture. Ensure the surface is flat and can support the weight of the light. Consider the motion sensor's detection range (5 meters, 90° angle) when positioning.
- Mark Drilling Points: Hold the mounting bracket against the wall at the desired installation height. Use a pencil to mark the drilling points.
- Drill Holes: Drill holes at the marked points using an appropriate drill bit for your wall material. Insert the provided wall plugs.
- Secure Mounting Bracket: Attach the mounting bracket to the wall using the provided screws. Ensure it is firmly secured.
- Electrical Connection: Carefully connect the electrical wires from your mains supply to the terminal block on the fixture. Ensure correct polarity (Live, Neutral, Earth). All connections must be secure.
- Install GU10 Bulbs: Insert the two GU10 LED bulbs into their respective sockets by pushing and twisting them clockwise until they are secure.
- Attach Fixture to Bracket: Carefully align the light fixture with the mounting bracket and secure it using the provided screws. Ensure a tight seal to maintain the IP44 rating.
- Restore Power: Once installation is complete and all connections are secure, restore power at the main circuit breaker.
Figure 4: Product dimensions for installation planning.
Figure 5: Example of installed HiBay wall lights providing illumination.
6. Operating Instructions
The HiBay Outdoor LED Wall Light features an integrated PIR (Passive Infrared) motion sensor for automatic operation.
- Automatic Activation: The light will automatically turn on when motion is detected within its 5-meter range and 90° detection angle, provided the ambient light level is below a certain threshold (dusk/darkness).
- Light Duration: Once activated, the light will remain on for approximately 60 seconds. If motion is continuously detected, the light will stay on until motion ceases, then turn off after the 60-second delay.
- Fixed Settings: The motion sensor's sensitivity, detection range, and light duration are fixed and cannot be adjusted by the user.

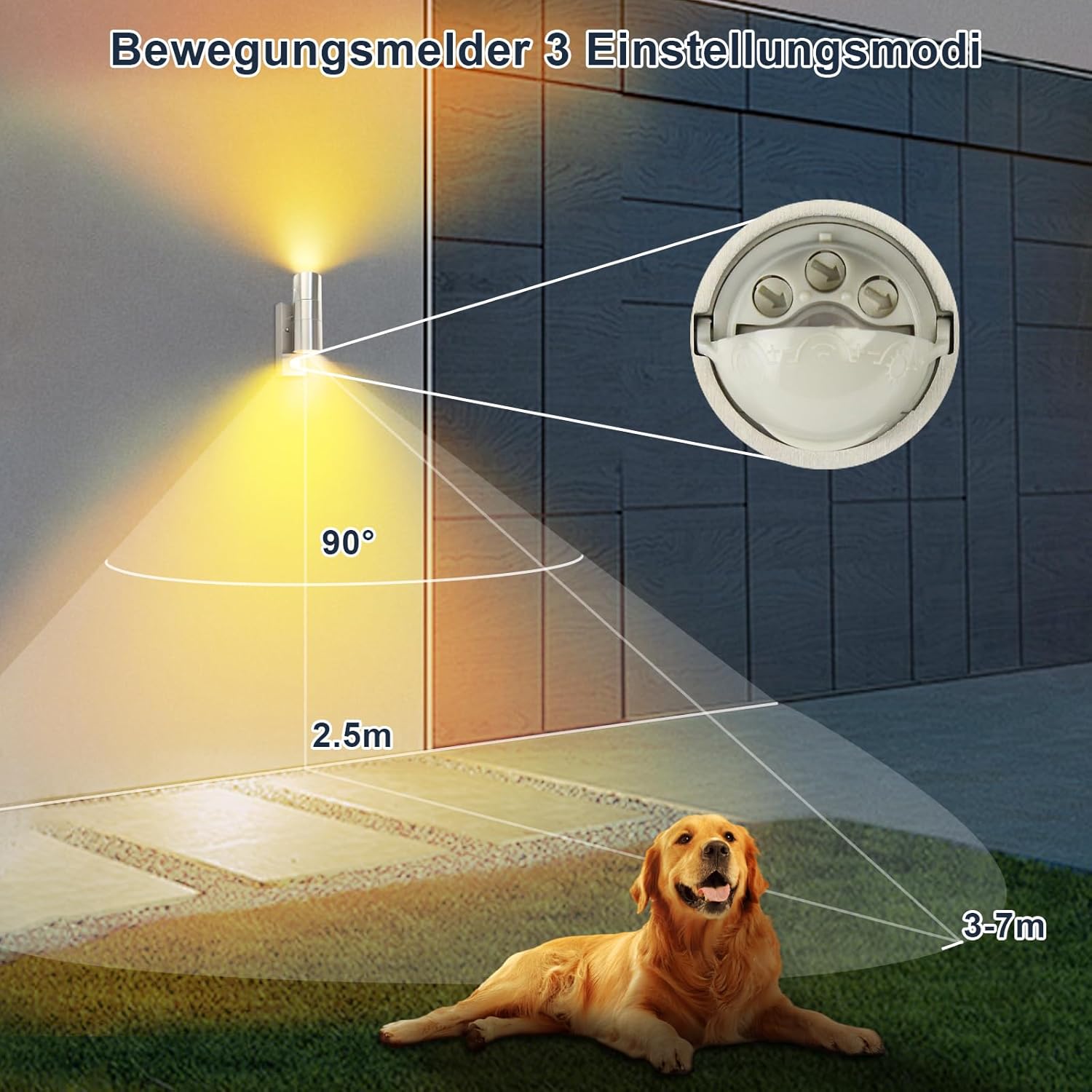

Figure 6: Motion sensor detection area and range.
7. Maintenance
- Cleaning: To clean the fixture, ensure power is disconnected. Wipe the stainless steel surface with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish.
- Bulb Replacement:
- Disconnect power at the main circuit breaker.
- Carefully remove the old GU10 bulb by pushing it in and twisting counter-clockwise.
- Insert a new GU10 LED bulb (max 7W) by pushing it in and twisting clockwise until secure.
- Restore power.
- Inspection: Periodically inspect the fixture for any signs of damage, loose connections, or wear. If any issues are found, disconnect power and consult a qualified electrician.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply. Faulty bulb. Sensor not detecting motion or too much ambient light. | Check circuit breaker. Replace bulb. Ensure it's dark enough for sensor activation. Test sensor by walking in front of it. |
| Light stays on continuously. | Constant motion in detection zone. Sensor malfunction. | Ensure no objects or activities are constantly triggering the sensor. If problem persists, contact support. |
| Light flashes or flickers. | Loose connection. Faulty bulb. | Disconnect power and check all electrical connections. Replace bulb. |
| Motion sensor not working. | Sensor obstructed. Too much ambient light. Sensor malfunction. | Clear any obstructions from the sensor's view. Ensure it's dark enough for activation. If problem persists, contact support. |
9. Technical Specifications
| Feature | Detail |
|---|---|
| Brand | HiBay |
| Model Number | 713721103379 |
| Product Dimensions (L x W x H) | 11 x 6.8 x 22.4 cm |
| Item Weight | 890 grams |
| Material | Stainless Steel |
| Finish Type | Brushed |
| Color | GU10 Warm White |
| Style | Modern |
| Number of Bulbs | 2 |
| Bulb Type | LED (GU10) |
| Wattage | 7 Watts (max per bulb, supplied with 5W) |
| Luminous Flux | 450 lm (per bulb) |
| Voltage | 230 Volts |
| IP Rating | IP44 |
| Special Features | PIR Motion Sensor |
| Motion Sensor Detection Angle | 90° |
| Motion Sensor Detection Range | 5 meters |
| Motion Sensor Light Duration | 60 seconds (fixed) |
| Light Direction | Up/Down Light |
| Power Source | Corded Electric |
| Installation Type | Wall Mount |
Figure 7: Energy efficiency label. For more details, visit EPREL Database.
10. Warranty and Support
HiBay offers a 2-year support period for this product. For any questions, technical assistance, or warranty claims, please contact our customer service. We are committed to providing solid after-sales service and lifelong customer support via email and phone.
Our products adhere to high standards and are user-friendly, certified by UL, ETL, ENERGY STAR, and FCC where applicable.
11. Environmental Protection and Disposal
Do not dispose of electrical appliances as unsorted municipal waste. Use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
