1. Introduction

Thank you for choosing the Hansgrohe Axor Citterio 230 Select Kitchen Mixer. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new kitchen faucet. Please read these instructions carefully before installation and keep them for future reference.

2. Product Overview

The Hansgrohe Axor Citterio 230 Select kitchen mixer is designed for modern kitchens, offering both functionality and elegant design. Key features include:

• ComfortZone 220: Provides ample space between the spout and the sink for comfortable use.
• L-Spout Design: A contemporary L-shaped spout.
• Swivel Range: Adjustable swivel range of 110°/150° for enhanced flexibility.
• 2-Jet Functionality: Features both laminar (clear, aerated) and shower (spray) jets.
• Select Button: Conveniently switch the water jet on and off with a push button.
• Lockable Shower Jet: The shower jet can be locked in position and automatically resets to laminar when the tap is closed.
• MagFit Magnetic Shower Holder: Ensures secure and easy docking of the pull-out spray.
• Quick-Connect Shower Hose: For straightforward installation and reliable connection.
• Ceramic Mixing System: For smooth and precise control of water temperature and flow.
• Integrated Backflow Preventer: Enhances water safety.
• sBox: Provides smooth and protected hose guidance in the base cabinet, allowing for an extension length up to 76 cm.

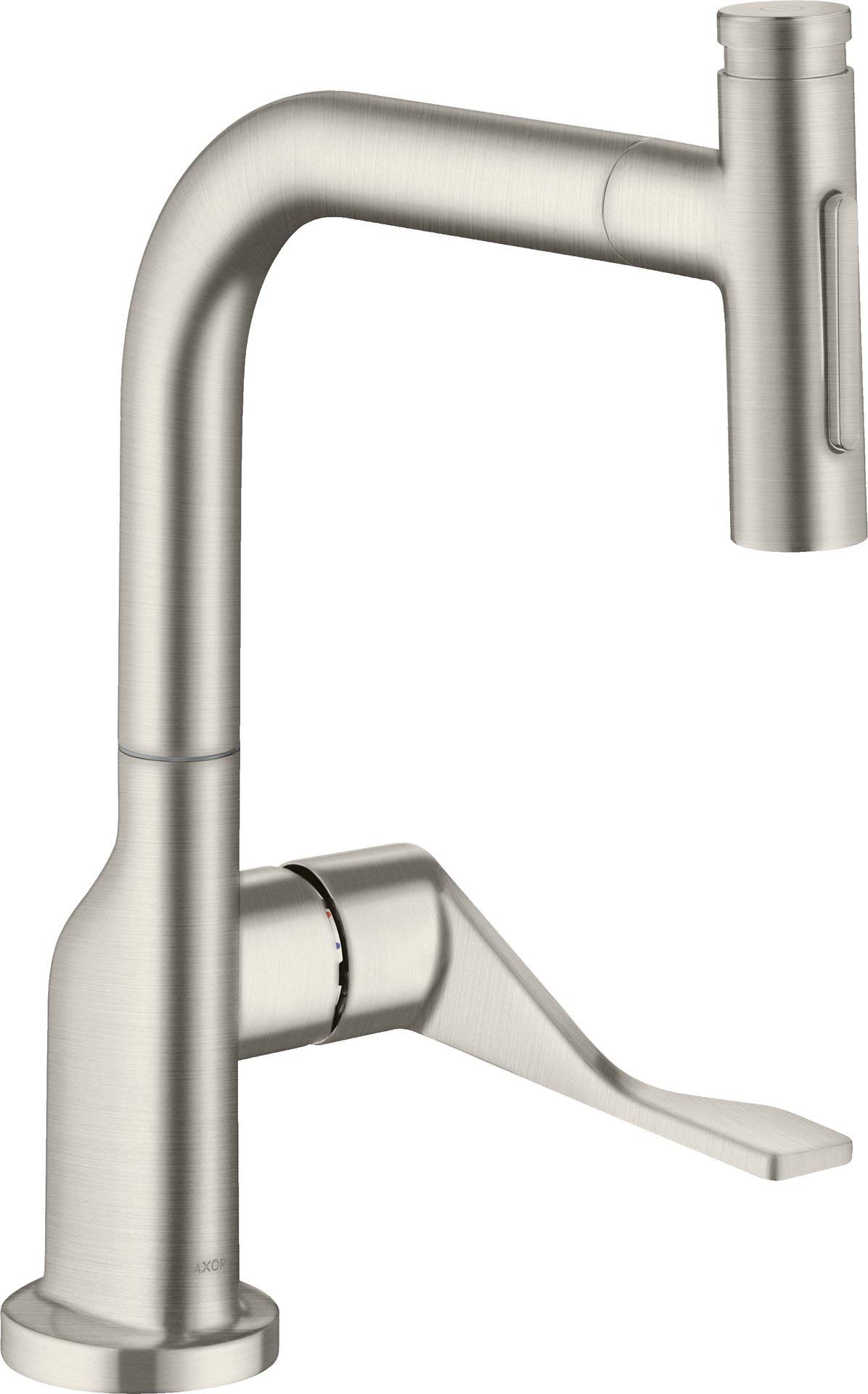

Figure 1: Hansgrohe Axor Citterio 230 Select Kitchen Mixer. This image displays the brushed stainless steel finish, the L-shaped spout, the single lever handle on the right side, and the pull-out spray head at the end of the spout.

3. Setup and Installation

Installation of this kitchen mixer requires basic plumbing knowledge. If you are unsure, it is recommended to consult a qualified professional plumber.

3.1 Pre-Installation Requirements

• Tap Hole: A tap hole with a diameter of 35 mm is required for installation.
• Water Connections: Ensure standard G 3/8 connection hoses are available.
• Space for sBox: Adequate space in the base cabinet is needed for the sBox hose guidance system.
• Water Heater Compatibility: This mixer is suitable for instantaneous water heaters.

3.2 Installation Steps (General Guidance)

1. Turn off the main water supply.
2. Mount the mixer into the prepared tap hole, securing it from below with the provided fasteners.
3. Connect the hot and cold water supply lines to the G 3/8 connection hoses of the mixer.
4. Install the sBox in the base cabinet, ensuring the pull-out hose can move freely.
5. Connect the Quick-Connect shower hose to the pull-out spray and the sBox.
6. Check all connections for leaks before turning on the main water supply.

4. Operating Instructions

The Hansgrohe Axor Citterio 230 Select mixer offers intuitive control for daily use.

4.1 Water Flow and Temperature Control

• Single Lever Handle: Move the lever handle to the left or right to adjust water temperature. Move it up or down to control water flow volume.

4.2 Jet Type Selection and Pull-Out Spray

• Select Button: Press the button located on the pull-out spray head to turn the water flow on or off.
• Jet Adjustment: While the water is flowing, press the button on the spray head to switch between the laminar (aerated) and shower (spray) jets.
• Lockable Shower Jet: The shower jet remains active until you press the button again or close the tap. Closing the tap automatically resets the jet to laminar for the next use.
• Pull-Out Spray: Gently pull the spray head from the spout to extend the hose. The MagFit magnetic holder ensures it retracts smoothly and securely. The sBox allows for an extension length of up to 76 cm.

5. Maintenance

Proper care will ensure the longevity and appearance of your Hansgrohe kitchen mixer.

• Cleaning: Use only mild soap and water with a soft cloth for cleaning. Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the finish.
• Rinsing: Always rinse the faucet thoroughly with clean water after cleaning to remove any soap residue.
• Drying: Dry the faucet with a soft cloth to prevent water spots and maintain its luster.
• Aerator Maintenance: Periodically unscrew and clean the aerator (if accessible) to remove mineral deposits and maintain optimal water flow.

6. Troubleshooting

If you encounter issues with your mixer, refer to the following common solutions:

If these solutions do not resolve the issue, please contact Hansgrohe customer support or a qualified plumber.

7. Specifications

Detailed technical specifications for the Hansgrohe Axor Citterio 230 Select Kitchen Mixer (Model 39862800):

• Manufacturer: Hansgrohe
• Part Number: 39862800
• Item Weight: 11.02 pounds
• Item Model Number: 39862800
• Color: Stainless Steel Look
• Style: Levers
• Finish: Chrome (Note: Product description mentions Steel, but specifications list Chrome. Stainless Steel Look is the primary visual.)
• Material: Stainless Steel (Handle Material: Ceramic)
• Installation Method: Single Hole
• Number of Handles: 1
• Special Features: Magnetic (MagFit)
• Included Components: Hansgrohe Axor Citterio Select 230 2jet DN15 Single-Lever Kitchen Mixer Tap with Pull-Out Spray, sBox
• Batteries Required: No
• First Available Date: December 7, 2018
• ComfortZone: 220
• Swivel Range: 110°/150°
• Flow Rate: 8 l/min
• Tap Hole Requirement: 35 mm
• Connection Hose: G 3/8
• Pull-Out Spray Extension: Up to 76 cm

8. Warranty and Support

Hansgrohe products are manufactured to high-quality standards and come with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your product or visit the official Hansgrohe website.

For technical assistance, spare parts, or any other inquiries, please contact Hansgrohe customer support:

• Website: www.hansgrohe-usa.com (or your regional Hansgrohe website)
• Contact Information: Refer to the Hansgrohe website for local contact numbers and support options.
