WAGO S221 Quick Connect Terminals User Manual

1. Introduction

The WAGO S221 series quick connect terminals are designed for fast, secure, and reliable electrical connections. These compact splicing connectors are suitable for various wire types, including solid, stranded, and fine-stranded conductors, offering a tool-free wiring solution for a wide range of electrical installations. They are ideal for distributing power from a single source to multiple LED drivers or for general electrical junctions.

2. Product Features

• Assortment of 2, 3, and 5-way terminals.
• Terminal is 40% smaller than the S222 model, allowing for use in confined spaces.
• No tools required for connections and disconnections, thanks to the integrated levers on the housing.
• Features 2 test points for easy verification.
• Rated for up to 32A.

3. Setup and Installation

Follow these steps for proper and secure wire connection using WAGO S221 terminals:

1. Prepare the Wire: Carefully remove 11mm of insulation from the tip of the wire. Ensure the exposed conductor is clean and free from damage.
2. Open the Lever: Lift one of the orange operating levers on the WAGO connector to its fully open position (90 degrees).

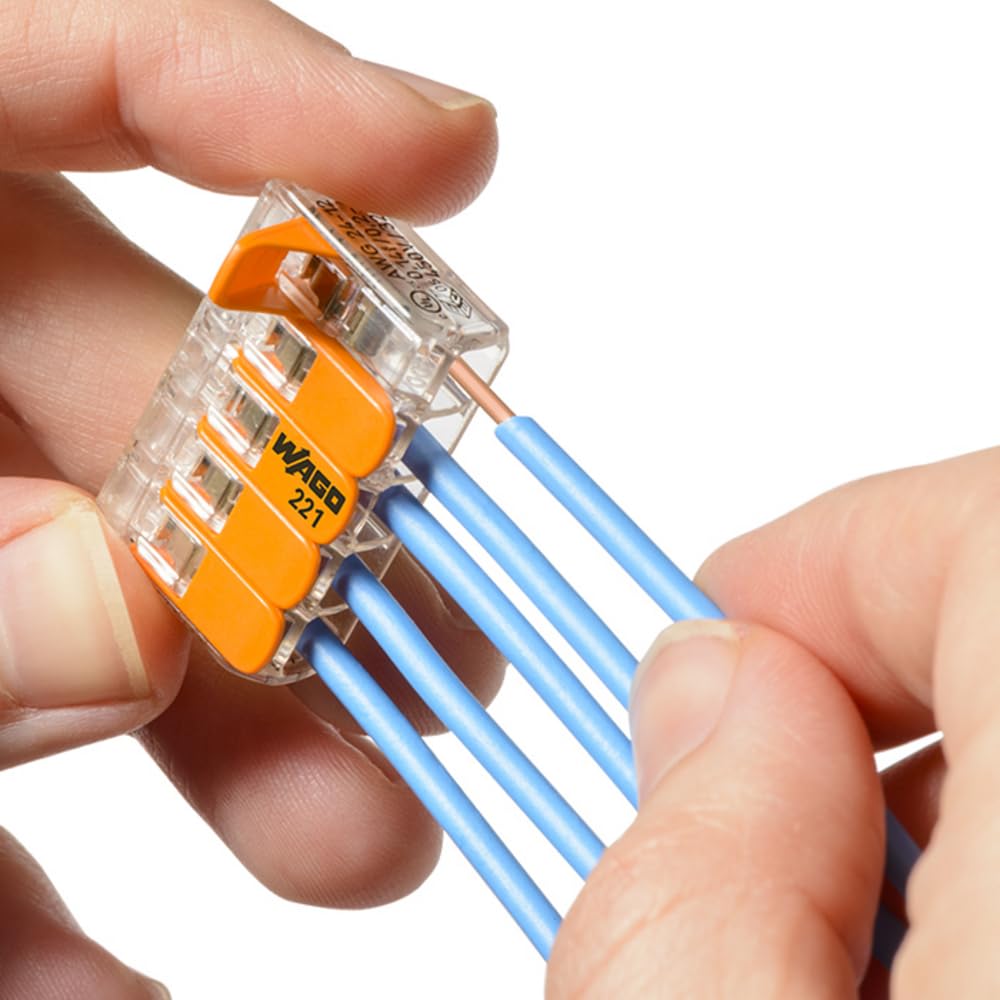

3. Insert the Wire: Insert the prepared, stripped wire into the open clamping unit. Ensure the wire is fully inserted until the insulation meets the terminal body.
4. Close the Lever: Lower the operating lever to close the clamping unit. The lever should snap securely into place, holding the wire firmly.
5. Verify Connection: Gently pull on the wire to ensure it is securely fastened and cannot be easily removed.
6. Repeat for Additional Wires: For multi-way terminals, repeat steps 2-5 for each additional wire.

Installation Video Guide

Product Overview Video

4. Operating Instructions

The WAGO S221 terminals are designed for straightforward operation:

• Connecting: As detailed in the Setup section, simply lift the lever, insert the stripped wire, and close the lever.
• Disconnecting: To remove a wire, lift the corresponding orange operating lever to its fully open position (90 degrees), then gently pull the wire out. Close the lever once the wire is removed.
• Testing: Utilize the integrated test points to verify electrical continuity or voltage without disconnecting the wires.

Important Safety Note:

These connectors are single-circuit terminals. Do not connect active phase wires and neutral/ground conductors on the same terminal block. Each terminal is designed for a single type of conductor (e.g., all phase, all neutral, or all ground) to maintain electrical safety and prevent short circuits.

5. Maintenance

WAGO S221 terminals require minimal maintenance:

• Inspection: Periodically inspect connections for any signs of damage, corrosion, or loose wires.
• Cleaning: If necessary, gently clean the exterior of the terminals with a dry, non-abrasive cloth. Do not use liquid cleaners or solvents.
• Storage: Store terminals in a dry, cool environment, away from direct sunlight and extreme temperatures, to preserve their material integrity.

6. Troubleshooting

If you encounter issues with your WAGO S221 connections, consider the following:

• Loose Connection: Ensure the wire was stripped to the correct length (11mm) and fully inserted before closing the lever. Re-open the lever, re-insert the wire, and close it firmly.
• No Continuity: Check if the wire is properly stripped and inserted. Use the test points to verify continuity. Ensure the wire type (solid, stranded, fine-stranded) is compatible with the terminal's specifications.
• Damaged Terminal: If a terminal appears physically damaged or the lever mechanism is faulty, replace it immediately. Do not attempt to repair damaged terminals.

7. Specifications

8. Warranty and Support

For warranty information, technical support, or further inquiries regarding your WAGO S221 Quick Connect Terminals, please refer to the official WAGO website or contact your authorized WAGO distributor. Keep your purchase receipt as proof of purchase for any warranty claims.
