Genuine Audi Inline Fuel Filter TDI 4G0127401 User Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of the Genuine Audi Inline Fuel Filter TDI, part number 4G0127401. Adhering to these instructions will help ensure the longevity and optimal performance of the fuel filter and your vehicle's fuel system. This component is designed specifically for Audi TDI models.

2. Safety Information

WARNING:

• Fuel systems operate under pressure and contain flammable liquids. Always disconnect the battery and relieve fuel system pressure before working on fuel components.
• Ensure adequate ventilation when working with fuel. Avoid open flames, sparks, or any ignition sources.
• Wear appropriate personal protective equipment (PPE), including safety glasses and fuel-resistant gloves.
• Improper installation can lead to fuel leaks, fire hazards, or engine damage. If you are not experienced with automotive fuel system repairs, it is highly recommended to seek professional assistance from a certified Audi technician.
• Dispose of old fuel filters and any spilled fuel according to local environmental regulations.

3. Product Overview

The Genuine Audi Inline Fuel Filter TDI 4G0127401 is a critical component in your vehicle's fuel delivery system. Its primary function is to remove contaminants such as dirt, rust, and debris from the fuel before it reaches the engine's fuel injectors. This ensures clean fuel delivery, protecting sensitive engine components and maintaining optimal engine performance and fuel efficiency.

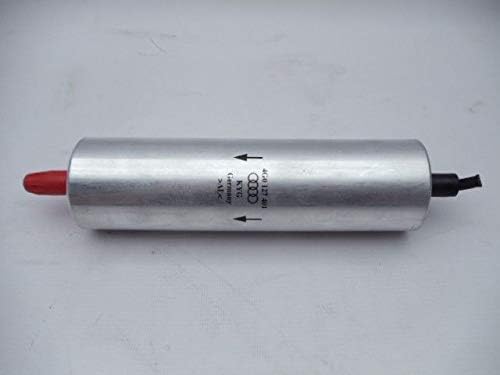

Image: Genuine Audi Inline Fuel Filter TDI 4G0127401. This image displays the cylindrical, silver-colored fuel filter with a red cap on one end and a black connector on the other. The Audi logo and part number 4G0127401 are visible on the side, along with directional arrows indicating fuel flow.

4. Installation

Note: Installation of a fuel filter requires specific tools and knowledge of automotive fuel systems. It is strongly recommended that this procedure be performed by a qualified technician.

4.1. Preparation

1. Park the vehicle on a level surface and engage the parking brake.
2. Ensure the engine is cool.
3. Locate the fuel pump fuse or relay and remove it to de-pressurize the fuel system. Start the engine and let it run until it stalls to relieve residual pressure.
4. Disconnect the negative terminal of the vehicle's battery.
5. Place a drain pan beneath the fuel filter location to catch any spilled fuel.

4.2. Removal of Old Filter

1. Identify the fuel filter's mounting location (often under the vehicle, near the fuel tank).
2. Carefully disconnect the fuel lines from both ends of the old filter. Be prepared for some fuel spillage. Use appropriate fuel line disconnect tools if necessary.
3. Unmount the old filter from its bracket.

4.3. Installation of New Filter

1. Ensure the new filter's flow direction matches the vehicle's fuel flow. The filter has arrows indicating the correct direction.
2. Mount the new filter securely into its bracket.
3. Connect the fuel lines to the new filter, ensuring they are fully seated and secured. Double-check all connections to prevent leaks.

4.4. Post-Installation

1. Reconnect the fuel pump fuse/relay.
2. Reconnect the negative battery terminal.
3. Turn the ignition key to the "ON" position (without starting the engine) for a few seconds to allow the fuel pump to prime the system. Repeat this step a few times.
4. Inspect all connections for any signs of fuel leaks.
5. Start the engine and allow it to idle for a few minutes, checking for leaks again.

5. Operating Principles

The inline fuel filter operates by passing fuel through a filtration medium, typically made of pleated paper or synthetic material. As fuel flows through the filter, microscopic particles and impurities are trapped within the filter media, preventing them from reaching the fuel injectors and other sensitive components of the fuel system. This process ensures that only clean fuel is delivered to the engine, which is crucial for efficient combustion, optimal engine performance, and preventing wear on fuel system components.

6. Maintenance

The fuel filter is a wear item and requires periodic replacement. Refer to your vehicle's owner's manual or service schedule for the recommended replacement interval. Factors such as fuel quality and driving conditions can influence the lifespan of the filter. A clogged fuel filter can lead to reduced engine performance, poor fuel economy, difficulty starting, or engine stalling.

Symptoms of a Clogged Fuel Filter:

• Reduced engine power or acceleration.
• Engine misfires or rough idling.
• Difficulty starting the engine.
• Engine stalling at low speeds.
• Check Engine Light illumination (in some cases).

If you experience any of these symptoms, it is advisable to have your fuel filter inspected by a qualified technician.

7. Troubleshooting

Most issues related to the fuel filter are resolved by timely replacement. However, if problems persist after replacement, consider the following:

• Fuel Leaks After Installation: Re-check all fuel line connections to ensure they are properly seated and tightened. Inspect O-rings or seals for damage.
• Engine Not Starting or Rough Running Immediately After Replacement: Ensure the fuel filter is installed with the correct flow direction. Verify that the fuel system has been properly primed and there is no air trapped in the lines.
• Persistent Performance Issues: If a new filter does not resolve performance issues, the problem may lie elsewhere in the fuel system (e.g., fuel pump, injectors) or other engine components. Professional diagnostic testing is recommended.

8. Specifications

9. Warranty and Support

This Genuine Audi part is covered by Audi's standard manufacturer warranty. For specific warranty terms and conditions, please refer to the documentation provided with your vehicle or contact an authorized Audi dealership. For technical support, installation assistance, or to purchase genuine replacement parts, please contact your local authorized Audi service center or parts department. Always provide the part number (4G0127401) and your vehicle's VIN when seeking support.

Disclaimer: This manual is for informational purposes only and does not replace professional automotive repair advice. Always consult with a qualified technician for complex repairs.
