Brightech Maxwell Shelf Floor Lamp Instruction Manual

Introduction

This manual provides instructions for the safe and efficient use of your Brightech Maxwell Shelf Floor Lamp. This product combines a functional floor lamp with integrated shelving, a USB charging port, a standard electrical outlet, and a wireless charging pad. Please read all instructions carefully before assembly and use.

Safety Instructions

• Ensure the lamp is unplugged before assembly, cleaning, or bulb replacement.
• Do not exceed the maximum load capacity of 50 lbs for the shelves.
• Do not use the lamp in wet or damp locations. For indoor use only.
• Keep the power cord away from heat sources and sharp edges.
• Do not attempt to modify or repair the lamp. Contact customer support for assistance.
• Use only the specified bulb type (E26 base, LED).

Package Contents

Verify that all components are present before beginning assembly:

• Lamp body with integrated shelves
• LED bulb (9.5 Watt, 800 lumen, 3000K warm white)
• Lamp shade panels
• Assembly hardware (screws, connectors)

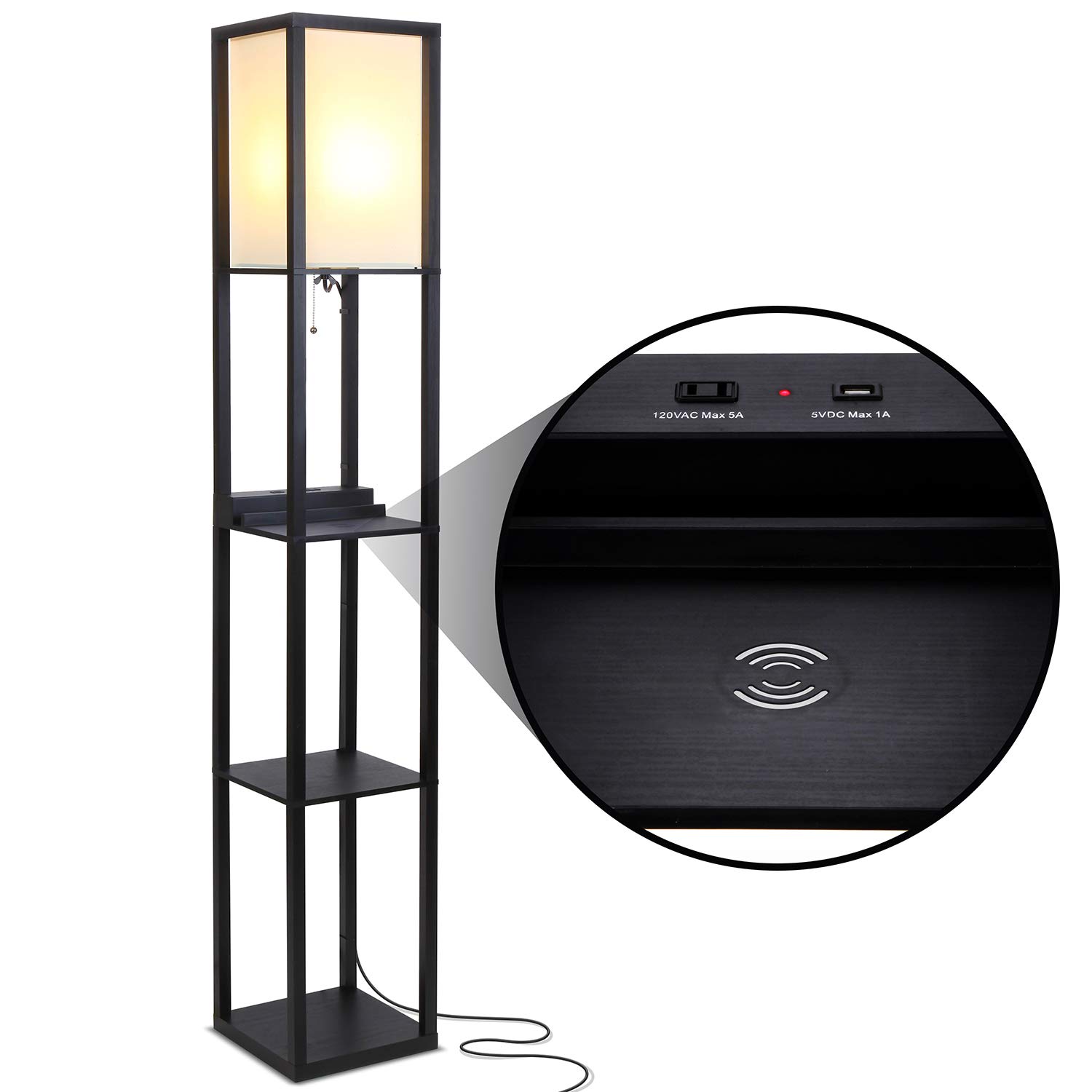

Image: The Brightech Maxwell Shelf Floor Lamp in black, showcasing its integrated shelves and lamp shade.

Assembly Instructions

Follow these steps to assemble your Brightech Maxwell Shelf Floor Lamp:

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface.
2. Assemble Frame: Connect the vertical support beams to the base and the top section using the provided hardware. Ensure all connections are secure.
3. Install Shelves: Slide the shelf panels into the designated slots within the frame. Ensure they are level and firmly seated.
4. Attach Lamp Shade: Secure the lamp shade panels around the light fixture at the top of the lamp.
5. Insert LED Bulb: Screw the included LED bulb into the lamp socket (E26 base). Do not overtighten.
6. Position Lamp: Place the assembled lamp in its desired location, ensuring it is stable and the power cord can reach an outlet without tension.

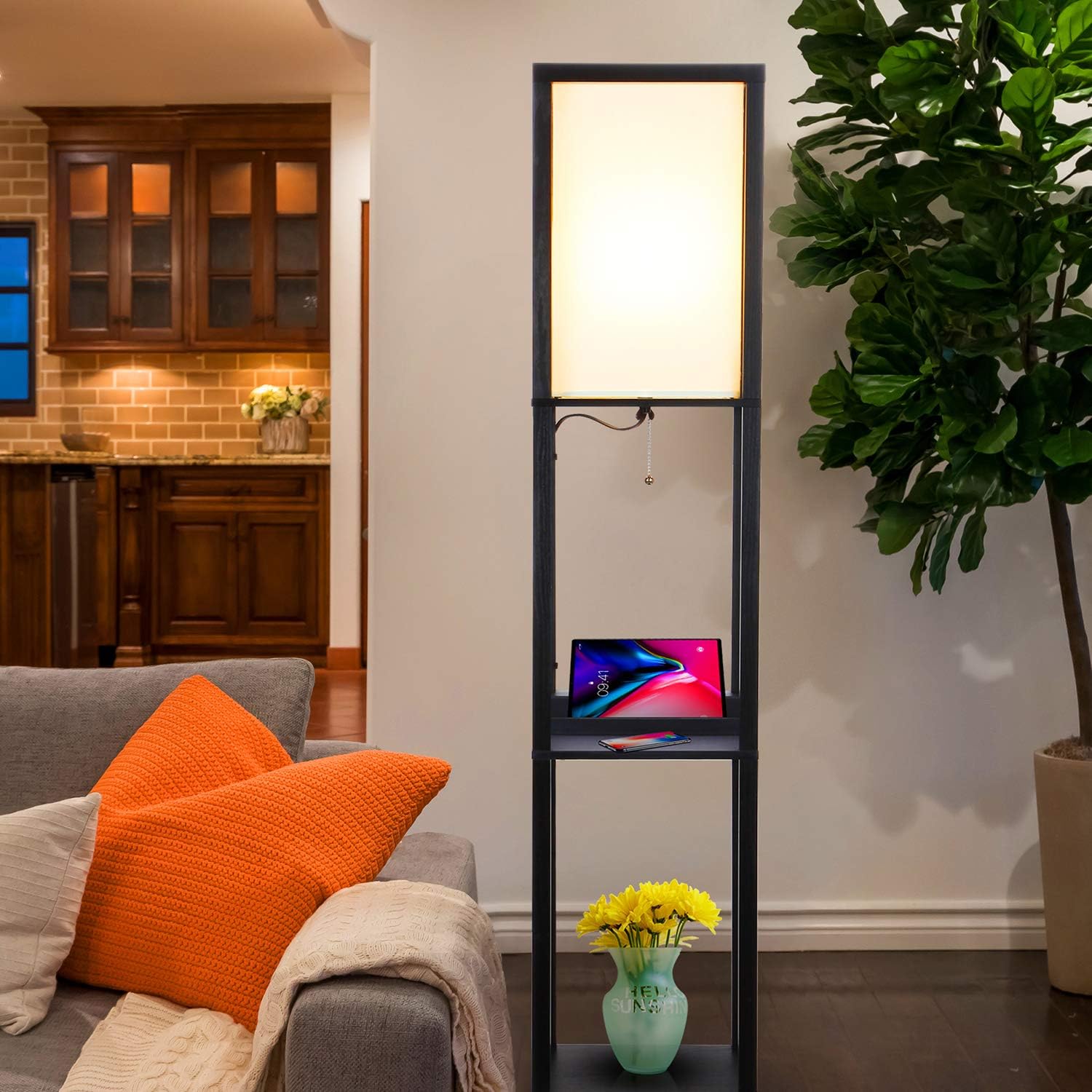

Image: The assembled Brightech Maxwell Shelf Floor Lamp positioned in a living room, demonstrating its use as both a light source and a display unit.

Operating Instructions

Lamp Operation

• Power On/Off: The lamp is operated by a pull chain switch located beneath the light fixture. Pull the chain once to turn the light on, and pull it again to turn it off.
• Smart Home Compatibility: This lamp is designed to work with smart home systems like Alexa, Apple HomeKit, and Google Home Assistant. A smart bulb and/or smart outlet (sold separately) are required for this functionality. Once a compatible smart device is installed, you can control the lamp via voice commands or smart home apps.

Image: A close-up view of the lamp shade and the pull chain mechanism of the Brightech Maxwell Floor Lamp.

Charging Features

The Brightech Maxwell lamp includes a USB port, a standard electrical outlet, and a wireless charging pad for your convenience.

• USB Charging Port: Located on the charging shelf, this port provides 5VDC Max 1A output for charging compatible devices such as smartphones and tablets.
• Standard Electrical Outlet: Also on the charging shelf, this 120VAC Max 5A outlet allows you to plug in small appliances or chargers.
• Wireless Charging Pad: For devices that support wireless charging (Qi-compatible), place your device directly on the designated charging pad. Ensure the device is centered for optimal charging. A green indicator light will typically illuminate when a device is charging wirelessly.

Image: A smartphone placed on the wireless charging pad of the Brightech Maxwell lamp, indicating active charging.

Maintenance

• Cleaning: Unplug the lamp before cleaning. Wipe the wood frame and shelves with a soft, dry cloth. For the lamp shade, use a lint-free cloth or a soft brush to remove dust. Do not use abrasive cleaners or solvents.
• Bulb Replacement: The included LED bulb has an estimated lifespan of 20,000 hours or longer, meaning it should not require frequent replacement. If replacement is necessary, ensure the lamp is unplugged and cool. Use an E26 base LED bulb, not exceeding 9.5 watts.

Troubleshooting

• Lamp does not turn on:
  • Ensure the power cord is securely plugged into a working electrical outlet.
  • Check if the pull chain switch is fully engaged.
  • Verify the LED bulb is screwed in correctly and is not damaged.
• USB port or electrical outlet not working:
  • Ensure the lamp is plugged into a live outlet.
  • Check if the device you are trying to charge or power is functioning correctly.
• Wireless charging not working:
  • Confirm your device supports Qi wireless charging.
  • Ensure your device is centered on the charging pad.
  • Remove any thick phone cases that might interfere with wireless charging.
  • Check for any metal objects between the phone and the charging pad.

Specifications

Warranty and Support

Brightech USA offers an industry-leading 3-year warranty covering defects, malfunctions, or sudden failures to your standing lamp when purchased through us. For any questions, issues, or warranty claims, please contact our friendly USA-based support team. Refer to your purchase documentation for specific contact information.
