1. Introduction
This manual provides detailed instructions for the safe and effective use of your Bubos Baby Wipe Warmer Model 1. Please read all instructions carefully before initial use and retain this manual for future reference.
Figure 1: Bubos Baby Wipe Warmer Model 1. This image displays the main unit with its lid closed, highlighting the brand logo and the transparent window for checking wipe levels.
2. Product Components
Familiarize yourself with the various parts of your Bubos Baby Wipe Warmer:

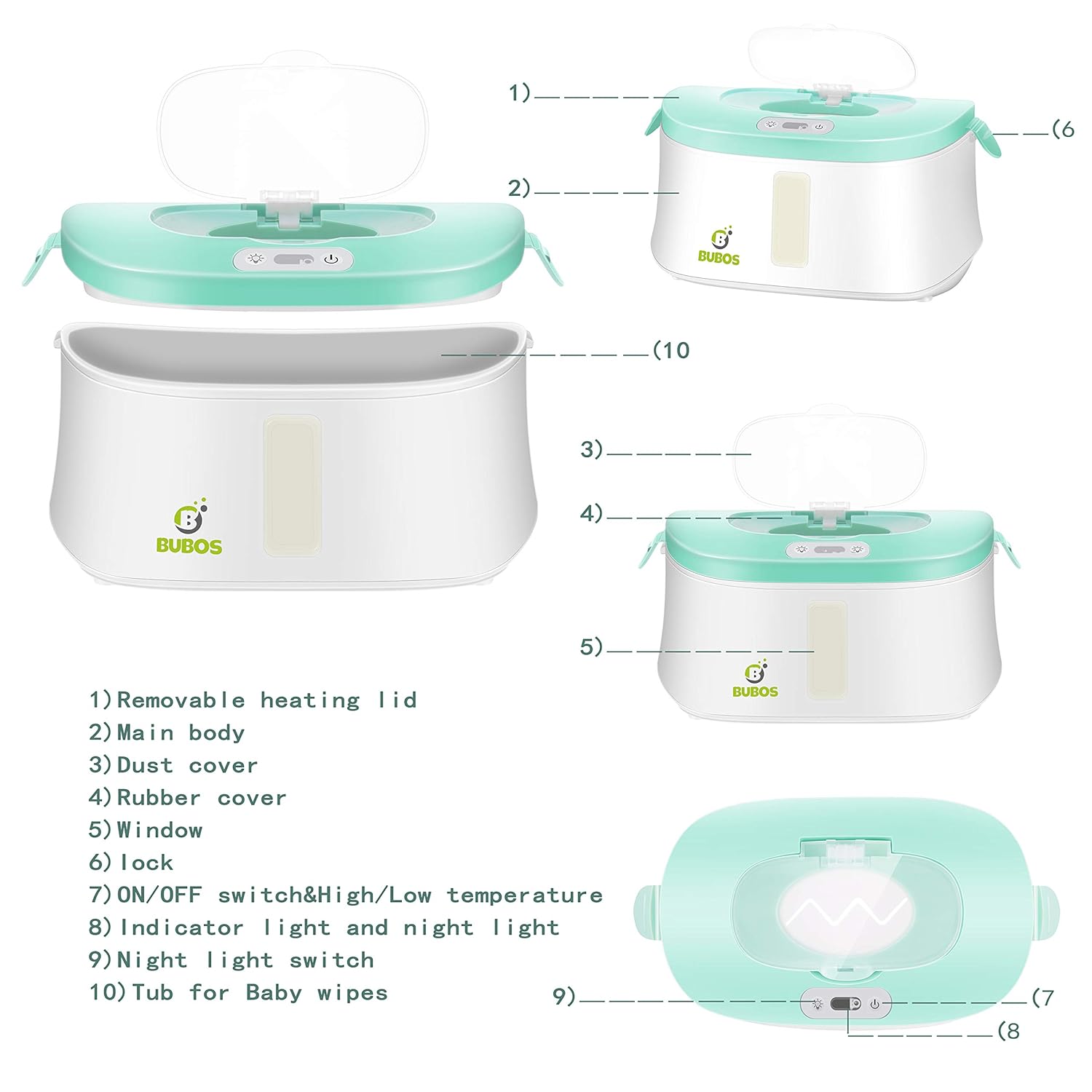

Figure 2: Exploded view and labeled diagram of the Bubos Baby Wipe Warmer components. This image illustrates the removable heating lid, main body, dust cover, rubber cover, window, lock, ON/OFF switch, temperature settings, indicator light, night light switch, and the wipe tub.
- Removable Heating Lid: Contains the heating element and controls.
- Main Body: The primary enclosure for the wipe tub.
- Dust Cover: Protects the wipe opening.
- Rubber Cover: Helps seal moisture and dispenses wipes.
- Window: Transparent section to monitor wipe supply.
- Lock: Secures the heating lid to the main body.
- ON/OFF Switch & High/Low Temperature Control: Power and heat setting selection.
- Indicator Light & Night Light: Shows power/heat status and provides illumination.
- Night Light Switch: Activates the night light feature.
- Tub for Baby Wipes: Holds the stack of baby wipes.
3. Setup Instructions
- Unpack the Warmer: Remove all packaging materials and ensure all components are present and undamaged.
- Place Wipes: Open the main lid by unlatching the side locks. Place a standard pack of baby wipes into the wipe tub. Ensure the first wipe is pulled through the rubber cover opening on the heating lid.
- Secure the Lid: Align the heating lid with the main body and press down firmly until the side locks click into place. This ensures a tight seal to retain moisture.
- Connect Power: Plug the power adapter into the warmer and then into a standard electrical outlet.
Figure 3: Loading wipes into the warmer. This image shows a hand pulling a wipe through the silicone opening, demonstrating the top-down warming system.
4. Operating Instructions
4.1 Power and Heat Settings
- Power On/Off: Press the power button on the heating lid to turn the warmer on or off. The indicator light will illuminate when powered on.
- Select Heat Level: The warmer offers two heat settings: Low Heat (indicated by a yellow light) and High Heat (indicated by a red light). Toggle the switch next to the power button to select your desired temperature. The top-heated design ensures the wipes at the top are consistently warm.
- Dispensing Wipes: Open the small dust cover on the heating lid and gently pull a wipe through the silicone opening. The patented silicone seal helps prevent wipes from drying out.
Figure 4: Close-up of the silicone seal. This image highlights the flexible silicone opening that helps maintain moisture and facilitates single-wipe dispensing.
4.2 Night Light Feature
The Bubos Baby Wipe Warmer includes an integrated LED night light. Press the light bulb icon button on the heating lid to activate it. The night light provides soft illumination for nighttime diaper changes without needing to turn on bright room lights. It will automatically shut off after 10 minutes.
Figure 5: Night light in operation. This image shows the warmer with its LED night light glowing softly in a low-light environment.
5. Maintenance
- Cleaning: Disconnect the warmer from the power outlet before cleaning. Wipe the exterior with a soft, damp cloth. Do not immerse the unit in water. For the interior, gently wipe with a damp cloth and mild soap, then rinse with a clean damp cloth. Ensure all parts are dry before reassembling and plugging in.
- Moisture Retention: To prevent wipes from drying out, always ensure the heating lid is securely latched. If wipes begin to dry, add a small amount of water to the bottom of the wipe tub (below the wipes) to re-moisten them.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Warmer not turning on | Not plugged in; Power button not pressed. | Ensure power cord is securely plugged into the unit and outlet. Press the power button. |
| Wipes are dry | Lid not sealed properly; Insufficient moisture in wipes. | Ensure the lid is securely latched. Add a small amount of water to the bottom of the wipe tub. |
| Wipes not warm enough | Low heat setting selected; Wipes not in contact with heating element. | Switch to High Heat setting. Ensure wipes are stacked to reach the top heating element. |
| Night light not working | Night light switch not pressed. | Press the light bulb icon button to activate the night light. |
7. Specifications
- Model Number: 1
- Material: Silicone
- Item Weight: 1.6 Pounds
- Package Dimensions: 9.84 x 6.89 x 5.55 inches
- Manufacturer: Bubos
- Recommended Age: 0 months and up
- UPC: 718930072089, 718930071808
8. Safety Information
- Always unplug the warmer when not in use or before cleaning.
- Do not immerse the unit in water or other liquids.
- Keep out of reach of children when not in use.
- Use only with the provided power adapter.
- Do not attempt to disassemble or repair the unit yourself. Contact customer support for assistance.
- Ensure the warmer is placed on a stable, flat surface.
