Product Overview
The EinCar Android 6.0 Quad Core Car Stereo is a double DIN in-dash multimedia system designed for vehicle integration. It features a 6.2-inch capacitive HD touch screen, built-in GPS navigation, Bluetooth connectivity for hands-free calling and music streaming, and a DVD/CD player. This unit supports Wi-Fi and 4G internet connectivity (with optional dongle) and comes with a wireless backup camera for enhanced safety. An external microphone is also included for clear audio during calls.
Image: Front view of the EinCar Android Car Stereo unit, showcasing the 6.2-inch display and control buttons. Various accessories such as a wireless backup camera, remote control, and external microphone are displayed around the main unit.
Key Features
- Operating System: Android 6.0 Marshmallow
- Processor: Quad-core CPU
- Memory: 1GB RAM, 16GB Internal Storage
- Display: 6.2-inch Capacitive HD Touch Screen (1024 x 600 resolution)
- Navigation: Built-in GPS with support for Google Maps online navigating and dual zone function
- Connectivity: Built-in Wi-Fi, Bluetooth for hands-free calls and music, USB, SD card support
- Multimedia: DVD/CD Player, support for various music and video formats (MPEG-1/2/4, H264, MP3, WMA, AAC, etc.)
- Radio: FM/AM tuner with RDS function
- Camera Support: Wireless backup camera included, supports DVR input (DVR not included)
- Screen Mirroring: Compatible with iPhone and Android smartphones
- Customization: Live wallpapers, DIY wallpaper from Gallery, adjustable button light colors
Image: A visual representation of the car stereo's main menu interface, displaying icons for Radio, Music, Weather, Navigation, and Bluetooth. Key specifications like Android 6.0, Quad Core CPU, 1GB RAM, and 16GB ROM are highlighted. The image also shows the multi-color button customization feature.
Installation and Setup
It is highly recommended to have this unit installed by a qualified professional to ensure proper wiring and functionality. Incorrect installation can lead to damage to the unit or your vehicle.
Package Contents:
- EinCar Android Car Stereo Unit
- Wireless Backup Camera
- External Microphone
- ISO Cable
- GPS Antenna
- Remote Control
- Install Brackets
- USB Cable
- User's Manual (this document)
- Warranty Card
Image: A detailed view of the included accessories such as the microphone, ISO cable, GPS antenna, remote control, install bracket, user's manual, warranty card, and USB cable. Below this, a diagram illustrates the rear connections of the car stereo, labeling various audio/video outputs, USB, GPS antenna, and microphone inputs.
Wiring Diagram (Refer to the included diagram for full details):
Connect the ISO cable to your vehicle's wiring harness. Ensure all connections are secure.
- Power Connections: Connect the constant 12V (yellow), accessory 12V (red), and ground (black) wires.
- Speaker Connections: Connect the speaker wires according to their polarity (e.g., front left +, front left -).
- GPS Antenna: Connect the GPS antenna to the dedicated port on the rear of the unit and place it in a location with a clear view of the sky.
- External Microphone: Plug the external microphone into its designated jack for improved call quality.
- Backup Camera: Connect the wireless backup camera receiver to the unit's video input for rearview display. Ensure the camera is powered correctly.
- USB/SD: Connect USB devices or insert SD cards into the respective slots for media playback.
Operating Instructions
Basic Operation and Interface Navigation:
The unit features a capacitive touch screen for intuitive control. Physical buttons on the left and right sides of the display provide quick access to common functions like MAP, MIC, POWER, RADIO, DVD, MENU, MODE, BT, DIM, and TUN.

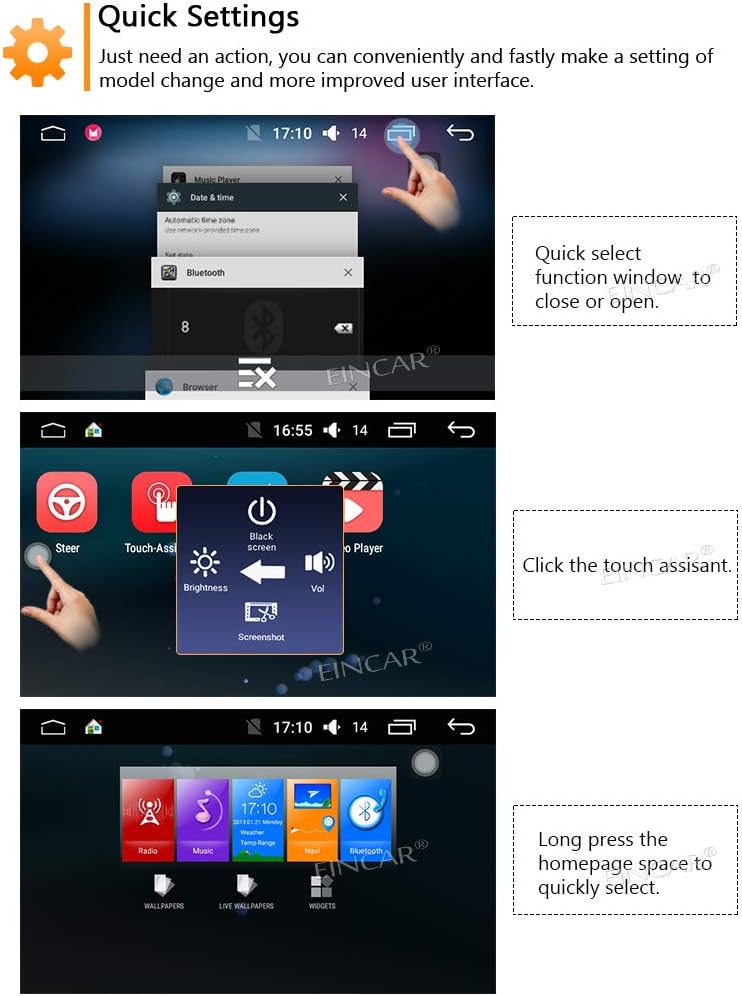

Image: Demonstrates quick settings and interface navigation. It shows how to quickly select function windows, access the touch assistant for brightness and volume control, and long-press the homepage space for quick selection of wallpapers, live wallpapers, and widgets.
- Power On/Off: Press the POWER button.
- Volume Control: Use the VOL knob or the on-screen volume controls.
- Quick Settings: Access common settings like brightness, black screen, and volume via the touch assistant.
- Homepage Customization: Long-press an empty area on the homepage to change wallpapers or add widgets.
GPS Navigation System:
The unit comes with a built-in GPS system supporting both US and Russian GLONASS satellites for improved positioning accuracy.
Image: Illustrates the GPS navigation interface, showing a map view and controls. It also displays two examples of positioning data, one showing signal strength from GPS satellites and another showing a compass-like display with both GLONASS and GPS satellite positions.
- Access Navigation: Press the MAP button or select the Navigation icon on the home screen.
- Online Navigation: Supports Google Maps and other online navigation applications when connected to the internet.
- Dual Zone Function: Navigate while playing music or other media in the background.
Bluetooth Connectivity:
Connect your smartphone via Bluetooth for hands-free calling and audio streaming.
Image: Shows the Bluetooth interface with a dial pad and call history. It also illustrates the screen mirroring function, indicating compatibility with Android (USB/WiFi) and iPhone (WiFi) devices, allowing content from the phone to be displayed on the car stereo screen. An external microphone is shown, emphasizing clear sound.
- Pairing: Go to the Bluetooth settings on the unit and your phone, search for available devices, and pair with "EinCar" or similar.
- Hands-Free Calling: Make and receive calls directly from the unit. The external microphone ensures clear voice transmission.
- Bluetooth Music: Stream audio from your phone to the car stereo. Use play/pause/previous/next controls on the unit.
- Phonebook: Download your phone's contacts for easy dialing.
Radio (AM/FM RDS):
Enjoy your favorite radio stations with the built-in AM/FM tuner and RDS function.

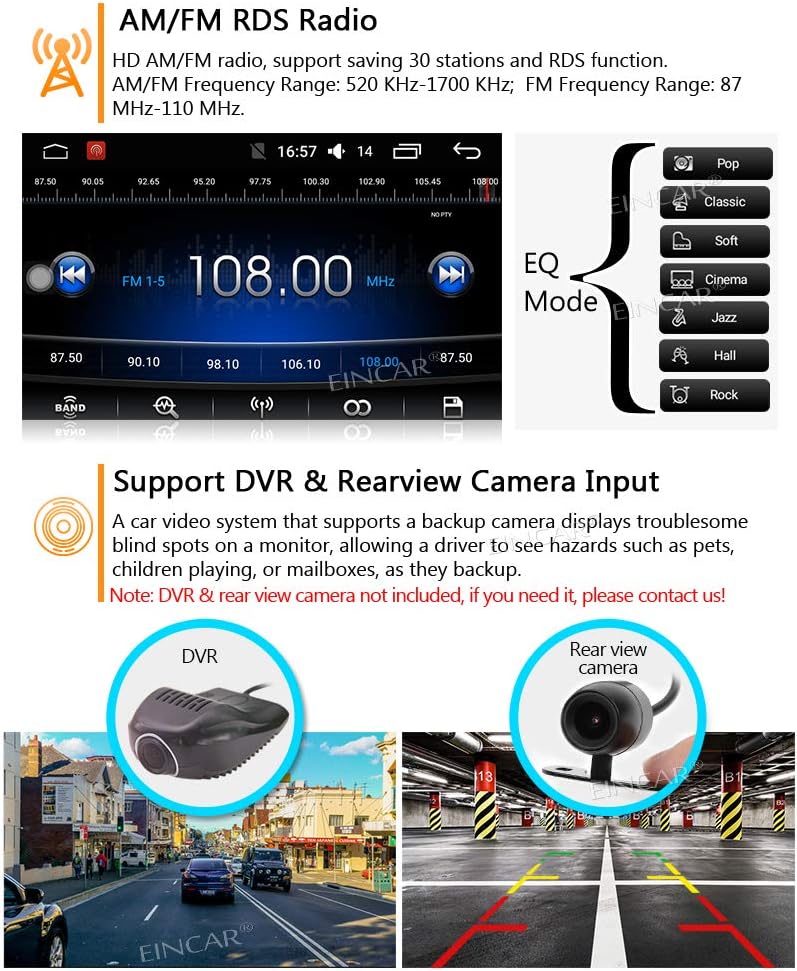

Image: Displays the AM/FM radio interface with frequency display and station presets. It also shows an EQ (Equalizer) mode selection with options like Pop, Classic, Soft, Jazz, Hall, and Rock. Additionally, the image illustrates the support for DVR and rearview camera inputs, showing examples of a DVR camera and a rearview camera with parking lines.
- Tuning: Manually tune or use auto-scan to find stations.
- Presets: Save up to 30 favorite stations for quick access.
- RDS Function: Displays station information (e.g., song title, artist) where available.
- Equalizer (EQ): Adjust audio settings with various preset EQ modes (Pop, Classic, Jazz, etc.) or custom settings.

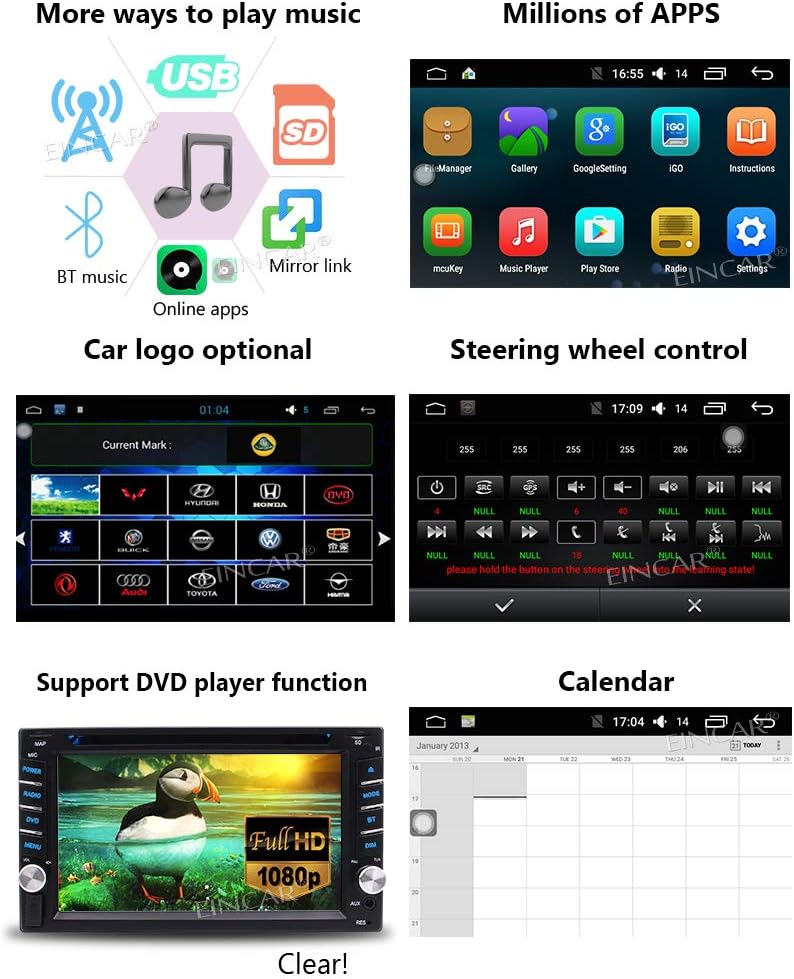

Multimedia Playback:
The unit supports various media sources and formats.
- DVD/CD Player: Insert discs into the slot for playback.
- USB/SD Card: Connect USB drives or insert SD cards containing music or video files.
- Supported Formats:
- Music: MP3, WMA, AAC, RM, FLAC etc.
- Video: MPEG-1/2/4, H264, H263, VC1, RV, RMVB, DivX, Sorenson Spark, VP8, AVS Stream.
- Photo: JPS, BMP, PNG, GIF.
- Online Apps: Access millions of apps via Google Play Store when connected to the internet.
Internet Connectivity (Wi-Fi & 4G):
The unit has built-in Wi-Fi for internet access. 4G internet requires an additional dongle (not included).
Image: Highlights the support for Wi-Fi hotspot sharing and 4G internet. It shows icons for mobile hotspot, built-in Wi-Fi sharing, and 4G network, along with the Google Play Store logo, indicating access to thousands of apps.
- Wi-Fi Hotspot: Connect to your phone's mobile hotspot or a public Wi-Fi network.
- 4G Internet: Requires a compatible 4G dongle (sold separately) for cellular data access.
- Google Play Store: Download and install various applications for navigation, entertainment, and utilities.
Screen Mirroring:
Mirror your smartphone's screen onto the car stereo display.
- Compatibility: Supports iPhone (via Wi-Fi) and Android smartphones (via USB or Wi-Fi).
- Usage: Display navigation apps, videos, photos, or other content from your phone.
DVR & Rearview Camera Input:
The unit supports external DVRs and rearview cameras.
- Rearview Camera: The included wireless backup camera automatically displays the rear view when the vehicle is in reverse.
- DVR Input: Connect a compatible DVR (not included) to record driving footage.
Steering Wheel Control:
If your vehicle supports steering wheel controls, you can configure them to operate the car stereo.
- Setup: Access the steering wheel control settings in the unit's menu to map functions to your vehicle's steering wheel buttons.
Maintenance
Proper maintenance ensures the longevity and optimal performance of your EinCar car stereo.
- Cleaning the Screen: Use a soft, lint-free cloth to gently wipe the touch screen. For stubborn smudges, slightly dampen the cloth with water or a screen cleaner designed for electronics. Avoid harsh chemicals or abrasive materials.
- Cleaning the Unit: Wipe the exterior of the unit with a dry, soft cloth. Do not use liquid cleaners directly on the unit.
- Disc Tray: Keep the DVD/CD disc tray free of dust and debris. Avoid inserting bent, scratched, or irregular-shaped discs.
- Ventilation: Ensure the unit's ventilation openings are not blocked to prevent overheating.
- Software Updates: Periodically check the manufacturer's website or contact support for any available software updates to improve performance and add features.
Troubleshooting
If you encounter issues with your EinCar car stereo, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not power on. | Incorrect wiring; Blown fuse; Vehicle battery issue. | Check power connections (yellow, red, black wires). Inspect vehicle's fuse box and the unit's fuse. Ensure vehicle battery is charged. |
| No sound. | Volume too low; Mute function active; Incorrect speaker wiring; Amplifier issue. | Increase volume. Check if unit is muted. Verify speaker connections. If external amplifier is used, check its power and connections. |
| GPS signal lost or inaccurate. | GPS antenna not properly connected or obstructed; Driving in areas with poor satellite coverage. | Ensure GPS antenna is securely connected and placed in a clear location (e.g., dashboard, away from metal obstructions). Move to an open area. |
| Bluetooth connection issues. | Device not in pairing mode; Interference; Unit or phone Bluetooth off. | Ensure both unit and phone Bluetooth are on and in pairing mode. Delete previous pairings and try again. Move closer to the unit. Restart both devices. |
| Touch screen unresponsive. | Software glitch; Screen calibration needed; Physical damage. | Restart the unit. Perform a factory reset (refer to settings menu, note this will erase data). If issue persists, contact support. |
| Backup camera not displaying. | Camera not powered; Incorrect video input connection; Wireless signal interference. | Check power supply to the camera. Verify video input connection on the unit. Ensure wireless transmitter/receiver are functioning. |
For issues not listed here, or if solutions do not resolve the problem, please contact EinCar customer support.
Specifications
| Feature | Detail |
|---|---|
| Brand | EinCar |
| Model Number | aTT.AN6032GNN+WFCAM4 |
| Operating System | Android 6.0 |
| CPU | Quad-core frequency |
| RAM | 1GB DDR3 |
| Internal Storage (Flash) | 16GB |
| Screen Size | 6.2 Inches |
| Display Type | Capacitive HD Touch Screen, LCD |
| Resolution | 1024 x 600 |
| Radio Tuner | FM/AM, RDS, DAB/DAB+ (optional) |
| GPS | Built-in, supports Google Maps, Dual Zone |
| Compatible Disc | DVD/CD Player |
| Video Decoder | 1080P |
| Wi-Fi | Built-in |
| Bluetooth | Yes, for hands-free calls, music streaming, phonebook |
| Supported Music Formats | MP3, WMA, AAC, RM, FLAC etc. |
| Supported Video Formats | MPEG-1/2/4, H264, H263, VC1, RV, RMVB, DivX, Sorenson SparK, Spark, VP8, AVS Stream |
| Supported Photo Formats | JPS, BMP, PNG, GIF etc. |
| Screen Link | Yes (Android USB/WiFi, iPhone WiFi) |
| Human Interface Input | Microphone, Touchscreen |
| Connector Type | Bluetooth, USB, Wi-Fi |
| Voltage | 12 Volts |
| Product Dimensions | 17.8 x 17.2 x 10 cm (7.01 x 6.77 x 3.94 inches) |
| Item Weight | 2.5 Kilograms |
| UPC | 784237330931 |
Warranty and Support
Your EinCar Android Car Stereo comes with a warranty. Please refer to the included Warranty Card for specific terms, conditions, and duration of the warranty.
Customer Support:
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact EinCar customer support.
- Online Support: Visit the official EinCar website for FAQs, drivers, and software updates.
- Contact Information: Refer to the Warranty Card or product packaging for direct contact details (phone, email).
